Toyota Paseo | 1995-1999 | Fuse Box Diagrams and Locations

The second-generation Toyota Paseo (L50), produced from 1995 to 1999, is a compact two-door coupe known for its sporty styling, reliability, and fuel efficiency. Built on the same platform as the Toyota Tercel and Starlet, it offered an affordable entry into Toyota’s sportier lineup during the late 1990s.

In this article, you will find fuse box diagrams for the Toyota Paseo, covering model years 1995, 1996, 1997, 1998, and 1999. These diagrams are essential for understanding the electrical system and assisting with maintenance or troubleshooting.

What’s Included:

Fuse Box Diagrams – Visual representations of the fuse and relay layouts for quick identification.
Fuse Panel Locations – Directions to help you find each fuse panel inside the vehicle.
Fuse Assignments – Detailed explanations of each fuse and relay’s function to aid diagnostics and repairs.

Whether you’re addressing an electrical problem or replacing a faulty fuse, this guide provides the information you need to maintain the Toyota Paseo (1995–1999) in dependable working condition.

What’s Included

Passenger Compartment

Fuse Box Location

It is located behind the cover to the left and below the steering wheel. There is also one fuse in the right side mount, and the panel under the steering wheel must be removed to access it.

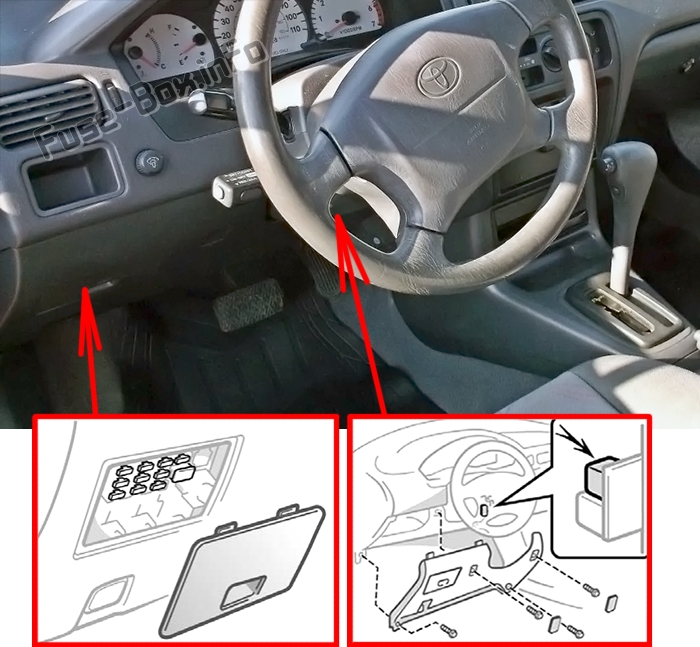

The location of the fuses in the passenger compartment: Toyota Paseo (L50; 1995-1999)

Fuse Box Diagram

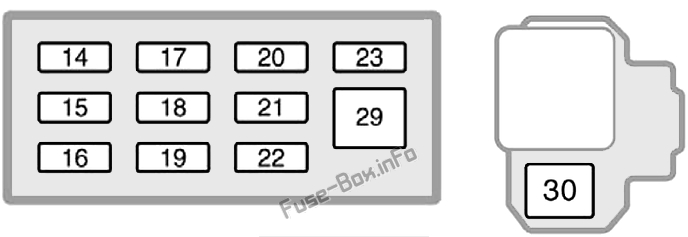

Assignment of the fuses in the instrument panel

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Description
14	STOP	10A	Stop lights, high mounted stoplight, anti-lock brake system, shift lock control system
15	A/C	10A	Air conditioning system
16	TAIL	15A	Tail lights, parking lights, license plate lights, instrument panel lights, emergency flashers, air conditioning system, rear window defogger, car audio system, cigarette lighter, clock
17	GAUGE	10A	Gauge and meters, service reminder indicators and warning buzzers (except discharge and open door warning lights), back-up lights, rear window defogger, daytime running light system
18	TURN	7.5A	1995-1997: Turn signal lights, emergency flashers; 1998-1999: Turn signal lights
19	WIPER	20A	Windshield wipers and washer
20	ECU-IG	5A	Anti-lock brake system, air conditioning system, shift lock control system
21	CIG&RADIO	15A	Cigarette lighter, car audio system, clock, theft deterrent system, shift lock control system
22	IGN	5A	Charging system, discharge warning light, multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system, seat belt pretensioners
23	ECU-B	5A	SRS airbag warning light, seat belt pretensioners, daytime running light system
29	DEF	30A/40A	Rear window defogger
30	PWR	30A	Power windows, power door lock system

Engine Compartment

Fuse Box Location

There are two or three fuse boxes near the battery.

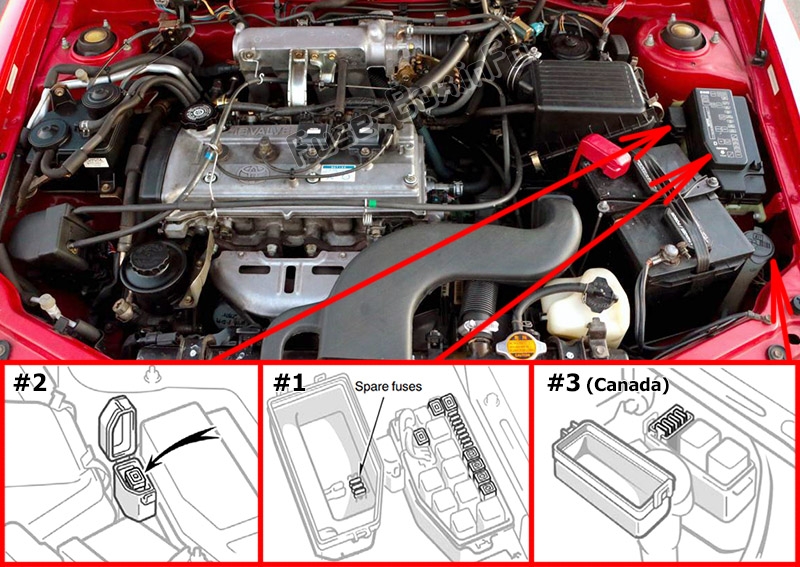

The location of the fuses in the engine compartment: Toyota Paseo (L50; 1995-1999)

Fuse Box Diagram

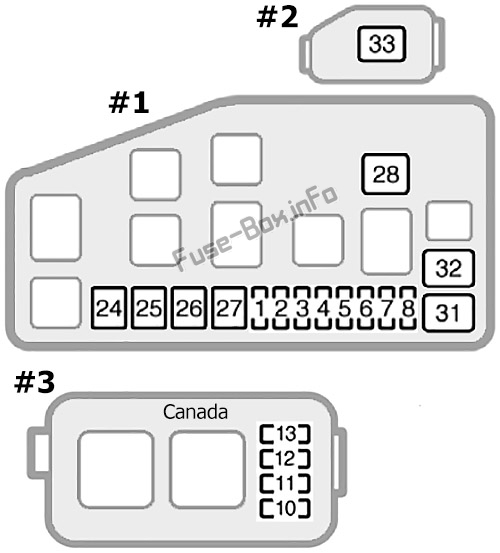

Assignment of the fuses in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp
1	HEAD (LH)	10A	US: Left-hand headlight
1	DRL	5A	Canada: Daytime running light system
2	HEAD (RH)	10A	US: Right-hand headlight
3	AM2	15A	Ignition system, charging system, multiport fuel injection system/ sequential multiport fuel injection system, SRS airbag system, seat belt pretensioners, starter system
4	HAZ-HORN	15A	1995-1997: Horns, turn signal lights, emergency flashers, theft deterrent system; 1998-1999: Horns, emergency flashers, theft deterrent system
5	EFI	15A	Multiport fuel injection system/sequential multiport fuel injection system
6	DOME	10A	Personal lights, open door warning light, clock, car audio system, theft deterrent system, daytime running light system
7	OBD-II	7.5A	On-board diagnosis system
8	ALT-S	5A	Charging system
10	HEAD (RH-LWR)	10A	Canada: Right-hand headlight (low beam)
11	HEAD (LH-LWR)	10A	Canada: Left-hand headlight (low beam)
12	HEAD (RH-UPR)	10A	Canada: Right-hand headlight (high beam)
13	HEAD (LH-UPR)	10A	Canada: Left-hand headlight (high beam)
24	CDS FAN	30A	Electric cooling fan
25	RAD FAN	30A	Electric cooling fan
26	HEATER	40A	Air conditioning system, “A/C” fuse
27	DIMMER	30A	Canada: “HEAD RH (Lo)”, “HEAD LH (Lo)”, “HEAD RH (Hi)” and “HEAD LH (Hi)” fuses
28	MAIN	30A	Starter system
31	ABS	60A	Anti-lock brake system
32	AM1	40A/50A	“DEF”, “WIPER”, “GAUGE”, “ECU-IG”, “TURN”, “IGN”, “CIG&RADIO” and “PWR” fuses
33	ALT	100A	“ABS”, ‘’STOP”, “TAIL”, “ECU-B”, “DEF”, “AM1”, “WIPER”, “GAUGE”, “ECU-IG”, “TURN”, “IGN” and “PWR” fuses

FAQ

Which fuse controls the cigar lighter (power outlet) in the Toyota Paseo?

In the Toyota Paseo, the cigar lighter (12 V power outlet) is protected by fuse #21, labeled “CIG & RADIO”, located in the Instrument Panel Fuse Box.

If your cigarette socket stops working, check this fuse and replace it with the correct rating as specified in your owner’s manual.
