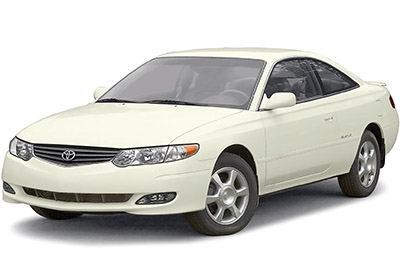

The first-generation Toyota Solara (Model Code: XV20), produced from 1998 to 2003, is a mid-size coupe and convertible based on the Toyota Camry platform. Offering a combination of sporty styling and Toyota’s hallmark reliability, the Solara became a popular choice for drivers seeking comfort with a touch of performance.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
In this article, you will find fuse box diagrams for the Toyota Solara, covering model years 1998, 1999, 2000, 2001, 2002, and 2003. These diagrams are essential for locating and identifying fuses and relays used in the vehicle’s electrical systems.
What’s Included:

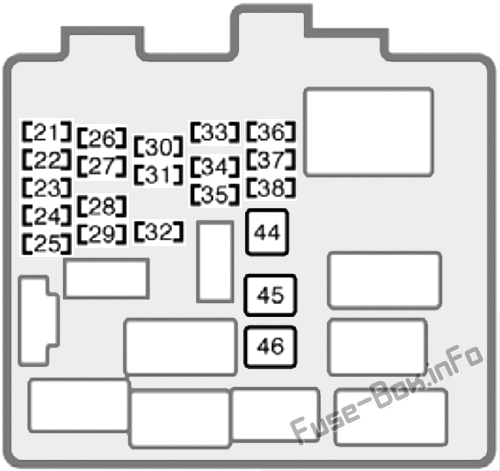

Fuse Box Diagrams – Easy-to-read visual layouts that show the position and identification of each fuse and relay.

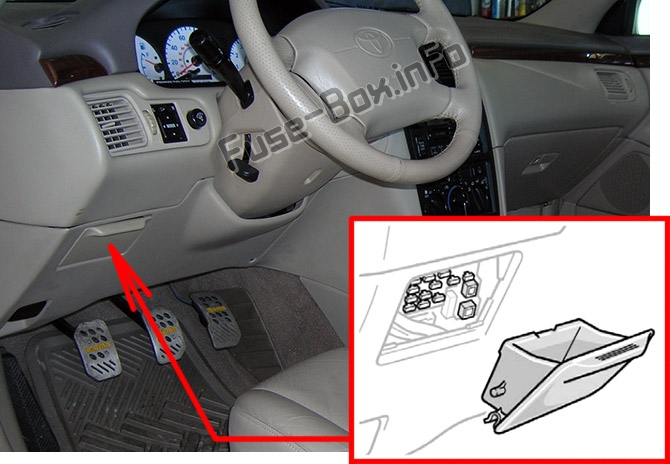

Fuse Panel Locations – Clear instructions on where to find the interior and engine compartment fuse boxes.
Fuse Assignments – Detailed descriptions of what each fuse and relay controls, helping with diagnostics and repairs.
Whether you’re troubleshooting a malfunction, replacing a blown fuse, or performing preventative maintenance, this guide provides the information needed to keep your Toyota Solara (1998–2003) running reliably.
Air conditioning system, rear window defogger, starting system
23
GAUGE
10A
Gauges and meters, back-up lights, cruise control system, charging system, traction control system, daytime running light system, power windows, service reminder indicators and warning buzzers
24
WIPER
25A
Windshield wipers and washer
25
MIRROR-HEATER
10A
Outside rear view mirror defogger
26
ECU-IG
15A
Cruise control system, anti-lock brake system, SRS airbag system, seat belt pretensioners, theft deterrent system, shift lock control system, traction control system, daytime running light system, locking with wireless remote control system, multiport fuel injection system/sequential multi-port fuel injection system
27
IGN
5A
Gauges and meters, charging system, SRS airbag system, seat belt pretensioners, multiport fuel injection system/sequential multiport fuel injection system
28
STOP
15A
Stop lights, cruise control system, high-mounted stoplight, antilock brake system, shift lock control system, multiport fuel injection system/ sequential multiport fuel injection system
29
TAIL
10A
Parking lights, license plate lights, tail lights, front side marker lights, daytime running light system, multiport fuel injection system/sequen-tial multiport fuel injection system
30
POWER-OUTLET
15A
Power outlet
31
OBD
7.5A
On-board diagnosis system
32
FOG
15A
Front fog lights
33
STARTER
5A
Gauges and meters, Multiport fuel injection system/sequen-tial multiport fuel injection system
34
DOOR
25A
Power door lock system, theft deterrent system
35
PANEL
7.5A
Gauge and meter, audio system, cigarette lighter, glove box light, clock, instrument panel light control, service reminder indicators, air conditioning control panel lights, ashtray light, emergency flasher, daytime running light system, rear window defogger, electronically controlled automatic transmission system
36
TURN
7.5A
Emergency flasher
37
RAD-â„–2
7.5A
Audio system
38
CIG
15A
Cigarette lighter, shift lock control system, power rear view mirror controls, theft deterrent system, power door lock system, SRS airbag system, seat belt pretensioners, outside rear view mirror defogger, air conditioning system
44
DEF
40A
Rear window defogger
45
PWR
30A
Power window control system, power seat, electric moon roof
46
AM1
40A
No circuit
Engine Compartment

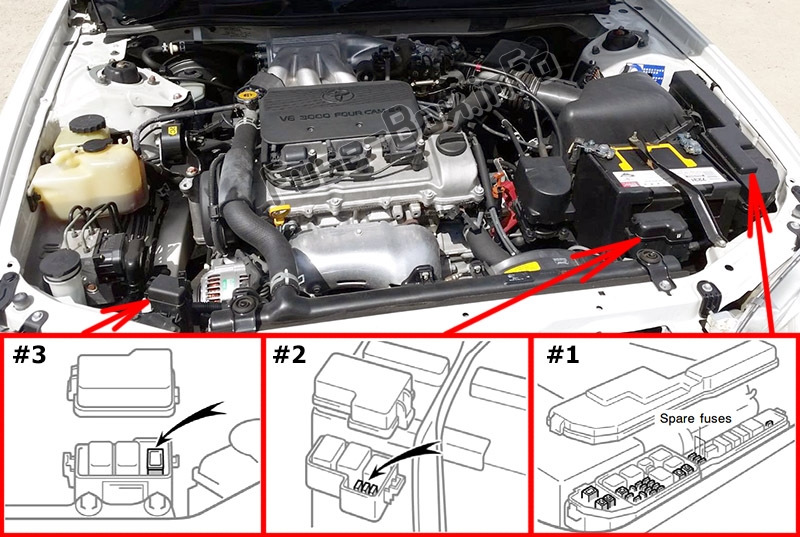

Fuse Box Location
There are two or three fuse blocks, depending on the version and equipment.

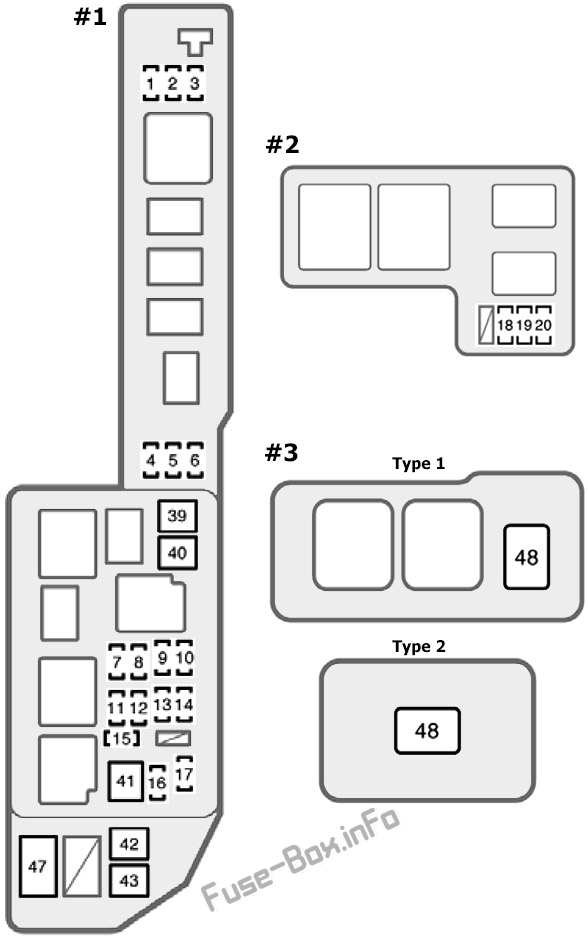

Fuse Box Diagram
Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Gauge and meter, SRS airbag system, seat belt pretensioners, Multiport fuel injection system/sequential multiport fuel injection system, “IGN” and “ST” fuses
13
TEL
5A
No circuit
14
HEAD_LH(HI) or HEAD_LH(UPR) or HEAD(LH)
20A
Left-hand headlight (high beam)
15
RADIO â„–1
20A
Audio system
16
DOME
7.5A
Theft deterrent system, daytime running light system, clock, locking with wireless remote control system, ignition switch light, personal light, trunk light, electric moon roof, interior light, vanity mirror light, door courtesy light, power door lock system, quarter trim courtesy light
17
ECU-B
10A
Cruise control system, anti-lock brake system, SRS airbag system, seat belt pretensioners
18
DRL â„–2
5A
DRL â„–2 5 A: Daytime running light system
19
H-LP_LH(LWR)
10A
Left-hand headlight (low beam)
20
H-LP_RH(LWR)
10A
Right-hand headlight (low beam)
39
CDS
30A
Electric cooling fans
40
RDI
30A
Electric cooling fans
41
MAIN
40A
“HEAD RH(UPR)” or “HEAD(RH)”, “HEAD LH(UPR)” or “HEAD(LH)”, “H−LP LH(LWR)”, “H−LP RH(LWR)” fuses
42
HTR
50A
“AM1” and “A/C” fuses
43
T-STK
30A
Convertible top control system, quarter window control system
47
ALT
100A
“RDI” and “CDS” fuses
48
FL ABS
60A
Anti-lock brake system
FAQ
Which fuses control the cigar lighter and power outlet in the Toyota Solara?
In the Toyota Solara, the cigar lighter and power outlet are protected by the following fuses located in the Instrument Panel Fuse Box:
Fuse #30 – Power outlet Fuse #38 – Cigarette lighter
If either the lighter or power socket is not functioning, check these fuses and replace any that are blown using the correct amperage rating.
