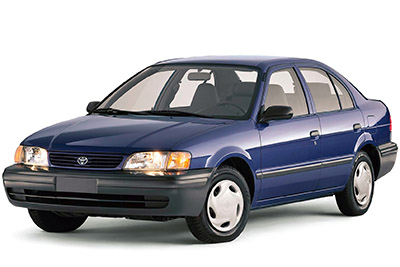

The fifth-generation Toyota Tercel (Model Code: L50), produced from 1994 to 1999, marked the final iteration of this compact and affordable sedan. Known for its fuel efficiency, simple mechanics, and reliability, the Tercel was a popular choice among drivers seeking an economical and low-maintenance vehicle. This generation featured a more refined design, improved safety features, and a revised suspension for better handling.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
In this article, you will find fuse box diagrams for the Toyota Tercel, covering model years 1994, 1995, 1996, 1997, 1998, and 1999. These diagrams help owners and technicians identify the fuses and relays responsible for various electrical systems in the vehicle.
What’s Included:
Fuse Box Diagrams – Detailed visuals that show the layout and labeling of fuses and relays.
Fuse Panel Locations – Guidance on where to find the interior and engine compartment fuse boxes.
Fuse Assignments – Clear descriptions of each fuse’s purpose, covering systems like lighting, radio, ignition, power windows, and more.
Whether you’re replacing a blown fuse or troubleshooting an electrical issue, this guide will help you maintain the Toyota Tercel (1994–1999) and ensure its electrical systems remain in proper working order.

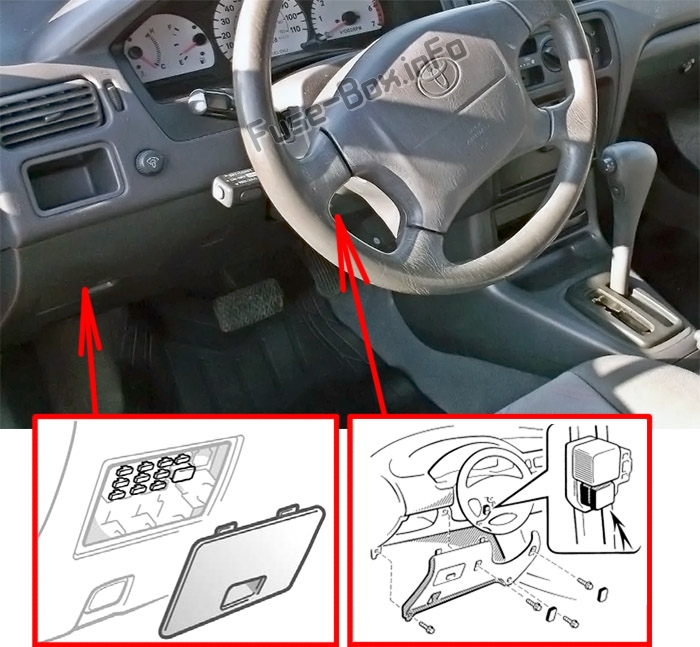

It is located behind the cover to the left and below the steering wheel. There is also one fuse in the right side mount, and the panel under the steering wheel must be removed to access it.

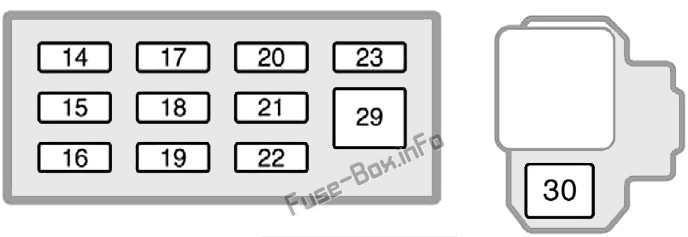

Fuse Box Diagram
Assignment of the fuses in the instrument panel
Fuse Data
Full access is available to registered users — log in or register.
Stop lights, high mounted stoplight, anti-lock brake system, shift lock control system
15
A/C
10A
Air conditioning system
16
TAIL
15A
Tail lights, parking lights, license plate lights, instrument panel lights, air conditioning system, emergency flashers, air conditioning system, rear window defogger, car audio system, cigarette lighter, clock
17
GAUGE
10A
Gauge and meters, service reminder indicator (except headlight high beam indicator) and warning buzzers (except discharge, open door and SRS warning lights), back-up lights, rear window defogger, power windows
18
TURN
7.5A
1995-1997: Turn signal lights, emergency flashers; 1998-1999: Turn signal lights
19
WIPER
20A
Windshield wipers and washer
20
ECU-IG
5A
1995-1997: Anti-lock brake system, air conditioning system; 1998-1999: Anti-lock brake system, air conditioning system, shift lock control system, daytime running light system
21
CIG&RADIO
15A
Cigarette lighter, car audio system, clock, theft deterrent system, shift lock control system, SRS airbag system, seat belt pretensioners
Interior lights, open door warning light, clock, car audio system, theft deterrent system, daytime running light system

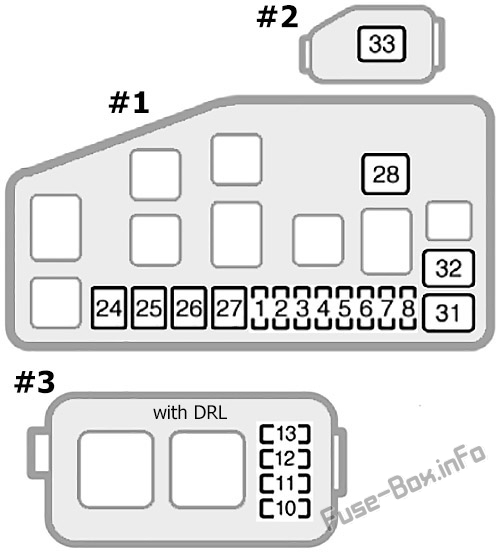

7
OBD-II
7.5A
On-board diagnosis system
8
ALT-S
5A
Charging system
10
HEAD_(RH-LWR)
10A
With DRL: Right-hand headlight (low beam)
11
HEAD_(LH-LWR)
10A
With DRL: Left-hand headlight (low beam)
12
HEAD_(RH-UPR)
10A
With DRL: Right-hand headlight (high beam)
13
HEAD_(LH-UPR)
10A
With DRL: Left-hand headlight (high beam)
24
CDS FAN
30A
Electric cooling fans
25
RAD FAN
30A
Electric cooling fans
26
HEATER
40A
Air conditioning system, “A/C” fuses
27
DIMMER
30A
With DRL: “HEAD (RH-LWR)”, “HEAD (LH-LWR)”, “HEAD (RH-UPR)” and “HEAD (LH-UPR)” fuses
28
MAIN
30A
Starter system
31
ABS
60A
Anti-lock brake system
32
AM1
50A
“DEF”, “WIPER”, “GAUGE”, “ECU-IG”, “TURN”, “IGN”, “PWR” and “CIG&RADIO” fuses
33
ALT
100A
“ABS”, “STOP”, “TAIL”, “ECU-B” or “SRS”, “DEF”, “AM1”, “WIPER”, “GAUGE”, “ECU-IG”, “TURN”, “PWR” and “CIG&RADIO” fuses
FAQ
Which fuse controls the cigar lighter (power outlet) in the Toyota Tercel?
In the Toyota Tercel, the cigar lighter and radio circuits are protected by fuse #21, labeled “CIG & RADIO”, located in the Instrument Panel Fuse Box.
