Toyota Tundra (2007-2013)

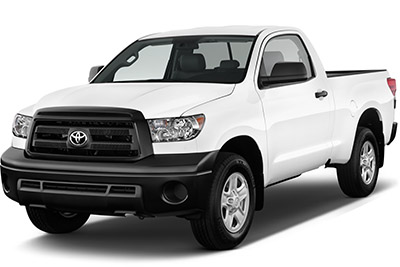

The second-generation Toyota Tundra (Model Code: XK50), produced from 2007 to 2013 before its facelift, is a full-size pickup truck known for its durability, powerful engine options, and work-ready utility. Built in the U.S., the Tundra of this era offered configurations to suit both commercial and personal use, with available V6 and V8 engines, spacious interiors, and advanced towing capabilities.

In this article, you will find fuse box diagrams for the Toyota Tundra, covering model years 2007, 2008, 2009, 2010, 2011, 2012, and 2013. These diagrams are essential for identifying the location and function of each fuse and relay, helping with troubleshooting and electrical maintenance.

What’s Included:

  • Fuse Box Diagrams – Visual guides showing the fuse and relay layout for each model year.
  • Fuse Panel Locations – Clear instructions on how to locate the fuse boxes inside the cabin and engine compartment.
  • Fuse Assignments – Descriptions of each fuse’s function, including key systems like the audio unit, lighting, HVAC, and power accessories.

Whether you’re replacing a blown fuse or tracking down an electrical issue, this guide is a valuable tool for maintaining your Toyota Tundra (2007–2013) and ensuring that all electrical systems operate as intended.

Passenger Compartment

Fuse Box Location

It is located under the dashboard (remove the lid to access).

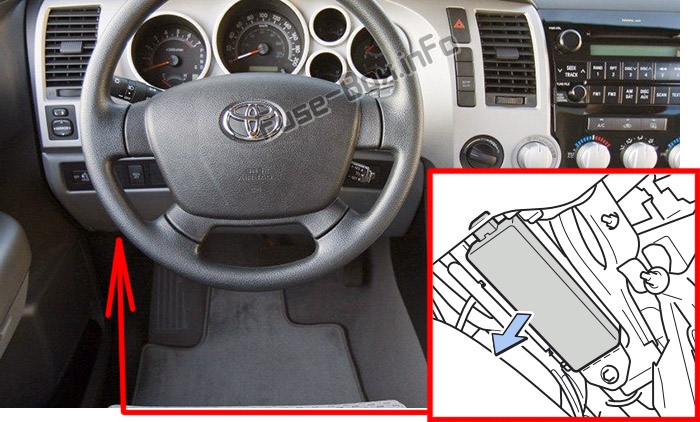

The location of the fuses in the passenger compartment: Toyota Tundra (2007-2013)

Fuse Box Diagram

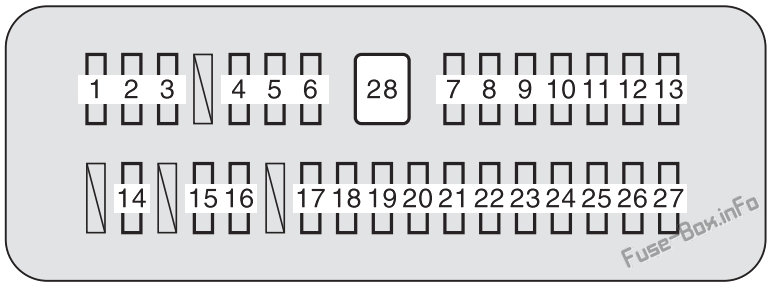

Instrument panel fuse box diagram: Toyota Tundra (2007, 2008, 2009, 2010, 2011, 2012, 2013)

Assignment of the fuses in the instrument panel

Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register

№NameAmpDescription
1INVERTER15APower outlet (115V)
2FR P/SEAT LH30APower front driver’s seat
3DR/LCK25AMultiplex communication system
4OBD7.5AOn-board diagnosis system
5PWR_OUTLET15APower outlets
6CARGO LP7.5ACargo lamp
7AM17.5AShift lock system, starting system
8A/C7.5AAir conditioning system
9MIR15AOutside rear view mirror control, outside rear view mirror heaters
10POWER №320APower windows
11FR P/SEAT RH30APower front passenger seat
12TI&TE15APower tilt and power telescopic
13S/ROOF25AElectric moon roof
14ECU-IG №17.5AAnti-lock brake system, vehicle stability control system, multiplex communication system, intuitive parking assist system, power front driver’s seat, power tilt and power telescopic, shift lock, tire pressure warning system, accessory meter, trailer towing, power outlet, electric moon roof
15LH-IG7.5ABack-up lights, charging system, gauge and meters, turn signal lights, air conditioning system, seat heaters, back window defogger
164WD20AFour-wheel drive control system
17WSH20AWindow washer
18WIPER30AWiper and washer
19ECU-IG №27.5AMultiplex communication system
20TAIL15ATail lights, trailer lights (tail lights), parking lights, outer foot lights
21A/C IG10AAir conditioning system
22TOW BK/UP7.5A2007-2009: Not Used;
2010-2013: Trailer lights
23SEAT-HTR20ASeat heaters or heater and ventilated seats
24PANEL7.5AInstrument panel lights, glove box light, accessory meter, audio system, rear view monitor, navigation system, rear seat entertainment system, gauges and meters, air conditioning system
25ACC7.5AAccessory meter, audio system, rear seat entertainment system, rear view monitor, navigation system, back-up lights, trailer lights (back-up lights), multiplex communication system, power outlet, outside rear view mirror
26BK/UP LP10ABack-up light, gauges and meters
27CIG15A2007-2010: Cigarette lighter;
2011-2013: Not Used
28POWER №130APower windows, power back window

Engine Compartment

Fuse Box Location

The location of the fuses in the engine compartment: Toyota Tundra (2007-2013)

Fuse Box Diagram

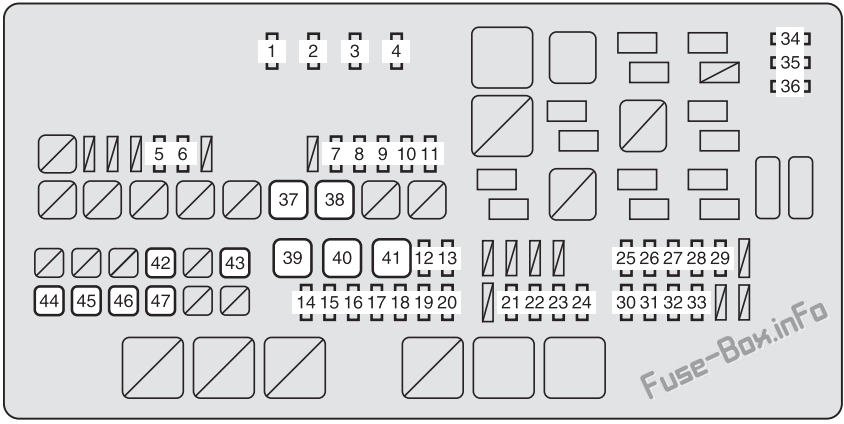

Under-hood fuse box diagram: Toyota Tundra (2007, 2008, 2009, 2010, 2011, 2012, 2013)

Assignment of the fuses in the engine compartment

Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register

№NameAmpDescription
1A/F15AMultiport fuel injection system/ sequential multiport fuel injection system
2HORN10AHorn
3EFI №125AMultiport fuel injection system/ sequential multiport fuel injection system
4IG2 MAIN30AINJ, MET, IGN fuses
5DEICER20AFront windshield wiper de-icer
6TOW TAIL30ATrailer lights (tail lights)
7POWER №425A2007-2009: Not Used;
2010-2013: Power windows
8POWER №230APower back windows
9FOG15AFront fog lights
10STOP15AStop lights, high mounted stoplight, vehicle stability control system, anti-lock brake system, shift lock system, multiport fuel injection system/sequential multiport fuel injection system, towing converter
11TOW BRK30ATrailer brake controller
12IMB7.5A2007-2009: Engine immobilizer system;
2010-2013: Multiport fuel injection system/ sequential multiport fuel injection system
13AM27.5AStarting system
14TOWING30ATowing converter
15AI_PMP_HTR (or AI-HTR)10A2007-2010: Not Used;
2011-2013: Air injection system
16ALT-S5ACharging system
17TURN-HAZ15ATurn signal lights, emergency flashers, towing converter
18F/PMP15ANo circuit
19ETCS10AMultiport fuel injection system/ sequential multiport fuel injection system, electric throttle control system
20MET-B5AGauges and meters
21AMP30AAudio system, rear view monitor, navigation system, rear seat entertainment system
22RAD №115AAudio system, rear view monitor, navigation system, rear seat entertainment system
23ECU-B17.5AMultiplex communication system, Multiport fuel injection system/ sequential multiport fuel injection system, auto anti-glare inside rear view mirror, power outlets, power front driver’s seat, power tilt and power telescopic
24DOME7.5AInterior lights, personal lights, vanity lights, engine switch light, foot light, accessory meter
25HEAD LH15ALeft-hand headlight (high beam)
26HEAD LL15ALeft-hand headlight (low beam)
27INJ10AMultiport fuel injection system/ sequential multiport fuel injection system, ignition system
28MET7.5AGauges and meters
29IGN10ASRS airbag system, multiport fuel injection system/sequential multiport fuel injection system, engine immobilizer system (2007-2009), cruise control system
30HEAD RH15ARight-hand headlight (high beam)
31HEAD RL15ARight-hand headlight (low beam)
32EFI №210AMultiport fuel injection system/ sequential multiport fuel injection system, leak detection pump
33DEF I/UP5ANo circuit
34SPARE5ASpare fuse
35SPARE15ASpare fuse
36SPARE30ASpare fuse
37DEFOG40ABack window defogger
38SUB BATT40ATrailer towing
39ABS150AAnti-lock brake system, vehicle stability control system
40ABS240AAnti-lock brake system, vehicle stability control system
41ST30AStarting system
42HTR50AAir conditioning system
43LH-J/B150AAM1, TAIL, PANEL, ACC, CIG, LH-IG, 4WD, ECU-IG №1, BK/UP LP, SEAT-HTR, A/C IG, ECU-IG №2, WSH, WIPER, OBD, A/C, TI&TE, FR P/SEAT RH, MIR, DR/LCK, FR P/SEAT LH, CARGO LP, PWR OUTLET, POWER №1 fuses
44ALT140A or 180ALH-J/B, HTR, SUB BATT, TOW BRK, STOP, FOG, TOW TAIL, DEICER fuses
45A/PUMP №150AMultiport fuel injection system/ sequential multiport fuel injection system
46A/PUMP №250AMultiport fuel injection system/ sequential multiport fuel injection system
47MAIN40AHEAD LL, HEAD RL, HEAD LH, HEAD RH fuses
