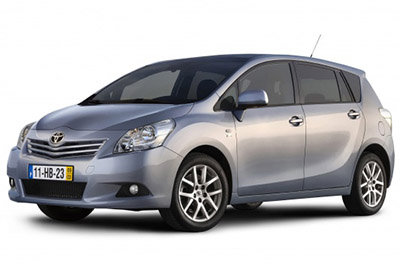

Toyota Verso (2009-2018)

The Toyota Verso (Model Code: AR20) is a compact MPV that was produced from 2009 to 2018, offering a combination of family-friendly practicality, versatility, and Toyota’s reputation for reliability. With seating for up to seven passengers, the Verso was designed to be a smart solution for growing families and urban commuters alike.

In this article, you will find fuse box diagrams for the Toyota Verso, covering model years 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, and 2018. These diagrams are essential for locating and identifying the function of each fuse and relay in your vehicle.

What’s Included:

  • Fuse Box Diagrams – Accurate, easy-to-read diagrams showing the layout of all fuses and relays.
  • Fuse Panel Locations – Clear guidance on where to find the interior and engine compartment fuse panels.
  • Fuse Assignments – A detailed description of each fuse and relay’s purpose, aiding in diagnostics and repairs.

Whether you’re troubleshooting an electrical issue, replacing a blown fuse, or performing regular maintenance, this guide provides the information you need to keep your Toyota Verso (2009–2018) in top working condition.

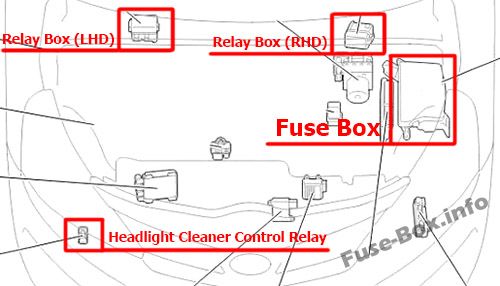

Fuse Boxes Overview

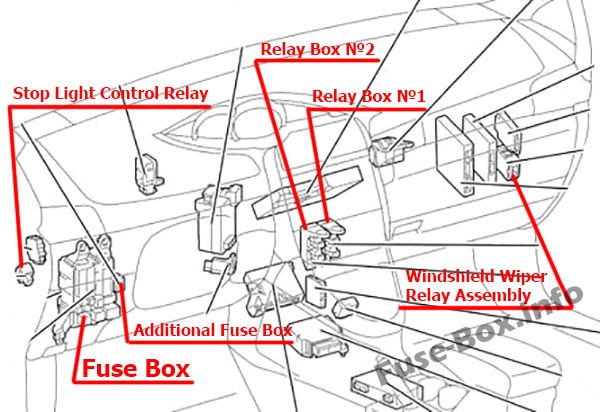

Left-hand drive vehicles

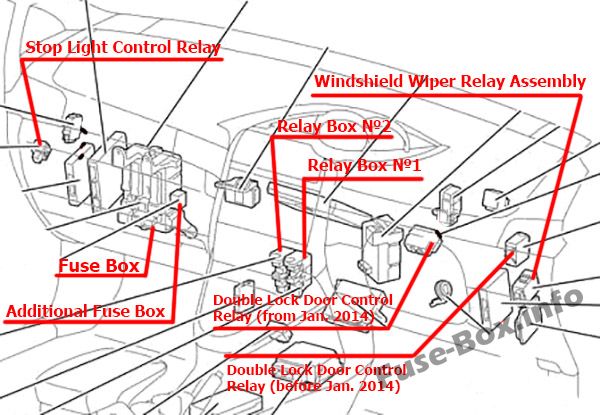

Right-hand drive vehicles

Passenger Compartment

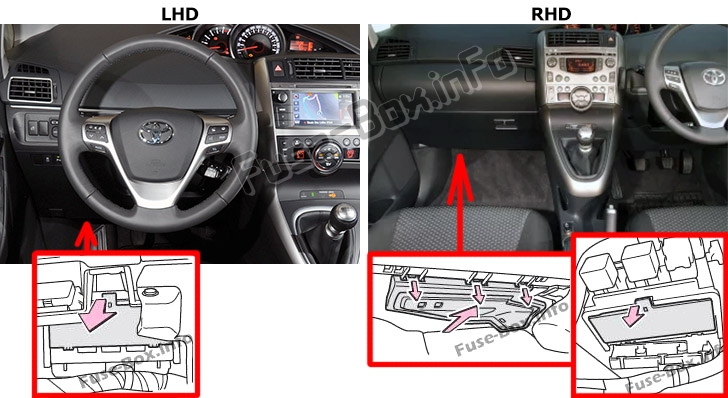

Fuse box location

The fuse box is located under the instrument panel (on the left side), behind the cover.
Left-hand drive vehicles: Remove the lid.
Right-hand drive vehicles: Remove the cover and then remove the lid.

The location of the fuses in the passenger compartment: Toyota Verso (AR20; 2009-2018)

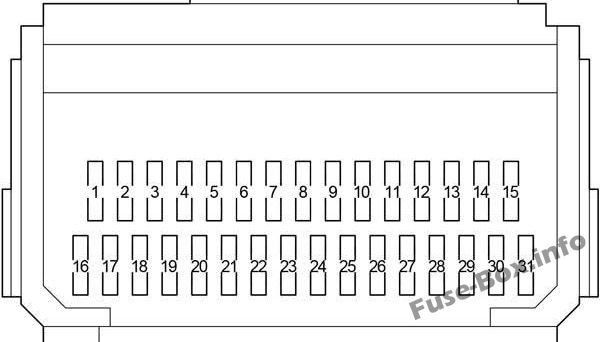

Fuse box diagram

Assignment of the fuses in the Passenger Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.NameAmpCircuit
1AM17.5Cruise Control (1ZR-FAE, 2ZR-FAE, 1AD-FTV, 2AD-FHV), CVT and Shift Indicator (2ZR-FAE), ECT and A/T Indicator (2AD-FHV), Electric Power Control System (without Entry & Start System), Engine Control (1ZR-FAE, 2ZR-FAE, 1AD-FTV, 2AD-FHV), Starting (without Entry & Start System)
2FR FOG15/7.5Front Fog Light
3DRL7.5Daytime Running Light System
4ACC-B25“CIG”, “ACC” fuses
5DOOR25Automatic Light Control, Back Door Opener, Combination Meter, Door Lock Control, Double Locking, Engine Immobiliser System (with Entry & Start System), Entry & Start System, Front Fog Light, Headlight, Headlight Cleaner, Illumination, Interior Light, Key Reminder (without Entry & Start System), Light Auto Turn Off System, Light Reminder, Power Window, Rear Fog Light, Roof Sunshade, Seat Belt Warning, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Stop & Start System, Taillight, Theft Deterrent, Wireless Door Lock Control
6SUNROOF20Roof Sunshade
7STOP10ABS, Cruise Control, CVT and Shift Indicator (2ZR-FAE), ECT and A/T Indicator (2AD-FHV), Electric Power Control System (with Entry & Start System), Hill-Start Assist Control, Shift Lock, Stop Light, TRC, VSC
8OBD7.5On-board Diagnosis System
9ECU-IG NO.210Air Conditioner, Audio System (from Nov. 2011), Back Door Opener (with Entry & Start System), Back-Up Light, Charging, Cruise Control, CVT and Shift Indicator (2ZR-FAE), ECT and A/T Indicator (2AD-FHV), Engine Control, Engine Immobiliser System, Entry & Start System, Heater, Mirror Heater, Navigation System (from Nov. 2011), Parking Assist (RearView Monitor), Parking Assist (TOYOTA Parking Assist-Sensor), Rear Window Defogger, Seat Belt Warning, SRS, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Theft Deterrent, Turn Signal and Hazard Warning Light, Wireless Door Lock Control (with Entry & Start System)
10ECU-IG NO.110ABS, Automatic Light Control, Back Door Opener, Combination Meter, Cooling Fan, Cruise Control (1AD-FTV, 2AD-FHV, 1ZR-FAE, 2ZR-FAE), CVT and Shift Indicator (2ZR-FAE), Door Lock Control, Double Locking, ECT and A/T Indicator (2AD-FHV), Engine Control (1AD-FTV, 2AD-FHV, 1ZR-FAE, 2ZR-FAE), Engine Immobiliser System (with Entry & Start System), Entry & Start System, EPS, Front Fog Light, Headlight, Headlight Beam Level Control (Automatic), Headlight Cleaner, Hill-Start Assist Control, Illumination, Interior Light, Key Reminder (without Entry & Start System), Light Auto Turn Off System, Light Reminder, Power Window, Rear Fog Light, Roof Sunshade, Seat Belt Warning, Shift Lock, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Stop Light, Taillight, Theft Deterrent, Tire Pressure Warning System, TRC, VSC, Wireless Door Lock Control
11WASHER15Front Wiper and Washer, Rear Wiper and Washer
12RR WIPER15Rear Wiper and Washer
13WIPER25Front Wiper and Washer
14HTR-IG10Air Conditioner, Cruise Control (1WW), Engine Control (1WW), Heater, Mirror Heater, Power Heater, Rear Window Defogger, Stop & Start System
15SEAT HTR15Seat Heater
16METER7.5ABS, Air Conditioner, Audio System (from Nov. 2011), Back Door Opener, Charging, Combination Meter, Cooling Fan, Cruise Control (1AD-FTV, 2AD-FHV, 1ZR-FAE, 2ZR-FAE), CVT and Shift Indicator (2ZR-FAE), Door Lock Control, ECT and A/T Indicator (2AD-FHV), Electric Power Control System (with Entry & Start System), Engine Control (1AD-FTV, 2AD-FHV, 1ZR-FAE, 2ZR-FAE), Engine Immobiliser System (with Entry & Start System), Entry & Start System, EPS, Front Fog Light, Headlight, Headlight Beam Level Control (Automatic), Heater, Hill-Start Assist Control, Illumination, Interior Light, Key Reminder (without Entry & Start System), Light Reminder, Navigation System (from Nov. 2011), Parking Assist (Rear View Monitor (from Nov. 2011)), Parking Assist (TOYOTA Parking Assist-Sensor), Rear Fog Light, Seat Belt Warning, SRS, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Stop & Start System, Taillight, Theft Deterrent, Tire Pressure Warning System, TRC, VSC, Wireless Door Lock Control (with Entry & Start System)
17IGN7.5ABS (with VSC), Back Door Opener (with Entry & Start System), Cruise Control, CVT and Shift Indicator (2ZR-FAE), ECT and A/T Indicator (2AD-FHV), Electric Power Control System (without Entry & Start System), Engine Control, Engine Immobiliser System, Entry & Start System, Hill-Start Assist Control, SRS, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Stop Light, TRC, VSC, Wireless Door Lock Control (with Entry & Start System)
18RR FOG7.5Rear Fog Light
19–––
20–––
21MIR HTR10Cruise Control (1WW, 1ZR-FAE, 2ZR-FAE), CVT and Shift Indicator (2ZR-FAE), Engine Control (1WW, 1ZR-FAE, 2ZR-FAE), Mirror Heater, Rear Window Defogger
22–––
23ACC7.5Audio System (from Nov. 2011), Automatic Light Control, Back Door Opener, Cigarette Lighter, Combination Meter, Door Lock Control, Double Locking, Engine Immobiliser System (with Entry & Start System), Entry & Start System, Front Fog Light, Headlight, Headlight Cleaner, Illumination, Interior Light, Key Reminder (without Entry & Start System), Light Auto Turn Off System, Light Reminder, Navigation System (from Nov. 2011), Parking Assist (Rear View Monitor (from Nov. 2011)), Power Outlet, Power Window, Rear Fog Light, Remote Control Mirror, Roof Sunshade, Seat Belt Warning, Shift Lock, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Stop & Start System, Taillight, Theft Deterrent, Wireless Door Lock Control
24CIG15Cigarette Lighter
25–––
26RR DOOR20Rear Right Power Window
27RL DOOR20Rear Left Power Window
28FR DOOR20Front Right Power Window
29ECU-IG NO.310Audio System (from Nov. 2011), Automatic Glare-Resistant EC Mirror, Back Door Opener (with Entry & Start System), Engine Immobiliser System (with Entry & Start System), Entry & Start System, Navigation System (from Nov. 2011), Parking Assist (Rear View Monitor), Roof Sunshade, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Stop & Start System, Wireless Door Lock Control (with Entry & Start System)
30PANEL7.5Illumination, Parking Assist (TOYOTA Parking Assist-Sensor)
31TAIL10Cruise Control (1WW, 1ZR-FAE, 2ZR-FAE), CVT and Shift Indicator (2ZR-FAE), Engine Control (1WW, 1ZR-FAE, 2ZR-FAE), Front Fog Light, Headlight Beam Level Control (Manual), Illumination, Parking Assist (TOYOTA Parking Assist-Sensor), Rear Fog Light, Taillight

Front side Relays

Relay box location

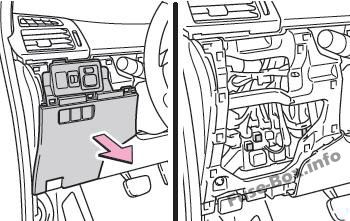

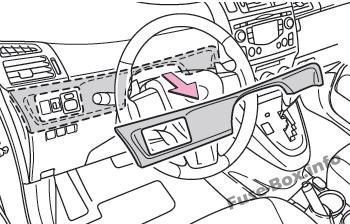

Left-hand drive vehicles:
Remove the upper instrument panels, then remove the lower instrument panel

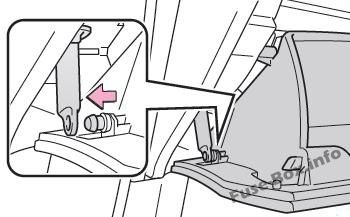

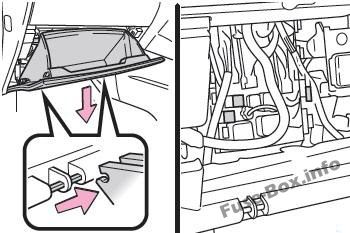

Right-hand drive vehicles:
Open the glove box, slide off the damper, lift the glove box to disconnect the claws at the bottom and remove it

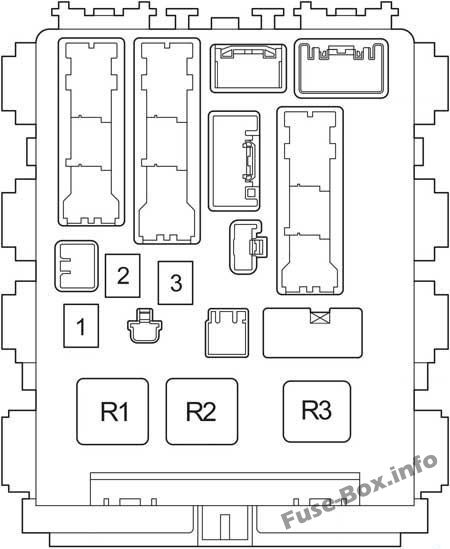

Relay box diagram

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№NameAmpCircuit
1POWER30Front Left Power Window
2DEF30Rear Window Defogger, “MIR HTR” fuse
3–––
Relay
R1Ignition (IG1)
R2Short Pin (Automatic A/C) Heater (HTR (Except Automatic A/C))
R3LHD: Turn Signal Flasher

Additional Fuse Box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№NameAmpCircuit
1WIPER NO.27.5Charging System, Cruise Control (1ZR-FAE, 2ZR-FAE), CVT and Shift Indicator (2ZR-FAE), Electric Power Control System, Engine Control (1ZR-FAE, 2ZR-FAE)
2–––

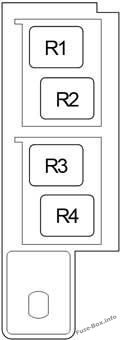

Relay Box #1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№Relay
R1Front Fog Light (FR FOG)
R2Accessory (ACC)
R3Daytime Running Light System (DRL)
R4Panel (PANEL)

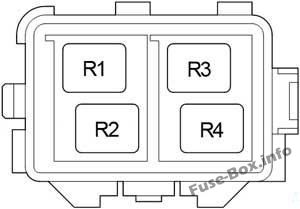

Relay Box #2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№Relay
R1Starter (ST)
R2Rear Fog Light (RR FOG)
R3Power Outlet (ACC SOCKET)
R4Interior Light (DOME LAMP CUT)

Engine Compartment

Fuse box locations

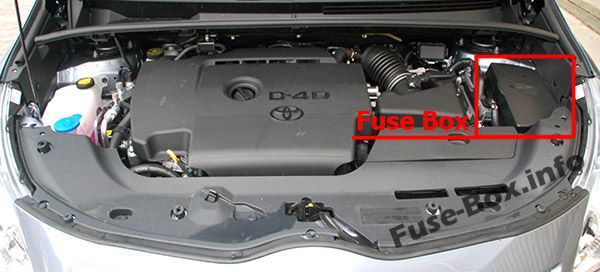

The fuse box is located in the engine compartment (right-side when looking from the front).

The location of the fuses in the engine compartment: Toyota Verso (2009-2018)

Fuse box diagram

Assignment of the fuses and relay in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№NameAmpCircuit
1DOME10Luggage Compartment Light, Vanity Lights, Front Door Courtesy Lights, Personal/Interior Lights, Foot Lights
2RAD NO.120/15before Jan. 2014: Audio System, Navigation System, Parking Assist (Rear View Monitor)
3ECU-B10ABS, Air Conditioner, Audio System from Nov. 2011), Automatic Light Control, Back Door Opener, Charging, Combination Meter, Cooling Fan, Cruise Control, CVT and Shift Indicator (2ZR-FAE), Door-Lock Control, Double Locking, ECT and A/T Indicator (2AD-FHV), Electric Power Control System (with Entry & Start System), Engine Control, Engine Immobiliser System (with Entry & Start System), Entry & Start System, EPS, Front Fog Light, Headlight, Headlight Cleaner, Heater, Hill-Start Assist Control, Illumination, Interior Light, Key Reminder (without Entry & Start System), Light Auto Turn Off System, Light Reminder, Navigation System (from Nov. 2011), Parking Assist (Rear View Monitor), Parking Assist (TOYOTA Parking Assist-Sensor), Power Window, Rear Fog Light, Roof Sunshade, Seat Belt Warning, SRS, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Stop & Start System, Taillight, Theft Deterrent, Tire Pressure Warning System, TRC, VSC, Wireless Door Lock Control
4D.C.C––
5ECU-B210Air Conditioner, Back Door Opener (with Entry & Start System), Door Lock Control, Engine Immobiliser System, Entry & Start System, Heater, Power Window, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Wireless Door Lock Control (with Entry & Start System)
6EFI MAIN NO.27.5Cruise Control (1AD-FTV, 2AD-FHV, 1WW), ECT and A/T Indicator (2AD-FHV), Engine Control (1AD-FTV, 2AD-FHV, 1WW)
7DOOR NO.225Automatic Light Control, Back Door Opener, Combination Meter, Door Lock Control, Double Locking, Engine Immobiliser System (with Entry & Start System), Entry & Start System, Front Fog Light, Headlight, Headlight Cleaner, Illumination, Interior Light, Key Reminder (without Entry & Start System), Light Auto Turn Off System, Light Reminder, Power Window, Rear Fog Light, Roof Sunshade, Seat Belt Warning, Starting (with Entry & Start System), Steering Lock (with Entry & Start System), Stop & Start System, Taillight, Theft Deterrent, Wireless Door Lock Control
8–––
9IGT/INJ15Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
10STRG LOCK20Steering Lock System
11A/F20Cruise Control (1AD-FTV, 2AD-FHV), ECT and A/T Indicator (2AD-FHV), Engine Control (1AD-FTV, 2AD-FHV)
12AM230Back Door Opener (with Entry & Start System), Engine Immobiliser System (with Entry & Start System), Entry & Start System, Starting (with Entry & Start System), Starting (without Entry & Start System), Steering Lock, Wireless Door Lock Control (with Entry & Start System)
13ETCS10Electronic Throttle Control System
14TURN-HAZ10Turn Signal and Hazard Warning Light
15–––
16AM2 NO.27.5Back Door Opener (with Entry & Start System), Cruise Control, CVT and Shift Indicator (2ZR-FAE), ECT and A/T Indicator (2AD-FHV), Electric Power Control System, Engine Control, Engine Immobiliser System (with Entry & Start System), Entry & Start System, Starting (with Entry & Start System), Starting (without Entry & Start System), Steering Lock (with Entry & Start System), Wireless Door Lock Control (with Entry & Start System)
17HTR50except 1WW: Air Conditioner, Heater
18ABS NO.150ABS, Hill-Start Assist Control, TRC, VSC
19CDS FAN30Diesel: Cooling Fan
20RDI FAN40Cooling Fan
21H-LP CLN30Headlight Cleaner
22TO IP/JB120“ECU-IG NO.2”, “HTR-IG”, “WIPER”, “RR WIPER”, “WASHER”, “ECU-IG NO.1”, “ECU-IG NO.3”, “SEAT HTR”, “AM1”, “DOOR”, “STOP”, “FR DOOR”, “POWER”, “RR DOOR”, “RL DOOR”, “OBD”, “ACC-B”, “RR FOG”, “FR FOG”, “DEF”, “TAIL”, “SUNROOF”, “DRL” fuses
23–––
24–––
25–––
26H-LP MAIN50except 1WW: “H-LP LH LO”, “H-LP RH LO”, “H-LP LH HI”, “H-LP RH HI” fuses
26P/I501WW: “HORN”, “IG2”, “FUEL PMP” fuses
27P/I50except 1WW: “EFI MAIN”, “IGT/INJ”, “HORN”, “IG2” fuses
27H-LP MAIN501WW: “H-LP LH LO”, “H-LP RH LO”, “H-LP LH HI”, “H-LP RH HI” fuses
28EFI MAIN50except 1WW: Cruise Control (1AD-FTV, 2AD-FHV), ECT and A/T Indicator (2AD-FHV), Engine Control (1AD-FTV, 2AD-FHV), Stop & Start System
28FUEL HTR501WW: Fuel Heater
29P-SYSTEM30VALVEMATIC system
30GLOW80except 1WW: Engine Glow System
30EPS801WW: Electric Power Steering
31EPS80except 1WW: Electric Power Steering
31GLOW801WW: Engine Glow System
32ALT120Gasoline: Charging system, “RDI FAN”, “CDS FAN”, “H-LP CLN”, “ABS NO.1”, “ABS NO.2”, “HTR”, “PWR OUTLET”, “HTR SUB NO.1”, “HTR SUB NO.2”, “HTR SUB NO.3”, “ECU-IG NO.2”, “HTR-IG”, “WIPER”, “RR WIPER”, “WASHER”, “ECU-IG NO.1”, “ECU-IG NO.3”, “SEAT HTR”, “AM1, DOOR”, “STOP”, “FR DOOR”, “POWER”, “RR DOOR”, “RL DOOR”, “OBD”, “ACC-B”, “RR FOG”, “FR FOG”, “DEF”, “TAIL”, “SUNROOF”, “DRL” fuses
32ALT140Diesel (except 1WW): Charging system, “RDI FAN”, “CDS FAN”, “H-LP CLN”, “ABS NO.1”, “ABS NO.2”, “HTR”, “PWR OUTLET”, “HTR SUB NO.1”, “HTR SUB NO.2”, “HTR SUB NO.3”, “ECU-IG NO.2”, “HTR-IG”, “WIPER”, “RR WIPER”, “WASHER”, “ECU-IG NO.1”, “ECU-IG NO.3”, “SEAT HTR”, “AM1, DOOR”, “STOP”, “FR DOOR”, “POWER”, “RR DOOR”, “RL DOOR”, “OBD”, “ACC-B”, “RR FOG”, “FR FOG”, “DEF”, ‘TAIL”, “SUNROOF”, “DRL” fuses
33IG215“IGN”, “METER” fuses
34HORN15Horn, Theft Deterrent
35EFI MAIN20Gasoline: Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
35EFI MAIN30Diesel (before Nov. 2012): Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
35FUEL PUMP301WW: Fuel Pump
36IGT/INJ15Gasoline: Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
36EDU20Diesel (except 1WW): Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
37EFI MAIN501WW: “EFI NO.1”, “EFI NO.2”, “EFI NO.4” fuses
38BBC401WW: Stop & Start System
39HTR SUB NO.330Power Heater (Electrical Type)
40–––
41HTR SUB NO.230Power Heater (Electrical Type)
42HTR50Air Conditioner, Heater
43HTR SUB NO.1501WW: Power Heater (Electrical Type)
43HTR SUB NO.130except 1WW: Power Heater (Electrical Type)
44–––
45STV HTR25Power Heater (Combustion Type)
46ABS NO.230ABS, Hill-Start Assist Control, TRC, VSC
47–––
48–––
49–––
50PWR OUTLET15Power Outlet
51H-LP LH LO10/15Left-hand Headlight (Low Beam)
52H-LP RH LO10/15Right-hand Headlight (Low Beam)
53H-LP LH HI10Left-hand Headlight (High Beam)
54H-LP RH HI10Right-hand Headlight (High Beam)
55EFI NO.110except 1WW: Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
55EFI NO.17.51WW: Cooling Fan, Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
56EFI NO.210except 1WW: Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
56EFI NO.2151WW: Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Stop & Start System
57IG2 NO.27.5Starting System
58EFI NO.37.5before Nov. 2012: Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
58EFI NO.430from Nov. 2012: Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
58EFI NO.4201WW: Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
59–––
60EFI NO.37.5from Nov. 2012: Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
61CDS EFI51WW: Cooling Fan
62RDI EFI51WW: Cooling Fan

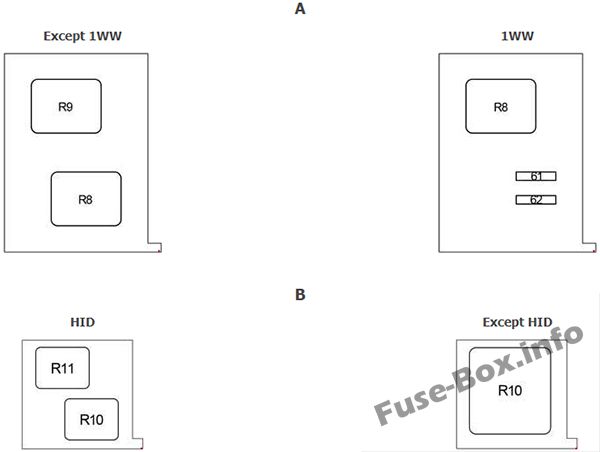

Relay
R1(before Nov. 2012 (FR DEICER)) (before Nov. 2012 (BRAKE LP)) Electric Cooling Fan (from Nov. 2012 (FAN NO.2))
R2Electric Cooling Fan (FAN NO.3)
R3Air fuel ratio sensor (A/F)
R4(IGT/INJ)
R5–
R6Diesel: (from Nov. 2012( EFI MAIN))
R7Headlight (H-LP)
R8Electric Cooling Fan (FAN NO.1)
R9Electric Cooling Fan (before Nov. 2012 (FAN NO.2))
R10Dimmer
R11–

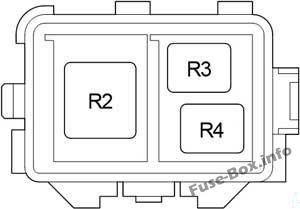

Relay Box

without Glow Plug Controller

with Glow Plug Controller

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№Relay
R1–
R2HTR SUB NO.1
R3HTR SUB NO.2
R4HTR SUB NO.3
