Volvo S80 | 2006-2010 | Fuse Box Diagrams and Locations

The second-generation Volvo S80, before its facelift, was produced from 2006 to 2010. As Volvo’s flagship executive sedan, the S80 offered a blend of Scandinavian design, comfort, and advanced safety systems. Built on a refined platform, it featured a range of powertrains, luxury appointments, and cutting-edge driver aids, positioning it as a strong competitor in the premium sedan market.

In this article, you will find fuse box diagrams for the Volvo S80, covering model years 2006, 2007, 2008, 2009 and 2010. These diagrams are essential for understanding the fuse layout, helping owners and mechanics locate, inspect, and replace fuses or relays as needed.

What’s Included:

Fuse Box Diagrams – Easy-to-read visuals showing the arrangement of fuses and relays.
Fuse Panel Locations – Step-by-step guidance on where the fuse panels are located inside the Volvo S80.
Fuse Assignments – A complete breakdown of each fuse and relay function, assisting with accurate diagnostics and repairs.

Whether you’re troubleshooting an electrical issue, replacing a blown fuse, or performing regular maintenance, this guide will help ensure your Volvo S80 (2006–2010) remains safe, reliable, and fully operational.

What’s Included

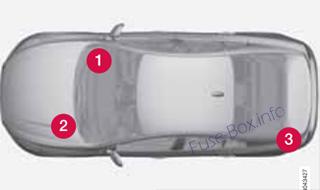

Fuse Box Locations

1) Passenger compartment

It is located behind the lining.

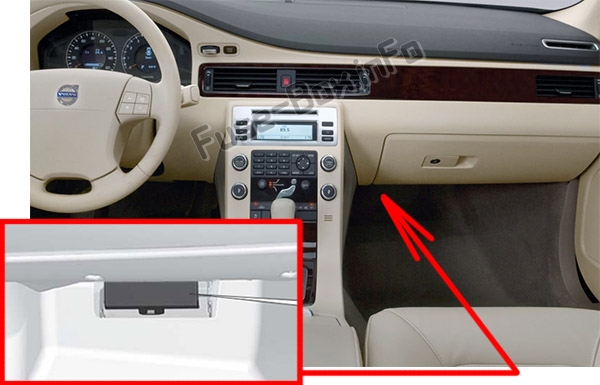

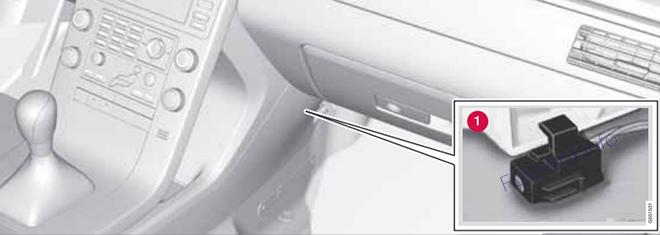

The location of the fuses in the passenger compartment: Volvo S80 (2007-2010)

2) Engine compartment

The location of the fuses in the engine compartment: Volvo S80 (2007-2010)

3) Luggage compartment

The fuse boxes are located behind the upholstery on the left-hand side.

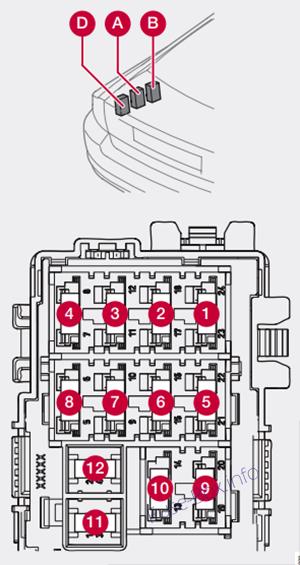

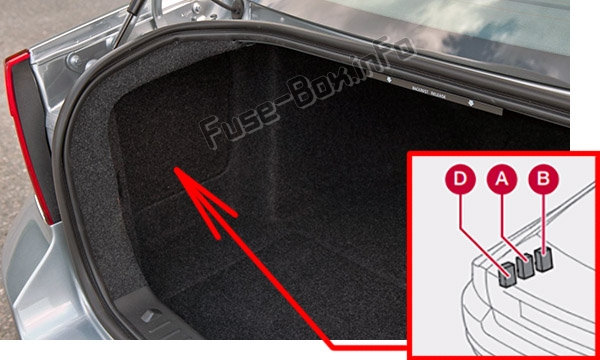

The location of the fuses in the luggage compartment: Volvo S80 (2007-2010)

Fuse Box Diagrams

2006, 2007, 2008

Engine compartment

Assignment of fuses in the engine compartment (2006, 2007, 2008)

Fuse Data

Full access is available to registered users — log in or register.

№	Function	Amp
1	Primary fuse CEM KL30A	50
2	Primary fuse CEM KL30B	50
3	Primary fuse RJBA KL30	60
4	Primary fuse RJBB KL30	60
5	Primary fuse RJBD KL30	50
6	Reserve
7	PTC Air preheater (option)	100
8	Reserve
9	Windscreen wipers	30
10	Parking heater (option)	25
11	Ventilation fan	40
12	Reserve
13	ABS pump	40
14	ABS valves	20
15	Reserve
16	Headlamp levelling (Active Bi-Xenon, Bi-Xenon) (option)	10
17	Primary fuse CEM	20
18	Radar. ACC control module (option)	5
19	Speed related power steering	5
20	Engine Control Module (ECM), transm. SRS	10
21	Heated washer nozzles	10
22	Vacuum pump I5T	20
23	Lighting panel	5
24	Headlamp washers	15
25	12 V socket, front and rear seat	15
26	Sunroof (option), Roof console/ECC (option)	10
27	Relay, engine compartment box	5
28	Auxiliary lamps (option)	20
29	Horn	15
30	Engine Control Module (ECM)	10
31	Control module, automatic gearbox (option)	15
32	Compressor AC	15
33	Relay coils	5
34	Starter motor relay	30
35	Ignition coils/Glow system diesel	20/10
36	Engine Control Module (ECM) petrol/diesel	10/15
37	Injection system	15
38	Engine valves	10
39	EVAR Lambda-sond, Injection (petrol/diesel)	15/10
40	Water pump (V8) Crankcase ventilation heater (5-cyl petrol) Diesel filter heater, crankcase ventilation heater (5-cyl diesel)	10/ 20/ 20
41	Leakage diagnosis (option)	5
42	Glow plugs diesel	70
43	Cooling fan	50
44	Cooling fan	60

Passenger compartment

Interior fuse box diagram: Volvo S80 (2008)

Assignment of fuses under the glove compartment (2006, 2007, 2008)

Fuse Data

Full access is available to registered users — log in or register.

№	Function	Amp
1	Rain sensor	5
2	SRS system	10
3	ABS brakes, Electric parking brake	5
4	Accelerator pedal (option), air heater (PTC) Heated seats (option)	7.5
5	Reserve
6	ICM display, CD & Radio, RSE system (option)	15
7	Steering wheel module	7.5
8	Reserve
9	Main beam	15
10	Sunroof (option)	20
11	Reversing lamps.	7.5
12	Reserve
13	Front fog lamp (option)	15
14	Windscreen washers	15
15	Adaptive cruise control ACC (option)	10
16	Reserve
17	Roof lighting, Control panel driver’s w door/ Power passenger seat (option)	7.5
18	Information display	5
19	Power driver’s seat (option)	5
20	Retractable head restraint, rear (option)	15
21	Remote control key receiver, Alarm sensors	5
22	Fuel pump	20
23	Electric steering lock	20
24	Reserve
25	Lock, tank/boot lid	10
26	Alarm siren, ECC	5
27	Start/stop button	5
28	Brake light switch	5

Luggage compartment

Trunk fuse box diagram: Volvo S80 (2008)

Assignment of fuses in the cargo area (2006, 2007, 2008)

Fuse Data

Full access is available to registered users — log in or register.

№	Function	Amp
	Module A (black):
1	Control panel, driver’s door	25
2	Control panel, passenger door	25
3	Control panel, rear door, left	25
4	Control panel, rear door, right	25
5	Reserve
6	12 V socket cargo, refrigerator (option)	15
7	Rear window defroster	30
8	Reserve
9	Trailer socket 2 (option)	15
10	Power seat driver’s side	25
11	Trailer socket 1 (option)	40
12	Reserve

	Module B (white):
1	Reserve
2	Control module Four C (option)	15
3	Seat heating, driver’s side front (option)	15
4	Seat heating, passenger side front (option)	15
5	Seat heating right rear (option)	15
6	AWD control module	10
7	Seat heating left rear (option)	15
8	Reserve
9	Power seat passenger side	25
10	Keyless drive (option)	20
11	Electric parking brake left (option)	30
12	Electric parking brake right (option)	30

	Module D (blue):
1	Display FHT, parking camera (option)	10
2	Reserve
3	Reserve
4	Reserve
5	Audio amplifier	25
6	Audio system	15
7	Phone, Bluetooth	5
8-12	Reserve

2009, 2010

Engine compartment

Assignment of fuses in the engine compartment (2009, 2010)

Fuse Data

Full access is available to registered users — log in or register.

№	Function	Amp
1	Circuit breaker	50
2	Circuit breaker	50
3	Circuit breaker	60
4	Circuit breaker	60
5	Circuit breaker	50
6	–
7	–
8	–
9	Windshield wipers	30
10	–
11	Climate system blower	40
12	–
13	ABS pump	40
14	ABS valves	20
15	–
16	Active Bending Lights. Headlight leveling (option)	10
17	Central electrical module	20
18	Radar. ACC control module (option)	5
19	Speed related power steering	5
20	Engine Control Module (ECM), transmission, SRS	10
21	Heated washer nozzles	10
22	Vacuum pump I5T	20
23	Lighting panel	5
24	Headlight washers	15
25	12-volt socket, front and rear seat, Rear Seat Entertainment (RSE) (option)	15
26	Moonroof (option), ceiling console/ ECC (option)	10
27	Engine compartment box	5
28	Auxiliary lights (option)	20
29	Horn	15
30	Engine Control Module (ECM)	10
31	Control module, automatic transmission	15
32	Compressor A/C	15
33	Coils	5
34	Starter motor relay	30
35	Ignition coils	20
36	Engine Control Module (ECM), throttle	10
37	Injection system	15
38	Engine valves	10
39	EVAP/heated oxygen sensor/ Injection	15
40	Water pump (V8), Crank case ventilation heater	10
41	Fuel leakage detection	5
42	–
43	–
44	Cooling fan	80

Passenger compartment

Interior fuse box diagram: Volvo S80 (2009, 2010)

Assignment of fuses under the glove compartment (2009, 2010)

Fuse Data

Full access is available to registered users — log in or register.

№	Function	Amp
1	Rain sensor (option)	5
2	SRS system	10
3	ABS brakes. Electric parking brake	5
4	Accelerator pedal, heated seats (option)	7.5
5	–
6	ICM display, CD & Radio	15
7	Steering wheel module	7.5
8	–
9	High beam	15
10	Moonroof	20
11	Backup lights	7.5
12	–
13	Front fog light (option)	15
14	Windshield washers	15
15	Adaptive cruise control ACC (option)	10
16	–
17	Overhead courtesy lighting, Control panel driver’s door/ Power passenger seat (option)	7.5
18	Information display	5
19	Power driver’s seat (option)	5
20	–	–
21	Remote key receiver, Alarm sensors	5
22	Fuel pump	20
23	Electric steering column lock	20
24	–
25	Lock, tank/trunk	10
26	Alarm siren. ECC	5
27	START/STOP ENGINE button	5
28	Brake light switch	5

Center console (S80 Executive only)

1 – Analogue clock, 5A

Luggage compartment

Trunk fuse box diagram: Volvo S80 (2009, 2010)

Assignment of fuses in the cargo area (2009, 2010)

Fuse Data

Full access is available to registered users — log in or register.

№	Function:	Amp
	Module A (black):
1	Switches in driver’s door	25
2	Switches in passenger’s door	25
3	Switches in rear door, driver’s side	25
4	Switches in rear door, passenger’s side	25
5	–
6	12-V socket in the trunks, refrigerator (S80 Executive only)	15
7	Rear window defroster	30
8	Folding rear head restraints (option)	15
9	Trailer socket 2 (option)	15
10	Power driver’s seat (option)	25
11	Trailer socket 1 (option)	40
12	–

	Module B (white):
1	Front seat massage, arm rest lights, refrigerator (option)	5
2	Active chassis system control module (option)	15
3	Heated driver’s seat (option)	15
4	Heated passenger’s seat (option)	15
5	Rear seat heater, passenger’s side (option)	15
6	AWD control module	10
7	Rear seat heater, driver’s side (option)	15
8	Folding head restraints	15
9	Power passenger’s seat (option)	25
10	Keyless drive (option)	20
11	Electric parking brake – driver’s side	30
12	Electric parking brake – passenger’s side	30

	Module D (blue):
1	Navigation system display (option)	10
2	–
3	–
4	SIRIUS satellite radio (option)	5
5	Audio amplifier	25
6	Audio system	15
7	–
8-12	reserve

FAQ

What are the cigar lighter (power outlet) fuses in the Volvo S80?

Fuse #25 (front and rear seat sockets) in the engine compartment fuse box, and fuse #6 (cargo socket) in the luggage compartment fuse box, module “A”.
