The Volvo V40 , a small family car, was produced from 2012 to 2019 . Known for its Scandinavian design, advanced safety features, and efficient performance, the V40 remains a popular choice among compact premium hatchbacks.
In this article, you will find fuse box diagrams for the Volvo V40, covering model years 2012, 2013, 2014, 2015, 2016, 2017, 2018 and 2019. These diagrams provide essential details to help owners, mechanics, and technicians understand the electrical system.
What’s Included:

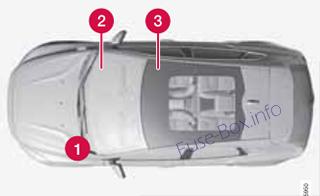

Fuse Box Diagrams – Clear visuals showing the arrangement of fuses and relays.Fuse Panel Locations – Guidance on where to find fuse panels inside the vehicle.Fuse Assignments – Complete descriptions of each fuse and relay function for accurate troubleshooting and repair.
Whether you’re replacing a blown fuse, diagnosing an electrical issue, or performing routine maintenance, this guide will help ensure your Volvo V40 (2012–2019) remains safe, reliable, and fully functional.

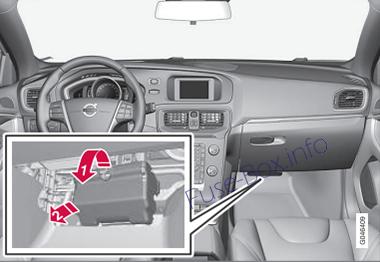

Take hold of the recess and pull until the locking lugs in the lower edge of the cover are released from the fusebox.
Remove the cover
In a right-hand drive car the fuse box under the glovebox changes sides.

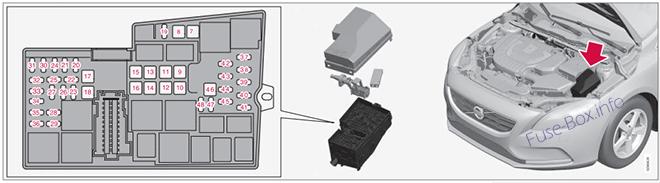

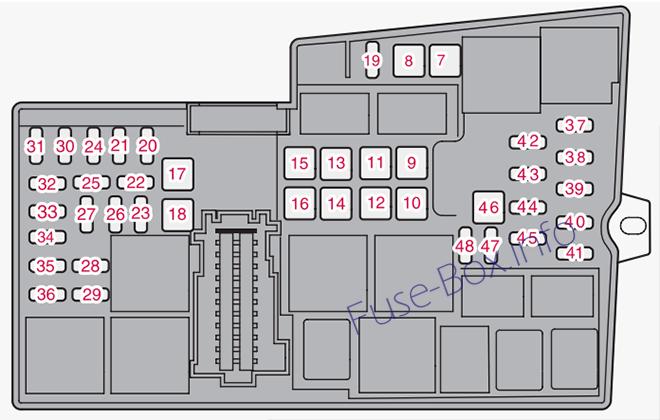

Assignment of fuses in the engine compartment
№ Description Amp 7 ABS pump 40 8 ABS valves 30 9 Headlamp washers (option) 20 10 Ventilation fan 40 11 – – 12 Primary fuse for fuses 32–36 30 13 2012–2013: Starter motor actuator solenoid (not Start/Stop)30 14 2012–2019: Heated windscreen, right-hand side (option)40 15 – – 16 2012–2019: Heated windscreen, left-hand side (option)40 17 Parking heater (option) 20 18 Windscreen wipers 20 19 Central electronic module, reference voltage, standby battery (Start/Stop) 5 20 Horn 15 21 Brake light 5 22 – – 23 Headlamp control 5 24 Internal relay coils 5 25 12 V socket, tunnel console front 15 26 Transmission control module 15 27 2012–2015: Solenoid clutch A/C2016–2019: Not used15 28 12 V socket, tunnel console rear 15 29 2012–2013: Climate sensor (option); air intake throttle motors10 30 2012–2019: ECM (all engines)5 31 Power seat, right (option) 20 32
2012–2015: Relay coil (cooling fan); Lambda-sonds (1.6/2.0L petrol & 5-cyl. petrol); MAF sensor (diesel); EGR valve cooling (diesel); Fuel pressure regulators2016–2019: Lambda-sonds; Relay coil in fan relay
10–20 33 2012–2015: Turbo control (diesel); MAF (1.6L petrol, 5-cyl. petrol); Oil level sensor (5-cyl. diesel); EVAP valve; Solenoids; Radiator roller cover2016–2019: Vacuum regulators, turbo valves, A/C compressor, oil pump solenoid, radiator/spoiler cover modules10 34 2012–2015: Injectors (5-cyl. petrol); Lambda-sond (5-cyl. diesel); EVAP valve; ECM (2.0L petrol); MAF sensor (2.0L petrol); Thermostat; Crankcase heater; Cooling pump EGR2016–2019: EGR valve (diesel); EVAP (petrol); ECM; Thermostat10–15 35 2012–2015: Ignition coils (1.6L, 2.0L, 5-cyl. petrol); Diesel filter heater (1.6L, 2.0L, 5-cyl. diesel); Glow control module2016–2019: Same, plus increased 25A rating for diesel filter heater10–25 36 2012–2015: ECM (1.6L, 2.0L, 5-cyl.); Throttle unit (5-cyl.)2016–2019: ECM (all engines)10–15 37 ABS 5 38 Engine control module; Transmission control module; Airbags 10 39 Headlamp levelling (option) 10 40 Electric control servo 5 41 Central electronic module 15 42 – – 43 2012–2013: Coolant pump (Start/Stop)2014–2019: Not used10 44 Collision warning system 5 45 Accelerator pedal sensor 5 46 Charging point, standby battery – 47 – – 48 2014–2019: Coolant pump (when no parking heater is available)10
Login or Register to view this content
Fuses 7-18 are of “JCASE” type and should be replaced by a workshop.

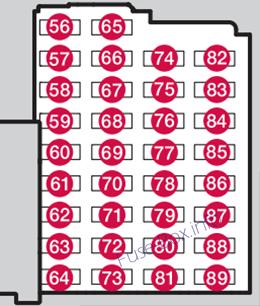

Assignment of fuses under the glovebox
№ Description Amp 56 Fuel pump 20 57 – – 58 Rear window wiper 15 59 2012–2013: Reserve position, interior lighting2014–2019: Display in roof console (Seatbelt reminder / Airbag indicator)5 60 2012–2013: Interior lighting; Power seats2014–2019: Interior lighting incl. roof console reading lamps; Power seats (option)10 (2012–2013) 61 2012–2013: Blind, glass roof (option)2014–2019: Power operated roller blind, glass roof (option)10 62 Rain sensor (option); Dimming, interior rearview mirror (option); Moisture sensor (option) 5 63 Collision warning system (option) 5 64 – – 65 Unlocking, tailgate (See also fuse 84) 10 66 – – 67 Reserve position 3, constant voltage 5 68 Steering lock 15 69 Combined instrument panel 5 70 Central locking system, fuel filler flap (See also fuse 83) 10 71 Climate panel 10 72 Steering wheel module 7.5 73 Siren alarm (option); Data link connector OBDII 5 74 Main beam 15 75 – – 76 Reversing lamp 10 77 Windscreen wipers (See also fuse 82); Rear windscreen wiper (See also fuse 82) 20 78 Immobiliser 5 79 Reserve position 1, constant voltage 15 80 Reserve position 2, constant voltage 20 81 Movement sensor alarm (option); Remote receiver 5 82 Windscreen wipers (See also fuse 77); Rear windscreen wiper (See also fuse 77) 20 83 Central locking system, fuel filler flap (See also fuse 70) 10 84 Unlocking, tailgate (See also fuse 65) 10 85 2012–2013: PTC element, air preheater (option); Button, rear seat heating (option)2014–2019: Electric additional heater (option); Button seat heating rear (option)7.5 86 Airbags; Pedestrian airbag 10 (2012–2013) 87 Reserve position 4, constant voltage 7.5 88 – – 89 – –
Login or Register to view this content

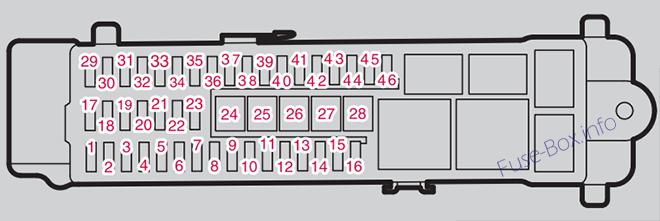

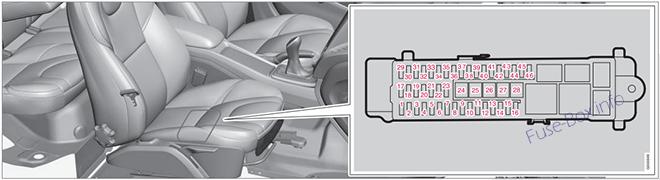

Assignment of fuses under the seat
№ Description Amp 1 – – 2 Keyless (option) 10 3 Door handle (Keyless option) 5 4 Control panel, left front door 25 5 Control panel, right front door 25 6 Control panel, left rear door 25 7 Control panel, right rear door 25 8 2012–2013: Not in use2014–2019: Primary fuse for fuses 12–16: Infotainment25 (2014–2019) 9 Power seat, left (option) 20 10 – – 11 2012–2013: Not in use2014–2019: Internal relay coil5 (2014–2019) 12 2012–2013: Audio control unit (amplifier) (option)2014–2015: Audio amplifier (option), diagnosis signal2016–2019: – (moved to fuse 45)5 13 – – 14 2012–2015: Telematics; Bluetooth (option)2016–2019: – (moved to fuse 46)5 15 2012–2013: Audio; Infotainment control unit2014–2015: Audio/Sensus control module; Infotainment screen2016–2019: – (moved to fuse 45)15 16 2012–2015: Digital radio (option); TV (option)2016–2019: – (moved to fuse 45)10 (2012–2013) 17 12 V socket, cargo area 15 18 – – 19 – – 20 – – 21 – – 22 – – 23 Trailer socket 2 (option) 20 24 2012–2013: Primary fuse for fuses 12–16; Infotainment2014–2019: Audio amplifier (option)40 (2012–2013) 25 – – 26 Trailer socket 1 (option) 40 27 Rear window defroster 30 28 – – 29 BLIS (option) 5 30 Parking assistance (option) 5 31 Parking camera (option) 5 32 – – 33 – – 34 Seat heating, front driver’s side 15 35 Seat heating, front passenger side 15 36 – – 37 – – 38 – – 39 Seat heating, rear right (option) 15 40 Seat heating, rear left (option) 15 41 2012–2013: AWD control module (option)2014–2019: Not in use15 (2012–2013) 42 – – 43 – – 44 – – 45 2012–2015: Not in use2016–2019: Audio amplifier (option), Sensus/Infotainment modules, Digital radio, TV15 (2016–2019) 46 2012–2015: Not in use2016–2019: Telematics; Bluetooth5 (2016–2019)
Login or Register to view this content
Fuses 24-28 are of “JCASE” type and should be replaced by a workshop.
