The Volvo V50 , a compact station wagon, was produced from 2004 to 2012 . Designed with a strong focus on safety, comfort, and versatility, the V50 combined Volvo’s signature durability with a practical and stylish body, making it a popular choice among families and commuters alike.
In this article, you will find fuse box diagrams for the Volvo V50, covering model years 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 and 2012. These diagrams provide vital information for identifying, locating, and troubleshooting electrical components.
What’s Included:
Fuse Box Diagrams – Clear layouts showing the arrangement of fuses and relays.Fuse Panel Locations – Instructions on where to find the fuse panels inside the vehicle, such as the passenger compartment and engine bay.Fuse Assignments – A detailed list of what each fuse and relay controls, assisting with diagnostics and repairs.
Whether you need to replace a blown fuse, solve an electrical issue, or understand your vehicle’s wiring better, this guide will help you maintain the reliability and performance of your Volvo V50 (2004–2012) .

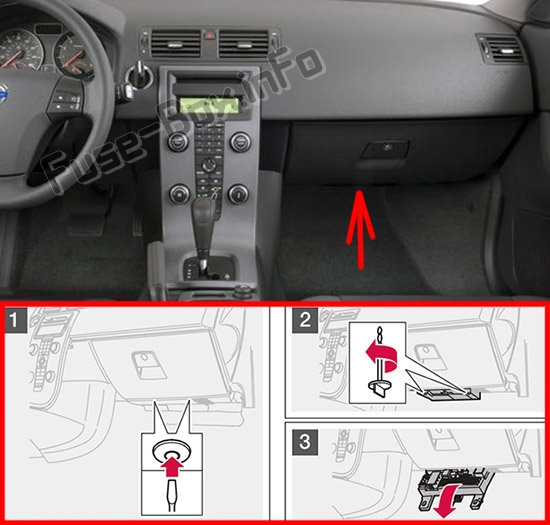

The fuse box in the passenger compartment is located under the glove compartment.

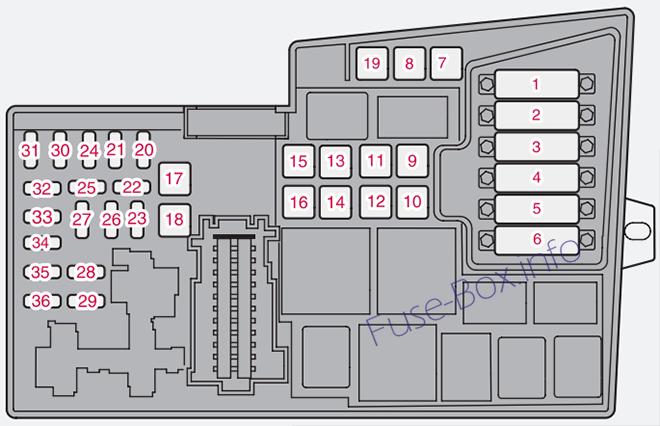

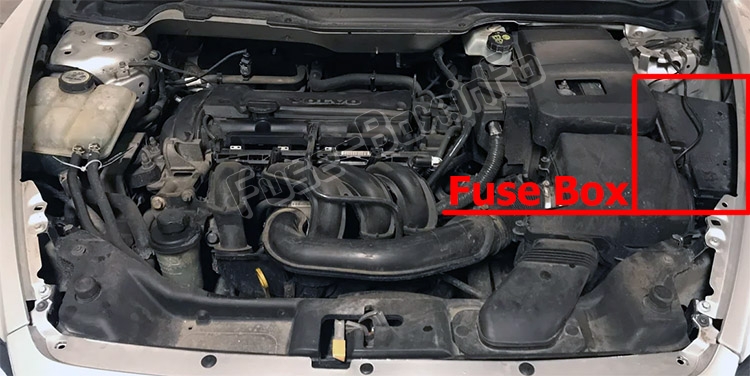

Assignment of fuses in the engine compartment
№ Description Amp 1 Radiator/Coolant fan 50 A 2 Power steering 80 A 3 Supply to passenger compartment fuse box 60 A 4 Supply to passenger compartment fuse box 60 A 5 Climate control element / PTC heater (option) 80 A 6 2008 : Glow plugs (4-cyl. diesel) / Glow plugs (5-cyl. diesel)2012 : Glow plugs (DRIVe) / Glow plugs (5-cyl. diesel)2009 –2011 : Not in use60–70 A 7 ABS pump 30–40 A 8 ABS valves 20 A 9 Engine functions 30 A 10 Ventilation fan/Climate system blower 40 A 11 Headlight washers 20 A 12 Heated rear window 30 A 13 Actuator solenoid, starter motor 30 A 14 Trailer wiring/connector (option) 40 A 15 Not in use / Reserve – 16 Audio/Infotainment system 30 A 17 Windscreen wipers 30 A 18 Supply to passenger compartment fuse box 40 A 19 Not in use / Reserve – 20 Horn 15 A 21 2008 & 2012 : Fuel-driven additional heater (option)2009 –2011 : Not in use20 A 22 Not in use / Reserve – 23 ECM (5-cyl. petrol), TCM (5-cyl.) / TCM (4-cyl.) 10–15 A 24 2008 & 2012 : Heated fuel filter, PTC oil trap (5-cyl. diesel)2009 –2011 : Not in use20 A 25 2008 –2011 : Not in use2012 : CEM (Start/Stop)10 A 26 Ignition switch 15 A 27 A/C compressor 10 A 28 Not in use / Reserve – 29 2008 –2011 : Front fog lights (option)2012 : Front fog lamps / DRL (option)15 A 30 2008 : ECM (1.6 I petrol, 2.0 I diesel)2009 –2011 : Not in use2012 : Coolant pump (Start/Stop)3–10 A 31 Voltage regulator, alternator (4-cyl. petrol) 10 A 32 Fuel injectors, turbo control, MAF, lambda sensors 10 A 33 Vacuum pump, ECM, fuel filter heater 20 A 34 Ignition coils, pressure sensor, glow plugs, fuel pump 10 A 35 Engine sensors, A/C relay, PTC oil trap, MAF, turbo control 15 A 36 ECM, throttle sensor, accelerator, lambda sensor 10 A
Login or Register to view this content
19—36 are of the “Mini Fuse” type.
Fuses 7—18 are of the “JCASE” type and should be replaced by Volvo workshop.
Fuses 1—6 are of the “Midi Fuse” type and may only be replaced by Volvo workshop.
Assignment of fuses in the passenger compartment
№ Description Amp 37 Reserve – 38 Reserve – 39 Reserve – 40 Reserve – 41 Reserve – 42 Reserve – 43 Phone, audio system, Bluetooth, RTI, Navigation, Telematics (option) 15 A 44 SRS system, engine control module (ECM) 10 A 45 Electrical socket, passenger compartment 15 A 46 Lighting – glovebox, instrument panel, footwells 5 A 47 Interior lighting, remote garage opener (option) 5 A 48 Tailgate window wiper/washer 15 A 49 SRS system, Occupant Weight Sensor (OWS) 10 A 50 Reserve – 51 AWD, fuel filter relay, additional heater, PTC element, relay coil 10 A 52 Transmission control module (TCM), ABS 5 A 53 Power steering 10 A 54 Parking assistance, Bi-Xenon/Xenon, Active Bending Lights (option) 10 A 55 Keyless control module (option) 20 A 56 Remote control receiver, siren, alarm, remote key module 10 A 57 Data link connector (DLC), brake light switch 15 A 58 Main beam (right), auxiliary lamps relay 7.5 A 59 Main beam (left) 7.5 A 60 Seat heating (driver’s side) 15 A 61 Seat heating (passenger side) 15 A 62 Sunroof / Moonroof (option) 20 A 63 Supply to rear right door 20 A 64 RTI, Sirius, Audio (option) 5 A 65 Infotainment / Audio system 5 A 66 Infotainment / Audio system control module (ICM), climate control 10 A 67 Reserve – 68 Cruise control 5 A 69 Climate control, rain sensor, BLIS/BUS button, parking assist, DRIVe 5 A 70 Reserve – 71 Reserve – 72 Reserve – 73 Sunroof, interior lighting console, seatbelt reminder (rear), auto-dim mirror 5 A 74 Fuel pump relay 15 A 75 Reserve – 76 Reserve – 77 Electrical socket (cargo), AEM, accessory control module 15 A 78 Reserve – 79 Reversing lamp, auto-dim mirror (signal) 5 A 80 Reserve – 81 Supply to rear left door 20 A 82 Supply to front right door 25 A 83 Supply to front left door 25 A 84 Power passenger seat 25 A 85 Power driver’s seat 25 A 86 Interior lighting, cargo area lighting, power seats, fuel level display 5 A
Login or Register to view this content

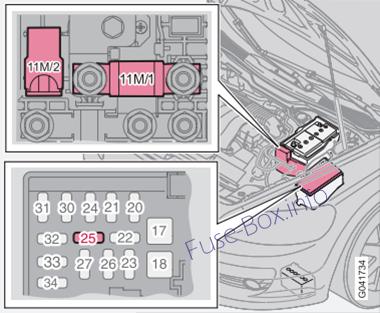

Location of fuses for the Start/Stop function
№ Component Amp 11M/1 Engine compartment, electrical distribution unit 125 11M/2 Sensor, battery monitoring 15 25 Central electronic module (CEM) (Reference voltage standby battery), diesel engine 10
