In this article, you will find fuse box diagrams for the Volvo XC90, covering model years 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014. These diagrams are helpful for locating, inspecting, or replacing fuses and relays associated with various electrical systems.

What’s Included:

  • Fuse Box Diagrams – Clear illustrations showing the fuse and relay layout for each model year.
  • Fuse Panel Locations – Guidance on where to find fuse panels inside the vehicle, such as in the passenger compartment or engine bay.
  • Fuse Assignments – Detailed descriptions of what each fuse and relay controls, aiding in diagnostics and repairs.

Whether you’re troubleshooting an electrical fault or replacing a blown fuse, this guide will help you keep your Volvo XC90 (2002–2014) in top working condition.

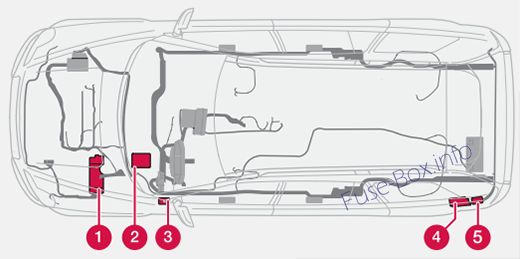

Fuse Box Locations

1) Engine compartment

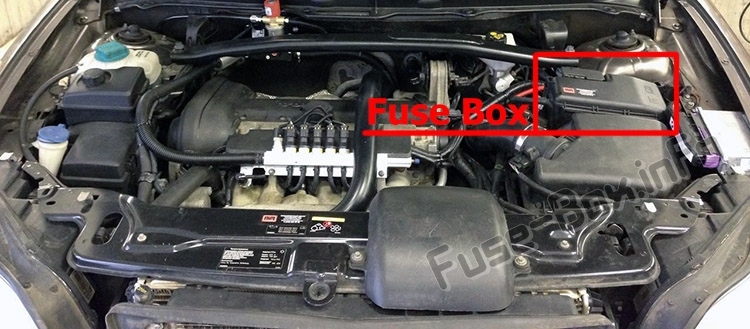

The location of the fuses in the engine compartment: Volvo XC90 (2008-2014)

2) Passenger compartment, below the steering wheel

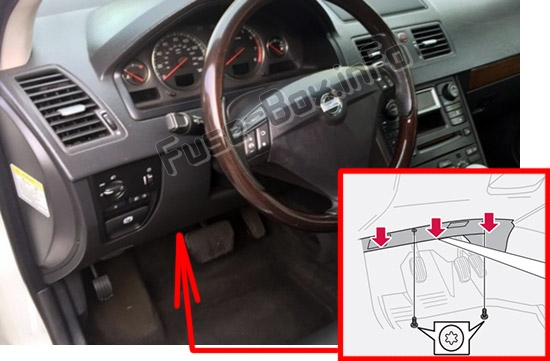

This fuse box is located behind the plastic cover under the dashboard.

The location of the fuses in the passenger compartment: Volvo XC90 (2008-2014)

3) Passenger compartment, on the edge of the dashboard

Fuses are located inside the access panel on the edge of the dashboard, on the driver’s side.

The location of the fuses in the dashboard: Volvo XC90 (2008-2014)

4) Cargo compartment

These fuses in the cargo area are located behind the panel on the driver’s side of the cargo compartment.

The location of the fuses in the luggage compartment: Volvo XC90 (2008-2014)

5) Cargo compartment (XC90 Executive)

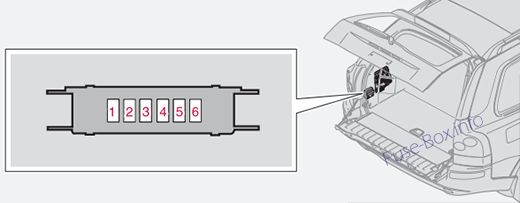

Auxiliary fuse box: XC90 Executive (2008-2014)

Fuse Box Diagrams

2002, 2003, 2004, 2005, 2006, 2007, 2008

Engine compartment

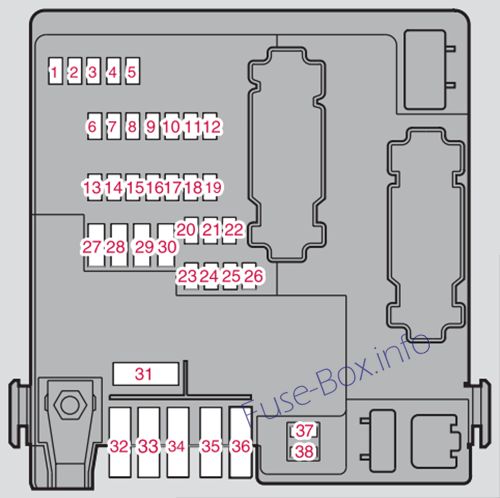

Under-hood fuse box diagram: Volvo XC90 (2008)

Assignment of fuses in the engine compartment (2002, 2003, 2004, 2005, 2006, 2007, 2008)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1ABS30A
2ABS30A
3High-pressure washer, headlamps35A
4Parking heater (option).25A
5Auxiliary lamps (option)20A
6Starter motor relay.35A
7Windscreen wipers25A
8Fuel pump15A
9Transmission control module (TCM), (V8, diesel, 6-cyl. petrol).15A
10Ignition coils (petrol), engine control module (ECM), injection valves (diesel).20A
11Accelerator pedal sensor (APM), AC compressor, fan electronics box.10A
12Engine control module (ECM) (petrol), injection valves (petrol), mass air flow sensor (petrol).15A
12Mass air flow sensor (diesel)5A
13Electronic throttle module (V8), VIS (6-cyl. petrol)10A
13Electronic throttle module (ETM), solenoid valve, SWIRL (air mixing valve), fuel pressure regulator (diesel).15A
14Lambda-sond (petrol).20A
14Lambda-sond (diesel)10A
15Crankcase ventilation heater, solenoid valves, leakage diagnosis (5-cyl. petrol)10A
15Crankcase ventilation heater (V8, 6-cyl. petrol), AC connection (V8, 6-cyl. petrol), solenoid valves, leakage diagnosis (V8, 6-cyl. petrol), ECM, (V8, 6-cyl. petrol), mass air flow sensor (V8), glow plugs (diesel)15A
16Dipped beam, left20 A
17Dipped beam, right20 A
18–
19Engine control module (ECM) supply, engine relay.5A
20Position lamps15A

On the edge of the dashboard

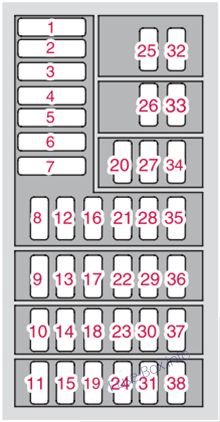

Instrument panel fuse box diagram: Volvo XC90 (2008)

Assignment of fuses on the edge of the dashboard (2002, 2003, 2004, 2005, 2006, 2007, 2008)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Climate control system fan30A
2Audio (amplifier).30A
3Power driver’s seat.25A
4Power passenger seat25A
5Control module, left front door25A
6Control module, right front door25A
7––
8Radio, CD player, RSE system15A
9RTI display, RTI unit MMM .10A
10OBDII, light switch (LSM), Steering Angle Sensor (SAS), Steering Wheel Module (SWM).5A
11Ignition switch, SRS-system, engine control module ECM (V8, 6-cyl. petrol) SRS deactivation passenger side (PACOS), electronic immobiliser (IMMO), Transmission control module TCM (V8, diesel, 6-cyl. petrol) .7.5A
12General lighting, ceiling (RCM) Upper electronic module (UEM)10A
13Sunroof15A
14Phone5A
15-38––

Below the steering wheel

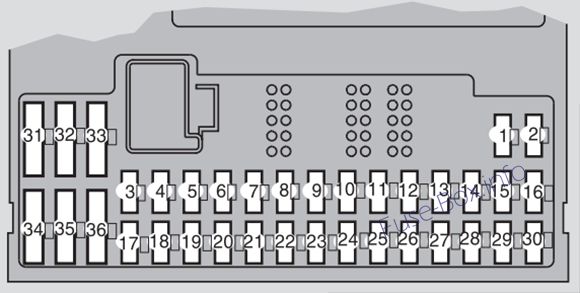

Interior fuse box diagram (below the steering wheel): Volvo XC90 (2008)

Assignment of fuses below the steering wheel (2002, 2003, 2004, 2005, 2006, 2007, 2008)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Seat heating, right side15A
2Seat heating, left side.15A
3Horn15A
4Reserve–
5Infotainment system10A
6Reserve–
7Reserve.–
8Siren.5A
9Brake lamp switch feed5A
10Combined instrument panel (DIM), climate control (CCM), parking heater, power driver’s seat .10A
11Front seat, rear seat and refrigerator socket15A
12Reserve–
13Reserve–
14Reserve.–
15ABS, STC/DSTC5A
16Electronic power steering (ECPS); Active Bi-Xenon (HCM), headlamp levelling10A
17Fog lamp, front left5A
18Fog lamp, front right5A
19Reserve–
20Coolant pump (V8) .5A
21Transmission Control Module (TCM), reverse gear inhibitor (M66).10A
22Main beam, left10A
23Main beam, right10A
24Reserve–
25Reserve–
26Reserve–
27Reserve–
28Power passenger seat .5A
29Fuel pump.5A
30BLIS5A
31Reserve–
32Reserve–
33Vacuum pump.20A
34Washer pump.15A
35Reserve–
36Reserve–

Cargo compartment

Trunk fuse box diagram: Volvo XC90 (2008)

Assignment of fuses in the cargo compartment (2002, 2003, 2004, 2005, 2006, 2007, 2008)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Reversing lamp.10A
2Position lamps, fog lamps, cargo area lighting, number plate lighting, lamps in brake lighting.20A
3Accessories (AEM)15A
4Reserve
5REM electronics10A
6Rear seat entertainment RSE (accessory).7.5A
7Towing bracket wiring (30-feed)15A
8Cargo area socket.
9Rear right door: power window, power window lock.20A
10Rear left door: power window, power window lock.20A
11Reserve
12Reserve
13Diesel filter heater.15A
14Subwoofer, rear air conditioning (A/C)15A
15Reserve
16Reserve
17Infotainment system accessories5A
18Reserve
19Rear wiper.15A
20Towing bracket wiring (15-feed)…20A
21Reserve
22Reserve
23AWD7.5A
24Reserve
25Reserve
26Parking assistance.5A
27Main fuse: Towing bracket wiring, parking assistance, AWD30A
28Central locking system (PCL).15A
29Trailer lighting, left: position lamps, direction indicator .25A
30Trailer lighting, right: brake lamp, rear fog lamp, direction indicator25A
31Main fuse: Fuse 37, 38.40A
32Reserve
33Reserve
34Reserve
35Reserve
36Reserve
37Heated rear window.20A
38Heated rear window20A

2009, 2010, 2011

Engine compartment

Under-hood fuse box diagram: Volvo XC90 (2009, 2010, 2011)

Assignment of fuses in the engine compartment (2009, 2010, 2011)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1ABS30
2ABS30
3Headlight washers35
4–20
5Auxiliary lights (option)35
6Starter motor relay25
7Windshield wipers15
8Fuel pump15
9Transmission control module (V8 and 6-cyl.)15
10Ignition coils, engine control module20
11Throttle pedal sensor, A/C compressor, e-box fan10
12Engine control module, fuel injectors, mass airflow sensor15
13Throttle control (V8), Intake manifold actuator (6-cyl.)10
14Heated oxygen sensor20
15Crankcase ventilation, solenoid valves, A/C connection, leakage diagnostics, engine control module (V8, 6-cyl.), mass airflow sensor (V8)15
16Driver’s side low beam headlight20
17Passenger’s side low beam headlight20
18–
19Engine control module feed, engine relay5
20Parking lights15
21Vacuum pump20

On the edge of the dashboard

Instrument panel fuse box diagram: Volvo XC90 (2009, 2010, 2011)

Assignment of fuses on the edge of the dashboard (2009, 2010, 2011)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Blower – climate system30
2Audio amplifier (option)30
3Power driver’s seat (option)25
4Power passenger’s seat (option)25
5Driver’s door – central locking, power windows, door mirror25
6Front passenger’s door – central locking, power windows, door mirror25
7––
8Radio, CD player15
9Volvo Navigation System (option), Sirius satellite radio (option), Rear Seat Entertainment (RSE) – option10
10On-board diagnostics, headlight switch, steering wheel angle sensor, steering wheel module5
11Ignition switch, SRS, engine control module (V8, 6-cyl.) immobilizer, transmission control module (V8, 6-cyl.)7.5
12Ceiling lighting, upper electronic control module10
13Moonroof (option)15
14Bluetooth hands-free system (option)5
15-38––

Below the steering wheel

Interior fuse box diagram (below the steering wheel): Volvo XC90 (2009, 2010, 2011)

Assignment of fuses below the steering wheel (2009, 2010, 2011)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Heated passenger’s seat15
2Heated driver’s seat15
3Horn15
4––
5Audio system10
6––
7––
8Alarm siren (option)5
9Break light switch feed5
10Instrument panel, climate system, power driver’s seat, Occupant Weight Sensor10
1112-volt sockets – front and rear seats, refrigerator (option) (XC90 Executive)15
12––
13––
14––
15ABS, DSTC5
16Power steering, Active Bending Lights (option)10
17Driver’s side front foglight (option)7,5
18Passenger’s side front fog-light (option)7,5
19–
20Coolant pump (V8)5
21Transmission control modulel10
22Driver’s side high beaml10
23Passenger’s side high beam10
24––
25––
26––
27––
28Power passenger’s seat (option)5
29––
30Blind Spot Information System (option)5
31––
32––
33Vacuum pump20
34Pump – windshield and tailgate washers15
35––
36––

Cargo compartment

Trunk fuse box diagram: Volvo XC90 (2009, 2010, 2011)

Assignment of fuses in the cargo compartment (2009, 2010, 2011)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Backup lights10
2Parking lights, foglights, cargo compartment lighting, license plate lights, brake light diodes20
3Accessories15
4
5Rear Electronic module10
6Rear Seat Entertainment (accessory)7,5
7Rear Seat Entertainment (accessory)15
812-volt socket in cargo compartment15
9Rear passenger’s side door -power window, power window cutout function20
10Rear driver’s side door – power window, power window cutout function20
11
12
13
14Subwoofer (option), rear air conditioning system (option)15
15–
16–
17Accessory audio5
18–
19Rear window wiper15
20Trailer wiring (15-feed) – option20
21–
22–
23Park assist7,5
24–
25–
26Park assist (option)5
27Main fuse: trailer wiring, park assist, All Wheel Drive30
28Central locking system15
29Driver’s side trailer lighting: parking lights, turn signal (option)25
30Passenger’s side trailer lighting: brake light, fog light, turn signal (option)25
31Main fuse: fuses 37 and 3840
32–
33–
34–
35–
36–
37Heated rear window20
38Heated rear window20

Auxiliary fuse box in the cargo compartment

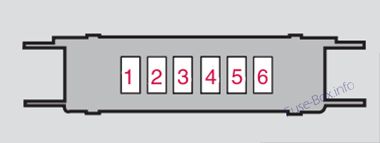

Auxiliary fuse box: XC90 Executive (2009, 2010, 2011)

Assignment of the auxiliary fuses in the cargo compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1.Relays for rear seat heating and front seat massage5 A
2.Rear seat heating, driver’s side15 A
3.Rear seat heating, passenger’s side15 A
4.Front seat ventilation/ massage10 A
5.––
6.––

2012

Engine compartment

Under-hood fuse box diagram: Volvo XC90 (2012)

Assignment of fuses in the engine compartment (2012)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1ABS30
2ABS30
3Headlight washers35
4–20
5Auxiliary lights (option)35
6Starter motor relay25
7Windshield wipers15
8Fuel pump15
9Transmission control module (6-cyl.)15
10Ignition coils, engine control module20
11Throttle pedal sensor, A/C compressor, e-box fan10
12Engine control module, fuel injectors, mass airflow sensor15
13Intake manifold actuator (6- cyl.)10
14Heated oxygen sensor20
15Crankcase ventilation, solenoid valves, A/C connection, leakage diagnostics, engine control module, mass airflow sensor15
16Driver’s side low beam headlight20
17Passenger’s side low beam headlight20
18–
19Engine control module feed, engine relay5
20Parking lights15
21Vacuum pump20

On the edge of the dashboard

Instrument panel fuse box diagram: Volvo XC90 (2012)

Assignment of fuses on the edge of the dashboard (2012)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Blower – climate system30
2Audio amplifier (option)30
3Power driver’s seat (option)25
4Power passenger’s seat (option)25
5Driver’s door – central locking, power windows, door mirror25
6Front passenger’s door – central locking, power windows, door mirror25
7––
8Radio, CD player15
9Volvo Navigation System (option), Sirius satellite radio (option), Rear Seat Entertainment (RSE) – option10
10On-board diagnostics, headlight switch, steering wheel angle sensor, steering wheel module5
11Ignition switch, SRS, engine control module, immobilizer, transmission control module7.5
12Ceiling lighting, upper electronic control module10
13Moonroof (option)15
14Bluetooth hands-free system (option)5
15-38––

Below the steering wheel

Interior fuse box diagram (below the steering wheel): Volvo XC90 (2012)

Assignment of fuses below the steering wheel (2012)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Heated passenger’s seat15
2Heated driver’s seat15
3Horn15
4––
5Audio system10
6––
7––
8Alarm siren (option)5
9Break light switch feed5
10Instrument panel, climate system, power driver’s seat, Occupant Weight Sensor10
1112-volt sockets – front and rear seats, refrigerator (option) (XC90 Executive)15
12––
13––
14––
15ABS, DSTC5
16Power steering, Active Bending Lights (option)10
17Driver’s side front foglight (option)7,5
18Passenger’s side front fog-light (option)7,5
19–
20–
21Transmission control modulel10
22Driver’s side high beaml10
23Passenger’s side high beam10
24––
25––
26––
27––
28Power passenger’s seat (option)5
29––
30Blind Spot Information System (option)5
31––
32––
33Vacuum pump20
34Pump – windshield and tailgate washers15
35––
36––

Cargo compartment

Trunk fuse box diagram: Volvo XC90 (2012)

Assignment of fuses in the cargo compartment (2012)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Backup lights10
2Parking lights, foglights, cargo compartment lighting, license plate lights, brake light diodes20
3Accessories15
4
5Rear Electronic module10
6Rear Seat Entertainment (accessory)7,5
7Rear Seat Entertainment (accessory)15
812-volt socket in cargo compartment15
9Rear passenger’s side door -power window, power window cutout function20
10Rear driver’s side door – power window, power window cutout function20
11
12
13
14Rear air conditioning system (option)15
15–
16–
17Accessory audio5
18–
19Rear window wiper15
20Trailer wiring (15-feed) – option20
21–
22–
23Park assist7,5
24–
25–
26Park assist (option)5
27Main fuse: trailer wiring, park assist, All Wheel Drive30
28Central locking system15
29Driver’s side trailer lighting: parking lights, turn signal (option)25
30Passenger’s side trailer lighting: brake light, fog light, turn signal (option)25
31Main fuse: fuses 37 and 3840
32–
33–
34–
35–
36–
37Heated rear window20
38Heated rear window20

Auxiliary fuse box in the cargo compartment

Auxiliary fuse box: XC90 Executive (2012)

Assignment of the auxiliary fuses in the cargo compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1.Relays for rear seat heating and front seat massage5 A
2.Rear seat heating, driver’s side15 A
3.Rear seat heating, passenger’s side15 A
4.Front seat ventilation/ massage10 A
5.––
6.––

2013, 2014

Engine compartment

Under-hood fuse box diagram: Volvo XC90 (2013, 2014)

Assignment of fuses in the engine compartment (2013, 2014)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1ABS30
2ABS30
3Headlight washers35
4–20
5Auxiliary lights (option)35
6Starter motor relay25
7Windshield wipers15
8Fuel pump15
9Transmission control module15
10Ignition coils, engine control module20
11Throttle pedal sensor, A/C compressor10
12Engine control module, fuel injectors, mass airflow sensor15
13Intake manifold actuator (6- cyl.)10
14Heated oxygen sensor20
15Crankcase ventilation, solenoid valves, A/C connection, leakage diagnostics, engine control module15
16Driver’s side low beam headlight20
17Passenger’s side low beam headlight20
18–
19Engine control module feed, engine relay5
20Parking lights15
21Vacuum pump20

On the edge of the dashboard

Instrument panel fuse box diagram: Volvo XC90 (2013, 2014)

Assignment of fuses on the edge of the dashboard (2013, 2014)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Blower – climate system30
2Audio amplifier (option)30
3Power driver’s seat (option)25
4Power passenger’s seat (option)25
5Driver’s door – central locking, power windows, door mirror25
6Front passenger’s door – central locking, power windows, door mirror25
7––
8Radio, CD player15
9Volvo Navigation System (option), Sirius satellite radio (option), Rear Seat Entertainment (RSE) – option10
10On-board diagnostics, headlight switch, steering wheel angle sensor, steering wheel module5
11Ignition switch, SRS, engine control module, immobilizer, transmission control module7.5
12Ceiling lighting, upper electronic control module10
13Moonroof (option)15
14Bluetooth hands-free system (option)5
15-38––

Below the steering wheel

Interior fuse box diagram (below the steering wheel): Volvo XC90 (2013, 2014)

Assignment of fuses below the steering wheel (2013, 2014)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Heated passenger’s seat15
2Heated driver’s seat15
3Horn15
4––
5Audio system10
6––
7––
8Alarm siren (option)5
9Break light switch feed5
10Instrument panel, climate system, power driver’s seat, Occupant Weight Sensor10
1112-volt sockets – front and rear seats, refrigerator (option) (XC90 Executive)15
12––
13––
14––
15ABS, DSTC5
16Power steering, Active Bending Lights (option)10
17Driver’s side daytime running light (DRL)7,5
18Passenger’s side daytime running light (DRL)7,5
19–
20–
21Transmission control module10
22Driver’s side high beaml10
23Passenger’s side high beam10
24––
25––
26––
27––
28Power passenger’s seat (option), Rear Seat Entertainment system (See also fuse 8 in the previous section “Fuses in the passenger compartment on the edge of the dashboard”)5
29Fuel pump7.5
30Blind Spot Information System (option)5
31––
32––
33Vacuum pump20
34Pump – windshield and tailgate washers15
35––
36––

Cargo compartment

Trunk fuse box diagram: Volvo XC90 (2013, 2014)

Assignment of fuses in the cargo compartment (2013, 2014)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1Backup lights10
2Parking lights, rear foglight, cargo compartment lighting, license plate lights, brake light diodes20
3Accessories15
4
5Rear Electronic module10
6
7Trailer wiring (30 feed) (accessory)15
812-volt socket in cargo compartment15
9Rear passenger’s side door -power window, power window cutout function20
10Rear driver’s side door – power window, power window cutout function20
11
12
13
14Rear air conditioning system (option)15
15–
16–
17Accessory audio5
18–
19Rear window wiper15
20Trailer wiring (15-feed) – option20
21–
22–
23All Wheel Drive (AWD)7,5
24–
25–
26Park assist (option)5
27Main fuse: trailer wiring, park assist, All Wheel Drive30
28Central locking system15
29Driver’s side trailer lighting: parking lights, turn signal (option)25
30Passenger’s side trailer lighting: brake light, fog light, turn signal (option)25
31Main fuse: fuses 37 and 3840
32–
33–
34–
35–
36–
37Heated rear window20
38Heated rear window20

Auxiliary fuse box in the cargo compartment

Auxiliary fuse box: XC90 Executive (2013, 2014)

Assignment of the auxiliary fuses in the cargo compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№FunctionAmp
1.Relays for rear seat heating and front seat massage5 A
2.Rear seat heating, driver’s side15 A
3.Rear seat heating, passenger’s side15 A
4.Front seat ventilation/ massage10 A
5.––
6.––

FAQ

Scroll to Top
