Browse BMW 5 Series fuse box diagrams for 2017–2023 models with fuse locations, panel layouts, and detailed electrical system information for petrol, diesel, and plug-in hybrid variants. This article covers the seventh-generation BMW 5 Series (Model Codes: G30, G31, G38), available from 2017, and includes fuse box diagrams for BMW 5 Series 2017, 2018, 2019, 2020, 2021, 2022 and 2023 (Models: 520i, 520e, 530i, 530e, 540i, 545e, 518d, 520d, 525d, 530d and 540d), along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.

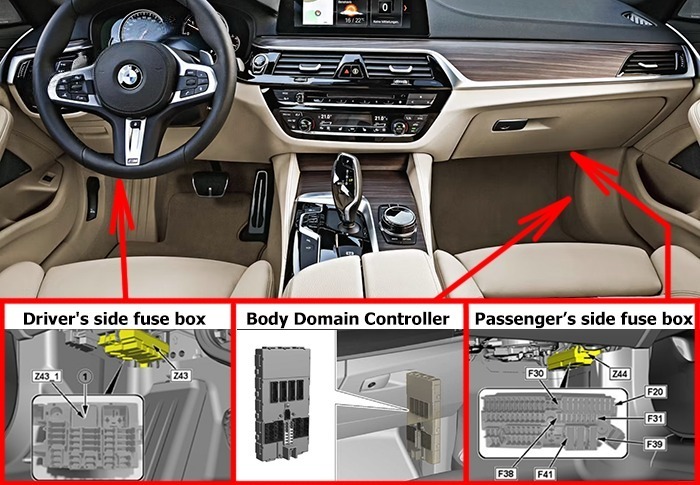

Two fuse panels are positioned beneath the dashboard: the first is on the passenger side, and the second is on the driver side (you may need to remove the protective trim). In addition, there are several fuses on the Body Domain Controller, which is located in the passenger-side pillar, behind the trim.

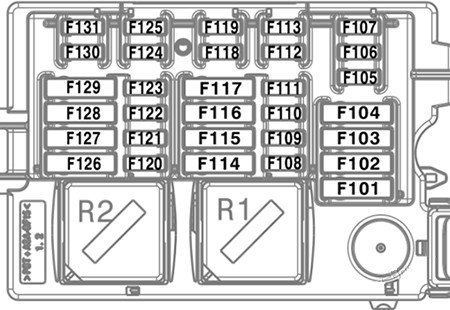

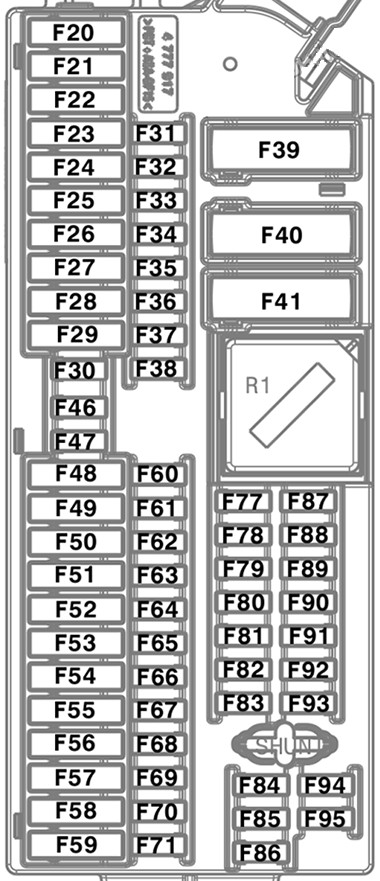

Fuse Box Diagram (Driver’s Side)
Fuses
Assignment of the fuses on the driver’s side in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Front passenger seat module (with seat module), Front passenger seat adjustment switch block (without seat module)
56
30A
Electric steering column adjustment
57
15A
Steering column switch block
58
10A
Functional center of the roof
60
5A
Seat management, Interior lights
61
5A
Upper Center Instrument Panel Light, Upper Front Passenger Instrument Panel Light, Lower Center Instrument Panel Light, Lower Driver/Passenger Instrument Panel Light, Front Left/Right Footwell Light
62
5A
Glove box light switch, Interior lights
63
5A
Dashboard speaker light, Air freshener, CD drive, Ionizer, 48V starter generator, Interior lights
64
5A
Driver Seat Back Width Adjustment Valve Block, Driver Lumbar Support Valve Block, Seat Adjustment Switch Block (Driver’s Side), Footwell Tail Light (Driver’s Side), Driver’s Backrest Backlight, USB Charging Socket, Module front left seat inflation, Interior lights
65
5A
Front Passenger Back Width Adjustment Valve Unit, Front Passenger Lumbar Support Valve Unit, Seat Adjustment Switch Unit (Front Passenger’s Side), Rear Footwell Light (Front Passenger’s Side), Front Passenger’s Back Seat Back Lighting, USB Connector for Charging No. 2, Front Right Seat Inflation Module, Interior lights
66
5A
Interior lighting
67
5A
Driver’s Door Switch Box, Driver’s Door Seat Switch Box, Driver’s Door Interior Handle Light, Driver’s Door Trim Panel Light (Center), Driver’s Door Pocket Light, Driver’s Door Trim Panel Light (Top), Front Left Midrange Speaker Light, Light front left tweeter, Electric mirrors
68
5A
Passenger Outside Mirror, Passenger Door Switch Box, Passenger Door Interior Door Handle Light, Front Passenger Door Trim Panel Light (Center), Passenger Door Pocket Light, Front Passenger Door Trim Panel Light (Top), Front Right Midrange Speaker Light, Light front right tweeter, Electric mirrors
69
5A
Crash safety module
70
5A
Electric fan shutdown relay, Electric fan
71
5A
Engine management, Gear indicator, EDC, Gear Automatic Transmission Control, AWD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM
79
5A
Interior lights
80
5A
Air conditioner system
83
5A
Steering column function control module
90
5A
Driving assistance
91
5A
Driving assistance
92
5A
Driving assistance
93
10A
Steering column function control module

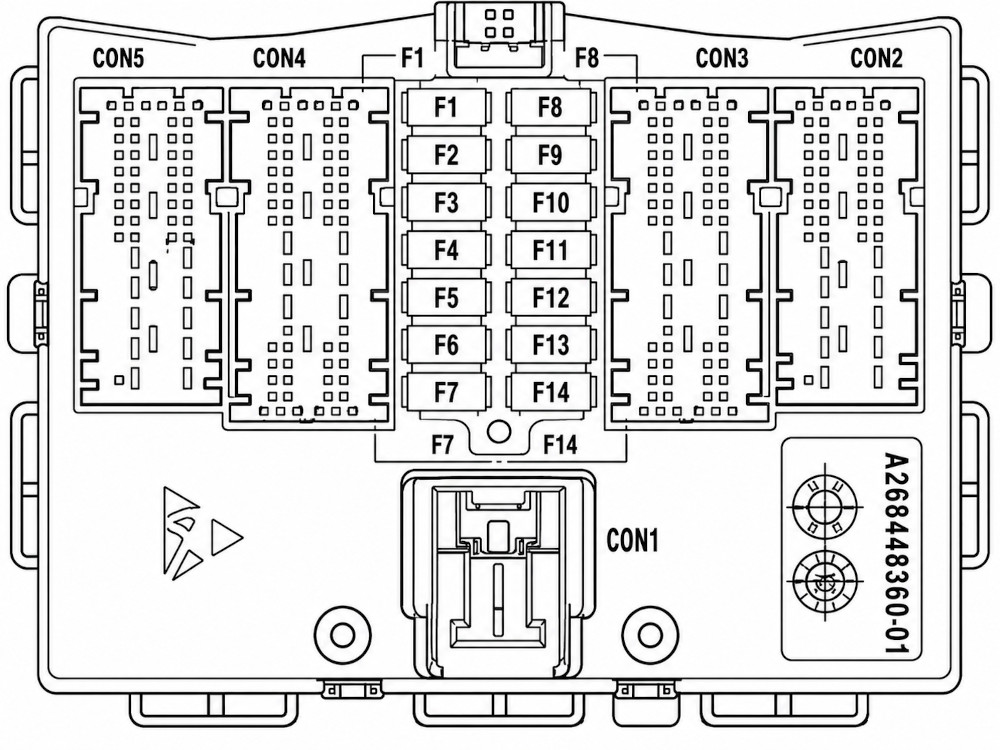

Fuse Box Diagram (BDC)
Fuses
Assignment of the fuses in the body domain controller fuse box on the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Driver’s door lock relay, lock relay (driver’s door lock, front passenger’s door lock, driver’s side rear door lock, rear passenger’s side door lock, fuel filler door central lock actuator)
7
15A
Signal (Horn)
10
5A
Steering column switch block, front center ventilation grille, audio control panel, lighting control unit, head unit, Driving assistance,
Heating / air conditioning system, rear door function module, rain / light / sun / condensation sensor, Boot lid (tailgate) lock / Soft-close automatic for tailgate
13
5A
Dynamic drive system, Start/stop system
Luggage Compartment

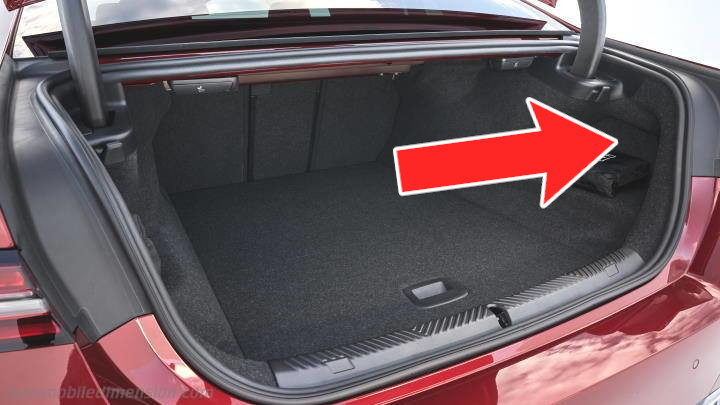

Fuse Box Location
It is positioned behind the trim panel on the right side.

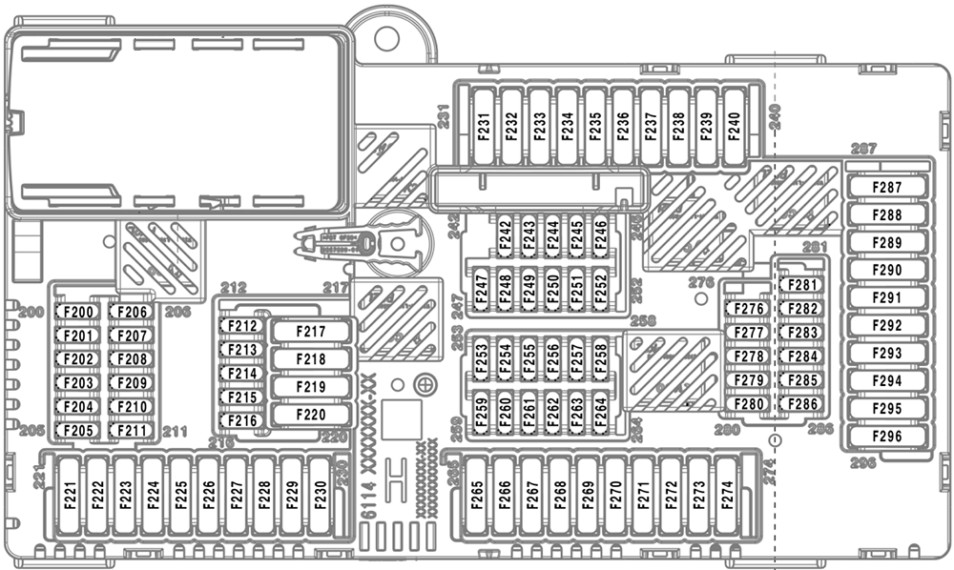

Fuse Box Diagram
Fuses
Assignment of the fuses in the luggage compartment
Fuse Data
Full access is available to registered users — log in or register.
Electric rear sunshade, Door module / Automatic soft-close
259
15A
DME – Digital Motor Electronics / Integrated Voltage Module – IVM
262
5A
Air conditioner system, Heated seats, Convertible top module / Convertible relay, Air suspension system, Parking sensors / Home link (garage door opener), Driving assistance, Head-Up Display (HUD), Rear seat entertainment
264
10A
Boot lid (tailgate) lock / Soft-close automatic for tailgate
267
30A
Heated seats, Seat adjustment
268
20A
Convertible top module / Convertible relay
269
30A
Seat adjustment, Air suspension system
271
30A
Fuel pump relay / Fuel pump control, DME – Digital Motor Electronics / Integrated Voltage Module – IVM
