BMW 6 (F06-F12-F13) | 2011-2018

Find BMW 6 Series fuse box diagrams for 2011–2018 models with fuse locations, panel layouts, and detailed electrical system information for Coupe, Convertible, and Gran Coupe variants. This article covers the third-generation BMW 6 Series (Model Codes: F06, F12, F13), available from 2011, and includes fuse box diagrams for BMW 6 Series 2011, 2012, 2013, 2014, 2015, 2016, 2017 and 2018 (Models: 640i, 650i, M6 and 640d), along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Passenger Compartment

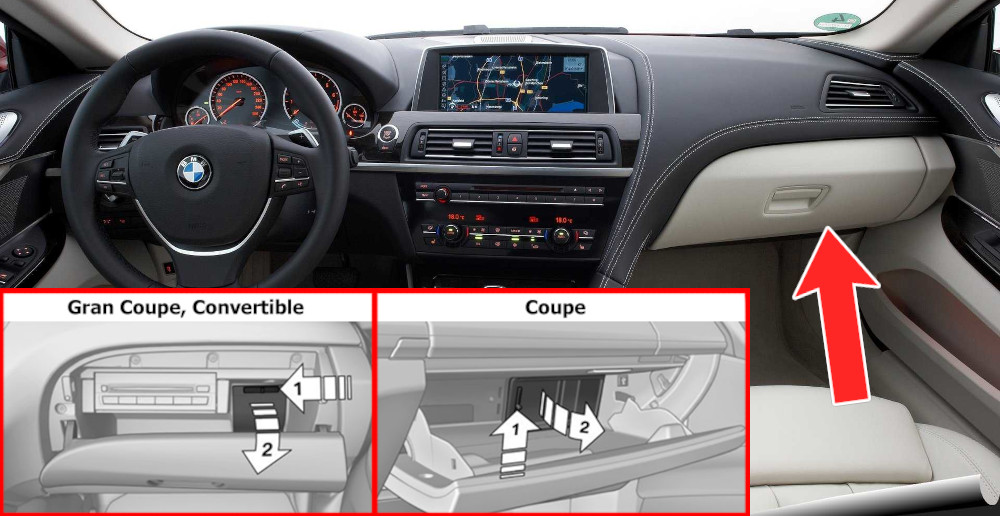

Fuse Box Location

Fuse box is located in the glovebox.

Push the handle to the side, arrow 1, then open the lid, arrow 2.

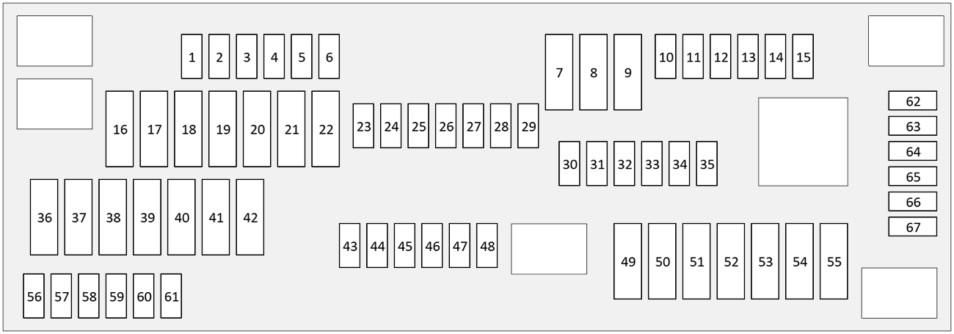

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment (in the glove box)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
110ASteering column function control module
25AABS (Anti-lock Brake System) / DSC (Dynamic Stability Control), Door module / Automatic soft-close
35AOBD (On Board Diagnostics)
45AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module
510AInterior lights, Instrument cluster
730APower windows with anti-trapping function
830ASteering column function control module, Head-Up Display (HUD), Electric mirrors, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Parking sensors / Home link (garage door opener), Horn, Door module / Automatic soft-close, Power windows with anti-trapping function, Rear wiper relay, Washer fluid heater, Instrument cluster, Air conditioner system, Windscreen washers, Headlight washing system
930APower windows with anti-trapping function
1010AHead-Up Display (HUD), Instrument cluster
117.5AAir conditioner system
125ALight module
135ASteering column control function module, Head-Up Display (HUD), Main headlights / Rain sensor / Light sensor / Electronic ride height control, Light module, Interior lights, Instrument cluster, HiFi Amp, TV tuner, Video module
1415ADoor module / Automatic soft-close
1520ADoor module / Automatic soft-close
1640AMain headlights / Rain sensor / Light sensor / Electronic ride height control, Light module, Interior lights
1730APower windows with anti-trapping function
1830APower windows with anti-trapping function
1920ATrailer module
2020AFuel injections & similar electronics
2130AFuel injections & similar electronics
2230AFuel injections & similar electronics
235ATelephone
2410ASteering column function control module, Head-Up Display (HUD)
255AHead-Up Display (HUD)
275ASeat adjustment, Telephone
315AHead-Up Display (HUD), Heated seats, Air conditioner system
327.5AElectric mirrors, Door module / Automatic soft-close, Power windows with anti-trapping function, Seat adjustment
335ASTART-STOP system, Seatbelts, Digital Diesel Electronics (DDE)
345AAir suspension system, Dynamic drive system
3510AABS (Anti-lock Brake System) / DSC (Dynamic Stability Control), Digital Diesel Electronics (DDE), Fuel injections & similar electronics
3630AWindscreen washers, Headlight washing system
3730AAir suspension system, Dynamic drive system
3840ASTART-STOP system, Door module / Automatic soft-close
3940ASteering column function control module, Fuel injections & similar electronics
4030AABS (Anti-lock Brake System) / DSC (Dynamic Stability Control)
4230AFuel injections & similar electronics
435AABS (Anti-lock Brake System) / DSC (Dynamic Stability Control), Steering column function control module, Electric fan
445AHeating / Independent aux. heater, Air conditioner system
455ASteering column function control module, Air suspension system, Dynamic drive system
465AElectric fan, Cruise control
4720AFuel injections & similar electronics
485AInterior lights, Heating / Independent aux. heater, Fuel injections & similar electronics
5040AABS (Anti-lock Brake System) / DSC (Dynamic Stability Control)
5130ARear wiper relay
5230ASeat adjustment
5330ASeat adjustment
5420AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
5520ARear wiper relay
565ASTART-STOP system, Door module / Automatic soft-close
585AAlarm, Door module / Automatic soft-close, Sunroof, Panorama glass, Convertible top module / Convertible relay
5910AFuel injections & similar electronics
605AAlarm, Parking brake
6120ASunroof, Panorama glass, Convertible top module / Convertible relay, Electric rear sunshade
6215AHorn
6310AGear indicator, EDC, Automatic Transmission Control, AWD
647.5AGear indicator, EDC, Automatic Transmission Control, AWD
6515AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
667.5AMain headlights / Rain sensor / Light sensor / Electronic ride height control, Light module, Interior lights
6710ASeat adjustment

Luggage Compartment

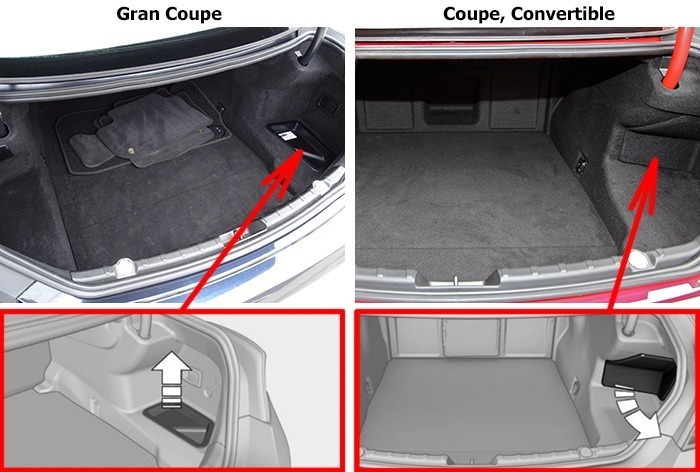

Fuse Box Location

The fuse box is located on the right side (passenger side) of the luggage compartment; remove the cover to access it.

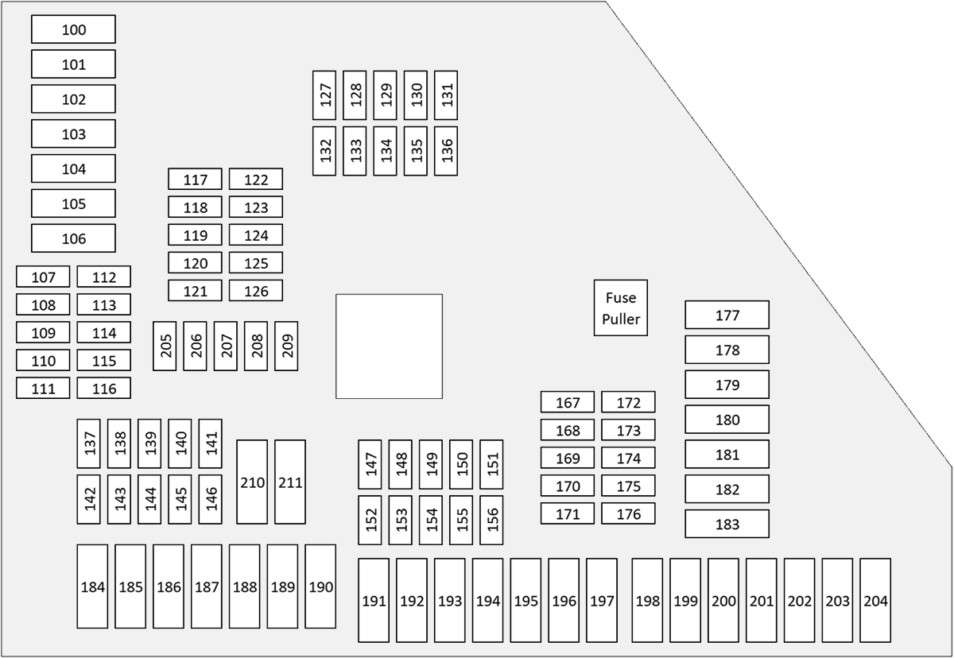

Fuse Box Diagram

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
10020AElectric rear sunshade
10140AMain headlights / Rain sensor / Light sensor / Electronic ride height control
10320ASTART-STOP system
105HiFi Amp, TV tuner, Video module
1075AAir suspension system, Fuel injections & similar electronics
1085AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
10910AElectric rear sunshade
11010ADoor module / Automatic soft-close
1125ASeat adjustment
1135AHead-Up Display (HUD)
1145ASeat adjustment, Electric rear sunshade
1167.5AHead-Up Display (HUD)
1175ATelephone
11810AHead-Up Display (HUD), Air suspension system, HiFi Amp, TV tuner, Video module
11915AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module
1205AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module
1215AHead-Up Display (HUD), Electric fan
1235AHead-Up Display (HUD)
1245AHead-Up Display (HUD)
1255AHead-Up Display (HUD)
12810AAir conditioner system, Fuel injections & similar electronics
1315AHead-Up Display (HUD), Dynamic drive system
1325ADigital Diesel Electronics (DDE)
1345ASteering column function control module, Parking sensors / Home link (garage door opener), Door module / Automatic soft-close, Dynamic drive system
1355AAlarm, Fuel pump relay / Fuel pump control, Fuel injections & similar electronics
1365ASTART-STOP system
1375AElectric fan, Fuel injections & similar electronics
1385AGear indicator, EDC, Automatic Transmission Control, AWD, Fuel injections & similar electronics
1395AFuel pump relay / Fuel pump control, Tire pressure control RDV
14220AHeating / Independent aux. heater
14310ADoor module / Automatic soft-close
14410ADoor module / Automatic soft-close
14520ATrailer module
14715AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
14820ATrailer module
14910ADoor module / Automatic soft-close
1525ADoor module / Automatic soft-close, Level control system (air suspension compressor relay)
1535ATailgate
1545AMain headlights / Rain sensor / Light sensor / Electronic ride height control, Light module
15515ATailgate
1565AAir conditioner system
1675AParking brake
1695AAlarm
17510AFuel injections & similar electronics
17615AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
17720AElectric fan
17830AABS (Anti-lock Brake System) / DSC (Dynamic Stability Control), Gear indicator, EDC, Automatic Transmission Control, AWD
17930AParking brake
18030AABS (Anti-lock Brake System) / DSC (Dynamic Stability Control), Parking brake
18240ALevel control system (air suspension compressor relay), Convertible top module / Convertible relay
18340ATailgate
18420AFuel pump relay / Fuel pump control
18640ASTART-STOP system
18730AHeated seats
18830AHeated seats
19030AHeated seats
19130AHeated seats
19530AHeating / Independent aux. heater
19830ASeatbelts
19930ASeatbelts
20040AHead-Up Display (HUD), HiFi Amp, TV tuner, Video module
20230AHeating / Independent aux. heater
20330ARear window defroster (defogger)
20430ARear window defroster (defogger)
