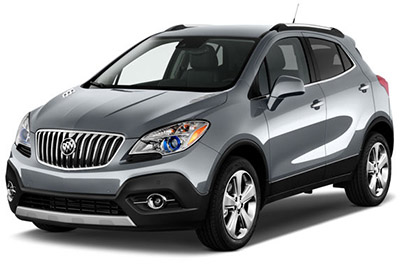

Buick Encore (2013-2016)

Looking for Buick Encore fuse box diagrams? This article covers the first-generation Buick Encore before the facelift, produced from 2013 to 2016, and includes fuse box diagrams for Buick Encore 2013, 2014, 2015 and 2016, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Passenger Compartment

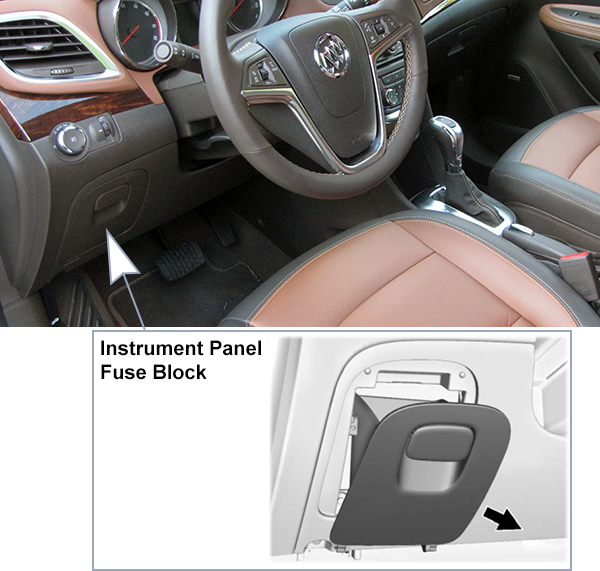

Fuse Box Location

It is located in the instrument panel, behind the storage compartment.

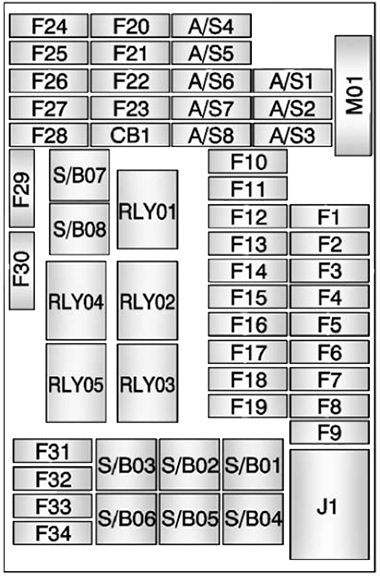

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
F1Mini FuseBody control module 1
F2Mini FuseBody control module 2
F3Mini FuseBody control module 3
F4Mini FuseBody control module 4
F5Mini FuseBody control module 5
F6Mini FuseBody control module 6
F7Mini FuseBody control module 7
F8Mini FuseBody control module 8
F9Mini FuseDiscrete logic ignition switch
F10Mini FuseSensing Diagnostic Module Battery
F11Mini FuseData link connector
F12Mini FuseHeater, Ventilation, and Air Conditioning MDL/ICS
F13Mini FuseLiftgate relay
F14Mini FuseUPA Module
F15Mini FuseLDW Module/Inside Rearview Mirror
F16Mini FuseAdaptive forward lighting module
F17Mini FusePower WNDWSW DR
F18Mini FuseRain Sensor
F19Mini FuseBody Control Module Regulated Voltage Control
F20Mini FuseSteering Wheel Switch Backlighting
F21Mini FuseA/C Accessory Power Outlet/ PRND
F22Mini FuseCigar Lighter/DC Accessory Power Outlet
F23Mini FuseSpare
F24Mini FuseSpare
F25Mini FuseSpare
F26Mini FuseAutomatic Occupant Sensing Display
F27Mini FuseIPC/PTC Control/ Clutch Switch
F28Mini FuseHeadlamp Switch/ AFL/DC Converter
F29Mini FuseSpare
F30Mini Fuse2013-2015: Spare
2016: Transmission Control Module Battery
F31Mini FuseIPC Battery
F32Mini FuseRadio/Chime/ Aux Jack
F33Mini FuseDisplay/Faceplate
F34Mini FuseOnStar/UHP/DAB
M1Midi FusePTC
S/B1S/B FuseSpare
S/B2S/B FuseSpare
S/B3S/B FusePower Window Motor Front
S/B4S/B FusePower Window Motor Rear
S/B5S/B FuseLogistic mode relay
S/B6S/B FuseSpare
S/B7S/B FuseSpare
S/B8S/B FuseSpare

Circuit Breakers

Assignment of the circuit breakers in the passenger compartment

No.Description
CB1Spare

Relays

Assignment of the relays in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
RLY01Accessory/Retained accessory power
RLY02Liftgate
RLY03Spare
RLY04Spare
RLY05Logistic mode

Engine Compartment

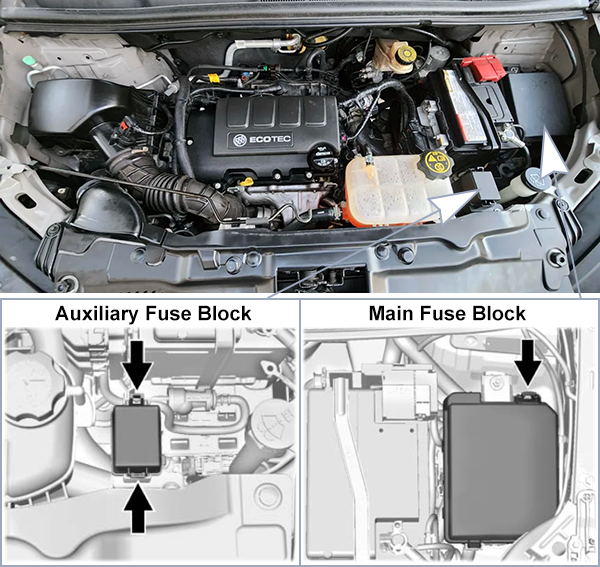

Fuse Box Location

To remove the fuse block cover, squeeze the clip and lift it up.

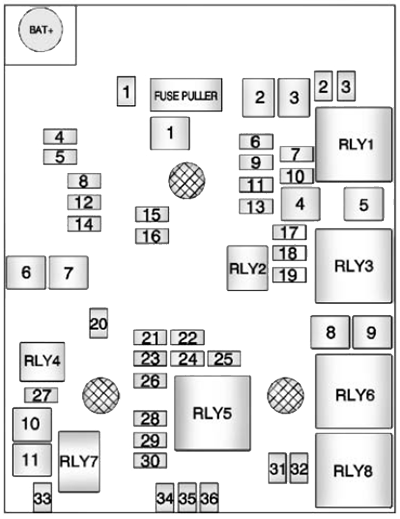

Fuse Box Diagram

Main Fuse Box

Fuses

Assignment of the fuses in the Engine compartment (Main Fuse Box)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
F1Mini FuseSunroof
F2Mini FuseOutside Rearview Mirror Switch
F3Mini FuseCanister vent solenoid
F4Mini FuseN/A
F5Mini FuseElectronic brake control module valve
F6Mini Fuse2013-2015: N/A
2016: Intelligent battery sensor
F7Mini FuseN/A
F8Mini FuseTransmission control module battery
F9Mini Fuse2013-2015: BCM Regulated Voltage Control
2016: N/A
F10Mini FuseFuel System Control Module R/C / Headlamp Leveling
F11Mini FuseRear wiper
F12Mini FuseRear window defogger
F13Mini FuseN/A
F14Mini FuseOutside Rearview Mirror Heater
F15Mini FuseFuel system control module battery
F16Mini FuseHeated seat module / Memory module
F17Mini FuseTransmission Control Module R/C
F18Mini FuseEngine Control Module R/C
F19Mini FuseFuel pump
F20Mini FuseN/A
F21Mini FuseFan Relay (Auxiliary Fuse Block)
F22Mini FuseN/A
F23Mini FuseIgnition coil / Injector
F24Mini FuseWasher pump
F25Mini FuseN/A
F26Mini FuseCanister Purge Solenoid / Water Valve Solenoid / Oxygen Sensors – Pre and Post / Turbo Wastegate Solenoid (1.4L) / Turbo Bypass Solenoid (1.4L)
F27Mini Fuse2013-2015: N/A
2016: Auxiliary Heater Pump
F28Mini Fuse2013-2015: N/A
2016: Engine Control Module Powertrain Ignition 1
F29Mini FuseEngine Control Module Powertrain Ignition 2
F30Mini FuseMass Air Flow Sensor
F31Mini FuseLeft high-beam headlamp
F32Mini FuseRight high-beam headlamp
F33Mini FuseEngine control module battery
F34Mini FuseHorn
F35Mini FuseAir Conditioning Compressor Clutch
F36Mini FuseFront fog lamps
J1J-Case FuseElectronic brake control module pump
J2J-Case FuseFront wiper
J3J-Case FuseBlower Motor
J4J-Case FuseIEC RC
J5J-Case FuseN/A
J6J-Case FuseN/A
J7J-Case Fuse2013-2015: N/A
2016: Starter Solenoid (Automatic Transmission) / N/A (Manual Transmission)
J8J-Case FuseCooling Fan Low/Mid
J9J-Case FuseCooling Fan High
J10J-Case FuseEVP
J11J-Case Fuse2013-2015: Starter Solenoid
2016: Pinion Starter Solenoid (Automatic Transmission) / Starter Solenoid (Manual Transmission)

Relays

Assignment of the relays in the engine compartment (Main Fuse Box)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
RLY2U-Micro Relay2013-2015: N/A
2016: Fuel pump
RLY4U-Micro RelayStarter / Spare
RLY7HC-Micro RelayStarter / Starter pinion
RLY1Mini RelayRun / Crank
RLY3Mini RelayCooling fan – mid
RLY5Mini RelayPowertrain relay
RLY8Mini RelayCooling fan – low
RLY6HC-Mini RelayCooling fan – high

Auxiliary Fuse Box

Relays

Assignment of the relays in the engine compartment (Auxiliary Fuse Box)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
RLY01Electric Vacuum Pump
RLY02Cooling Fan Control 1
RLY03Cooling Fan Control 2
RLY04Trailer (N/A)

Luggage Compartment

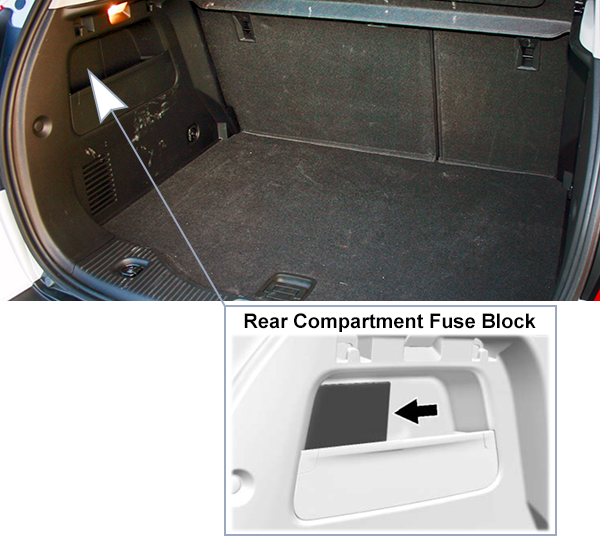

Fuse Box Location

It is located in the left side of the luggage compartment, behind the cover.

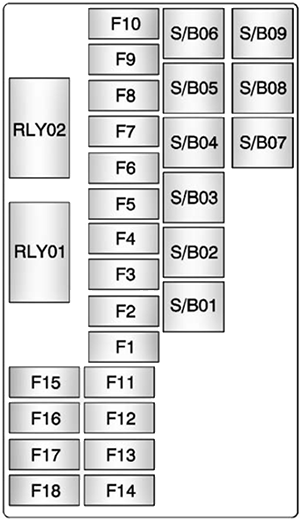

Fuse Box Diagram

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
F1Mini FuseDriver Seat Power Lumbar Switch
F2Mini FusePassenger Seat Power Lumbar Switch
F3Mini FuseAmplifier
F4Mini FuseTrailer Socket (N/A)
F5Mini FuseAll-Wheel Drive Module
F6Mini FuseAutomatic Occupant Sensing Module
F7Mini FuseSpare/LPG Module Battery
F8Mini FuseTrailer Parking Lamps (N/A)
F9Mini FuseSpare
F10Mini FuseSpare/Side Blind Zone Alert Module
F11Mini FuseTrailer Module (N/A)
F12Mini FuseNav Dock
F13Mini FuseHeated Steering Wheel
F14Mini FuseTrailer Socket (N/A)
F15Mini FuseSpare/EVP Switch
F16Mini FuseWater In Fuel Sensor
F17Mini FuseInside Rearview Mirror/Rear Vision Camera
F18Mini FuseSpare/LPG Module Run/Crank
S/B1S/B FuseDriver Power Seat Switch/Memory Module
S/B2S/B FusePassenger Power Seat Switch
S/B3S/B FuseTrailer Module (N/A)
S/B4S/B FuseA/C-D/C Inverter
S/B5S/B FuseBattery
S/B6S/B FuseHeadlamp Washer
S/B7S/B Fuse2013-2015: Spare
2016: DC/DC Source 1
S/B8S/B Fuse2013-2015: Spare
2016: DC/DC Source 1
S/B9S/B FuseSpare

Relays

Assignment of the relays in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
RLY01Ignition Relay
RLY02Run Relay
