Buick Enclave (2025-2026)

Looking for Buick Enclave fuse box diagrams? This article covers the third-generation Buick Enclave, available from 2025, and includes fuse box diagrams for Buick Enclave 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Engine Compartment

Fuse Box Location

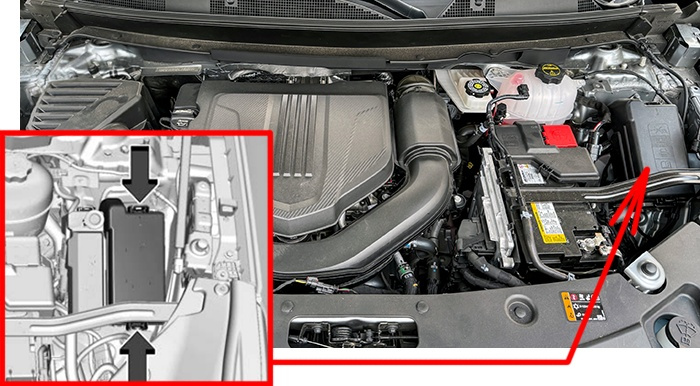

The underhood fuse block is in the engine compartment, on the driver side of the vehicle. To remove the fuse block cover, press the clips on the cover and lift it straight up.

Do not pull the engine compartment fuse block lever, since it is intended only for service purposes. If pulled, vehicle malfunction may occur.

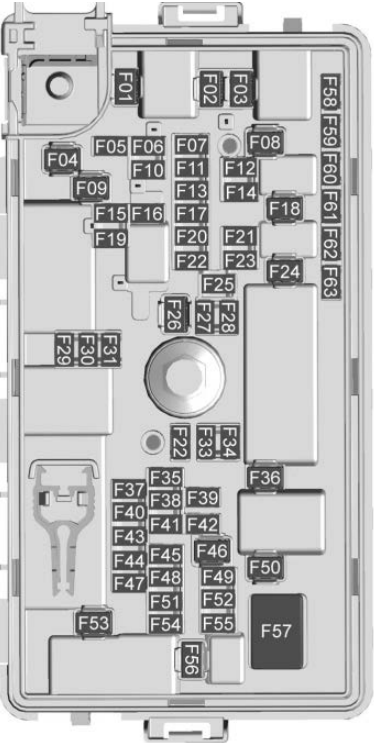

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01SPARE
F02SPARE
F03Front Wipers
F04SPARE
F05SPARE
F06Headlight Right
F07Rear Wiper
F08SPARE
F09Rear Defog
F10Exterior Lighting Module 4
F11Headlight Left
F12HORN
F13SPARE
F14SPARE
F15SPARE
F16Rear Wiper Control
F17Relay Coil Ground
F18DC-DC Battery 1
F19Exterior Lighting Module7
F20SPARE
F21SPARE
F22Exterior Lighting Module 5
F23Wiper de-icer
F24Electronic Brake Control Module 1
F25Exterior Lighting Module3
F26SPARE
F27TRLR_STP_TRN_LT – Trailer Light Stop Left
F28TRLR_STP_TRN_RT – Trailer Light Stop Right
F29WASH
F30AERO SHUTTER
F31SPARE
F32PCM – Power Control Module
F33SPARE
F34SPARE
F35PCM – Power Control Module
F36Starter Motor
F37AC CLUTCH GAS – Alternating Current Clutch Gas
F38SOL CP TURBO BYPASS – Solenoid Turbo Bypass
F39COIL ODD
F40SPARE
F41SNSR MAF/IAT/H/P SNSR O2H MTR EVAPP
F42SPARE
F43SPARE
F44SPARE
F45SPARE
F46SPARE
F47SPARE
F48SPARE
F49SPARE
F50E-PHASER – Electronic Phaser
F51SPARE
F52Power Control Module 2
F53SPARE
F54Air Pump
F55SPARE
F56Starter Pinion
F57Water Pump
F58SERVICE FUSE
F59SERVICE FUSE
F60SERVICE FUSE
F61SERVICE FUSE
F62SERVICE FUSE
F63SERVICE FUSE

Passenger Compartment

Fuse Box Location

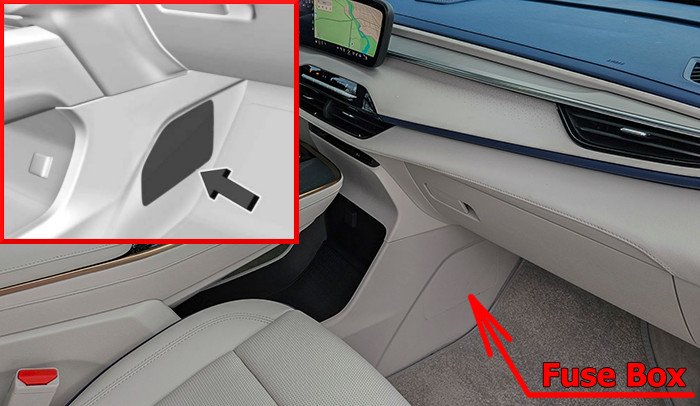

The instrument panel fuse block is inside the center console on the passenger side of the vehicle. Remove the fuse access door by inserting a coin or tool into the slot of the access door.

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01Blower Motor
F022025: Exterior Lighting Module 1
2026: SPARE
F03SCL – Steering Column Lock
F042025: Exterior Lighting Module 2
2026: SPARE
F05BCM2 – Body Control Module2
F06OHC – OnStar Hands – Free Calling
F07STEERING WHEEL CONTROL
F08TELEMATICS
F09BCM BATT1 & ETS SHIFTER – Body Control Module Battery 1 and Euro Truck Shifter
F10RAIN SNR/UGDO – Rain Sensor/Universal Garage Door Opener
F11HVAC & TPIM_HUD – Heating, Ventilation, and Air Conditioning and Traction Power Inverter Module / Head-Up Display
F12STEERING COLUMN LOCK
F13CGM&DLC – Central Gateway Module and Data Link Connector
F14EBCM&PCM – Electronic Brake Control Module and Power Control Module
F15AUX DISPLAY
F16APO_RR_CARGO – Auxiliary Power Outlet_Rear_Cargo
F17SDM_AOS – Sensing Diagnostic Module_Automatic Occupant Sensor
F18SEAT FAN CTR/HDLP CO & DR – Seat Fan Control Headlamp CO and Driver
F19ELM RC – Exterior Lighting Module Ride Control
F20VKM – Virtual Key Module SPARE
F21VCU_BATT 1 & 2 – Virtual Cockpit Unit Battery 1 and 2
F22SDM – Sensing Data Module
F232026: APO ROW 1 – Auxiliary Power Outlet Row 1
F24WCM – Wireless Charging Module
F25HVPO – High Voltage Power Outlet
F26SPARE
F27AUX
F28LRR – Long Range Radar
F29SRR – Short Range Radar
F30–
F31BCM3 – Body Control Module 3
F32HSWM – Heated Steering Wheel Module
F33–
F34CPM – Column Position Module
F35AMPLIFIER
F36DC/DC BAH 2 – Direct Current/Direct Current Battery 2
F37BCM4 – Body Control Module 4
F38AMPLIFIER 2
F39ELM 6 – Exterior Lighting Module 6
F40DCAC – Direct Current Alternating Current

Circuit Breakers

Assignment of the circuit breakers in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
CB01–
CB02APO – Auxiliary Power Outlet

Luggage Compartment

Fuse Box Location

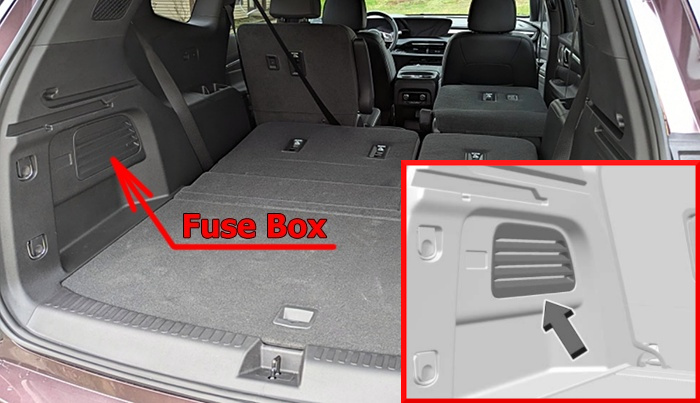

The rear compartment fuse block is behind a trim panel on the driver side of the rear storage compartment. The panel is removed by prying along the top edge of the trim panel. Remove the trim panel to access the fuse block, or see your dealer.

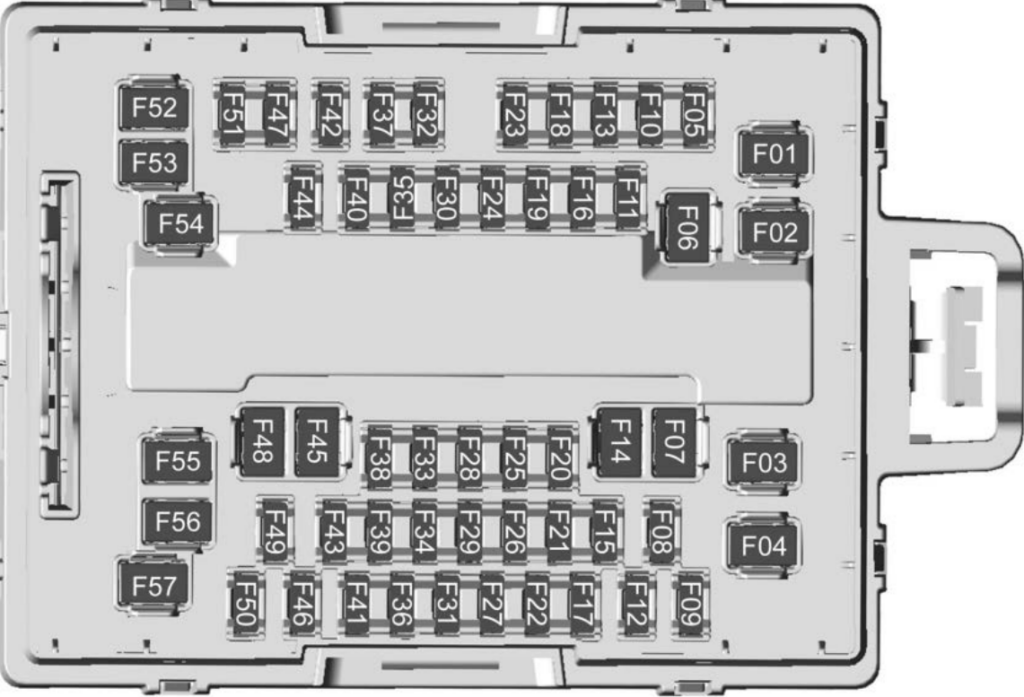

Fuse Box Diagram

Fuses

Assignment of the fuses in the rear compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01RR_BLOW – Rear Blower
F02DSP_CODR – Door Switch Panel_Code
F03TAILGATE
F04TRLR_BAT1 – Trailer Battery 1
F05ACP2 – AWD Control Processor 2
F06PWR_FOLD_SEAT_L_R – Power Fold Seat Left and Rear
F07DSP – Door Switch Panel
F08SPARE
F09LAMPS_RT – Right Lights
F10SPARE
F11SPARE
F122025: ELM 2 – Exterior Lighting Module 2
2026: SPARE
F13LAMPS_LT – Left Lights
F14SP_DRVR
F15MSM_DRIVER – Memory Seat Module Driver
F16MTR PFTS_ROW 2_L
F17FRT
F18SBP_CO_DRIVER
F19MTR PFTS_ROW 2_R
F20SPARE
F21RFA – Remote Function Actuator
F22SPARE
F23SPARE
F24SPARE
F25SPARE
F26CANISTER
F27UPA – Universal Park Assist
F28RDCM – Right Door Control Module
F29SBZA – Side Blind Zone Assist
F30TRLR PRK LMP – Trailer Park Light
F31FCM – Front Camera Module
F32SPARE
F33ROW 2_BAT1 – Second Row Battery 1
F34SPARE
F35SPARE
F36ROW 2_BAT2 – Second Row Battery 2
F37SPARE
F38SPARE
F39SPARE
F40TRLR_BACK_UP – Trailer Backup Light
F412025: SPARE
2026: ELM 2 – Exterior Lighting Module 2
F42DSP – Door Switch Panel
F43POWER FOLD SEAT SW/ N 3_ROW
F44OUT_OF_PARK_DISABLE
F45TRAILER_BRAKE
F46ACP 3 – AWD Control Processor 3
F47FTZM – Fuel Tank Zone Module
F48SP_PASS
F49SPARE
F50ELM 1 – Exterior Lighting Module!
F51FRT_BAT2 – Front Battery 2
F52SPARE
F53SPARE
F54ROW 2_FOLD_RH – Second Row Right-hand Fold
F55ROW 3
F56SUNROOF
F57RDCM – Right Door Control Module
