Chevrolet Blazer EV | 2024-2026

Explore Chevrolet Blazer EV fuse box diagrams in this modern guide that explains the electrical layout of Chevrolet’s battery-electric mid-size crossover SUV. In this article, we cover the Chevrolet Blazer EV, available from 2024, and provide fuse box diagrams for Chevrolet (Chevy) Blazer EV 2024, 2025 and 2026, along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Engine Compartment

Fuse Box Location

The under-hood compartment fuse block is located near the front driver-side headlamp.

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01Spare
F02–
F03Spare
F04Spare
F05Spare
F06Spare / Memory Seat Module (Driver Seat)
F07Primary evaporator expansion valve motor / Primary chiller expansion valve motor / External condenser flow valve motor / Condensing heater flow valve motor
F08Spare / Main Coolant Valve Motor
F09–
F10–
F11–
F12Spare / On Board Charging Module
F13Energy Storage System Coolant Pump / Power Electronics Coolant Pump Motor
F14–
F15Spare / Trailer Park Lights
F16–
F17–
F18–
F19–
F20–
F21Charge Port Door Motor
F22–
F23Front Traction Power Inverter Module 2
F24–
F25–
F26Spare
F27–
F28Spare
F29–
F30–
F31–
F32Spare
F33Spare
F34Exterior Lighting Module 5
F35Exterior Lighting Module 4
F36–
F37Rear Window Wiper
F38Exterior Lighting Module 7
F39Exterior Lighting Module 3
F40–
F41Front Door Window Regulators / Spare
F42Driver & passenger seat switches (position/lumbar) / Virtual key sensors / Rain-light-humidity sensors / Driver door handle switch
F43Spare / Traction Power Inverter Module 1
F44Spare / AEROSHUTTER
F45Remote Function Receiver Module / Hands Free Closure Release Module
F46Spare / Pedestrian Friendly Alert Module
F47Spare / Park Emblem (Front/Grille)
F48Power Liftgate Module
F49Traction Power Inverter Module 3
F50Front & rear left window motors / Rear left door switch panels
F51–
F52Front & rear right window motors / Front & rear right switch panels
F53Front Wipers
F54–
F55–
F56–
F57Electronic Brake Control Module 1
F58Heating, Ventilating, Air Conditioning Front Blower Motor
F59–
F60Horn
F61Rear Defogger
F62–
F63Sunroof
F64Driver Memory Seat Module / Driver Seat Switches
F65Passenger Power Seat
F66Cooling Fan Module
F67Wiper De-Ice
F68Spare
F69Spare
F70Relays Coil Ground
F71Rear Heated Seats 2
F72Front Heated Seats 1
F73–
F74–
F75Spare
F76Spare
F77Spare
F78Trailer Stop/Turn Lights (Left & Right)
F79Rear Heated Seats 1
F80Front Heated Seats 2
F81–
F82Front Washer Pump / Rear Washer Pump
F83Rear Wiper
The vehicle may not be equipped with all of the fuses and features shown.

Passenger Compartment

Fuse Box Location

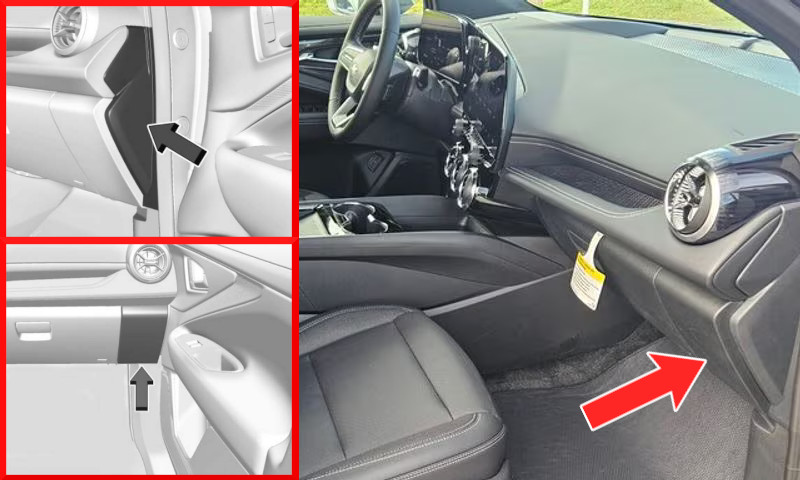

The instrument panel fuse block is located to the right of the glove box.

To access the fuses:

  1. Remove the outer trim cover. Using a flat-bladed plastic tool, release the retaining clips.
  2. Pull the cover rearward to clear the tab and remove it.
  3. Remove the front panel, starting at the top.
  4. Once the panel clips disengage, allow the tabs along the bottom to release from the instrument panel and remove the door.

To reinstall:
Start with the front panel. Insert the bottom tabs into the slots and rotate the door into position until the clips engage. Repeat the same process to reinstall the outer trim cover.

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01–
F02Front console auxiliary power outlet
F03POLICE
F04Rear USB auxiliary power outlet (floor console)
F05Steering column lock not run
F06Rear traction power inverter module 2
F07ADAS compute platform module 3
F08–
F09–
F10Body control module 4
F11–
F12–
F13Traction inverter power module 1 & 2 (run/crank) / Vehicle integration control module (run/crank) / POLICE
F14Inside rearview mirror
F15Right Headlight
F16Steering wheel controls
F17Front vented seats
F18Virtual cockpit display / Audio-video auxiliary jack 1
F19Airbag module run/crank, exterior lighting module run/crank, electronic brake control module run/crank / Reflective light auxiliary display run/crank, left & right headlights run/crank, headlight switch bank run/crank
F20Steering column lock assembly / Vehicle integration control module
F21Body control module 1 / Electronic transmission range select shifter module / Electric park brake switch
F22Universal garage door opener / Wireless charger module / Front camera module / ADAS compute platform module 2
F23Tail Lamps
F24Park assist / Side blind zone alert module / Sensing & diagnostic module / Automatic occupant sensing module – Passenger
F25Data link connector / Central gateway module / Vehicle data monitor module / TVR / USB connector / Video processing module / Indicator light & solar sensor / Virtual key module / Heated seat switch (rear seats) / Overhead console module
F26Virtual cockpit unit 1 & 2
F27Body control module 3
F28Body control module 2
F29Amplifier
F30–
F31High voltage system lockout switch
F32Heated steering wheel module
F33Audio/video auxiliary jack / USB (armrest)
F34Exterior lighting module 2
F35Left Headlamp
F36Air conditioned electric compressor module
F37Instrument panel display
F38Long-range and short-range radar sensors
F39Head-up display / Telematics control platform
F40Exterior lighting module 1
F41Exterior lighting module 6
F42–
The vehicle may not be equipped with all of the fuses and features shown.
