Explore Chevrolet Corvette fuse box diagrams in this clear guide that outlines the electrical layout of the fifth-generation sports car. In this article, we consider the fifth-generation Chevrolet Corvette (Model Code: C5), produced from 1996 to 2004 , and provide fuse box diagrams for Chevrolet (Chevy) Corvette 1997, 1998, 1999, 2000, 2001, 2002, 2003 and 2004 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

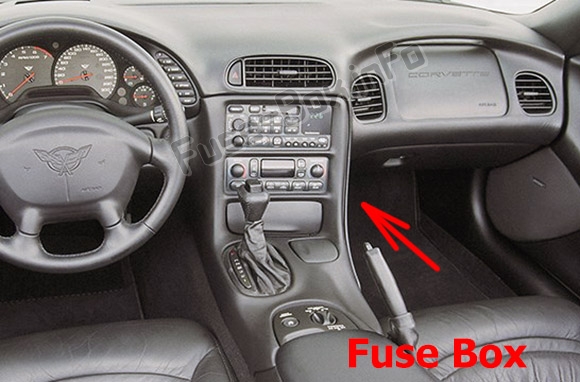

The passenger compartment fuse box is located under the glove box, in the front-passenger footwell (remove the lining and cover).

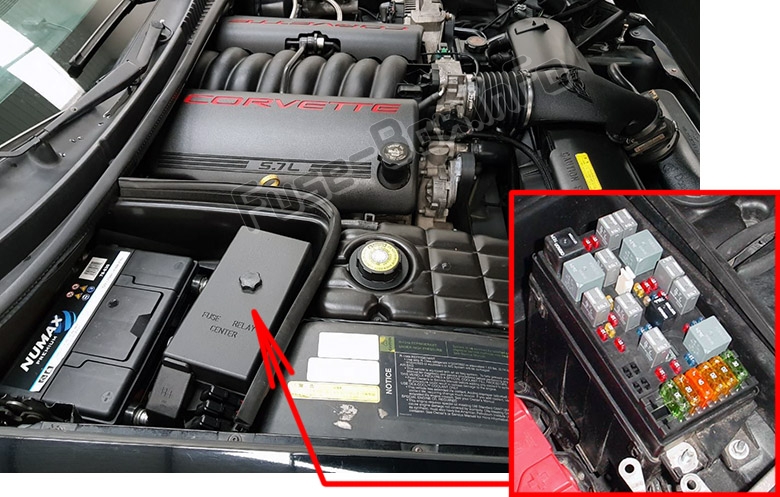

It is located in the engine compartment (on the right side).
Assignment of the fuses in the Passenger Compartment (1997, 1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse Console Cigarette Lighter 2 Mini Fuse Monitored (Inadvertent) Load Control 3 Mini Fuse Lumbar Seat 4 Mini Fuse Driver Seat Control Module 5 Mini Fuse Radio 6 Mini Fuse Parking Lamps, Taillamps 7 Mini Fuse Cigar Lighter 8 Mini Fuse Stop Hazard Flashers 9 Mini Fuse Body Control Module 10 Mini Fuse Windshield Wiper/Washer 11 Mini Fuse Accessory Power 12 Mini Fuse Blank 13 Mini Fuse Body Control Module 14 Mini Fuse Crank 15 Mini Fuse Hazard/Turn Signal 16 Mini Fuse Air Bag 17 Mini Fuse TONN REL (Convertible Only) 18 Mini Fuse HVAC Controls 19 Mini Fuse Instrument Panel Control 20 Mini Fuse Cruise Control 21 Mini Fuse Brake Transmission Shift Interlock 22 Mini Fuse Body Control Module – Ignition 3 23 Mini Fuse Body Control Module – Ignition 2 24 Mini Fuse Radio Antenna 25 Mini Fuse Body Control Module – Ignition I, Instrument Panel Control 26 Mini Fuse Hatch/Trunk Release 27 Mini Fuse HVAC Controls 28 Mini Fuse Bose Speakers 29 Mini Fuse Diagnostic 30 Mini Fuse Right Door Control Module 31 Mini Fuse Power Feed Door Right 32 Mini Fuse Fuel Tank Door 33 Mini Fuse Door Control Module Left 34 Mini Fuse Power Feed Door Left 45 Maxi Fuse Ignition 2 46 Maxi Fuse Rear Defogger 47 Maxi Fuse Blank 48 Maxi Fuse Ignition 49 Maxi Fuse Blower Motor 50 Maxi Fuse Starter 51 Maxi Fuse Blank 52 Maxi Fuse Headlamps
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Passenger Compartment (1997, 1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 37 Micro Relay Monitored (Inadvertent) Load Control 38 Micro Relay Right Daytime Running Lamp 39 Micro Relay Hatch Release 40 Micro Relay Left Daytime Running Lamp 41 Micro Relay TONN REL (Convertible Only) 42 Micro Relay Courtesy Lamps 43 Bose Mini Relay Speakers 44 Mini Relay Rear Defogger
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Passenger Compartment (1997, 1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 35 Circuit Breaker Driver Power Seat 36 Circuit Breaker Passenger Power Seat
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment (1997, 1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse 1997: Rear Fog Lamp 2 Mini Fuse Approach 3 Mini Fuse Right Headlamp Motor 4 Mini Fuse Left Headlamp Motor 5 Mini Fuse 1997: Anti-Lock Brakes 6 Mini Fuse Fog Lamp 7 Mini Fuse Selective Real Time Damping 8 Mini Fuse Headlamp Low Beam Right 9 Mini Fuse Headlamp High Beam Right 10 Mini Fuse Headlamp Low Beam Left 11 Mini Fuse Horn 12 Mini Fuse Headlamp High Beam Left 13 Mini Fuse Fuel Pump 14 Mini Fuse Cooling Fan – Ignition 3 15 Mini Fuse Oxygen Sensor 16 Mini Fuse Powertrain Control Module 17 Mini Fuse Throttle Control 18 Mini Fuse Injector 2 19 Mini Fuse Engine Ignition 20 Mini Fuse Blank 21 Mini Fuse Blank 22 Mini Fuse Injector 1 23 Mini Fuse Powertrain Control Module 24 Mini Fuse Air Conditioning 25 Mini Fuse Blank 26 Mini Fuse Blank 27 Mini Fuse Spare 28 Mini Fuse Spare 29 Mini Fuse Spare 30 Mini Fuse Spare 31 Mini Fuse Spare 32 Mini Fuse Spare 46 Maxi Fuse Cooling Fan 2 47 Maxi Fuse Blank 48 Maxi Fuse Blank 49 Maxi Fuse Cooling Fan 1 50 Maxi Fuse Air Pump 51 Maxi Fuse Blank 52 Maxi Fuse Anti-Lock Brakes 53 Maxi Fuse Anti-Lock Brakes and Selective Real Time Damping Electronics 54 Tool Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (1997, 1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 33 Micro Relay Air Pump 34 Micro Relay Air Conditioner and Clutch 35 Micro Relay Fuel Pump 36 Micro Relay Horn 37 Micro Relay Rear Fog Lamp 38 Micro Relay Back-up Lamps 39 Micro Relay Fog Lamp 40 Micro Relay AIR Solenoid 41 Micro Relay Selective Real Time Damping 42 Mini Relay Ignition 43 Mini Relay Cooling Fan 2 44 Mini Relay Cooling Fan 3 45 Mini Relay Cooling Fan 1
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Passenger Compartment (1999, 2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse Console Cigarette Lighter 2 Mini Fuse Monitored (Inadvertent) Load Control 3 Mini Fuse Lumbar Seat 4 Mini Fuse Driver Seat Control Module 5 Mini Fuse Radio 6 Mini Fuse Parking Lamps, Taillamps 7 Mini Fuse Cigar Lighter 8 Mini Fuse Stop Hazard Flashers 9 Mini Fuse Body Control Module 10 Mini Fuse Windshield Wiper/Washer 11 Mini Fuse Accessory Power 12 Mini Fuse Blank 13 Mini Fuse Body Control Module – Ignition 1 14 Mini Fuse Crank 15 Mini Fuse Hazard/Turn Signal 16 Mini Fuse Air Bag 17 Mini Fuse Tonneau Release 18 Mini Fuse HVAC Controls 19 Mini Fuse Instrument Panel Control 20 Mini Fuse Cruise Control 21 Mini Fuse 1999: Brake Transmission Shift Interlock 22 Mini Fuse Body Control Module – Ignition 3 23 Mini Fuse Body Control Module – Ignition 2 24 Mini Fuse Radio Antenna 25 Mini Fuse Body Control Module – Ignition 1, Instrument Panel Control 26 Mini Fuse Hatch/Trunk Release 27 Mini Fuse HVAC Controls 28 Mini Fuse Bose Speakers 29 Mini Fuse Diagnostic 30 Mini Fuse Right Door Control Module 31 Mini Fuse Power Feed Door Right 32 Mini Fuse Fuel Tank Door 33 Mini Fuse Door Control Module Left 34 Mini Fuse Power Feed Door Left 47 Maxi fuse Ignition 1 48 Maxi fuse Rear Defogger 49 Maxi Fuse Blank 50 Maxi fuse Ignition 2 51 Maxi fuse Blower Motor 52 Maxi Fuse Starter 53 Maxi Fuse Blank 54 Maxi fuse Headlamps
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Passenger Compartment (1999, 2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 37 Micro Relay Monitored (Inadvertent) Load Control 38 Micro Relay Right Daytime Running Lamp 39 Micro Relay Hatch Release 40 Micro Relay Left Daytime Running Lamp 41 Micro Relay Tonneau Release 42 Micro Relay Courtesy Lamps 43 Micro Relay Automatic Lamp Control (Parking Lamps) 44 Micro Relay Automatic Lamp Control (Headlamps) 45 Bose Mini Relay Speakers 46 Mini Relay Rear Defogger
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Passenger Compartment (1999, 2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 35 Circuit Breaker Driver Power Seat 36 Circuit Breaker Passenger Power Seat
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment (1999, 2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse Rear Fog Lamp 2 Mini Fuse Approach 3 Mini Fuse Right Headlamp Motor 4 Mini Fuse Left Headlamp Motor 5 Mini Fuse 1999: ABS TRANS 6 Mini Fuse Fog Lamp 7 Mini Fuse Selective Real Time Damping 8 Mini Fuse Headlamp Low Beam Right 9 Mini Fuse Headlamp High Beam Right 10 Mini Fuse Headlamp Low Beam Left 11 Mini Fuse Horn 12 Mini Fuse Headlamp High Beam Left 13 Mini Fuse Fuel Pump 14 Mini Fuse Cooling Fan – Ignition 3 15 Mini Fuse Oxygen Sensor 16 Mini Fuse Powertrain Control Module 17 Mini Fuse Throttle Control 18 Mini Fuse Injector 2 19 Mini Fuse Engine Ignition 20 Mini Fuse Blank 21 Mini Fuse Blank 22 Mini Fuse Injector 1 23 Mini Fuse Powertrain Control Module 24 Mini Fuse Air Conditioning 25 Mini Fuse Blank 26 Mini Fuse Blank 27 Mini Fuse Spare 28 Mini Fuse Spare 29 Mini Fuse Spare 30 Mini Fuse Spare 31 Mini Fuse Spare 32 Mini Fuse Spare 46 Maxi Fuse Cooling Fan 2 47 Maxi Fuse Blank 48 Maxi Fuse Blank 49 Maxi Fuse Cooling Fan 1 50 Maxi Fuse Air Pump 51 Maxi Fuse 1999: Selective Real Time Damping Electronics 52 Maxi Fuse Anti-Lock Brakes 53 Maxi Fuse 1999: Anti-Lock Brakes 54 Tool Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (1999, 2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 33 Micro Relay Air Pump 34 Micro Relay Air Conditioner and Clutch 35 Micro Relay Fuel Pump 36 Micro Relay Horn 37 Micro Relay Rear Fog Lamp 38 Micro Relay Back-up Lamps 39 Micro Relay Fog Lamp 40 Micro Relay 1999: AIR Solenoid 41 Micro Relay Selective Real Time Damping 42 Mini Relay Ignition 43 Mini Relay Cooling Fan 2 44 Mini Relay Cooling Fan 3 45 Mini Relay Cooling Fan 1
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Passenger Compartment (2001-2004)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Console Cigarette Lighter 2 Monitored (Inadvertent) Load Control 3 Lumbar Seat 4 Driver Seat Control Module 5 Radio, Compact Disc Player 6 Parking Lamps, Taillamps 7 Cigarette Lighter 8 Stoplamp, Hazard Flashers 9 Body Control Module 10 Windshield Wiper/Washer 11 Accessory Power 12 Blank 13 Body Control Module – Ignition 1 14 Crank 15 Hazard/Turn Signal 16 Air Bag 17 Tonneau Release 18 HVAC Controls 19 Instrument Panel Control 20 Cruise Control 21 Automatic Transmission Shift Lock Control System and Inside Rearview Mirror 22 Body Control Module – Ignition 3 23 Body Control Module – Ignition 2 24 Radio Antenna 25 Body Control Module – Ignition I, Instrument Panel Control 26 Hatch/Trunk Release 27 HVAC Controls 28 Bose Speakers 29 Diagnostic 30 Right Door Control Module 31 Power Feed Door Right 32 Fuel Tank Door 33 Door Control Module Left 34 Power Feed Door Left 35 Driver Power Seat 36 Passenger Power Seat 47 Ignition 1 48 Rear Defogger 49 Blank 50 Ignition 2 51 Blower Motor 52 Starter 53 Blank 54 Headlamps
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Passenger Compartment (2001-2004)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 37 Monitored (Inadvertent) Load Control 38 Right Daytime Running Lamp 39 Hatch/Trunk Release 40 Left Daytime Running Lamp 41 Tonneau Release 42 Courtesy Lamps 43 Automatic Lamp Control Parking Lamps 44 Automatic Lamp Control Headlamps 45 Bose Speakers 46 Rear Defogger
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment (2001-2004)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Rear Fog Lamp 2 Approach 3 Right Headlamp Motor 4 Left Headlamp Motor 5 Anti-Lock Brakes, Selective Real Time Damping (SRTD) 6 Fog Lamp 7 2001-2002: Selective Real Time Damping (SRTD) Relay 8 Headlamp Low Beam Right 9 Headlamp High Beam Right 10 Headlamp Low Beam Left 11 Horn 12 Headlamp High Beam Left 13 Fuel Pump 14 Cooling Fan – Ignition 3 15 Oxygen Sensor 16 Powertrain Control Module 17 Throttle Control 18 Injector 2 19 Engine Ignition 20 Blank 21 Blank 22 Injector 1 23 Powertrain Control Module 24 Air Conditioning 25 Blank 26 Blank 27 Spare 28 Spare 29 Spare 30 Spare 31 Spare 32 Spare 46 Cooling Fan 2 47 Blank 48 Blank 49 Cooling Fan 1 50 Air Pump 51 2001-2002: Blank 52 Anti-Lock Brakes 53 2001-2002: Anti-Lock Brakes, Selective Real Time Damping (SRTD) Electronics 54 Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2001-2004)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 33 Air Pump 34 Air Conditioner and Clutch 35 Fuel Pump 36 Horn 37 Rear Fog Lamp 38 Back-Up Lamps 39 Fog Lamp 40 Blank 41 2001-2002: Selective Real Time Damping (SRTD) 42 2001-2002: Ignition 1 43 Cooling Fan 2 44 Cooling Fan 3 45 Cooling Fan 1
This content requires JavaScript and a valid membership to view.
