Explore Chevrolet Corvette fuse box diagrams in this clear guide that outlines the electrical layout of the final front-engine Corvette generation. In this article, we consider the seventh-generation Chevrolet Corvette (Model Code: C7), produced from 2013 to 2019 , and provide fuse box diagrams for Chevrolet (Chevy) Corvette 2014, 2015, 2016, 2017, 2018 and 2019 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

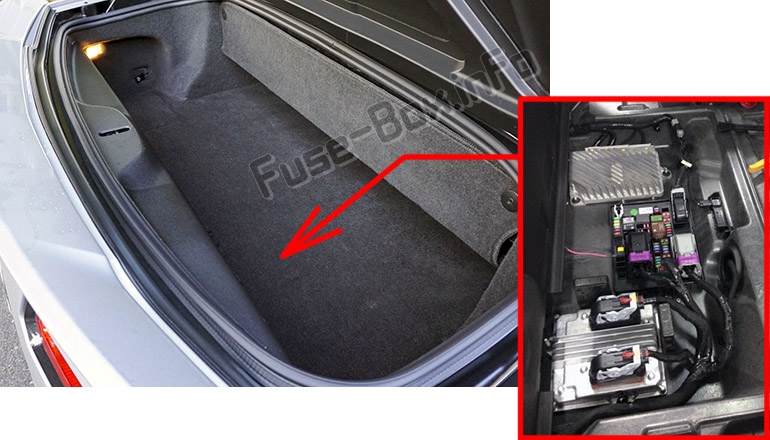

The fuse box is located in the trunk, under lining and cover.
The fuse box is located in the engine compartment (on the right side).

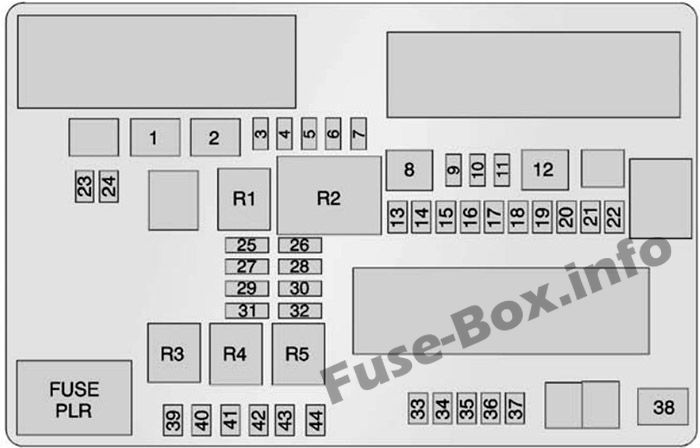

Assignment of the fuses in the Luggage Compartment (2014-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Window 2 Driver Power Seat 3 PEPS 2 4 PEPS 1 5 Engine Control Module 6 Heated Mirrors 7 Body Control Module 4 8 Rear Window Defogger 9 GBS 10 Body Control Module 2 11 Steering Wheel 12 Passenger Power Seat 13 Not Used 14 Outside Rearview Mirror 15 Body Control Module 1 16 Body Control Module 3 17 Sensing Diagnostic Module/Automatic Occupant Sensing 18 Logistics 2 19 Body Control Module 8 20 Integrated Chassis Control Module 21 Amplifier 22 Rear Accessory Power Outlet 23 2014-2015: Rear Closure 24 Memory Seat Module/Convertible Top 25 Theft-Deterrent PSM 26 2014-2015: Pressure Vent (Coupe Only) 27 OnStar (If Equipped) 28 Not Used 29 Not Used 30 Fuel Pump Power Module 31 2014-2015: Not Used 32 Battery Regulated Voltage Control 33 Not Used 34 Convertible Top Solenoid 35 Not Used 36 Passenger Window Switch 37 Front Accessory Power Outlet 38 Not Used 39-44 Spare fuses
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Luggage Compartment (2014-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Logistics 2 R2 Rear Window Defogger R3 Not Used R4 Front Accessory Power Outlet R5 Theft (Door Lock Security)
This content requires JavaScript and a valid membership to view.

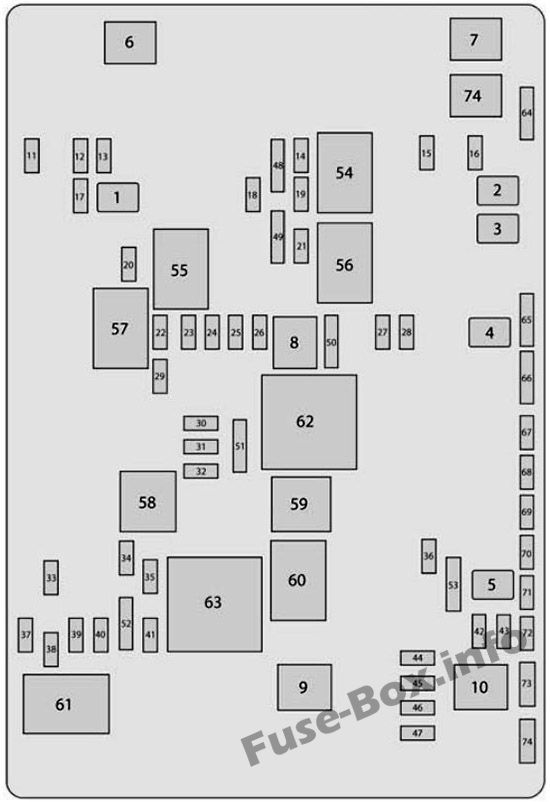

Assignment of the fuses in the Engine Compartment (2014-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. / Type Description Micro J-Case Fuses 1 Front Wiper 2 Starter 3 Antilock Brake System Valves 4 Engine Control Module 5 Electric Parking Brake J-Case Fuses 6 Front Heater, Ventilation, and Air Conditioning 7 Antilock Brake System Pump 8 Logistics 9 Vacuum Pump 10 Electronic Rear Differential Module 74 2014: not used Micro Fuse 2-pin 11 Heated Seat 1 12 Column Lock Module 13 Steering Column 14 Glove Box 15 Engine Inside Position 16 Body Control Module 6 17 Heater, Ventilation and Air Conditioning Controls 18 Body Control Module 5 19 Heated Seat 2 20 Body Control Module 7 21 Electric Steering Column Lock 22 Display 23 Auxiliary Outlet 24 Radio 25 Instrument Cluster HUD 26 Inside Rearview Mirror 27 Odd Ignition 28 Even Ignition 29 Data Link Connector 30 Seat Fan 31 Fuel Pump Power Module 32 Exhaust Valve 1 33 Horn 34 Headlamp Washer 35 Air Conditioning Compressor Clutch 36 Engine Outside Position 37 Real Time Damping 38 2014: not used 39 Left Headlamp 40 Right Headlpamp 41 Headlamp Washer Pump 42 Exhaust Valve 2 43 Reverse Lockout 44 Electric Rear Differential Module 45 Rear Transmission Cooler Fan 46 Transmission Control Module 47 Canister Vent Micro Fuses 3-pin 48 Integrated Chassis Control Module/Automatic Occupant Sensing 49 Theft/Vehicle Interface Module 50 Engine/Transmission 51 Instrument Cluster 52 Headlamp High Beam 53 Transmission Control Module/Engine Control Module Spare Fuse Slot 64-73, 75 Spare fuses
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment (2014-2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. / Type Description Micro Relay 54 Starter 55 Front Wiper Low/High 56 Run/Crank 57 Front Wiper Motor 58 Headlamp Washer 59 Air Conditioning Control 60 Logistics 1 61 Headlamp Low Mini Relays 62 Engine Control Module 63 Vacuum Pump
This content requires JavaScript and a valid membership to view.

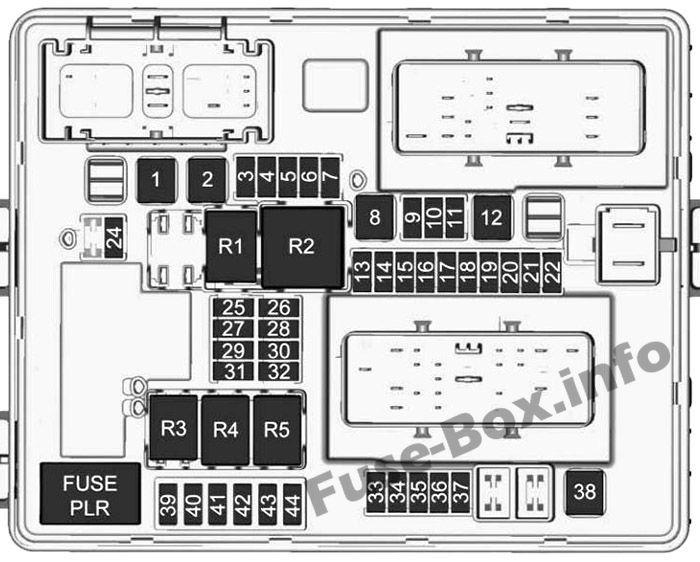

Assignment of the fuses in the Luggage Compartment (2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Window 2 Driver Power Seat 3 Passive entry/Passive start 2 4 Passive entry/Passive start 1 5 Engine Control Module 6 Heated Mirrors 7 Body Control Module 4 8 Rear Window Defogger 9 GBS 10 Body Control Module 2 11 Steering Wheel 12 Passenger Power Seat 13 — 14 Exterior rearview mirror 15 Body Control Module 1 16 Body Control Module 3 17 Sensing Diagnostic Module/Automatic Occupant Sensing 18 Logistics 2 19 Body Control Module 8 20 Integrated Chassis Control Module 21 Amplifier 22 Rear Accessory Power Outlet 24 Memory Seat Module/Convertible Top 25 Theft-Deterrent PSM 26 Trunk release module 27 OnStar (If Equipped) 28 Camera Module 29 — 30 Fuel Pump Power Module 31 Trunk release module latch 32 Battery Regulated Voltage Control 33 — 34 Convertible Top Solenoid 35 — 36 Passenger Window Switch 37 Front Accessory Power Outlet 38 — 39 — 40 — 41 — 42 — 43 — 44 —
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Luggage Compartment (2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 – R2 Rear Window Defogger R3 — R4 Front Accessory Power Outlet R5 Theft (Door Lock Security)
This content requires JavaScript and a valid membership to view.

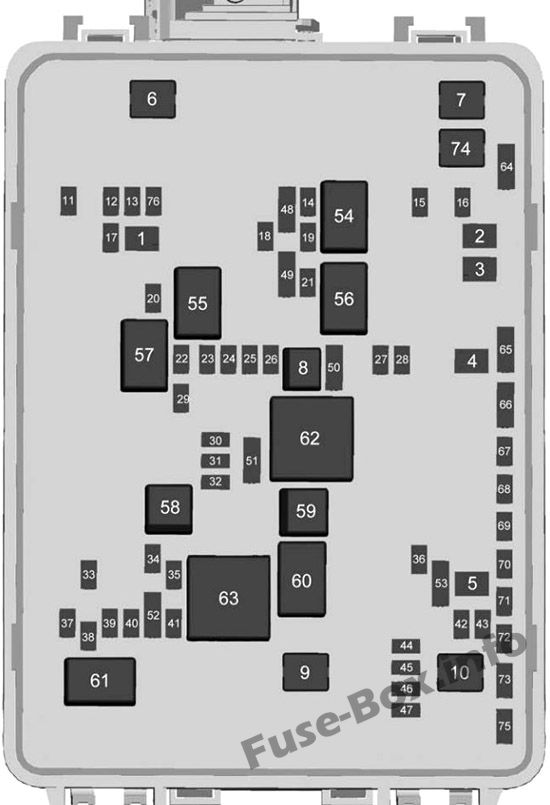

Assignment of the fuses in the Engine Compartment (2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Front wiper 2 Starter 3 ABS valves 4 Engine control module 5 Electric parking brake 6 Front HVAC 7 ABS pump 8 Logistics 9 Vacuum pump 10 Electronic rear differential module 11 Heated Seat 1 12 Column Lock Module 13 Steering Column 14 Glove Box 15 Engine Inside Position 16 Body Control Module 6 17 HVAC controls 18 Body Control Module 5 19 Heated Seat 2 20 Body Control Module 7 21 Electric Steering Column Lock 22 Display 23 Auxiliary Outlet 24 Radio 25 Instrument Cluster HUD 26 Inside Rearview Mirror 27 Ignition – odd 28 Ignition – even 29 Data Link Connector 30 Seat Fan 31 Fuel Pump Power Module 32 Exhaust Valve 1 33 Horn 34 Headlamp Washer 35 A/C clutch 36 Engine Outside Position 37 Real Time Damping 38 Intercooler 39 Left Headlamp 40 Right Headlpamp 41 Headlamp Washer Pump 42 Exhaust Valve 2 43 Reverse Lockout 44 Electric Rear Differential Module 45 Rear Transmission Cooler Fan 46 Transmission Control Module 47 Canister Vent 48 Integrated chassis control module/Automatic occupant sensing 49 Theft/Vehicle interface module 50 Engine/Transmission 51 Instrument cluster 52 High-beam headlamps 53 Transmission control module/Engine control module 54 Starter 55 Front wiper – Low/High 56 Run/Crank 57 Front wiper motor 58 Headlamp washer 59 A/C control 60 Logistics 1 61 Low-beam headlamps 62 Engine control module 63 Vacuum pump 64 — 65 — 66 — 67 — 68 — 69 — 70 — 71 — 72 — 73 — 74 Transmission cooling fan 2 75 — 76 Communication gateway module
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 54 Starter 55 Front wiper – Low/High 56 Run/Crank 57 Front wiper motor 58 Headlamp washer 59 A/C control 60 — 61 Low-beam headlamps 62 Engine control module 63 Vacuum pump
This content requires JavaScript and a valid membership to view.

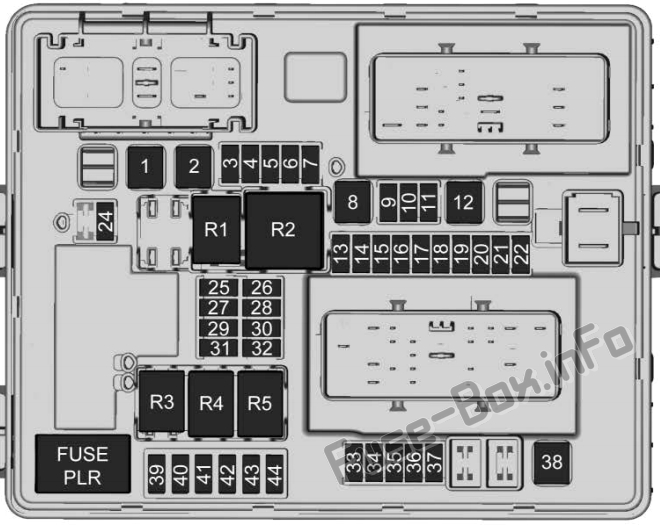

Assignment of the fuses and relays in the Luggage Compartment (2019)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Window 2 Driver power seat 3 Passive entry/ Passive start 2 4 Passive entry/ Passive start 1 5 Engine control module 6 Heated mirrors 7 Body control module 4 8 Rear window defogger 9 GBS 10 Body control module 2 11 Steering wheel 12 Passenger power seat 13 Not Used 14 Exterior rearview mirror 15 Body control module 1 16 Body control module 3 17 Sensing diagnostic module/Automatic occupant sensing 18 Logistics 2 19 Body control module 8 20 Integrated chassis control module 21 Amplifier 22 Rear accessory power outlet 24 Memory seat module/ Convertible top 25 Theft deterrent PSM 26 Trunk release module 27 OnStar (if equipped) 28 Camera module 29 Not Used 30 Fuel pump power module 31 Trunk release module latch 32 Battery regulated voltage control 33 Not Used 34 Convertible top solenoid 35 Not Used 36 Passenger window switch 37 Front accessory power outlet 38 Not Used 39 Not Used 40 Not Used 41 Not Used 42 Not Used 43 Not Used 44 Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Luggage Compartment (2019)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Not Used R2 Rear window defogger R3 Not Used R4 Front accessory power outlet R5 Theft (door lock security)
This content requires JavaScript and a valid membership to view.

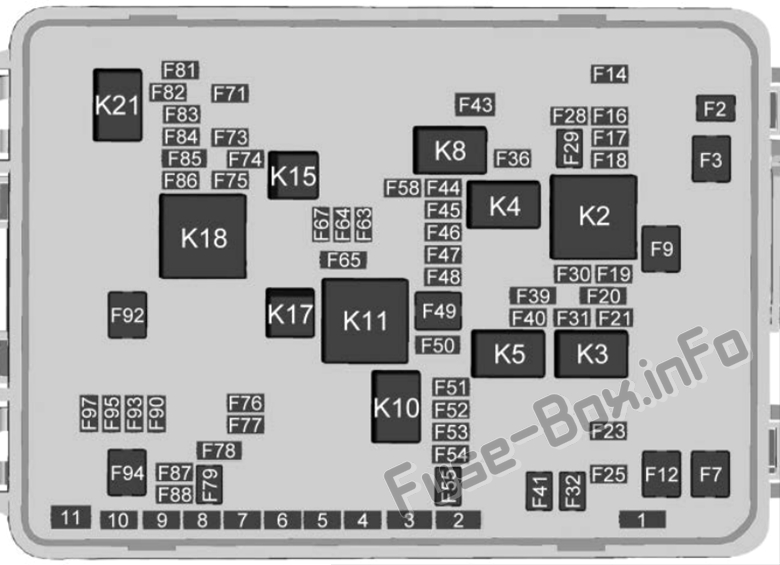

Assignment of the fuses in the Engine Compartment (2019)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F2 ECM power ignition 21 – F3 Front HVAC F7 ABS pump F9 -/ECM power ignition F12 Transmission cooling rear fan 2 F14 Heated seat module battery supply F16 Column lock module F17 Steering tilt and telescope F18 CGM F19 – / Fuel injector control module power ignition 1 F20 Integrated chassis control module automatic occupant sensing F21 Glove box door F23 Engine inside position / ECM power ignition 3 F25 Body control module 6 F28 HVAC controls F29 Front wiper F30 Body control module 5 F31 Heated seat module / run,crank supply F32 Starter F36 Body control module 7 F39 Intrusion module / Human machine interface module F40 Steering column lock F41 ABS valves F43 – / Fuel tank zone module batt F44 Center stack F45 Auxiliary outlet F46 Radio F47 Display F48 Interior rearview mirror F49 Logistics F50 Engine / Transmission F51 Ignition – odd F52 Ignition – even F53 Fuel pump prime / Miscellaneous powertrain loads F54 – / Fuel injector control module power ignition 2 F55 Engine control module 1 F58 Data link connector F63 Seat fan F64 Fuel pump power module F65 Cluster F67 Exhaust valve 1 F71 Horn F73 – / Fuel tank zone module ignition F74 Headlamp wash F75 AC clutch F76 – / Rear transmission coolant pump F77 Engine outside position F78 Engine control module 2 / Transmission control module F79 Electric parking brake F81 Continuous variable real time dampening F82 Intercooler F83 Left headlamp F84 Right headlamp F85 High-beam headlamps F86 Washer pump F87 Exhaust valve 2 F88 Reverse lockout F90 Electronic Limited slip differential 1 F92 Vacuum pump F93 Transmission cooling rear fan 1 F94 Electronic Limited slip differential 2 F95 Transmission control module F97 Canister vent valve
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2019)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K2 – / Engine control module K3 Starter K4 Front wiper, Low-High K5 Run-Crank K8 Front wiper on off K10 Fuel pump prime K11 Engine control module / – K15 Headlamp washer K17 AC control K18 Vacuum pump K21 Low beam headlamps
