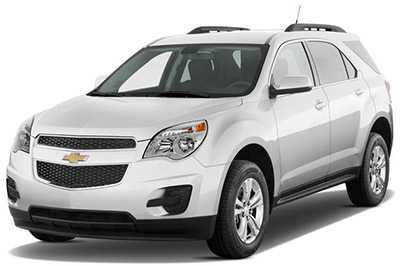

Explore Chevrolet Equinox fuse box diagrams in this clear guide that explains the electrical layout of the second-generation compact SUV. In this article, we consider the second-generation Chevrolet Equinox, produced from 2009 to 2017 , and provide fuse box diagrams for Chevrolet (Chevy) Equinox 2010, 2011, 2012, 2013, 2014, 2015, 2016 and 2017 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
It is located on the passenger side panel of the center console.

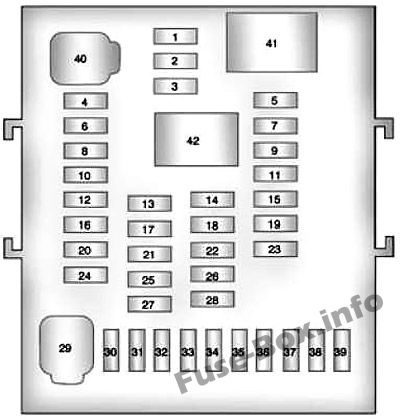

Assignment of the fuses and relay in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Steering Wheel Dimming 2 Spare 3 Spare 4 Body Control Module 1 5 Infotainment 6 Body Control Module 7 7 Noise Control Module 8 Body Control Module 4 9 Radio 10 Spare 11 Rear Parking Assist Module 12 Heater, Ventilation, and Air Conditioning Battery 13 Auxiliary Power Front 14 Heater, Ventilation and Air Conditioning Ignition 15 Display 16 Body Control Module 5 17 Auxiliary Power Rear 18 Instrument Panel Ignition 19 Universal Garage Door Opener 20 Body Control Module 6 21 Spare 22 Sensing and Diagnostic Module Ignition 23 Front Camera 24 Spare 25 Transmission Gear Shift Position Indicator 26 Spare 27 Spare 28 Spare 29 Front Blower Motor 30 Body Control Module 3 31 Amplifier 32 Discrete Logic Ignition Switch 33 Communications Integration Module 34 Body Control Module 2 35 Sensing and Diagnostic Module Battery 36 Data Link Connection 37 Instrument Panel Battery 38 Passenger Sensing System Module 39 Spare 40 Body Control Module 8 41 Logistic Relay (If Equipped) 42 Retained Accessory Power Relay
This content requires JavaScript and a valid membership to view.
It is located in the engine compartment, under the cover.
Assignment of the fuses and relay in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Cool Fan 1 2 Cool Fan 2 3 Brake Booster 4 Power Windows -Right 5 Memory Seat Module 6 Power Seat – Left 7 Instrument Panel Fuse Block 1 8 Rear Defogger 9 Starter 10 AIR Pump Motor 11 Instrument Panel Fuse Block 2 12 Sunroof 13 Antilock Brake System Pump 14 Instrument Panel Fuse Block 3 15 Power Windows – Left 16 Antilock Brake System Module 17 Transmission Control Module Battery 18 Trailer Parking Light 19 AIR Pump Solenoid 20 Engine Control Module Battery 21 Canister Vent 22 Trailer Left Side (If Equipped) 23 Lift Gate Module 24 Power Lumbar 25 Trailer Right Side (If Equipped) 26 Rear Accessory Power Outlet 27 Memory Mirror Module 28 Regulated Voltage Control Battery Sensor 29 Front Wiper 30 Rear Wiper 31 Air Conditioning Compressor 32 Rear Latch 33 Heated Mirrors 34 Horn 35 Right High-Beam Headlamp 36 Left High-Beam Headlamp 37 Ignition Even Coil 38 Ignition Odd Coil 39 Windshield Washer 40 Front Fog Lamps 41 Post Catalytic Converter Oxygen Sensor 42 Engine Control Module 43 Pre-Catalytic Converter Oxygen Sensor 44 Transmission Control Module 45 Mirror 46 Fuel System Control Module Ignition 47 Spare 48 Rear Drive Module 49 Lift Gate Module Logic 50 Instrument Panel Fuse Block Ignition 51 Heated Seat- Front 52 Fuel System Control Module 53 Engine Control Module 54 Rear Vision Camera 55 Electric Power Steering 56 AIR Pump Solenoid 57 Brake Booster 58 Cooling Fan Low 59 Headlamp High Beam 60 Cooling Fan Control 61 Wiper On/Off Control 62 Air Conditioning Compressor 63 Rear Defogger 64 Wiper Speed 65 Fog Lamp 66 Engine Control 67 Starter 68 Run/Crank 69 Cooling Fan High 70 AIR Pump Motor 77 Power Seat – Right 78 Passenger Power Lumber
