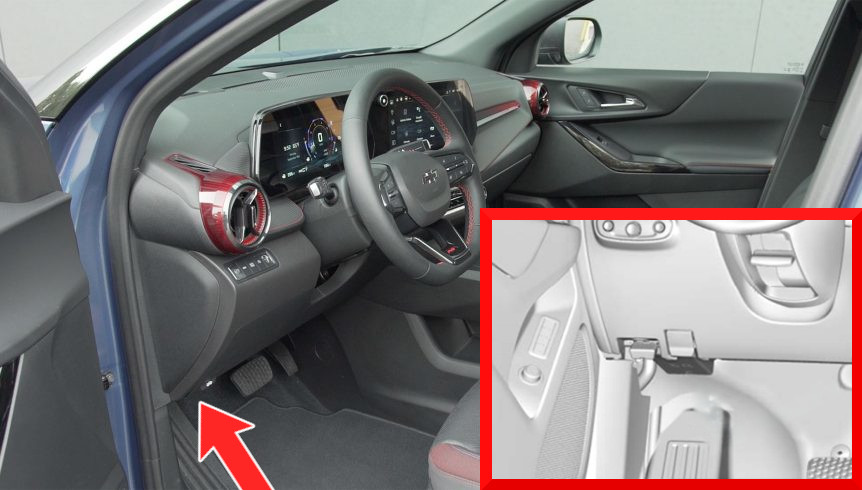

Explore Chevrolet Equinox fuse box diagrams in this up-to-date guide that explains the electrical layout of the newest compact SUV generation. In this article, we consider the fourth-generation Chevrolet Equinox, available from 2025 to the present, and provide fuse box diagrams for Chevrolet (Chevy) Equinox 2025 and 2026, along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Electronic Transmission Range Select / Switch Bank Battery
F10Z
Instrument Panel Display
F10Y
Virtual Cockpit Display
F11Z
Tail Lamp Right
F11Y
Overhead Console Module Battery
F12
Spare
F13Z
Side Blind Zone Alert Battery 2
F13Y
Tail Lamp Left
F14Z
Run/Crank Miscellaneous 3
F14Y
Run/Crank Miscellaneous 4
F15
Spare
F16
Auxiliary Power Outlet (Cargo)
F17Z
Sensing & Diagnostic Module Battery 1_2
F17Y
Sensing & Diagnostic Module Battery 1_1
F18Z
Run/Crank Miscellaneous 1
F18Y
Run/Crank Miscellaneous 2
F19
Sensing Diagnostic Module
F20Z
Data Link Connector
F20Y
Central Gateway Module
F21Z
Virtual Cockpit Unit Jack Battery 1
F21Y
Virtual Cockpit Unit Jack Battery 2
F22
Engine Control Module / Transmission Control Module / Ignition System
F23
Auxiliary Power Outlet (USB)
F24
Virtual Key Module / Virtual Key Sensor
F25
Spare
F26
Electric Lighting Module 1
F27
Indicator Light and Solar Sensor / Electronic Throttle Control
F28
Electric Lighting Module 7
F29
Headlamp Left
F30
Spare
F31
Body Control Module 3
F32
SAFETY 2
F33
–
F34
Electric Lighting Module 3
F35
Amplifier
F36
Direct Current / Direct Current 2
F37
Internal Electrical Center Battery
F38
Spare
F39
Body Control Module 4
F40
Virtual Cockpit Unit 2
