Explore Chevrolet Equinox fuse box diagrams in this practical guide that outlines the electrical layout of the third-generation compact SUV. In this article, we consider the third-generation Chevrolet Equinox, available from 2018 to 2024, and provide fuse box diagrams for Chevrolet (Chevy) Equinox 2018, 2019, 2020, 2021, 2022, 2023 and 2024, along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

Fuse Box Locations

Passenger Compartment

The instrument panel fuse block is under the instrument panel on the driver side.

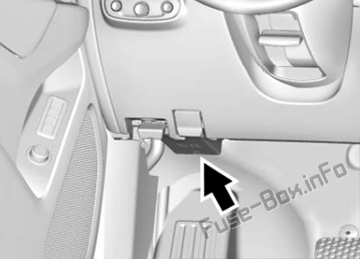

To access, press and release the latch near the top center square.

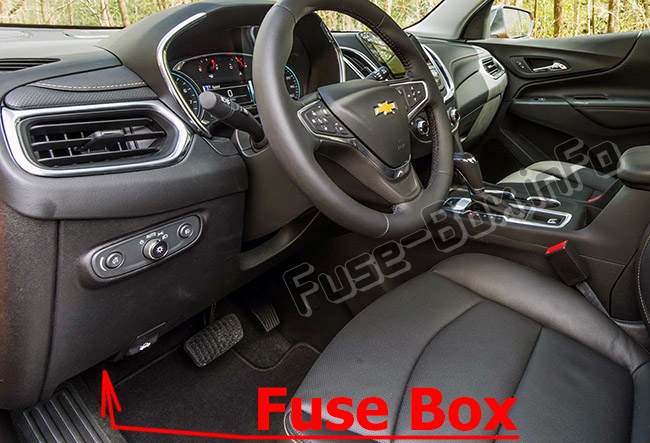

The location of the fuses in the passenger compartment: Chevrolet Equinox

Engine Compartment

The location of the fuses in the engine compartment: Chevrolet Equinox

Luggage Compartment

The rear compartment fuse block is behind a trim panel on the side of the rear compartment.

The location of the fuses in the trunk: Chevrolet Equinox

Fuse Box Diagrams

Passenger Compartment

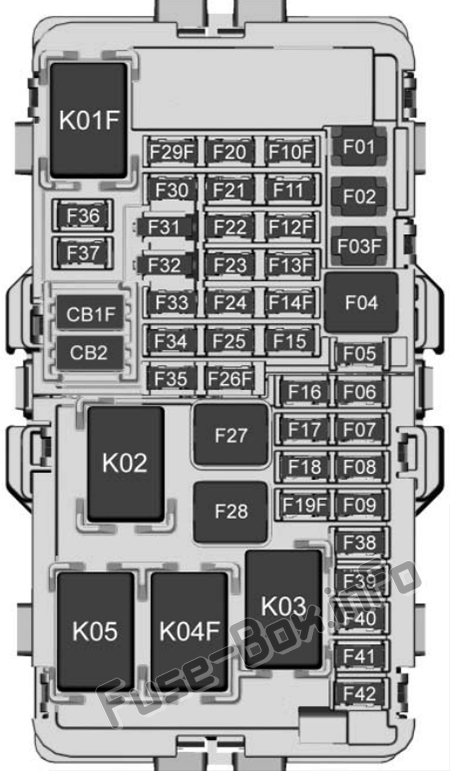

Instrument panel fuse box diagram: Chevrolet Equinox (2018, 2019)

Fuses

Assignment of the fuses in the instrument panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01DC AC inverter
F02Front windows
F03Trailer brake
F04Heating, ventilation, and air conditioning blower
F05Body control module 2
F06Central gateway module (CGM)
F07Not used
F08Body control module 3
F09Amplifier
F10Not used
F11Not used
F12Not used
F13Not used
F142018-2019: Electronic shifter.
2020-2024: Not Used
F15Transmission control module
F16Front heated seats
F17Left data link connector
F18Body control module 7
F19Exterior mirror
F20Body control module 1
F21Body control module 4
F22Body control module 6
F23Electric steering column lock
F24Sensing and diagnostic module
F25Occupancy sensor
F26Not used
F27Power seats
F28Rear windows
F29Not used
F302018-2019: Front heated seats switch.
2020-2024: Not Used
F31Steering wheel controls
F32Body control module 8
F33Heating, ventilation, and air conditioning
F34Passive entry, passive start
F35Liftgate latch
F362018: Shift charger
2019-2024: Wireless charger module/ USB accessory
F37Cigarette lighter
F38OnStar
F39Instrument panel USB
F40Camera module/ Liftgate module
F412018-2020: Parking assist module
2021-2024: Park assist module/ Center stack display/ Heating, ventilation and air conditioner display/ Universal garage door opener/ Overhead control switchbank
F42Radio

Relays

Assignment of the relays in the instrument panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
K012018-2019: Deadbolt.
2020-2024: Not Used
K02Retained accessory power
K03Liftgate
K04Not used
K05Logistics

Circuit Breakers

Assignment of the circuit breakers in the instrument panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
CB12018: Front auxiliary power outlet
2019-2024: Not Used
CB2Auxiliary power outlet console

Engine compartment

Under-hood fuse box diagram: Chevrolet Equinox (2018, 2019)

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01Starter 1
F02Starter 2
F03Lambda sensor 1
F04Engine control module
F052018-2020: FlexFuel sensor
2021: FlexFuel sensor/ Aero shutter
2022-2024: Aero Shutter/ Water Pump
F06Transmission control module
F07Not used
F08Engine control module
F09Air conditioning clutch
F10Canister vent
F11Fuel system
F12Front heated seats
F132018-2019: After-boil pump.
2020-2024: Engine coolant pump
F14Not used
F15Lambda sensor 2
F162018: Fuel injectors – odd
2019-2024: Ignition coils
F172018: Fuel injectors – even
2019-2024: Engine control module
F182018-2021: Not used/ Selective catalytic reduction module (diesel only)
2022-2024: Engine Control Module
F19Not used/ NOx soot sensor (diesel only)
F20DC DC converter 2
F21Shift control
F22Antilock brake pump
F232018: Front washer
2019-2024: Front/Rear washer pump
F24Not used
F25Not used/ Diesel fuel heater (diesel only)
F26Not used
F27Antilock brake valves
F28LD trailer
F29Rear window defogger
F30Mirror defroster
F31Not used
F32Variable functions
F33Not used
F34Horn
F352018: Vacuum pump
2019-2024: Not Used
F362018-2021: Right high-beam headlamp
2022-2024: Headlamps/ Daytime Running Lamps Right
F37Left high-beam headlamp
F38Automatic headlamp leveling
F39Fog lamps
F40Not used
F41Transmission range control module
F42Motorized headlamp
F432018: Fuel pump
2019-2024: Not Used
F44Interior rearview mirror
F452018: Canister vent solenoid
2019-2024: Passenger side ventilated seat
F46Driver side Ventilated Seat
F47Steering column lock assembly
F48Rear wiper
F49Not used
F50Heated steering wheel
F512018: Right headlamp
2019-2024: Right daytime running lamp
F52Engine control module/ Transmission control
F53Not used
F542018: Front wiper
2019-2024: Not Used
F55Front wiper speed/ Control
F56Not used
F572018: Left headlamp
2019-2021: Left daytime running lamp
2022-2024: Headlamps/ Daytime Running Lamps Left

Relays

Assignment of the relays in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
K01Starter solenoid
K02Air conditioning control
K032018: Not used
2019-2024: Engine control module
K042018: Wiper control
2019-2024: Front wiper control
K05Starter Solenoid/Pinion
K06Not used/ Fuel heater (diesel only)
K07Not used
K08Not used
K092018: Wiper speed
2019-2024: Front wiper speed
K10Not used
K11Not used
K122018-2021: High-beam headlamps
2022-2024: Headlamps/ Daytime Running Lamps Right
K132018-2021: Headlamps/ Daytime running lamps
2022-2024: Headlamps/ Daytime Running Lamps Left
K14Run/Crank
K15Rear window defogger
*K16Horn
*K17Selective catalytic reduction
*K18Fog lamps
*K19Coolant pump
*K20Not used
*K21Rear washer
*K22Front washer
*K232018: Wiper control
2019-2024: Rear wiper control
* PCB relays are not serviceable.

Luggage Compartment

Trunk fuse box diagram: Chevrolet Equinox (2018, 2019)

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F12018-2019: Exhaust fuel heater.
2020: Exhaust fuel heater/Selective catalytic reduction power module (diesel only)
2022-2024: Power Seat
F2Liftgate
F3Trailer auxiliary power
F42018: Power seats
2019-2024: Passenger Power Seat
F5Memory seat module
F6Sunroof
F7Side blind zone alert
F8Trailer reverse lamps
F9Rear heated seat 1
F102018: Parking assist
2019-2024: Park Lamps
F11Rear heated seat 2
F12Not used
F13Trailer parking lamp
F142018: Right trailer turn signal lamp
2019-2021: Right trailer stop-lamp / Turn signal lamp
F15Left parking lamp
F16Right parking lamp
F172018-2019: Not used.
2020-2024: Video processing module
F182018: Left trailer turn signal lamp
2019-2024: Left trailer stoplamp/ Turn signal lamp
F19All-wheel drive
F20Lumbar
F21Rear auxiliary power outlet
F22Rear drive unit

Relays

Assignment of the relays in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
K1Right trailer stoplamp/Turn signal lamp
K2Trailer reverse lamps
K3Left trailer stoplamp/Turn signal lamp
K4Park lamps
K52018-2019: Selective catalytic reduction (SCR) – (diesel only).
from 2020: Exhaust fuel heater/Selective catalytic reduction power module (diesel only)
