Chevrolet Equinox EV (2024-2026)

Looking for Chevrolet Equinox EV fuse box diagrams? This article covers the battery electric compact crossover SUV Chevrolet Equinox EV, available from 2024, and includes fuse box diagrams for Chevrolet Equinox EV 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Engine Compartment

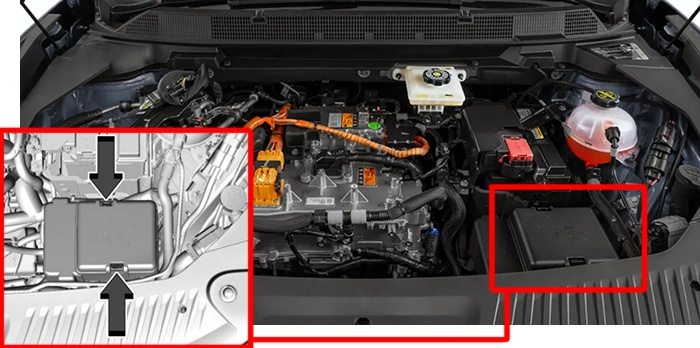

Fuse Box Location

To open the fuse block cover, press the clips at the side and back and pull the cover up.

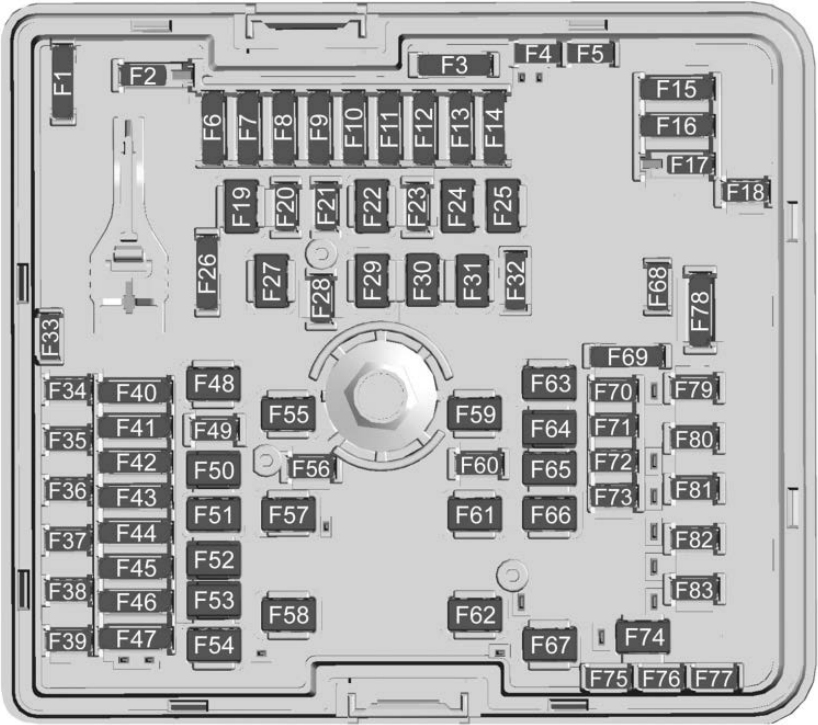

Fuse Box Diagram

Fuses

Assignment of the fuses in the under-hood compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1Spare
F2N/A
F3Spare
F4Spare
F5Spare
F6MSM/MSB – Memory Seat Module / Memory Seat Bolster
F7N/A
F8N/A
F9OBCM 2 & MCV – Onboard Charging Module 2 and Motor Coolant Valve
F10N/A
F11N/A
F12N/A
F13ESSCP & PECP-Dual Loop – Energy Storage System Coolant Pump and Power Electronics Coolant Pump Dual Loop
F14N/A
F15N/A
F16N/A
F17Seat HTD Switch Row 2 – Heated Seat Row 2
F18N/A
F19N/A
F20N/A
F21N/A
F22N/A
F232024-2025: N/A
2026: Spare
F24N/A
F25N/A
F26Spare
F27N/A
F28N/A
F29N/A
F30Rear Cargo APO – Rear Cargo Auxiliary Power Outlet
F31N/A
F32Spare
F33Spare
F34ELM 5 – Exterior Lighting Module 5
F35ELM 4 – Exterior Lighting Module 4
F36N/A
F37Rear Wiper
F38ELM 7 – Exterior Lighting Module 7
F39ELM 3 – Exterior Lighting Module 3
F402024: ECP_E_Batt Source 4 & 3 – Electrification Control Processor Source 4 and 3
2025: DSP-CO-DRIVER & DSP-DRIVER – Door Switch Panel Front Passenger and Driver
2026: IPE 1 & IPE 2 – Integrated Power Electronics Module 1 and 2
F41DSP – Door Switch Panel Front Left and Right
F42Seat Position Switch & VKM / RLH Sensor – Seat Position Switch and Virtual Key Module Sensor / Rain Light Humidity Sensor
F43CODR_LMBR & DR_LMBR – Front Passenger and Driver Lumbar
F44PFA & Aero Shutter – Pedestrian Friendly Alert Module (Power Sounder Module) and Motor Aero Shutter
F45RFA MDL – Remote Function Actuator Module
F462024: ECFV/CHFV & PEEV/PCEV – Motor External Condenser Flow Valve and Primary Evaporator / Chiller Expansion Valves
2025-2026: ECFV/CHFV/IRM & PEEV/PCEV – Motor External Condenser Flow Valve / Condensing Heater Flow Valve / Integrated Refrigerant Module and Primary Evaporator / Chiller Expansion Valves
F472024: Lit Grille / Front Park Emblem and SADS (Semi Active Damping System)
2025: Lit Grille and LRR-Front (Long Range Radar Front)
2026: LRR-Front (Long Range Radar Front) / Park Emblem Light
F48PWR T/GATE – Power Tailgate
F49N/A
F502024-2025: MTR WDW LIFTER LT – Motor Window Lifter Left
2026: Power Window Left / Door Switch Panel Left
F51N/A
F522024-2025: MTR WDW LIFTER RT – Motor Window Lifter Right
2026: Power Window Right / Door Switch Panel Right
F532024: FRT WPR – Front Wiper
2025-2026: Front Wiper Driver
F54N/A
F55N/A
F56N/A
F57EBCM/EBOOST – Electronic Brake Control Module
F58FRT BLWR MTR – Front HVAC Blower Motor
F59Front Wiper Co-Driver / Passenger
F60Horn
F61Rear Defog
F62N/A
F63MTR S/ROOF & SUNSHD – Motor Sunroof and Motor Sunshade
F64PWR SEAT DRVR – Power Seat Driver
F65PWR SEAT PASS – Power Seat Passenger / Co-Driver
F66CRFM – Condenser Radiator Fan Module
F67HTD WPR – Heated Wiper
F68Spare
F69Spare
F70Relay Coil
F71REAR HTD/SEAT 2 – Rear Heated Seat 2
F72FRT HTD/SEAT 1 – Front Heated Seat 1
F73Trailer Park Lights
F74N/A
F75Spare
F76Spare
F77Spare
F78TRLR ST/TRN LT & TRLR ST/TRN RT – Trailer Stop/Turn Left and Trailer Stop/Turn Right
F79REAR HTD/SEAT 1 – Rear Heated Seat 1
F80FRT HTD/SEAT 2 – Front Heated Seat 2
F81N/A
F82Wash Pump FRT_RR_MTR_CTRL – Wash Pump Front and Rear Motor Control
F83Rear Wiper MTR CTRL – Rear Wiper Motor Control

Passenger Compartment

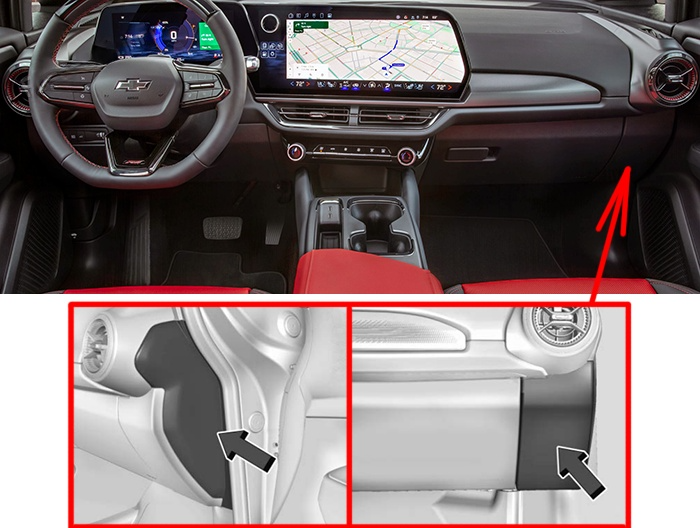

Fuse Box Location

The instrument panel fuse block is located to the right of the glove box.

To access the fuses:

  1. Remove the outer trim cover using a flat-bladed plastic tool to release the retaining clips.
  2. Pull the cover rearward to clear the tab and remove it.
  3. Remove the front panel, starting at the top.
  4. Once the clips disengage, release the tabs along the bottom and remove the panel.

To reinstall:
Insert the bottom tabs of the front panel into the slots, rotate it into position, and engage the clips. Then reinstall the outer trim cover in the same way.

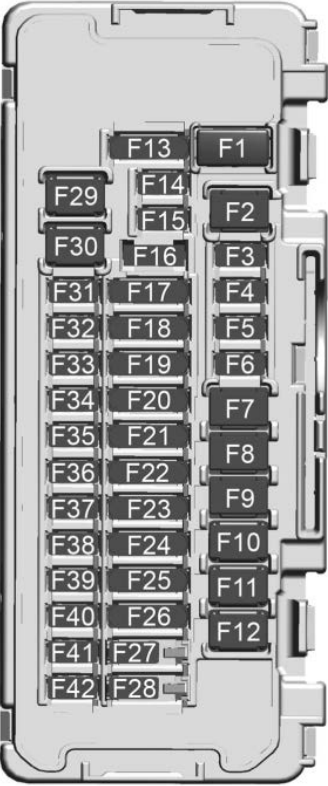

Fuse Box Diagram

Fuses

Assignment of the fuses in the instrument panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1N/A
F2APO/CIGAR LTR – Auxiliary Power Outlet Instrument Panel / Cigar Lighter
F3N/A
F4USB PORT/APO AC 150W – Universal Serial Bus Port / Auxiliary Power Outlet Alternating Current 150W
F5STRG COL LOCK – RUN/CRANK Steering Column Lock
F6ELM 1 – Exterior Lighting Module 1
F7N/A
F8RT DR LATCH – Right Door Latch
F9LT DR LATCH – Left Door Latch
F10N/A
F11N/A
F12N/A
F13ECP_E/VICM – Electrification Control Processor Vehicle Integration Control Module
F14HEADLAMPS – RUN/CRANK Headlights
F15HDLP RT – Headlight Right
F16STRG COL/CLOCK SPRING – Steering Column Lock / Clock Spring
F17SEAT FAN CODR & SEAT FAN Driver – RUN/CRANK Seat Fan Passenger and Seat Fan Driver
F18VCD/IPD & SRR – Virtual Cockpit Display / Instrument Panel Display and Short Range Radar
F192024: MISC 2 & MISC 1 – RUN/CRANK Miscellaneous 2 Switch Bank / Electronic Toll Collection / Interior Particulate Matter Sensor / Reflective Light Auxiliary Display and Miscellaneous 1 Electronic Brake Control Module / Exterior Lighting Module / Sensing and Diagnostic Module / Inside Rear View Mirror
2025-2026: RLAD/IPMS/ETC & EBCM/SDM/ELM/ISRVM/AQS – RUN/CRANK Reflective Light Auxiliary Display / Interior Particulate Matter Sensor / Electronic Toll Collection and Electronic Brake Control Module / Sensing and Diagnostic Module / Exterior Lighting Module / Inside Rear View Mirror / Air Quality Sensor
F20BCM 1 & VICM – Body Control Module 1 and Vehicle Integration Control Module
F21HVSL & EPBS/ESM – High Voltage System Lockout and Electronic Park Brake Switch / Electronic Transmission Range Select Shifter Module
F22VKM/VKMB/AUX JACK & ACP3 – Virtual Key Module / Virtual Key Backup Module / Auxiliary Jack and ADAS Compute Platform 3
F23T/LAMP RT & T/LAMP LT – Taillight Right and Taillight Left
F242024: UPA/APA/SBZA & SDM/AOS – Universal Park Assist / Automatic Park Assist / Side Blind Zone Alert and Sensing Diagnostic Module / Automatic Occupant Sensing Module / PA/SBZA & HUD/HVAC DISPLAY – Park Assist / Side Blind Zone Alert and Heads-up Display / Heating, Ventilation and Air Conditioning Display
2025-2026: PAM/SBZA & HUD/HVAC DISP – Park Assist Module / Side Blind Zone Alert and Head-up Display / Heating, Ventilation and Air Conditioning Display
F25ACP 2/FCM & CGM/DLC/VDM – Advance Driver Assistance Systems Compute Platform 2 / Front Camera Module and Central Gateway Module / Diagnostic Link Connector / Vehicle Data Monitor
F262024: ECP_E_BATT 2/ACEC & SDM/AOS – Electrification Control Processor Battery 2 / Air Condition Electric Compressor and Sensing Diagnostic Module / Automatic Occupant Sensing Module
2025-2026: ECP_E_BATT 1/ACEC & SDM/AOS – Electrification Control Processor Battery 1 / Air Condition Electric Compressor and Sensing and Diagnostic Module / Automatic Occupant Sensing Module
F27BCM 3 – Body Control Module 3
F28BCM 2 – Body Control Module 2
F292024: AMP-UPLEVEL – Amplifier- Uplevel
2025-2026: Amplifier
F30BCM 4 – Body Control Module 4
F312024-2025: VPM/SD CARD/ILSS/OHC – Video Processing Module / SD Card / Indicator Light and Solar Sensor / Over Head Console
2026: SD CARD/ILSS/UGDO/OHC/ – SD Card / Indicator Light and Solar Sensor / Universal Garage Door Opener / Over Head Console
F32HSWM – Heated Steering Wheel Module
F33Door Handle Actuator
F34ELM 2 – Exterior Lighting Module 2
F35HDLP LT – Headlight Left
F36VCU BATT 1 – Virtual Cockpit Unit Battery 1
F37TCP (OnStar) – Telematics Communication Platform
F38WCM – Wireless Charger Module
F39HI VOLTAGE SYS LCKOUT – Column Lock Assembly
F40VCU Batt 2 – Virtual Cockpit Unit Battery 2
F41ELM 6 – Exterior Lighting Module 6
F42N/A
