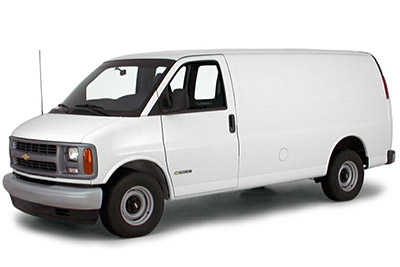

Explore Chevrolet Express fuse box diagrams in this clear guide that outlines the electrical layout of the original full-size van generation. In this article, we consider the first-generation Chevrolet Express, produced from 1996 to 2002 , and provide fuse box diagrams for Chevrolet (Chevy) Express 1996, 1997, 1998, 1999, 2000, 2001 and 2002 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
The fuse block access door is on the driver’s side of the instrument panel above the hood release lever.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

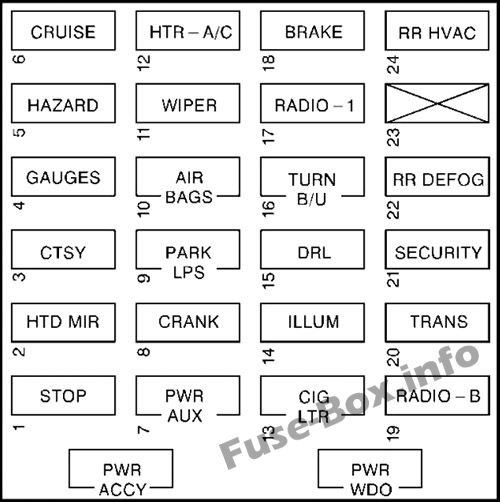

Assignment of the fuses in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No./ID Short-Code Description 1 STOP Center High Mounted Stop Lamp, Stoplamps 2 HTD MIR Electric Heated Mirrors 3 CTSY Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors 4 GAUGES IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module 5 Hazard Hazard Lamps/CHIME Module 6 CRUISE Cruise Control 7 PWR AUX Auxiliary Power Outlet, DLC 8 Crank — 9 PARK LPS License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray 10 AIR BAGS Air Bags 11 WIPER Wiper Motor, Washer Pump 12 HTR-A/C A/C, A/C Blower, High Blower Relay, HTD Mirror 13 CIG LTR Cigarette Lighter 14 ILLUM Instrument Panel Cluster, HVAC Controls, RR HVAC Controls, Instrument Panel Switches, Radio Illumination, Door Switch Illumination 15 DRL Daytime Running Lamp Relay 16 TURN B/U Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid 17 RADIO- 1 Radio (Ign, Accy), Upfitter Provision Relay 18 BRAKE 4WAL PCM, ABS, Cruise Control 19 RADIO-B Radio (Battery), Power Antenna 20 TRANS PRNDL, Automatic Transmission 21 STRG/SECURITY / EVO Steering, Passlock 22 RR DEFOG Rear Window Defog 23 Not Used — 24 RR HVAC RR HVAC Controls, HIGH, MED, LOW Relays A PWR ACCY Power Door Lock, Six-Way Power Seat, Keyless Entry Illumination Module B PWR WDO Power Windows
This content requires JavaScript and a valid membership to view.
It is located on the driver’s side of the engine compartment at the rear.

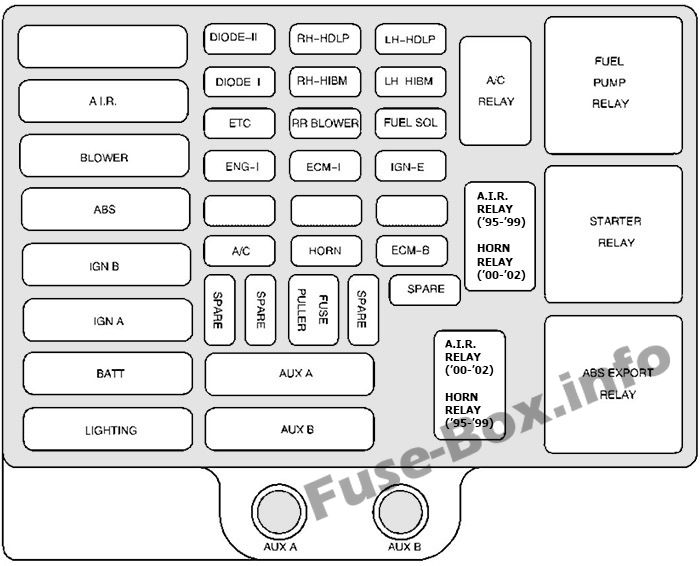

Assignment of the fuses and relay in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description SPARE Spare Fuse A.I.R. Air Pump BLOWER Front Blower Motor ABS Electronic Brake Control Module IGN-B Ignition Switch IGN-A Starter Relay, Ignition Switch BATT Instrument Panel Fuse Block LIGHTING Instrument Panel Fuse Block, Headlamp Switch RH-HDLP Right-hand Headlamp (Export Only) LH-HDLP Left-hand Headlamp (Export only) RH-HIBM Right-hand High-beam Headlamp (Export Only) LH-HIBM Left-hand High-beam Headlamp (Export only) ETC Electronic Throttle Control RR BLOWER Rear Auxiliary Blower FUEL SOL Fuel Solenoid ENG-I Heated O2 Sensors, Mass Air Flow Sensor, Evap Canister Purge Valve, Crankshaft Position Sensor, Secondary Air Injection Relay (Diesel), Water in Fuel Sensor (Diesel), Fuel Heater (Diesel), Glowplug Relay (Diesel), Wastegate Solenoid (Diesel) ECM-I Ignition Coil, Crankshaft Position Sensor, VCM, Fuel Injectors, Coil Driver IGN-E Air Conditioning Clutch Relay SPARE Spare Fuse SPARE Spare Fuse SPARE Spare Fuse A/C Air Conditioning Clutch Relay HORN Horn Relay, Underhood Lamp(s) ECM-B Fuel Pump Relay, VCM, PCM, Fuel Pump and Engine Oil Pressure Switch SPARE Spare Fuse SPARE Spare Fuse AUX A Upfitter Provisions AUX B Upfitter Provisions A/C RELAY Air Conditioning HORN RELAY Horn A.I.R. RELAY Air FUEL PUMP RELAY Fuel Pump STARTER Starter RELAY ABS EXPORT ABS Export RELAY
This content requires JavaScript and a valid membership to view.
