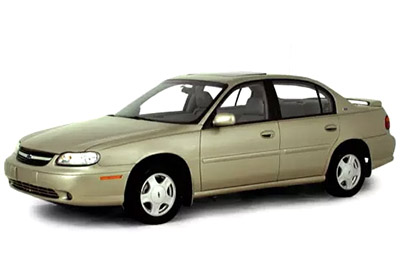

Explore Chevrolet Malibu fuse box diagrams in this practical guide that explains the electrical layout of the fifth-generation midsize sedan. In this article, we consider the fifth-generation Chevrolet Malibu, produced from 1996 to 2003 , and provide fuse box diagrams for Chevrolet Malibu 1997, 1998, 1999, 2000, 2001, 2002 and 2003 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

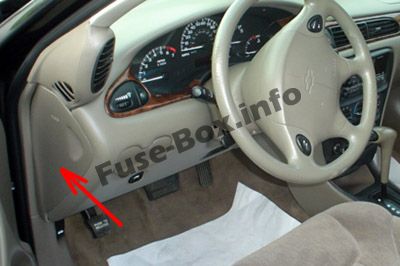

It is located on the driver’s side of the instrument panel, behind the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

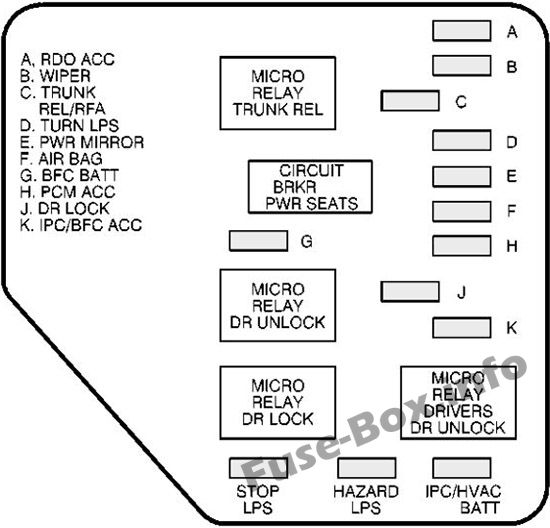

Assignment of the fuses and relay in the Instrument Panel Box on driver’s side
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description A 1997-2000: Radio B Wipers C Trunk relase and remote lock control D Turn signal E Power mirrors F Air bag G Body Function Control Module H Powertrain Control Module J Door Locks K Body Function Control Module, Cluster CIRCUIT BRKR PWR SEATS Power Seats MICRO RELAY DR UNLOC Door Locks MICRO RELAY DR LOCK Door Locks MICRO RELAY DRIVERS DR UNLOCK 1997: Not used MICRO RELAY TRUNK REL Trunk Door lock STOP LPS Stoplamps HAZARD LPS Hazard Lamps IPC/HVAC BATT Instrument Panel Cluster, Climate Control
This content requires JavaScript and a valid membership to view.

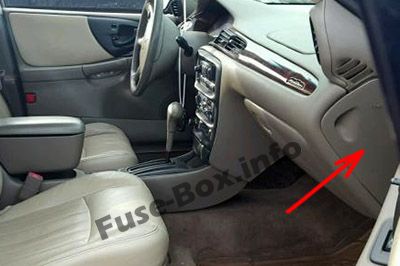

It is located on the passenger’s side of the instrument panel, behind the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

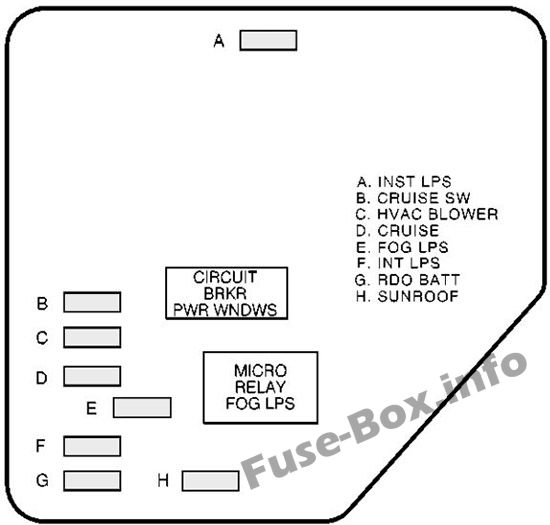

Assignment of the fuses in the Instrument Panel Box (Passenger Side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Letter Usage A Instrument Panel Lights, Brightness Control (Dimmer) B Cruise Control Switches C Climate Control System D Cruise Control E Fog Lamps F Interior Lamps, Body Function Control Module G Radio H Sunroof
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breaker in the Instrument Panel Box (Passenger Side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description CIRCUIT BRKR PWR WNDWS Power Windows
This content requires JavaScript and a valid membership to view.
Assignment of the micro relay in the Instrument Panel Box (Passenger Side)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description MICRO RELAY FOG LPS Fog Lamps
This content requires JavaScript and a valid membership to view.

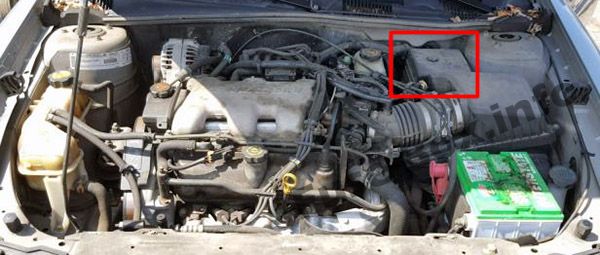

It is located in the engine compartment, near the air cleaner.
Assignment of the maxi fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Ignition Switch 2 1997-1999: Left-Hand Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release and Remote Lock Control 3 1997-1999: Left-Hand Electrical Center-Stoplamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System 4 1997-1999: Right-Hand Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps 5 Ignition Switch 6 Not Used / A.I.R. 7 1997-1999: Anti-Lock Brakes 8 1997-1999: Cooling Fans
This content requires JavaScript and a valid membership to view.
Assignment of the mini relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 9 Rear Defog 10 Not Used / A.I.R. 11 Not Used 12 Cooling Fan #1 13 HVAC Blower (Climate Control) 14 Cooling Fan #2 15 Cooling Fan
This content requires JavaScript and a valid membership to view.
Assignment of the micro relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 16 Air Conditioning Compressor 17 Not Used 18 Fuel Pump 19 Automatic Light Control 20 Automatic Light Control 21 Horn 22 Daytime Running Lamps (DRL)
This content requires JavaScript and a valid membership to view.
Assignment of the mini fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 23 Spare Fuse Holder 24 Spare Fuse Holder 25 Spare Fuse Holder 26 Spare Fuse Holder 27 Spare Fuse Holder 28 Spare Fuse Holder 29 Spare Fuse Holder 30 Spare Fuse Holder 31 Spare Fuse Holder 32 Spare Fuse Holder 33 Rear Defog 34 Accessory Power Outlets, Cigar Lighter 35 1997-1999: Anti-Lock Brakes 36 1997-1999: Anti-Lock Brakes 37 Air Conditioning Compressor, Body Function Control Module 38 Automatic Transaxle 39 Powertrain Control Module, Ignition 40 Anti-Lock Brakes (ABS) 41 Ignition System 42 Back-Up Lamps, Brake Transaxle Shift Interlock 43 Horn 44 PCM 45 Parking Lamps 46 1997-2000: Rear Defog, Daytime Running Lamps, Climate Control System 47 1997-2000: Powertrain Control Module, Exhaust Gas Recirculation, Heated O2 Sensor 48 Fuel Pump, Injectors 49 1997-1999: Generator 50 Right Headlamp 51 Left Headlamp 52 Cooling Fan 53 HVAC Blower (Climate Control ) 54 Not Used 55 2000-2003: Cooling Fan #2 Ground 56 Fuse Puller 57 1997-1999: Tach Test Point for Diagnostic Testing
This content requires JavaScript and a valid membership to view.
