Explore Chevrolet Malibu fuse box diagrams in this comprehensive guide that explains the electrical layout of the modern midsize sedan. In this article, we consider the ninth-generation Chevrolet Malibu, produced from 2015 to 2025 , and provide fuse box diagrams for Chevrolet (Chevy) Malibu models from 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 and 2025 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

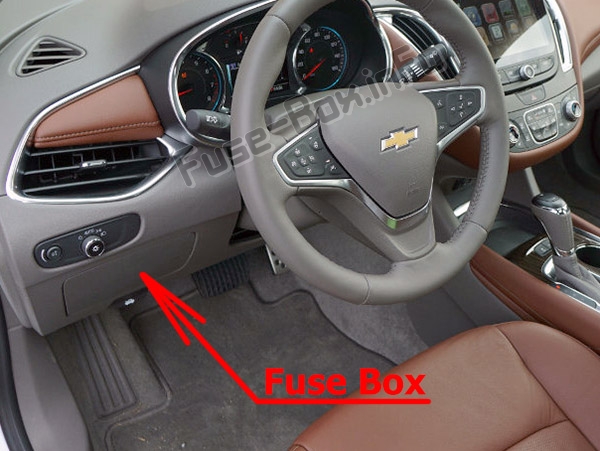

It is located on the driver’s side of the instrument panel, behind the cover to the left of the steering wheel.

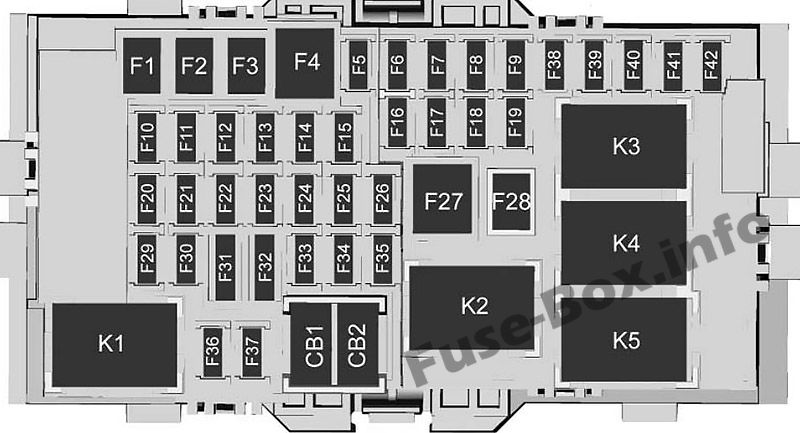

Assignment of the fuses in the instrument panel (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F1 30A Left power windows F2 30A Right power windows F3 — — F4 40A Heating, ventilation, and air conditioning blower F5 15A Body control module 2 F6 — Left rear heated seat (2018) F7 — Right rear heated seat (2018) F8 15A Body control module 3 F9 5A Engine control module/Rear battery F10 15A Body control module 2 (w/ Stop/Start option) F11 — — F12 — — F13 — — F14 — — F15 20A Transmission control module ( w/ Stop/Start option) F16 30A Amplifier F17 — Seat power lumbar F18 — OnStar F19 — — F20 15A Body control module 1 F21 15A Body control module 4 F22 — — F23 10A Electric steering column lock (China and Russia only) F24 10A Airbag F25 7.5A Data link connector F26 — — F27 30A AC DC inverter F28 — — F29 20A Body control module 8 F30 10A Overhead console F31 2A Steering wheel controls F32 — — F33 10A Heating, ventilation, and air conditioning F34 — Gateway (2018) F35 — — F36 5A Wireless charger F37 20A Front accessory power outlets/ Cigar lighter (China only) F38 5A OnStar F39 7.5A Display F40 10A Obstacle detection F41 15A Body control module 1 (w/ Stop/Start option) F42 15A Radio
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the instrument panel (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description CB1 — — CB2 15A Console accessory power outlet
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 — K2 Retained accessory power relay K3 — K4 — K5 —
This content requires JavaScript and a valid membership to view.

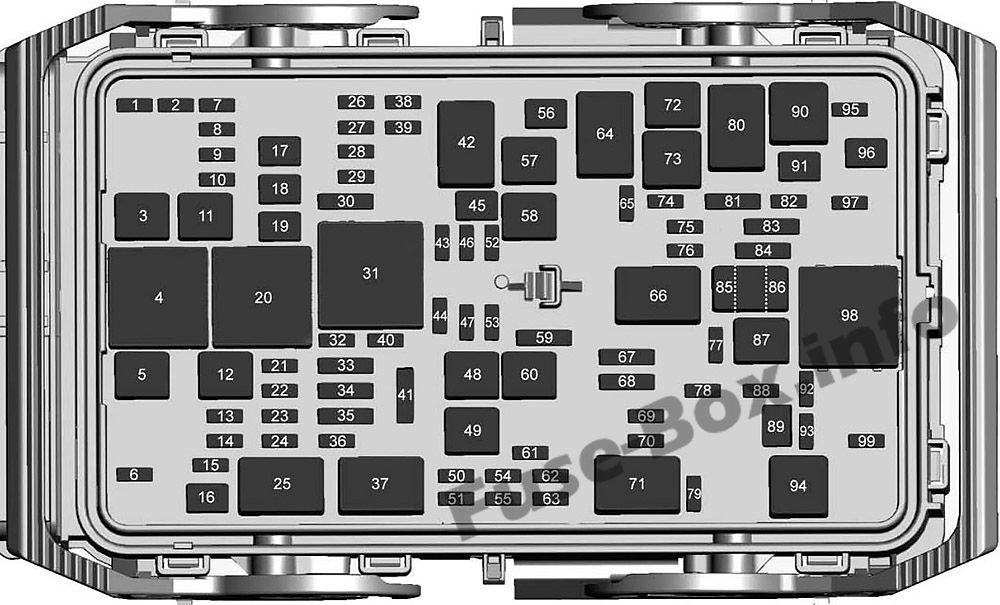

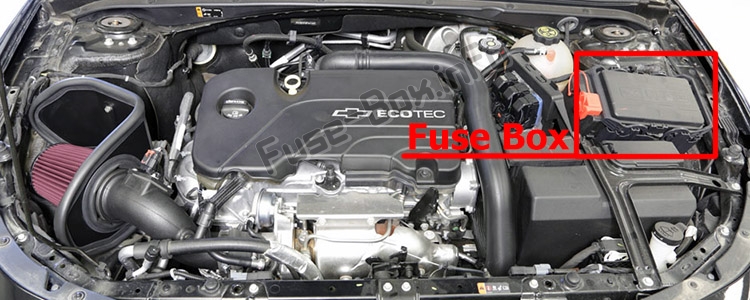

Assignment of the fuses in the engine compartment (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 — 2 — 3 Antilock brake system pump 4 AC DC inverter 6 Trunk 7 Anti-theft warning siren/Horn 8 Window/Mirror/Seats 9 Electric brake boost 10 Left seat lumbar (2017)/AOS/Airbag–HEV 11 DC DC battery 1 12 Rear defogger 13 Heated mirror 14 — 15 Passive entry/Passive start 16 Front wiper 17 Passenger power seat 18 Antilock brake system valve 19 Driver power seat 21 Sunroof 22 Parking lamp 23 Active headlamp leveling 24 — 26 Transmission control module/Ignition 27 Instrument panel body/Ignition 28 Fuel pump (2017) 29 Regulated voltage control/Ventilation 30 Malfunction indicator lamp/SS 32 CVS 33 Front heated seat 34 Rear heated seat (2017)/BSM/ESS fan 35 Body control module 6/Body control module 7 37 Fuel module 38 — 39 — 40 Steering column lock 41 — 43 Heated steering wheel 44 Active headlamp leveling 45 — 46 Engine control module/Ignition 47 — 48 Electric brake boost–HEV 49 DC DC battery 2 50 — 51 — 52 — 53 — 54 — 55 — 56 Starter motor (2018) 57 Transmission auxiliary pump 58 — 59 High-beam headlamps 60 Cooling fan 61 — 62 — 63 — 65 Air conditioning–HEV 67 — 68 — 69 Right low-beam HID headlamp 70 Left low-beam HID headlamp 72 Starter pinion 74 Starter motor (2017) 75 Engine control module 76 Powertrain off engine 77 — 78 Horn 79 Washer pump 81 Transmission control module/Engine control module 82 — 83 Ignition coil 84 Powertrain on engine 85 Engine control module switch 2 86 Engine control module switch 1 87 SAIR pump 88 Aeroshutter 89 Headlamp washer 91 — 92 Traction power inverter module/Motor generator unit pump 93 Active headlamp leveling 95 SAIR solenoid 96 Fuel heater 97 — 99 Coolant pump
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 4 AC DC inverter 20 Rear defogger 25 Front wiper control 31 Run/Crank 37 Front wiper speed 42 Transmission auxiliary pump 64 2017: A/C control 68 Powertrain 71 Low-beam HID headlamps 73 2017: Starter motor 80 Starter pinion/Starter motor 90 SAI reaction solenoid 94 Headlamp washer 98 SAI reaction pump
This content requires JavaScript and a valid membership to view.

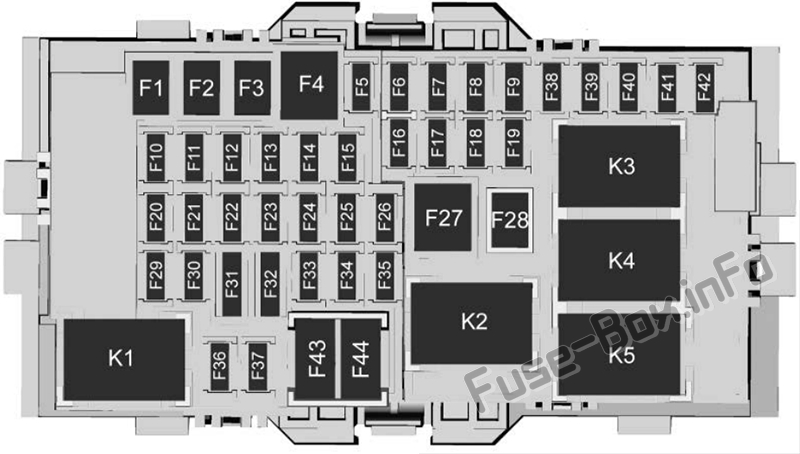

Assignment of the fuses in the instrument panel (2019, 2020, 2021, 2022, 2023, 2024, 2025)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Left power windows F2 Right power windows F3 — F4 Heating, ventilation, and air conditioning blower F5 Body control module 2 (without Stop/Start option) F6 Left rear heated seat F7 Right rear heated seat F8 Body control module 3 F9 2019-2020: Engine control module/Rear battery – HEV F10 Body control module 2 (with Stop/Start option) F11 — F12 — F13 — F14 — F15 Transmission control module (with Stop/ Start option) F16 Amplifier F17 Seat power lumbar F18 — F19 — F20 Body control module 1 (without Stop/Start option) F21 Body control module 4 F22 — F23 Electric steering column lock F24 Sensing and diagnostic module/ Automatic occupant sensing (Airbag) F25 Data link connector F26 — F27 AC DC inverter F28 — F29 Body control module 8 F30 Overhead console F31 Steering wheel controls F32 — F33 Heating, ventilation, and air conditioning F34 Central gateway module F35 Diesel exhaust fluid control F36 Wireless charger/USB charger F37 Front accessory power outlets/ Cigarette lighter – China only F38 OnStar F39 Display F40 Obstacle detection F41 Body control module 1 (with Stop/Start option) F42 Radio F43 — F44 Console accessory power outlet – rear
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the instrument panel (2019, 2020, 2021, 2022, 2023, 2024, 2025)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F43 — F44 Console accessory power outlet – rear
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel (2019, 2020, 2021, 2022, 2023, 2024, 2025)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 — K2 Retained accessory power K3 — K4 — K5 —
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (2019, 2020, 2021, 2022, 2023, 2024, 2025)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 — 2 — 3 Antilock brake system pump/Electric brake boost 5 — 6 Trunk (Rear closure) 7 — 8 Memory seat module 9 2019-2020: Electric brake boost/ Pedestrian friendly alert function-HEV 10 2019-2020: Automatic occupant sensing/Airbag – HEV 11 2019: DC DC battery 1/ Heating, ventilation, and air conditioning blower motor. 12 Rear window defogger 13 Heated mirrors 14 — 15 Passive entry/Passive start 16 Front wiper 17 Passenger power seat 18 Antilock brake system valve 19 Driver power seat 21 Sunroof 22 Parking lamp 23 Automatic headlamp leveling/Adaptive forward lighting 24 — 26 Transmission control module/lgnition 27 Instrument panel/ Body/lgnition 28 — 29 Rear vision camera/ Ventilated seats 30 Malfunction indicator lamp/lgnition 32 Canister vent solenoid/Evap leak check module 33 Front heated seat 34 2019-2020: Battery system manager/Accessory power module fan – HEV 35 Body control module 6/Body control module 7 36 Fuel module 38 — 39 — 40 Steering column lock 41 — 43 Heated steering wheel 44 Automatic headlamp leveling 45 — 46 Engine control module/lgnition 47 — 48 Electric brake boost -HEV/ Cooling fan 49 DC DC battery 2 50 — 51 — 52 — 53 — 54 — 55 — 56 Starter motor 57 Diesel exhaust fluid heater 58 — 59 High-beam headlamps 60 Cooling fan 61 — 62 — 63 — 65 Air conditioning 67 — 68 — 69 — 70 — 72 Starter pinion 74 — 75 Engine control module main 76 Engine control module sense 78 Horn 79 Washer pump 81 Transmission control module/Engine control module 82 — 83 Ignition coil 84 Powertrain on engine 85 Shunt 86 Shunt 87 — 88 Aeroshutter 89 — 91 — 92 2019-2020: Traction power inverter moduIe/Motor generator unit pump-HEV/ Transmission oil pump-non HEV 93 Automatic headlamp leveling 95 — 96 — 97 — 99 Coolant pump
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2019, 2020, 2021, 2022, 2023, 2024, 2025)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 4 — 20 Rear window defogger 25 Front wiper control 31 Run/Crank 37 Front wiper speed 42 — 64 Starter motor 66 Powertrain 71 — 73 Air conditioning 80 Starter pinion 90 — 94 — 98 Diesel Fuel heater
