Explore Chevrolet Monte Carlo fuse box diagrams in this focused guide that explains the electrical layout of the final facelifted version of this classic coupe. In this article, we consider the facelifted sixth-generation Chevrolet Monte Carlo (Model Code: GMX231), produced from 2006 to 2007 , and provide fuse box diagrams for Chevrolet (Chevy) Monte Carlo models from 2006 and 2007 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

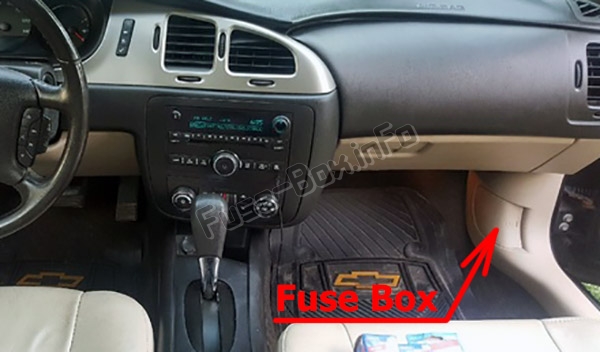

It is located in the front-passenger footwell, behind the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

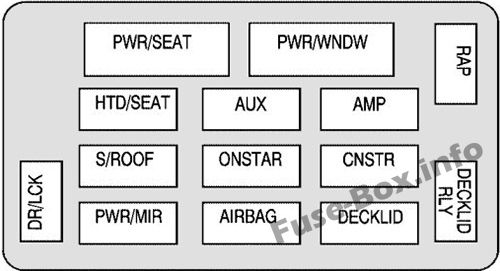

Assignment of the fuses and relay in the Passenger Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description PWR/SEAT Power Seats PWR/WNDW Power Window RAP Retained Accessory Power HTD/SEAT Heated Seats AUX Auxiliary Outlets AMP Amplifier S/ROOF Sunroof ONSTAR OnStar XM XM Radio CNSTR Canister DR/LCK Door Locks PWR/MIR Power Mirrors AIRBAG Airbags TRUNK Trunk TRUNK Trunk Relay DECKLID Trunk DECKLID RLY Trunk Relay
This content requires JavaScript and a valid membership to view.

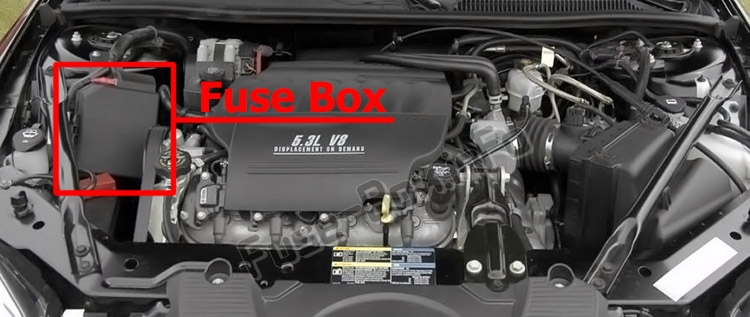

It is located in the engine compartment (right-side).
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LT PARK Driver’s Side Parking Lamp RT PARK Passenger’s Side Parking Lamp FAN 1 Cooling Fan 1 SPARE Spare SPARE Spare AIRBAG/DISPLAY Airbag, Display TRANS Transaxle ECM IGN Engine Control Module, Ignition RT T/SIG Passenger’s Side Turn Signal LT T/SIG Driver’s Side Turn Signal DRL 1 Daytime Running Lamps 1 HORN Horn SPARE Spare PWR DROP/RANK Power Drop, Crank STRG WHL Steering Whee ECM/TCM Engine Control Module, Transmission Control Module RVC SEN Regulated Voltage Control Sensor RADIO Audio System FOG LAMPS Fog Lamps SPARE Spare BATT 4 Battery 4 ONSTAR OnStar STRTR 2006: Anti-lock Brake System Motor 1 ABS MTR1 Anti-lock Brake System Motor 1 BATT 3 Battery 3 WSW Windshield Wiper HTD MIR Heated Mirror SPARE Spare BATT 1 Battery 1 ABS MTR2 Anti-lock Brake System Motor 2 AIR PUMP Air Pump BATT 2 Battery 2 INT LIGHTS Interior Lamps INT LTS/NL DIM Interior Lamps, Instrument Panel Dimmer A/C CMPRSR Air Conditioning Compressor AIR SOL AIR (Air Injection Reactor) Solenoid AUX PWR Auxiliary Power BCM Body Control Module CHMSL/BACKUP Center High-Mounted Stoplamp, Back-up Lamps DISPLAY Display ETC/ECM Electronic Throttle Control, Engine Control Module INJ 1 Injector 1 EMISSIONS 1 Emissions 1 INJ 2 Injector 2 EMISSIONS 2 Emissions 2 RT SPOT Right Spot LT SPOT Left Spot HDLP MDL Headlamp Module DRL 2 Daytime Running Lamps 2 FAN 2 Cooling Fan 2 FUEL/PUMP Fuel Pump WPR Wiper LT LO BEAM Driver’s Side Low Beam RT LO BEAM Passenger’s Side Low Beam LT HI BEAM Driver’s Side High Beam RT HI BEAM Passenger’s Side High Beam
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description STRTR Starter REAR DEFOG Rear Defogger FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 A/C CMPRSR Air Conditioning Compressor FAN 3 Cooling Fan 3 FUEL/PUMP Fuel Pump PWR/TRN Powertrain
This content requires JavaScript and a valid membership to view.
