Chevrolet SS (2014-2017)

Explore Chevrolet SS fuse box diagrams in this clear guide designed to help you understand the electrical layout of this rear-wheel-drive sport sedan. Here we cover the Chevrolet SS (Produced from 2013 to 2017) and provide fuse diagrams for 2014, 2015, 2016 and 2017, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a reliable reference for diagnostics, maintenance, and repairs.

Passenger Compartment

Fuse Box Location

It is located on the side of the instrument panel, behind the cover.

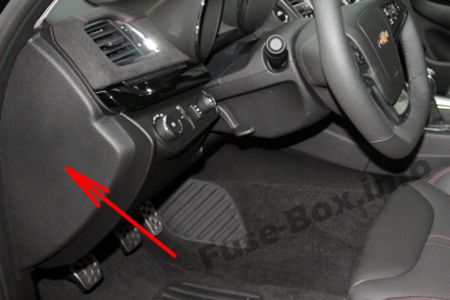

The location of the fuses in the passenger compartment: Chevrolet SS

Fuse Box Diagram

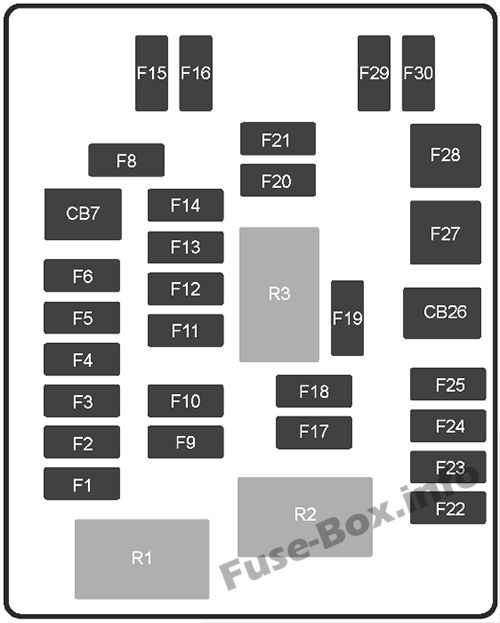

Instrument panel fuse box diagram: Chevrolet SS

Fuses

Assignment of the fuses in the Instrument Panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1Body Control Module 1
F2Diagnostic Link Connector
F3LPG Shut-Off Solenoid
F4Body Control Module 2
F5Ignition Switch
F6Electric Steering Control Lock
F8Not Used
F9Not Used
F10Not Used
F11Shunt 1
F12Airbag/Automatic Occupant Sensing
F13Instrument Cluster
F14HVAC Control Module
F15Rain Sensor
F16Body Control Module 3
F17LPG Shut-Off Solenoid
F18Not Used
F19SWC Backlight
F20Not Used
F21Not Used
F22Shunt 2
F23Body Control Module 4
F24Body Control Module 5
F25Body Control Module 6
F27Body Control Module 8
F28Blower Fan
F29Accessories
F30Body Control Module 7

Circuit Breakers

Assignment of the circuit breakers in the Instrument Panel

No.Description
CB7Not Used
CB26Not Used

Relays

Assignment of the relays in the Instrument Panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Logistics
R2LPG Shut-Off Solenoid 1
R3LPG Shut-Off Solenoid 2

Engine Compartment

Fuse Box Location

It is located in the engine compartment on the right side of the vehicle.

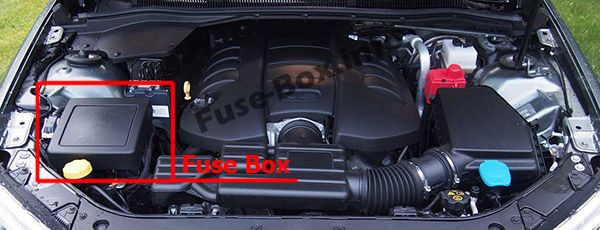

The location of the fuses in the engine compartment: Chevrolet SS

Fuse Box Diagram

Under-hood fuse box diagram: Chevrolet SS

Fuses

Assignment of the fuses in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

NoDescription
F1Heated Mirrors
F2Not Used
F3Rear Defogger
F4Not Used
F5Spot Lamp Right
F6Driver Power Seat
F7Washer Pump
F8Passenger Power Seat
F9EMER/ VEH/FT/LP
F10Not Used
F11Driving Lamps
F12Headlamp Washer
F13Spot Lamp Left
F14ABS Pump
F15ABS Valves
F16Not Used
F17Not Used
F18Heated Front Seats
F19Not Used
F20Not Used
F21Front Passenger Window Switch
F22Rear Wiper
F23Sunroof
F24Front Wipers
F25Automatic Occupant Sensing/lnstrument Cluster Ignition
F26LRBEC Ignition
F27Not Used
F28Ignition/lnjectors Even-V8
F29Engine Control Module-V8, Ignition Odd-V6/EMIS
F30Not Used
F31Not Used
F322014-2015: Fog Lamps
F33Ignition-IP/BODY
F34Fuel System Control Module
F35Not Used
F36ESCL
F37EMIS 2/lgnition Even-V6
F38Engine Control Module-V6, Injectors/ Ignition Odd-V8
F39INCLR Pump
F40Not Used
F41Transmission Control Module/Electric Power Steering
F42Starter Motor
F43Not Used
F44Left HID Headlamp
F45Right HID Headlamp
F46Left & Right High-Beam Headlamp
F47Horn
F48Engine Cooling Fan
F49Automatic Headlamp Leveling
F50Transmission Control Module Ignition
F51Engine Control Module Ignition
F52Brake Vacuum Pump
F53Air Conditioning Compressor Clutch
F54Vaporizer Control Module

Relays

Assignment of the relays in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Driving Lamps
R2Headlamp Washer
R3Rear Washer Pump
R4Front Washer Pump
R5Rear Defogger
R6Front Wiper Control
R7Wiper Speed
R8Engine Control Module
R9Not Used
R10INCLR Pump
R11Not Used
R12Rear Wiper Control
R13Fog Lamps
R14Low-Beam Headlamps
R15High-Beam Headlamps
R16Starter
R17Run/Crank
R18Brake Vacuum Pump
R19Air Conditioning Control
R20Horn
* Relays R3, R4, R12, R13, and R20 are PCB mounted relays.

Luggage Compartment

Fuse Box Location

It is located in the left side of the trunk behind the cover, above the battery.

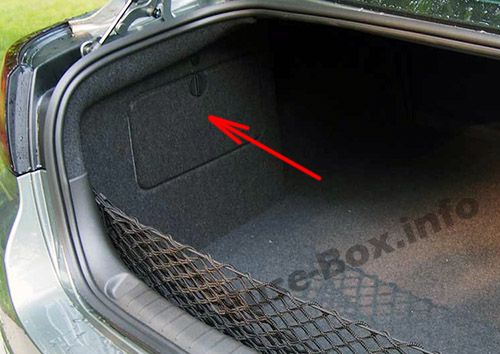

The location of the fuses in the trunk: Chevrolet SS

Fuse Box Diagram

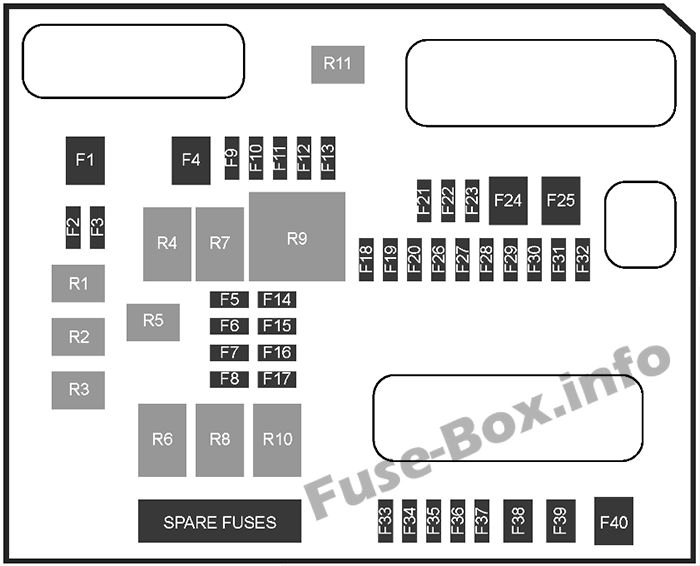

Trunk fuse box diagram: Chevrolet SS

Fuses

Assignment of the fuses in the Luggage Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1Driver Front/Left Rear Window
F2EMER/VEH/ACCY
F3Trunk Release
F4Passive Entry Passive Start-BATT 2
F5Radio
F6Not Used
F7Not Used
F8Fuel System Control Module
F9MRTD
F10Decklid Flashing Lamps/EDI Module
F11Auxiliary Battery
F12Not Used
F13Not Used
F14Rear Seat Entertainment
F15Automatic Headlamp Leveling
F16Not Used
F17Not Used
F18OnStar
F19Mirror/Window Module
F20Canister Vent Solenoid
F21Passive Entry Passive Start-BATT 1
F22Memory Seat Module
F23Amplifier
F24Passenger Front/ Right Rear Window
F25Electric Parking Brake
F26Tailgate Module
F27Camera Ignition
F28Front Vent Seat Ignition
F29Trailer Module Ignition
F30Advanced Park Assist/Side Blind Zone Alert
F31Engine Control Module
F32Auxiliary Gauges
F33Retained Accessory Power
F34Battery Voltage Sensing
F35Tailgate Motor
F36Rear Accessory Power Outlet
F37Interior Accessory Power Outlet
F38Cigar Lighter
F39Not Used
F40Trailer Module

Relays

Assignment of the relays in the Luggage Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Trunk Release
R2Accessory
R3Not Used
R4Run
R5Not Used
R6Retained Accessory Power
R7Logistics
R8Not Used
R9Not Used
R102014: Not Used
2015-2017: Exhaust Valve
R112014: Child Locks
2015-2017: Not Used
* Relays R1, R2, R3, and R5 are PCB mounted relays.
