Explore Chevrolet Tracker fuse box diagrams in this clear guide that outlines the electrical layout of the original compact SUV. Here we cover the first-generation Chevrolet Tracker (1989–1998) and provide fuse diagrams for 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997 and 1998 , along with the location of the fuse panels and the assignment of each fuse , giving you a solid reference for maintaining and troubleshooting these early models.

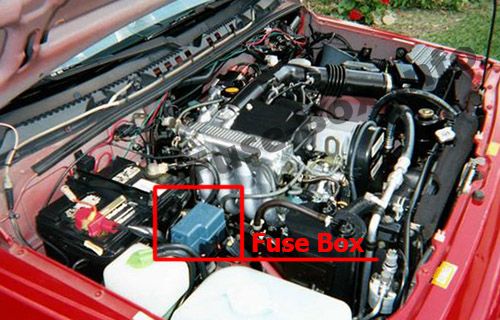

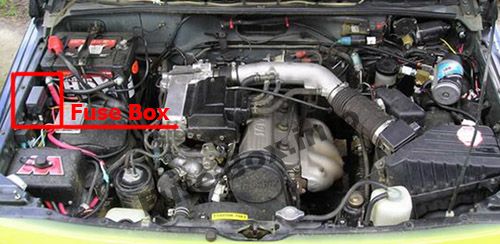

The main box in the engine compartment on the right side.

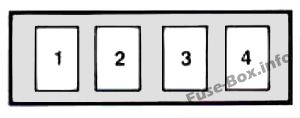

Assignment of the fuses in the Main Fuse Box (1989-1995)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description Amps 1 Generator to Battery Circuit 60 2 Circuits Only Active When Ignition Switch is in “ACC”, “ON” or “START” 50 3 Circuits Always Active 40 4 Circuits Always Active 30
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

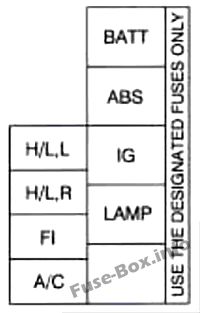

Assignment of the fuses in the Main Fuse Box (1996-1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BATT All Electrical Load ABS Anti-Lock Brake System IG Ignition, Lighter, Radio, Wiper/Washer, Rear Defogger. Turn Signals, Back-up Lamps, Heater LAMP Taillamps, Dome Lamps, Stop Lamps, Horn, Hazard Lamps H/L,L Left Side Headlamp H/L,R Right Side Headlamp FI Fuel Injection System A/C Air Conditioning
This content requires JavaScript and a valid membership to view.

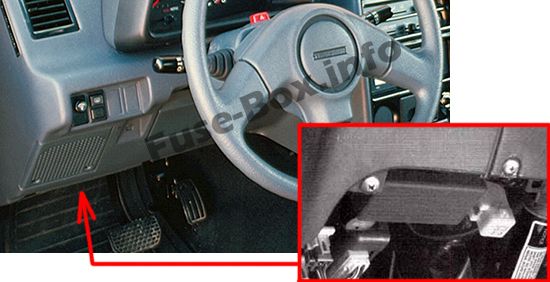

It islocated under the left side of the instrument panel.

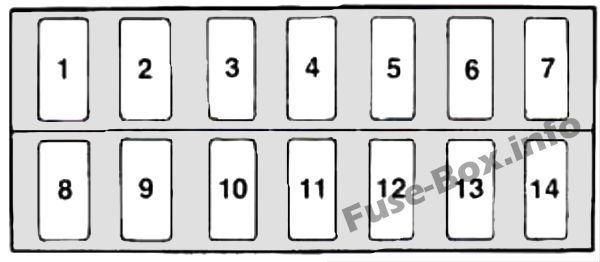

Assignment of the fuses in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description Amps 1 1993-1995: Right Headlight 15 2 1993-1995: Left Headlight; High Beam Indicator Light 15 3 1993-1995: Taillights; Interior Light; Sidemarker Lights; Instrument Cluster Lights 15 4 Stop Lights; Horn 15 5 Hazard Lights 15 6 Door Lock (Option) 20 7 Lighter; Radio 20 8 1993-1995: Ignition System; Warning and Indicator Lights 15 9 Turn Signal Lights; Back-up Lights 15 10 Wiper/Washer 15 11 Rear Defogger 15 12 Heater 25 13 1993-1995: Rear Wheel Anti-Lock Main Relay 20 14 1993-1995: Electronic Fuel Injection Main Relay 15
* Fuses for the Airbags are located next to the instrument panel fuse block.
This content requires JavaScript and a valid membership to view.
