Explore Chevrolet Tracker fuse box diagrams in this clear guide designed to help you understand the electrical layout of this modern compact crossover. Here we cover the Chevrolet Tracker (2020–present) and provide fuse diagrams for 2020, 2021, 2022, 2023, 2024, 2025 and 2026 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a reliable reference for troubleshooting and everyday electrical maintenance.

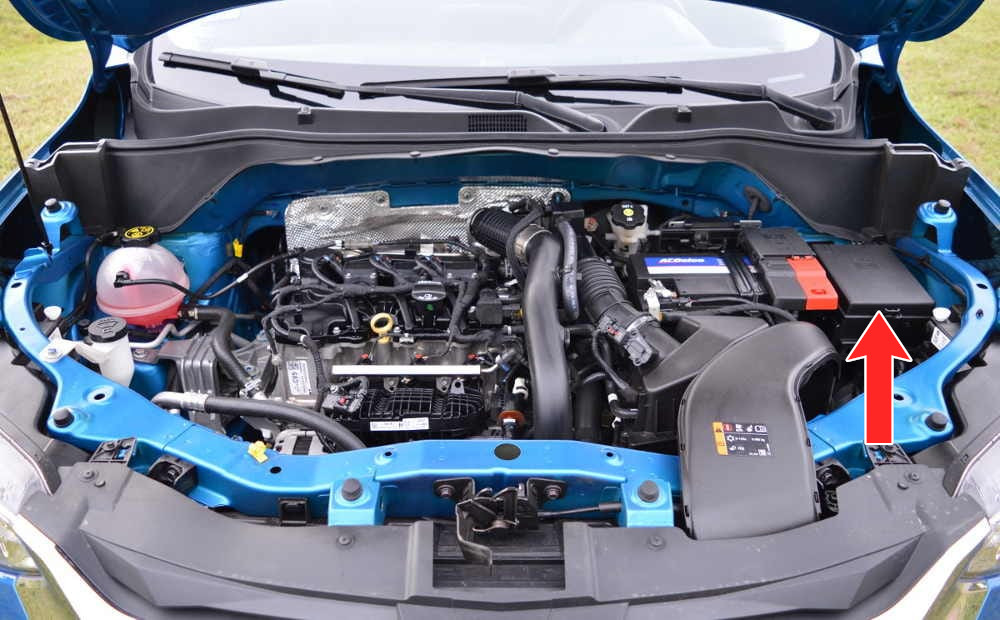

The engine compartment fuse box is located under the hood on the driver’s side.

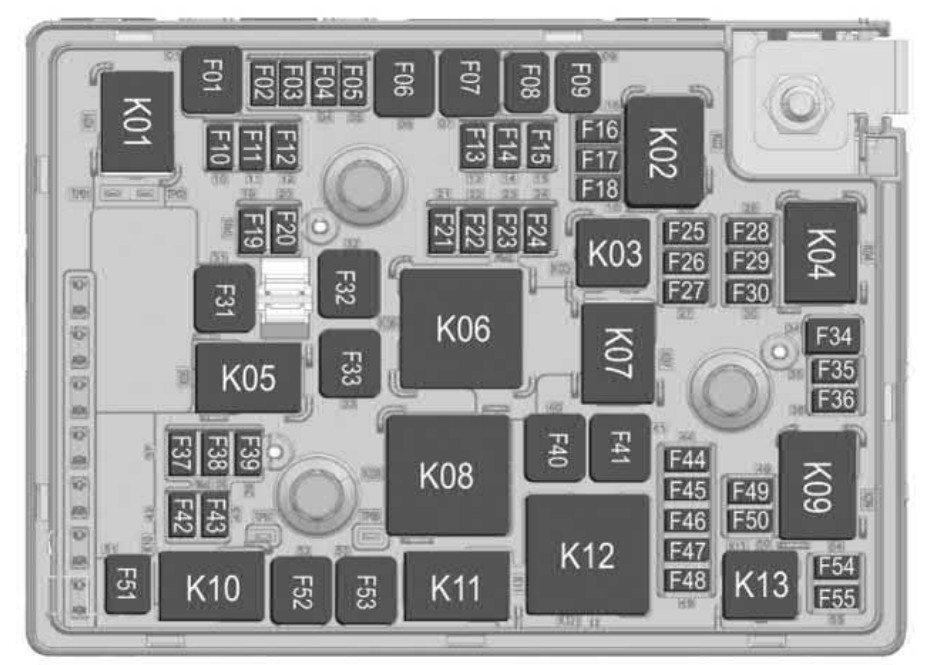

Assignment of the fuses in the under-hood fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description F02 MICRO2 5A Battery Current Sensor F03 MICRO2 5A Canister Vent Solenoid F06 FMX/JCase 60A ABS Pump F07 FMX/JCase 40A ABS Valve F12 MICRO2 15A Body Control Module F13 MICRO2 15A Body Control Module F14 MICRO2 15A Body Control Module F15 MICRO2 5A Rear View Camera F16 MICRO2 5A Instrument Cluster / Forward Collision Alert (if equipped) F18 MICRO2 10A Headlight Leveling F21 MICRO2 15A Body Control Module F22 MICRO2 25A Fuel System Control Module (if equipped) F24 MICRO2 20A Fuel Pump (if equipped) F26 MICRO2 15A Engine Control Module – Ignition F27 MICRO2 15A Transmission Control Module F28 MICRO2 5A Airbag System F29 MICRO2 15A Transmission Control Module F30 MICRO2 15A Engine Control Module F31 FMX/JCase 40A Rear Defroster F37 MICRO2 30A Body Control Module F40 FMX/JCase 60A Fan – High Speed F42 MICRO2 15A Fog Light (if equipped) F45 MICRO2 15A A/C Compressor / Fan – Intermediate Speed Control / Injection System Sensors F46 MICRO2 15A Ignition Coil F47 MICRO2 15A Engine Control Module – Main F48 MICRO2 10A Fan Relay F49 MICRO2 15A Water Pump F50 MICRO2 10A A/C Compressor Clutch F51 FMM/MCase 30A Fan – Low Speed F53 FMX/JCase 40A Fan – Intermediate Speed F54 MICRO2 30A Starter Motor
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the under-hood fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K02 Run / Start K03 Fuel Pump K08 Fan – High Speed K09 Starter Motor K10 Fan – Low Speed K11 Fan – Medium Speed K12 Engine Control Module – Main K13 A/C Compressor Clutch
This content requires JavaScript and a valid membership to view.

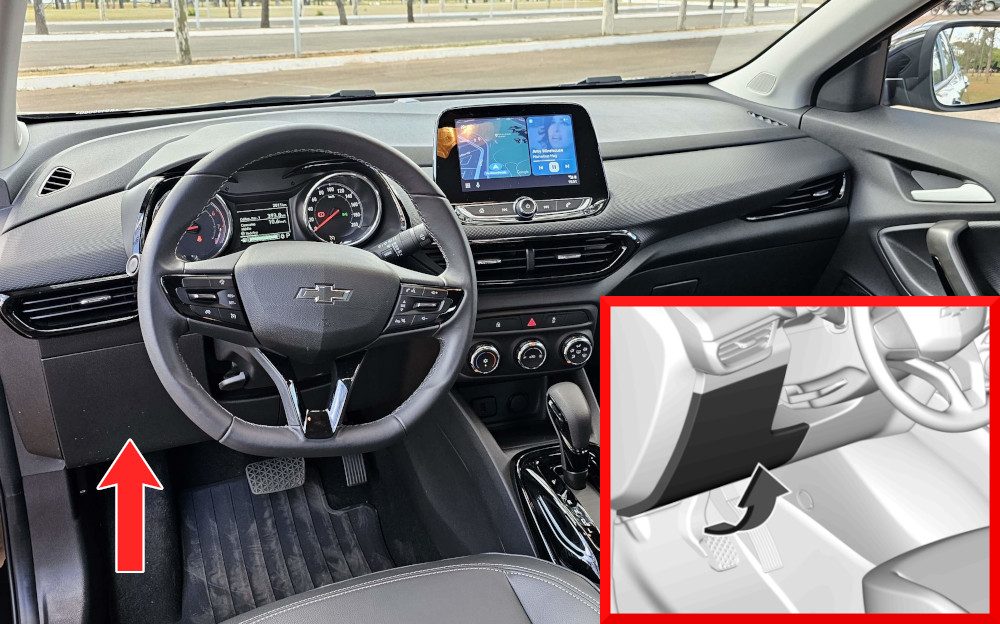

The instrument panel fuse box is located underneath the dashboard on the driver’s side.

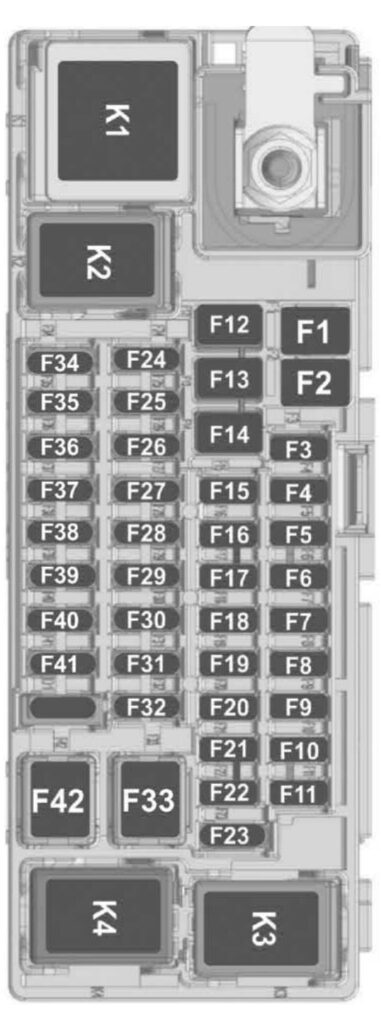

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description F3 FMM/MCase 40A Automatic Air Conditioning Fan F4 FMM/MCase 40A OnStar / IPC / Display / Radio / USB / UPA / SBSA / APA / ECC / CCP / LPM / BCM1 F6 FMX/JCase 40A Manual Air Conditioning Fan F8 MINI 2A Ignition Switch F10 MICRO2 10A Rain Sensor F12 MICRO2 30A Body Control Module F13 MICRO2 30A Body Control Module F14 MICRO2 30A Body Control Module F17 MICRO2 20A Rear Window Wiper F22 MICRO2 5A Exterior Rearview Mirrors F24 MICRO2 10A Airbag Module F25 MICRO2 7.5A Diagnostic Link Connector F26 MICRO2 30A Sunroof F27 MICRO2 10A Sun Visor / Glove Box / Automatic Transmission Shifter Illumination [if equipped] F28 MICRO2 20A Auxiliary Power Outlets [if equipped] F29 MICRO2 5A Wireless Charger / Rear USB F34 MICRO2 10A Heating, Ventilation, and Air Conditioning Controls F35 MICRO2 20A Windshield Washer F36 MICRO2 5A OnStar F37 MICRO2 10A Gauges / Instrument Cluster F38 MICRO2 15A Front USB / Radio F39 MICRO2 10A Side Blind Spot Alert / Parking Assist System F40 MICRO2 10A Heating, Ventilation, and Air Conditioning Control F41 MICRO2 20A Body Control Module F42 MICRO2 2A Steering Wheel Switches
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Start R2 RAP ACC
This content requires JavaScript and a valid membership to view.
