Explore Chevrolet Traverse fuse box diagrams in this practical guide created to help you understand the electrical layout of the second-generation model. Here we focus on the second-generation Chevrolet Traverse (produced from 2017 to 2025) and provide fuse diagrams for 2018, 2019, 2020, 2021, 2022, 2023 and 2024 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a clear reference for troubleshooting and everyday maintenance.

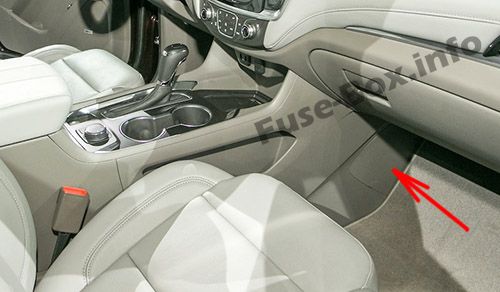

It is located under the instrument panel on the passenger side, behind the cover.

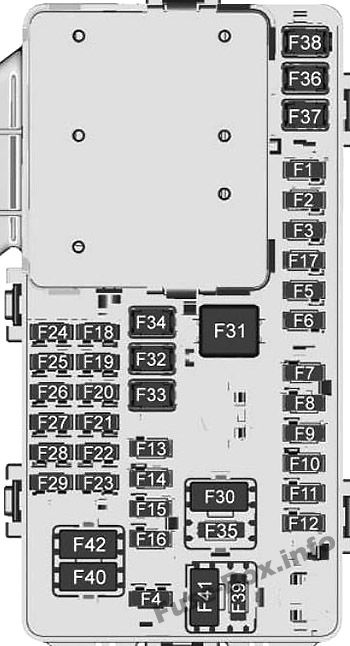

Assignment of the fuses in the instrument panel fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Body control module 6 F2 Diagnostic link F3 Electric steering column lock F4 Rear USB F5 2021-2024: Rear sunshade/ Park/Reverse/Neutral/Drive/Low F6 Heating, ventilation, and air conditioning F7 Body control module 3 F8 2021-2024: Adaptive front lighting system F9 Right front heated seat F10 Airbag F11 2018-2020: Electronic precision shift F12 Amplifier F13 Body control module 7 F14 Left front heated seat F15 — F16 Sunroof F17 Communication gateway module F18 2018-2020: Instrument cluster F19 Body control module 1 F20 Wireless charger module F21 Body control module 4 F22 Infotainment F23 Body control module 2 F24 2021-2024: Park/Reverse/Neutral/Drive/Low F25 2018-2020: Parking assist F26 Communications integration module F27 Video F28 Radio/Heating, ventilation, and air conditioning display F29 Radio F30 Steering wheel controls F31 Front blower F32 DC AC inverter F33 Driver power seat F34 Passenger power seat F35 Feed/Body control module 4 F36 Electric power steering F37 Power outlet/ Wireless charger/Accessory F38 Body control module 8 F39 2018-2021: Steering wheel controls backlighting
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the instrument panel fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F40 — F41 — F42 Auxiliary power outlet/ Lighter
This content requires JavaScript and a valid membership to view.

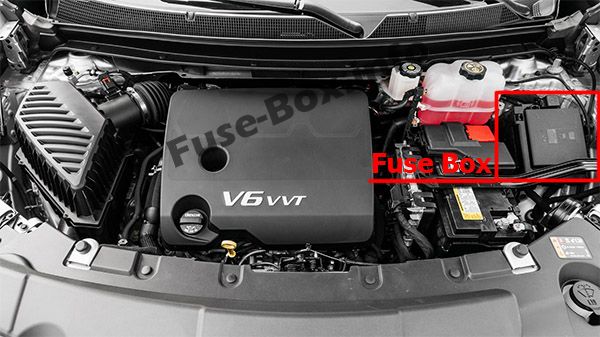

It is located in the engine compartment on the driver’s side.

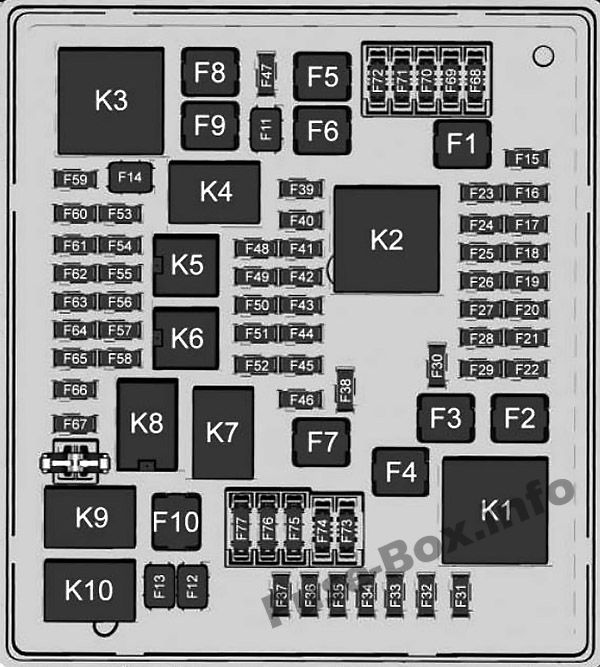

Assignment of the fuses in the engine compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Antilock brake system pump F2 Starter 1 F3 DC DC transformer 1 F4 — F5 DC DC transformer 2 F6 — F7 — F8 — F9 Vacuum pump F10 Front wiper F11 — F12 — F13 Starter 2 F14 — F15 Rear wiper F16 — F17 — F18 — F19 — F20 — F21 — F22 Electronic brake control module F23 Parking/Trailer lamps F24 Right trailer stoplamp/Turnlamp F25 Steering column lock F26 — F27 Left trailer stoplamp/Turnlamp F28 — F29 — F30 Washer pump F31 — F32 Left low-beam headlamp F33 Front fog lamps F34 Horn F35 — F36 — F37 Right low-beam headlamp F38 Automatic headlamp leveling motor (if equipped) F39 Transmission control module F40 Left rear bus electrical center/Ignition F41 Instrument cluster F42 Heating, ventilation, and air conditioning F43 2018-2020: Head-up display F44 Communication gateway module/Run/Crank (if equipped) F45 — F46 — F47 — F48 — F49 Interior rearview mirror F50 2018-2020: Fuel system control module F51 Heated steering wheel F52 Folding seats switch F53 2021-2024: Coolant pump F54 2018-2020: Coolant pump F55 Air conditioning clutch F56 2018-2020: Integrated chassis control module F57 Engine control module/Ignition F58 Transmission control module/Ignition F59 Engine control module battery F60 — F61 2018: O2 sensor 1/MAF/Aeroshutter. F62 2018: Engine control module – even 1. F63 2018: O2 sensor 2/Canister/Engine oil/Turbo. F64 2018: Engine control module – even 2 F65 Engine control module powertrain 1 F66 Engine control module powertrain 2 F67 Engine control module – odd F68 — F69 — F70 — F71 — F72 — F73 — F74 — F75 — F76 — F77 —
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Starter 1 K2 Run/Crank K3 Vacuum pump K4 — K5 Air conditioning K6 2018-2020: Coolant pump K7 Engine control module K8 Folding seats K9 — K10 Starter 2
This content requires JavaScript and a valid membership to view.

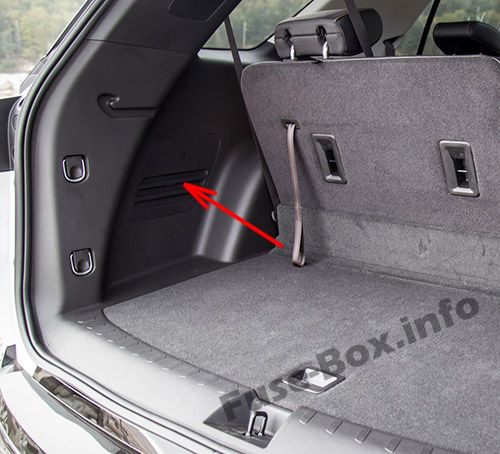

The rear compartment block is located behind a trim panel on the driver side of the rear storage compartment.

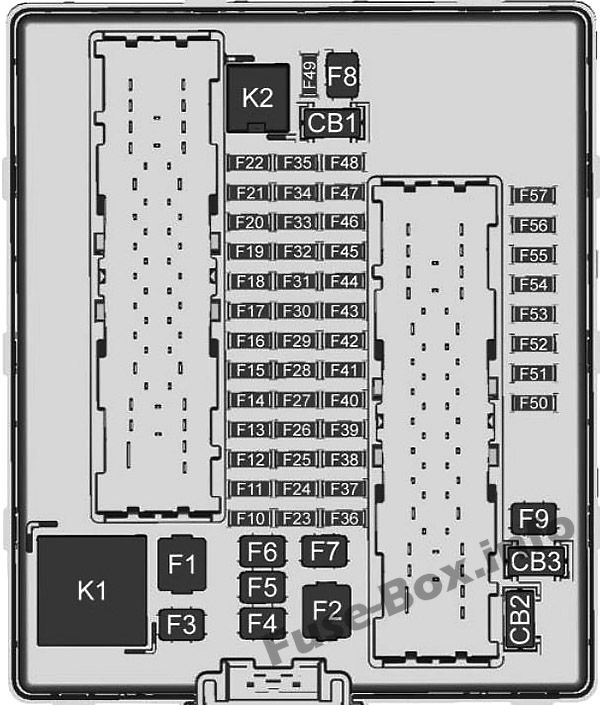

Assignment of the fuses in the rear compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 — F2 Trailer F3 Folding seats F4 Rear blower F5 Rear drive control F6 — F7 Right window F8 Rear defogger F9 Left window F10 — F11 Trailer reverse F12 USB/Third row seats F13 — F14 — F15 — F16 — F17 2018-2019: Camera. F18 — F19 2018-2019: Ventilated seats. F20 — F21 — F22 — F23 — F24 Lumbar F25 — F26 Trailer brake lamps F27 2020-2024: Massage F28 Passive entry/Passive start F29 — F30 Canister vent F31 — F32 Heated mirrors F33 USB/Second row seats F34 Liftgate module F35 2018-2020: Fuel system control module F36 — F37 — F38 Window module F39 Rear closure F40 Memory seat module F41 Automatic occupancy sensor F42 — F43 — F44 — F45 Liftgate motor F46 Rear heated seats F47 — F48 — F49 — F50 — F51 — F52 Semi-active dampening system module F53 — F54 External object calculating remote system/Blind zone alert F55 — F56 Universal garage door opener/Overhead console F57 Hands free closure release
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the rear compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB1 — CB2 — CB3 Rear auxiliary power outlet
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the rear compartment fuse box
