Chevrolet Trax (2013-2017) Fuse Box Diagrams and Locations

Explore Chevrolet Trax fuse box diagrams in this guide dedicated to the early version of the first-generation compact crossover. Here we focus on the pre-facelift Chevrolet Trax (2013–2017) and provide fuse diagrams for 2013, 2014, 2015, 2016 and 2017, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear and practical reference for electrical diagnostics and maintenance.

Passenger compartment

Fuse box location

It is located on the underside of the driver side instrument panel, behind the storage compartment to the left of the steering wheel.

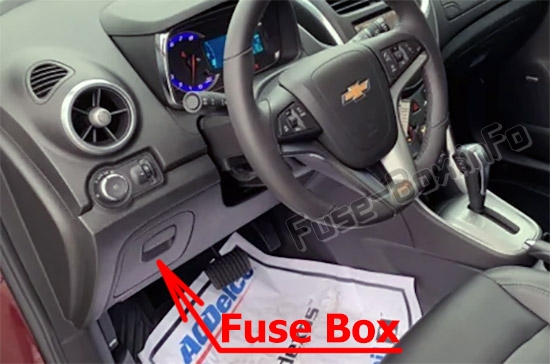

The location of the fuses in the passenger compartment: Chevrolet Trax (2013-2018)

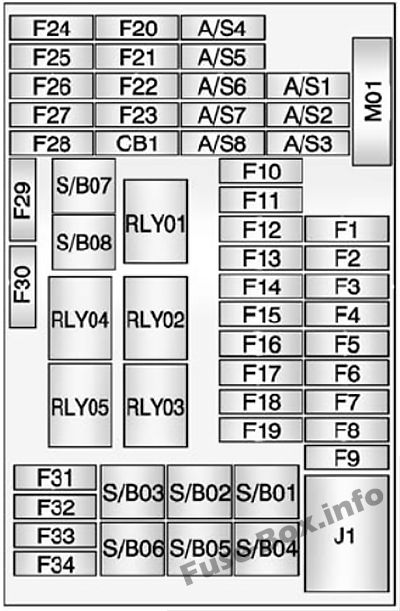

Fuse box diagram

Mini fuses

Assignment of the mini fuses in the Instrument Panel

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
F1	Body Control Module 1
F2	Body Control Module 2
F3	Body Control Module 3
F4	Body Control Module 4
F5	Body Control Module 5
F6	Body Control Module 6
F7	Body Control Module 7
F8	Body Control Module 8
F9	Discrete Logic Ignition Switch
F10	Sensing Diagnostic Module Battery
F11	Data Link Connector
F12	Heater, Ventilation, and Air Conditioning MDL
F13	Liftgate Relay
F14	UPA Module
F15	Inside Rearview Mirror
F16	Not Used
F17	Driver Power Window Switch
F18	Rain Sensor
F19	Body Control Module Regulated Voltage Control
F20	Steering Wheel Switch Backlighting
F21	A/C Accessory Power Outlet
F22	Cigar Lighter/DC Accessory Power Outlet
F23	Spare
F24	Spare
F25	Spare
F26	Automatic Occupant Sensing Display SDM RC
F27	IPC/Compass Module
F28	Headlamp Switch/ DC Converter/Clutch Switch
F29	Spare
F30	Spare
F31	IPC Battery
F32	Radio/Chime
F33	Display
F34	OnStar (If Equipped)/VLBS

J-Case fuses

Assignment of the J-Case fuses in the Instrument Panel

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
S/B 1	PTC 1
S/B 2	PTC 2
S/B 3	Power Window Motor Front
S/B 4	Power Window Motor Rear
S/B 5	Logistic Mode Relay
S/B 6	Spare
S/B 7	Front Power Windows
S/B 8	Rear Power Windows

Circuit breakers

Assignment of the circuit breakers in the Instrument Panel

No.	Description
CB 1	Spare

Midi fuses

Assignment of the midi fuses in the Instrument Panel

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
M 01	PTC

Relays

Assignment of the relays in the Instrument Panel

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
RLY 01	Accessory/Retained Accessory Power
RLY 02	Liftgate
RLY 03	Spare
RLY 04	Blower Relay
RLY 05	Logistic Mode

Main connector

Assignment of the main connector in the Instrument Panel

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
J 1	IEC MAIN PWR CONNECTOR

Engine compartment

Fuse box location

It is located in the engine compartment on the driver’s side.

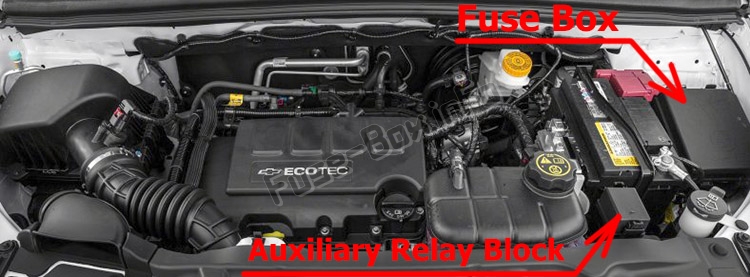

The location of the fuses in the engine compartment: Chevrolet Trax (2013-2018)

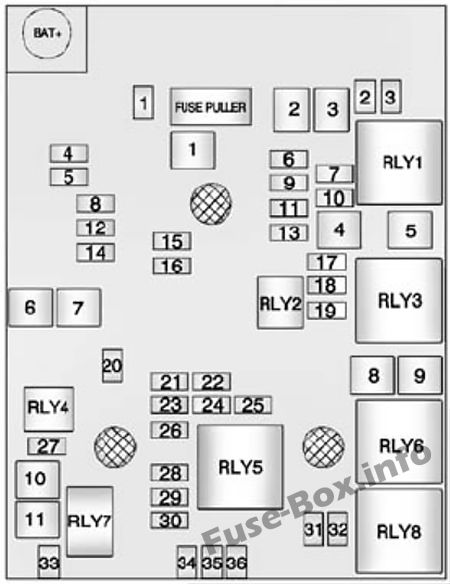

Fuse box diagram

Mini fuses

Assignment of the mini fuses in the Engine Compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Sunroof
2	Outside Rearview Mirror Switch
3	Canister Vent Solenoid (1 4L Only)
4	Not Used
5	Electronic Brake Control Module Valve
6	2013: IBS
7	Not Used
8	Transmission Control Module Battery
9	Not Used
10	Fuel System Control Module R/C (1.4L Only)/Headlamp Leveling
11	Rear Wiper
12	Rear Window Defogger
13	Not Used
14	Outside Rearview Mirror Heater
15	Fuel System Control Module Battery (1.4L Only)
16	Heated Seat Module
17	Transmission Control Module R/C
18	Lngine Control Module R/C
19	Fuel Pump (1.8L Only)
20	Not Used
21	Fan Relay (Auxiliary Fuse Block – 1.4LV Fan 3 Relay 85 (1.8L)
22	Cold Start Pump (1.8L Only)
23	Ignition Coil/lnjectors
24	Washer Pump
25	Not Used
26	Canister Purge Solenoid/Water Valve Solenoid/ Oxygen Sensors -Pre and Post/Turbo Wastegate Solenoid (1.4L)/Turbo Bypass Solenoid (1.4LV IMTV Solenoid (1.8L)
27	Not Used
28	2013: Gasoline: NOT USED Diesel: ECM PT IGN-3
29	Engine Control Module Powertrain Ignition 1/Ignition 2
30	Mass Air How Sensor Diesel: O2 SENSOR
31	Left High-Beam Headlamp
32	Right High-Beam Headlamp
33	Engine Control Module Battery
34	Horn
35	Air Conditioning Compressor Clutch
36	Front Fog Lamps

J-Case fuses

Assignment of the J-Case fuses in the Engine Compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Electronic Brake Control Module Pump
2	Front Wiper
3	Blower Motor
4	IEC A/C
5	Not Used
6	2013: Gasoline: NOT USED Diesel: FUEL HEATER
7	Not Used
8	Cooling Fan Low/ Mid (1.4L)/Cooling Fan Low (1.8L)
9	Cooling Fan High
10	2013: Gasoline: EVP Diesel: GLOW PLUG
11	Starter Solenoid

Relays

Assignment of the relays in the Engine Compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Description
RLY 2	U-Micro Relays	Fuel Pump (1.8L Only)
RLY 4	U-Micro Relays	Spare
RLY 7	HC-Micro Relays	Starter
RLY 1	Mini Relays	Run Crank
RLY 3	Mini Relays	Cooling Fan Mid (1.4L Only)
RLY 5	Mini Relays	Powertrain Relay
RLY 8	Mini Relays	Cooling Fan Low
RLY 6	HC-Mini Relays	Cooling Fan High

Auxiliary Relay Block

Assignment of the relays in the Engine Compartment auxiliary relay block

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
RLY 01	Electric Vacuum Pump
RLY 02	Cooling Han Control 1
RLY 03	Cooling Fan Control 2
RLY 04	Trailer (1.4L Only)

Luggage compartment

Fuse box location

It is located behind a cover on the left side of the rear compartment.

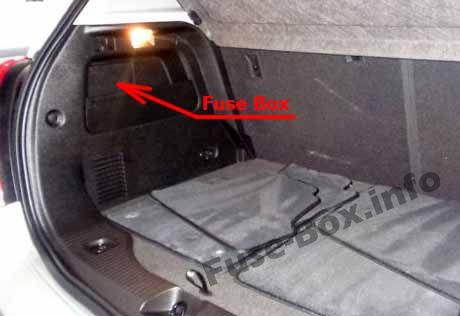

The location of the fuses in the trunk: Chevrolet Trax

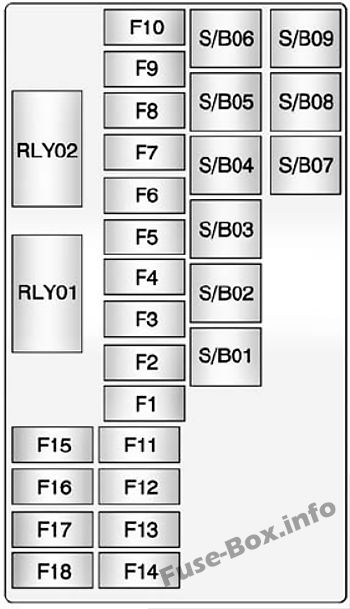

Fuse box diagram

Mini fuses

Assignment of the mini fuses in the Luggage Compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Driver Seat Power Lumbar Switch
2	Passenger Seat Power Lumbar Switch
3	Amplifier
4	Trailer Socket
5	All-Wheel Drive Module
6	Automatic Occupant Sensing Module
7	Spare/LPG Module Battery
8	Trailer Parking Lamps
9	Spare
10	Spare/Side Blind Zone Alert Module
11	Trailer Module
12	Nav Dock
13	Heated Steering Wheel
14	Trailer Socket
15	EVP Switch
16	Water In Fuel Sensor
17	Inside Rearview Mirror/Regulated Voltage Control
18	Spare/LPG Module Run/Crank

J-Case fuses

Assignment of the J-Case fuses in the Luggage Compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
S/B 1	Driver Power Seat Switch/Memory Module
S/B 2	Passenger Power Seat Switch
S/B 3	Trailer Module
S/B 4	A/C-D/C Inverter
S/B 5	Battery
S/B 6	Headlamp Washer
S/B 7	Spare
S/B 8	Spare
S/B 9	Spare

Relays

Assignment of the relays in the Luggage Compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Ignition Relay
2	Run Relay

FAQ

Which fuses control the cigar lighter and accessory power outlets in the Chevrolet Trax?

In the Chevrolet Trax, the cigar lighter and power outlets are protected by:
Fuse №21 – AC Accessory Power Outlet
Fuse №22 – Cigar Lighter / DC Accessory Power Outlet
Both are located in the Instrument panel fuse box.
