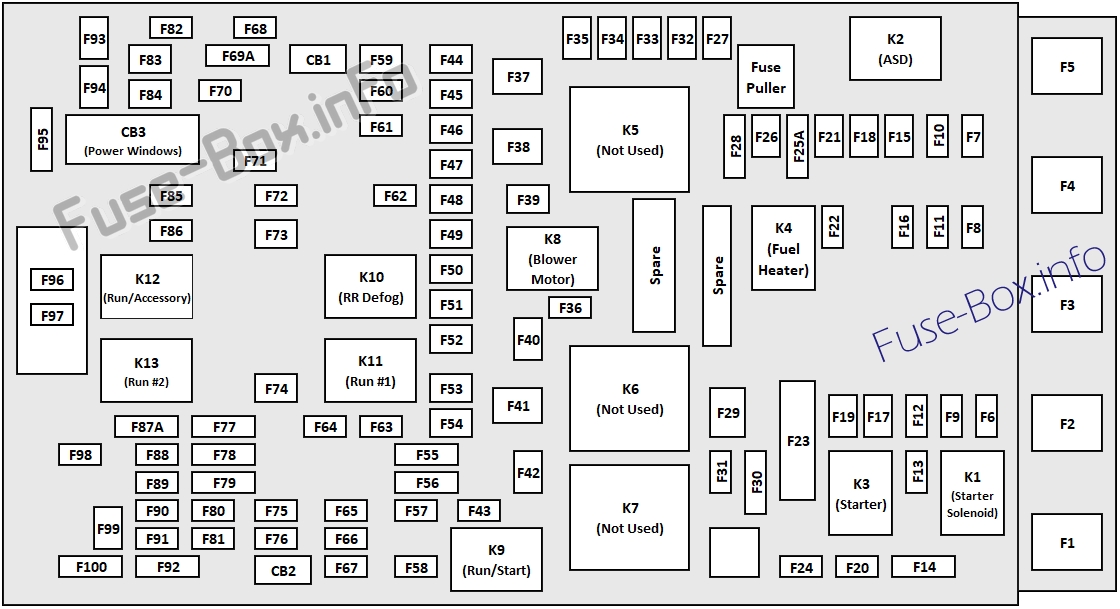

| F06 | – | – | Not Used |
| F07 | – | – | Not Used |
| F08 | – | 25 Amp Clear | Engine Control Module (ECM)/Fuel Inj. |
| F09 | – | – | Not Used |
| F10 | — | 20 Amp Yellow | Power Transfer Unit (PTU) -If Equipped |
| F11 | – | – | Not Used |
| F12 | – | 20 Amp Yellow | Brake Vacuum Pump – If Equipped |
| F13 | | 10 Amp Red | Engine Control Module (ECM)/VSM (Engine Stop/Start Only) |
| F14 | | 10 Amp Red | Drivetrain Control Module (DTCM)/ Power Transfer Unit (PTU) – If Equipped/RDM/Brake System Module (BSM)/Brake Pedal Switch/EPB (Electric Park Brake) |
| F15 | – | – | Not Used |
| F16 | – | 20 Amp Yellow | Ignition Coil |
| F17 | – | – | Not Used |
| F18 | – | – | Not Used |
| F19 | 40 Amp Green | – | Starter Solenoid |
| F20 | – | 10 Amp Red | A/C Compressor Clutch |
| F21 | – | – | Not Used |
| F22 | – | 5 Amp Tan | Radiator Fan Enable |
| F23 | – | 70 Amp Tan | Body Controller Module (BCM) -Feed 2 |
| F23 | – | 30 Amp Red | Voltage Stability Module (VSM) #2 -If Equipped With Engine Stop/Start Option |
| F24 | – | – | Not Used |
| F25B | – | 20 Amp Yellow | Front Washer Pump – If Equipped with Engine Stop/Start Option |
| F26 | – | – | Not Used |
| F27 | – | – | Not Used |
| F28 | – | 15 Amp Blue | Transmission Control Module (TCM) |
| F29 | – | – | Not Used |
| F30 | – | 10 Amp Red | Engine Control Module (ECM)/EPS/ Fuel Pump Relay Feed |
| F31 | – | – | Not Used |
| F32 | – | – | Not Used |
| F33 | – | – | Not Used |
| F34 | – | – | Not Used |
| F35 | – | – | Not Used |
| F36 | – | – | Not Used |
| F37 | 50 Amp Red | – | Radiator Fan PWM Controller |
| F38 | – | – | Not Used |
| F39 | 40 Amp Green | – | HVAC Blower Motor |
| F40 | – | – | Not Used |
| F41 | 50 Amp Red | | Voltage Stability Module (VSM) #1 -If Equipped With Engine Stop/Start Option |
| F41 | 60 Amp Yellow | – | Body Controller Module (BCM) -Feed 1 |
| F42 | – | – | Not Used |
| F43 | – | 20 Amp Yellow | Fuel Pump Motor |
| F44 | – | – | Not Used |
| F45 | 30 Amp Pink | | Passenger Door Module (PDM) – If Equipped |
| F46 | 25 Amp Clear | – | Sunroof – If Equipped |
| F47 | – | – | Not Used |
| F48 | 30 Amp Pink | – | Driver Door Module (DDM) |
| F49 | 30 Amp Pink | – | Power Inverter (115V A/C) – If Equipped |
| F50 | 30 Amp Pink | – | Windshield Wiper Smart Motor (WWSM) |
| F51 | – | – | Not Used |
| F52 | – | – | Not Used |
| F53 | 30 Amp Pink | – | Brake System Module BSM & Valves |
| F54 | 30 Amp Pink | | Body Controller Module (BCM) -Feed 3 |
| F55 | | 10 Amp Red | Blind Spot Sensors/Compass/Rearview Camera – If Equipped |
| F56 | – | 15 Amp Blue | Ignition Node Module (IGNM)/RF Hub |
| F57 | – | – | Not Used |
| F58 | – | 10 Amp Red | Occupant Classification Module/Voltage Stability Module (VSM) #2 -If Equipped With Engine Stop/Start Option |
| F59 | 30 Amp Pink | – | Drivetrain Control Module (DTCM) |
| F60 | – | 20 Amp Yellow | Power Outlet – Center Console |
| F61 | – | – | Not Used |
| F62 | – | – | Not Used |
| F63 | – | 20 Amp Yellow | Front Heated Seats – If Equipped |
| F64 | – | 20 Amp Yellow | Heated Steering Wheel – If Equipped |
| F65 | | 10 Amp Red | In Vehicle Temperature Sensor/ Humidity Sensor/Driver Assist System Module (DASM)/Park Assist (PAM) -If Equipped With Engine Stop/Start Option |
| F66 | – | 15 Amp Blue | Instrument Panel Cluster (IPC)/ Electronic Climate Control (ECC) |
| F67 | – | 10 Amp Red | In Vehicle Temperature Sensor/ Humidity Sensor/Drivers Assist System Module (DASM)/Park Assist (PAM) -If Equipped |
| F68 | – | – | Not Used |
| F69 | – | 10 Amp Red | Gear Shift Module (GSM)/Active Grill Shutter (AGS). – If Equipped/EPB SW |
| F70 | – | 5 Amp Tan | Intelligent Battery Sensor (IBS) -If Equipped with Engine Stop/Start Option |
| F71 | – | 20 Amp Yellow | HID Headlamp Right – If Equipped with Engine Stop/Start Option |
| F72 | – | 10 Amp Red | Heated Mirrors – If Equipped |
| F73 | – | – | Not Used |
| F74 | 30 Amp Pink | – | Rear Defroster/Defogger |
| F75 | – | 20 Amp Yellow | Cigar Lighter |
| F76 | – | 10 Amp Red | Drivers Window SW- If Equipped |
| F77 | – | 10 Amp Red | UCI Port/Brake Pedal Switch |
| F78 | | 10 Amp Red | Diagnostic Port/Steering Column Control Module (SCCM) |
| F79 | | 10 Amp Red | Integrated Center Stack (ICS)/Switch Bank/Instrument Panel Cluster (IPC)/ EPB SW |
| F80 | – | 20 Amp Yellow | Radio |
| F81 | – | – | Not Used |
| F82 | – | – | Not Used |
| F83 | 20 Amp Blue | – | Engine Control Module (ECM) |
| F84 | 30 Amp Pink | – | Electric Park Brake (EPB) – Left |
| F85 | – | – | Not Used |
| F86 | – | 20 Amp Yellow | Horns – If Equipped With Engine Stop/ Start Option |
| F87A | – | 20 Amp Yellow | HID Headlamp Left – If Equipped Engine Stop/Start Option |
| F88 | – | 10 Amp Red | Collision Mitigation Module (CMM)/ Electrochromatic Mirror/Haptic Lane Feedback Module (Half)/Humidity Sensor- If Equipped |
| F89 | – | – | Not Used |
| F90 | – | – | Not Used |
| F91 | – | – | Not Used |
| F92 | – | – | Not Used |
| F93 | 40 Amp Green | | Brake System Module (BSM) – Pump Motor – If Equipped |
| F94 | 30 Amp Pink | – | Electric Park Brake (EPB) – Right |
| F95 | – | 10 Amp Red | Electrochromatic Mirror/Rain/Pass. Window SW/Power Outlet Console Illumination/Sensor/Sunroof – If Equipped |
| F96 | – | 10 Amp Red | Occupant Restraint Controller (ORC) (Airbag) |
| F97 | “ | 10 Amp Red | Occupant Restraint Controller (ORC) (Airbag) |
| F98 | – | 25 Amp Clear | Audio Amplifier – If Equipped |
| F99 | – | – | Not Used |
| F100 | – | – | Not Used |
| CB1 | | | Driver Power Seat |
| CB2 | | | Passenger Power Seat |
| CB3 | | | Power Windows |
