Chrysler Town & Country (2008-2016)

This guide covers the fifth-generation Chrysler Town & Country (2007–2016), also known as the Voyager / Grand Voyager in some markets. Here you’ll find fuse box diagrams for Chrysler Town & Country 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 and 2016, along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse and relay (fuse layout).

Fuse box location

The Totally Integrated Power Module (TIPM) is located in the engine compartment near the battery.

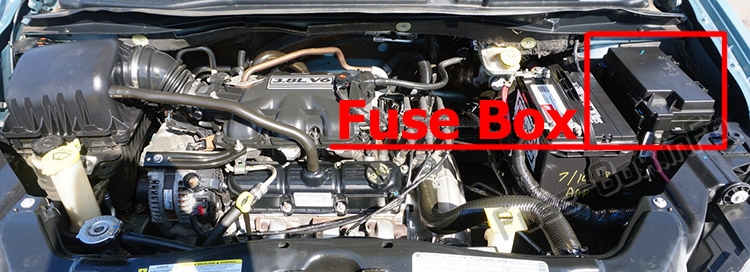

The location of the fuses in the engine compartment: Chrysler Town & Country (2008-2016)

Fuse box diagrams

Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register

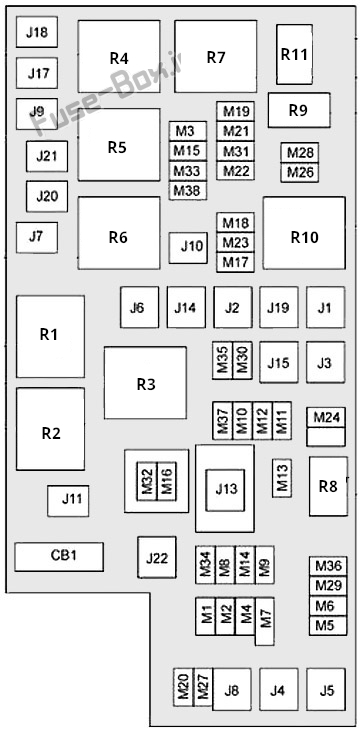

Power Distribution Center — Fuses & Relays
No. Amp Type Description
J140AFMX/JCasePower Folding Seat
J230AFMX/JCasePower Liftgate Module
J330AFMX/JCaseRear Door Module
J425AFMX/JCaseDriver Door Node
J525AFMX/JCasePassenger Door Node
J640AFMX/JCaseAntilock Brakes Pump/Stability Control System
J730AFMX/JCaseAntilock Brakes Valve/Stability Control System
J840AFMX/JCasePower Memory Seat – If Equipped
J940AFMX/JCasePartial Zero Emissions Vehicle Motor/Flex Fuel – If Equipped
J1030AFMX/JCaseHeadlamp Wash/Manifold Tuning Valve – If Equipped
J1130AFMX/JCasePower Sliding Door Module/Anti-Theft Module – If Equipped
J1230AFMX/JCaseHVAC Rear Blower, Radiator Fan Motor
J1360AFMX/JCaseIgnition Off Draw (IOD) – Main
J1440AFMX/JCaseRear Window Defogger
J1540AFMX/JCaseFront Blower
J1740AFMX/JCaseStarter Solenoid
J1820AFMX/JCasePowertrain Control Module Trans Range
J1960AFMX/JCaseRadiator Fan
J2030AFMX/JCaseFront Wiper LO/HI
J2120AFMX/JCaseFront/Rear Washer
J2225AFMX/JCaseSunroof Module
M115AMINIRear Center Brake Lamp/Brake Switch
M220AMINIFront Fog Lamps
M320AMINIFront/Rear Axle Locker, Vacuum Pump Motor
M525AMINIInverter
M620AMINIPower Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear)
M720AMINIPower Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear
M820AMINIFront Heated Seat – If Equipped
M920AMINIRear Heated Seat – If Equipped
M1015AMINIIgnition Off Draw — Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped
M1110AMINIClimate Control System
M1230AMINIAmplifier/Radio
M1320AMINIInstrument Cluster, SIREN, Clock Module, Multifunction Control Switch – If Equipped
M1420AMINITrailer Tow – If Equipped
M1520AMINIRear View Mirror, Instrument Cluster, Multifunction Control Switch, Tire Pressure Monitor
M1610AMINIAirbag Module/Occupant Classification Module
M1715AMINILeft Tail/License/Park Lamp, Running Lamps
M1815AMINIRight Tail/Park/Run Lamp
M1925AMINIPowertrain
M2015AMINIInstrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel
M2120AMINIPowertrain
M2210AMINIHorn
M2310AMINIHorn
M2425AMINIRear Wiper
M2520AMINIFuel Pump
M2610AMINIPower Mirror Switch, Driver Window Switch
M2710AMINIWireless Control Module, Keyless Entry Module
M2810AMINIPowertrain, Transmission Control Module
M2910AMINIOccupant Classification Module
M3015AMINIRear Wiper Module, Power Folding Mirror
M3120AMINIBack-Up Lamps
M3210AMINIAirbag Module, THATCHUM – If Equipped
M3310AMINIPowertrain
M3410AMINIPark Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater
M3510AMINIHeated Mirrors
M3620AMINIPower Outlet #3 (Instrument Panel or with Console Center)
M3710AMINIAntilock Brakes, Stability Control, Stop Lamp, Fuel Pump
M3825AMINIDoor Lock/Unlock Motors, Liftgate Lock/Unlock Motors
R1—RelayRUN RELAY
R2—RelayRUN / ACCESSORY RELAY
R3—RelayRUN / START RELAY
R4—RelayPCM RELAY
R5—RelaySTARTER RELAY
R6—RelayREAR WINDOW DEFOGGER RELAY
R7—RelayRADIATOR FAN LOW SPEED RELAY
R8—RelayREAR BLOWER MOTOR RELAY
R9—RelayFUEL PUMP RELAY
R10—RelayAUTO SHUT DOWN RELAY
R11—RelaySPARE RELAY
Source: Town & Country 2016 OWNER’S MANUAL
Note: J-cavity fuses are Cartridge Fuses, M-cavity fuses are Mini Fuses, and R-numbers are relays.
