Chrysler Voyager (2020-2025)

This guide covers the sixth-generation Chrysler Voyager (2020–2025), also known as the Chrysler Grand Caravan in Canada. Here you’ll find fuse box diagrams for Chrysler Voyager 2020, 2021, 2022, 2023, 2024 and 2025, along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

Fuse box location

The Power Distribution Center (PDC) is located in the engine compartment near the battery. Remove the cover by unlatching the two locks located at each side of the PDC cover, avoid using screwdrivers or any other tool to remove the cover, since they may apply excessive force and result in a broken/damaged part.

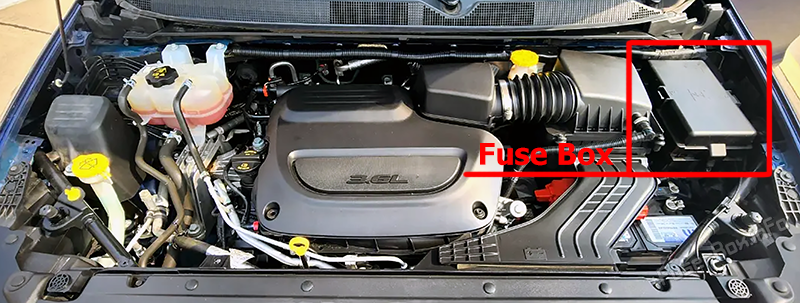

Location of the fuses in the engine compartment: Chrysler Voyager (2020-2024)

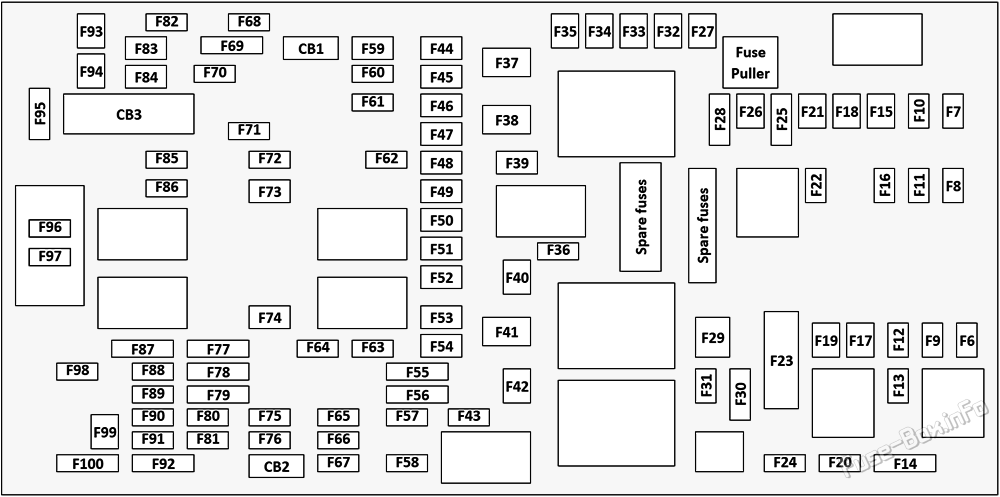

Fuse box diagram

Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register

Power Distribution Center — Fuse Assignments
No. Amp Type Description
F0725AMINIIgnition Coil/Fuel Injector
F0925AMINIAmplifier/Active Noise Control
F125AMINIBattery Sensor (IBS)
F1310AMINIECM (ESS Only)
F1410AMICRO3ECM
F1540AFMM/MCaseCBC Feed #3 (Power Locks)
F1620AMINIECM
F1730AFMM/MCaseStarter
F1840AFMM/MCaseCBC Feed #4 (Exterior Lighting #1)
F1925AFMM/MCase2nd Row Folding Seats Solenoid LT
F2010AMINIA/C Compressor Clutch
F2125AFMM/MCase2nd Row Folding Seat Solenoid RT
F2420AMINIRR Wiper
F2510AMICRO3Handsfree LT & RT RR Door Release Mod / Active Grill Shutter/ PWR Mirror
F2640AFMM/MCaseFront HVAC Blower Motor
F2725AFMM/MCaseRR Slide Door Module-RT
F2810AMICRO3Diagnostic Report / USB + AUX Port / Video USB Port
F3015AMICRO3Media HUB 1&2 / PWR Lumbar SW
F3220AFMM/MCaseECM
F3330AFMM/MCasePower Liftgate Module
F3425AFMM/MCaseRR Door Module-LT
F3525AFMM/MCaseSunroof Control Module
F3740AFMX/JCaseCBC Feed #4 (Exterior Lighting #2)
F3860AFMX/JCaseVacuum Cleaner
F3925AFMM/MCaseRear HVAC Blower Motor
F4240AFMX/JCaseFolding Seat Module
F4320AMINIFuel Pump Motor
F4430AFMM/MCaseCBC Feed #1 (Interior Lights)
F4530AFMM/MCasePower Inverter
F4630AFMM/MCaseDriver Door Module
F4730AFMM/MCasePassenger Door Module
F4925AFMM/MCaseRR Sliding Door Module-LT
F5025AFMM/MCaseRR Door Module-RT
F5130AFMM/MCaseFront Wiper
F5230AFMM/MCaseBrake Vacuum Pump
F5440AFMM/MCaseESP-ECU And Valves
F5515AMICRO3Radio Frequency HUB/ Keyless Ignition System (KIN) / DVD / Video Routing Module (VRM)
F5610AMICRO3Front and Rear HVAC Control Module / Occupant Classification Module (OCM) / ESP/ESC
F5810AMINIDrive Train Control Mod / Power Transfer Unit - If Equipped
F5930AFMM/MCaseTrailer Tow Receptacle - If Equipped
F6020AMINIRear Cargo APO
F6120AMINITrailer Tow Right Stop/Turn - If Equipped
F6320AMINITrailer Tow Left Stop/Turn - If Equipped
F6415AMINIRT HID Headlamp
F6615AMINIInstrument Panel Cluster (IPC)/ SGW
F6710AMINIHaptic Lane Feedback Module (HALF) / Parktronics System (PTS)/ Drivers Assist System Module (DASM)
F7120AMINIHorn
F7210AMINIHeated Mirrors - If Equipped
F7330AFMM/MCaseRear Defroster (EBL)
F7420AFMX/JCaseTrailer Tow Backup
F755AMINIOverhead Console / RR ISC
F7620AMINIUconnect/DCSD/Telematics
F7710AMICRO3RR Entertainment Screen 1 & 2/ Media HUB / Rain Sensor/Sunroof /CRVMM
F7815AMICRO3Transmission Control Module (TCM)/E-Shifter / Instrument Cluster
F7910AMICRO3ICS/Front And Rear HVAC/ SCCM/ EPB
F8320AFMM/MCaseTT Park Lights - If Equipped
F8330AFMM/MCaseHeadlamp Washer Pump - If Equipped
F8430AFMM/MCaseDrive Train Control MOD - If Equipped
F8520AMINICigar Lighter
F8820AMINIFront Heated Seats
F8920AMINIRear Heated Seats
F9115AMINIFront Ventilated Seats/Heated Steering Wheel
F925AMICRO3Security Gateway
F9440AFMM/MCaseESC Motor Pump
F95A10AMICRO3USB Charge Port - ACC RUN
F95B10AMICRO3Selectable Fuse Location - USB IP (Direct) B+
F9610AMINIOccupant Restraint Controller (ORC) (Airbag)
F9710AMINIOccupant Restraint Controller (ORC) (Airbag)
F9815AMINILeft HID Headlamp
F9930AFMM/MCaseTrailer Tow Module - If Equipped
F10010AMICRO3AHLM / Rear Camera/LBSS/RBSS/CVPM/ Humidity Sensor/In Vehicle Temperature Sensor
CB125ACircuit breakerPower Seats (Driver)
CB225ACircuit breakerPower Seats (Pass)
CB325ACircuit breaker MAXIFRT PWR Window W/O Door Nodes
Source: 2025 VOYAGER OWNER’S MANUAL
Note: This fuse box is located in the engine compartment.
