The second-generation Citroën Berlingo, produced from 2008 to 2018, is a versatile light commercial vehicle and family MPV known for its practicality, spacious interior, and modular design. Built on the PSA PF2 platform, it shares its underpinnings with the Peugeot Partner and offers a range of configurations to suit both personal and professional needs.
In this article, you will find fuse box diagrams for the Citroën Berlingo, covering model years 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, and 2018. These diagrams help you navigate the vehicle’s electrical system and locate specific fuses and relays quickly and accurately.
What’s Included:
- Fuse Box Diagrams – Clear illustrations to identify fuses and relays by number and function.
- Fuse Panel Locations – Guidance on where to find fuse boxes inside the Berlingo.
- Fuse Assignments – Detailed listings of what each fuse and relay controls for easier diagnostics and repairs.
Whether you’re replacing a blown fuse or troubleshooting an electrical fault, this guide provides the essential reference needed to maintain your Citroën Berlingo (2008–2018) effectively.
Fuse box locations
The fuse boxes are placed:

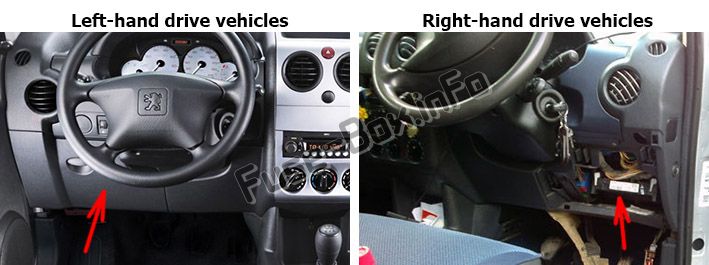

– in the lower part of the fascia on the left-hand side, behind the cover (on the right-hand side in the RHD)

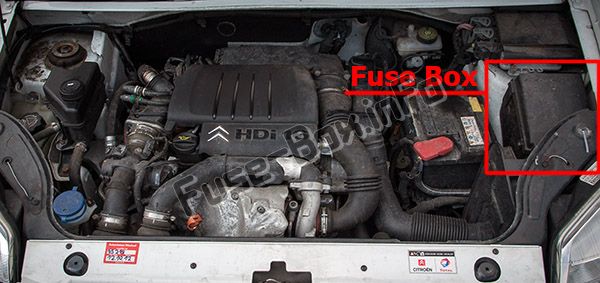

– under the bonnet (near the battery)
Instrument Panel
Engine Compartment

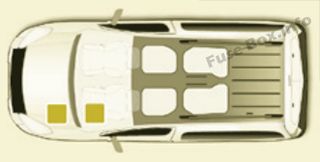

If fitted on your vehicle, an additional fusebox is used for towing, the towbar and the connections for the coachbuilder and platform cab modifications. It is located on the right behind the load retaining partition.
Fuse box diagrams
Dashboard Fuse Box

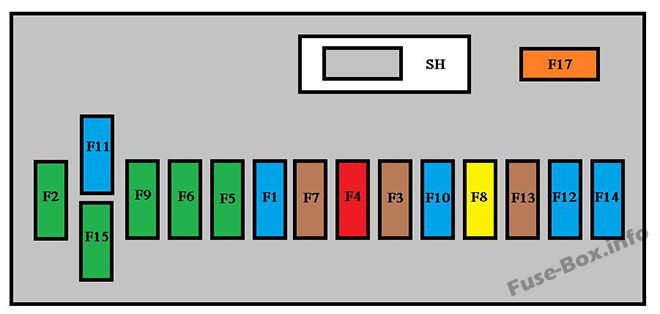

Assignment of the fuses in the Dashboard Fuse box
Passenger compartment fuses

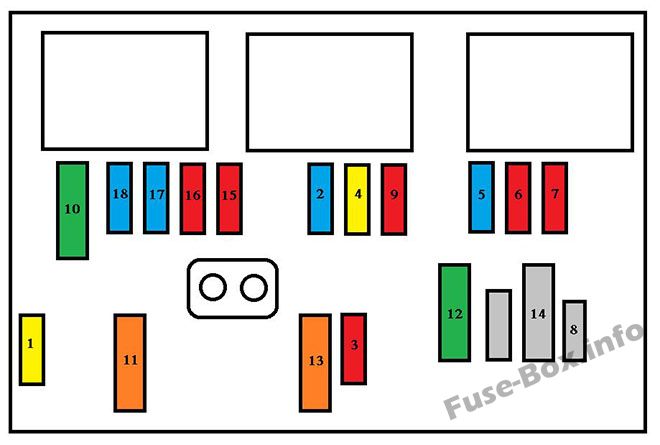

Assignment of the fuses in the Passenger compartment
Towing/towbar/coachbuilders/platform CAB fuses

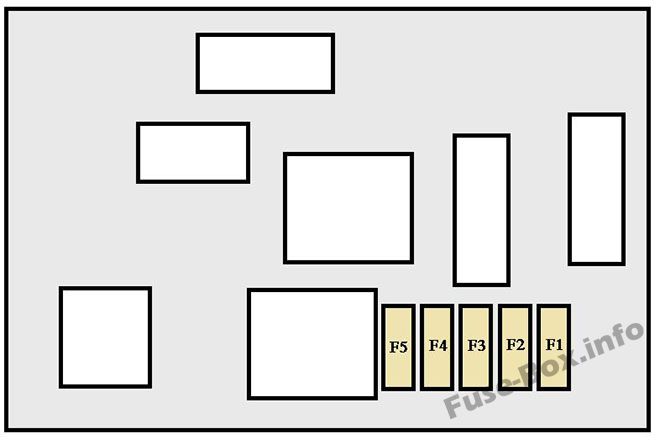

Assignment of the CAB fuses
Engine compartment fuse box

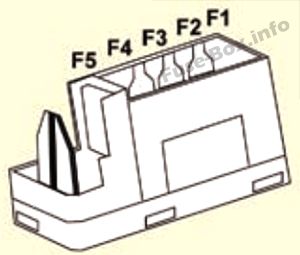

Assignment of the fuses in the Engine compartment Fuse box
