The first-generation Citroën C1, produced from 2005 to 2014, is a compact city car developed as part of a joint venture with Peugeot and Toyota. Praised for its minimal footprint, fuel efficiency, and ease of maneuverability, the C1 became a popular choice for urban drivers seeking affordability and reliability in a stylish package.

In this article, you will find fuse box diagrams for the Citroën C1, covering model years 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, and 2014. These diagrams are a valuable tool for understanding your vehicle’s electrical layout and quickly locating the appropriate fuses and relays.

What’s Included:

Fuse Box Diagrams – Detailed visuals to help you identify individual fuses and relays.
Fuse Panel Locations – Easy-to-follow information on where fuse panels are located inside the car.
Fuse Assignments – Descriptions of each fuse’s role in the electrical system to support accurate troubleshooting and maintenance.

This guide is ideal for owners, mechanics, and DIYers aiming to maintain or repair the electrical systems of the Citroën C1 (2005–2014) with confidence and precision.

What’s Included

Fuse box locations

The fuse boxes are located under the instrument panel trim and next to the battery in the engine compartment.

Instrument panel

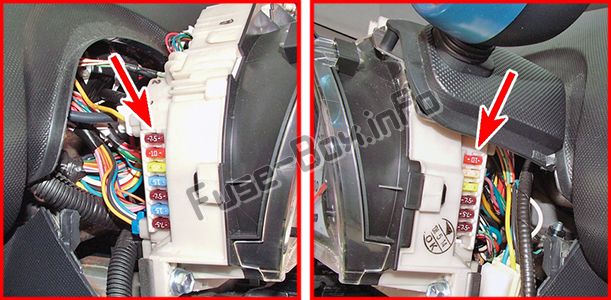

These are located on each side of the instrument panel under the trim.

The location of the fuses in the passenger compartment: Citroen C1 (2007-2013)

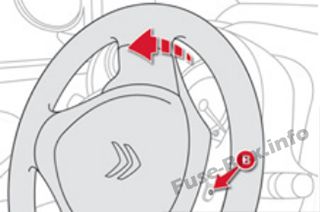

Turn the steering wheel to the left, remove bolt B.

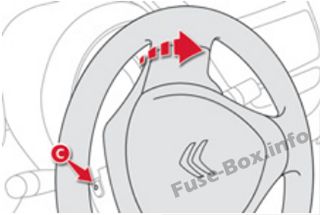

Turn the steering wheel to the right, remove bolt C.

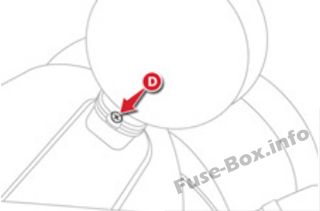

For the rev counter, partially unscrew bolt D located behind it.

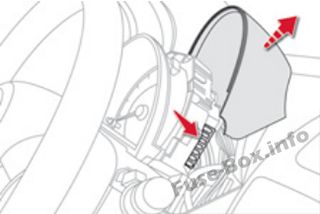

Raise the instrument panel trim, and the rev counter trim if necessary, to gain access to the fuses located on the left and on the right.

Engine compartment

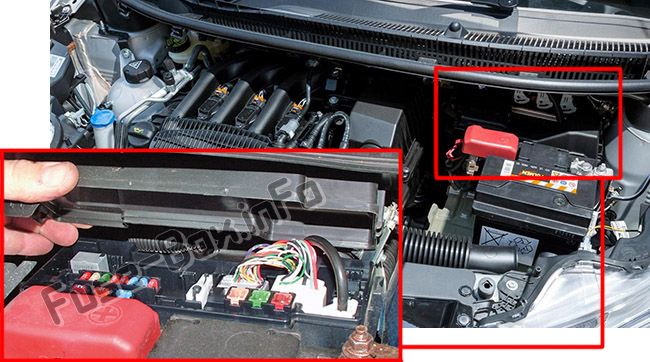

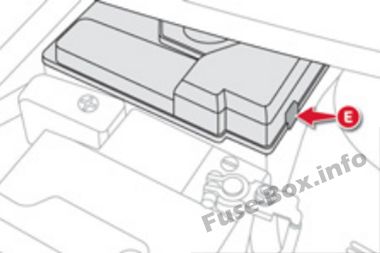

Unclip the cover, pressing on the right on lug E, to gain access to the fuses.

Fuse box diagrams

2005, 2006, 2007

Instrument panel

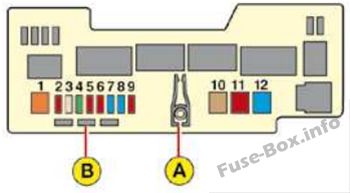

Assignment of the fuses in the Instrument panel (2005, 2006, 2007)

Fuse Data

Full access is available to registered users — log in or register.

№	Rating	Functions
1	10 A	Stoplamps, ABS, SensoDrive gearbox
2	25 A	Central locking/unlocking
3	20 A	Heated rear screen
4	7.5 A	Rear lamps – Number plate lamps – Instrument panel – Display
5	7.5 A	Diagnostic socket
6	7.5 A	Rear foglamps – Instrument panel – SensoDrive gearbox
7	–	Not used
8	7.5 A	ABS – Power steering – Air conditioning – Cooling fan
9	10 A	Rear lamps – Central locking/unlocking – Electric windows – Heated rear screen -Speed indicator – Air conditioning – Heating – Rev counter (option)
10	20 A	Windscreen and rear screen wipe
11	15 A	Radio – Electronic immobiliser – 12V accessories socket (120 W max.)
12	7.5 A	Windscreen and rear screen wipe – ABS – Power steering – Central locking/unlocking -Air conditioning – Electric windows – Heated rear screen – Speed indicator – Cooling fan – Rev counter (option)
13	15 A	Instrument panel – Engine ECU – Airbags – SensoDrive gearbox -Electronic immobiliser
14	7.5 A	Air conditioning

for wipers and windows, consult a CITROËN dealer

Engine compartment

Under-hood fuse box diagram: Citroen C1 (2007)

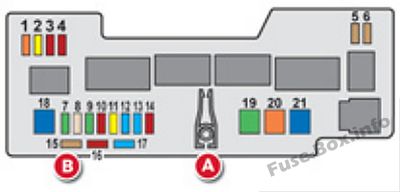

Assignment of the fuses in the Engine compartment (2005, 2006, 2007)

Fuse Data

Full access is available to registered users — log in or register.

№	Rating	Functions
1	50 A	SensoDrive gearbox – Cooling fan (diesel engine)
2	20 A	Headlamps with daytime-running lamps
3	25 A	ABS control unit
3	30 A	ESP control unit
4	30 A	Ignition switch supply
5	10 A	Hazard lamps – Instrument panel warning lamps – Direction indicators
6	10 A	Headlamps
7	15 A	Speed indicator – Interior lamp – Radio – Instrument panel – Rev counter (option)
8	15 A / 25 A	Petrol/diesel engine ECU
9	10 A	Horn
10	7.5 A	Cooling fan (petrol)
11	40 A	ABS
11	50 A	ESP
12	15 A	Power steering

2008, 2009

Instrument panel

Assignment of the fuses in the Instrument panel (2008, 2009)

Fuse Data

Full access is available to registered users — log in or register.

№	Rating	Functions
1	10 A	Brake lights – ABS – “SensoDrive” gearbox
2	25 A	Central locking/unlocking
3	20 A	Rear screen demisting
4	7.5 A	Rear lights – Number plate lights – Instrument panel – Display
5	7.5 A	Diagnostic socket
6	7.5 A	Rear fog lamp – Instrument panel – “SensoDrive” gearbox
7	–	Not used
8	7.5 A	ABS – Power steering – Air conditioning – Fan assembly
9	10 A	Rear lights – Central locking/unlocking – Electric windows – Rear screen demisting -Speedometer – Air conditioning – Heating – Rev counter
10	20 A	Front and rear wipers
11	15 A	Audio equipment – Electronic engine immobiliser – 12 V socket (120 W max)
12	7.5 A	Rear screen demisting – ABS – Fan assembly – Front and rear wipers – Power steering -Central locking/unlocking – Air conditioning – Electric windows – Speedometer – Rev counter
13	15 A	Air bag – Engine control unit – Electronic engine immobiliser – “SensoDrive” gearbox -Instrument panel
14	7.5 A	Air conditioning
15*	40 A	Accessories – Demisting – ABS – Fan assembly relay – Front and rear wipers
16*	30 A	Electric windows
17*	40 A	Heating – Air conditioning
		* Fuses located behind the instrument panel. To change them, contact a CITROËN dealer.

Engine compartment

Under-hood fuse box diagram: Citroen C1 (2008)

Assignment of the fuses in the Engine compartment (2008, 2009)

Fuse Data

Full access is available to registered users — log in or register.

№	Rating	Functions
1	50 A	“SensoDrive” gearbox – Fan assembly (diesel)
2	10 A	Headlamps
2	20 A	Headlamps with daytime lights
3	30 A	ABS/ESP control unit
4	30 A	Ignition switch supply
5	10 A	Hazard warning lights – Instrument panel warning lights – Direction indicators
6	10 A	Headlamps
7	15 A	Courtesy light – Speedometer – Audio equipment – Instrument panel – Rev counter
8	15 A/25 A	Petrol/diesel engine control unit
9	10 A	Horn
10	30 A	Fan assembly (petrol)
11	50 A	ABS/ESP
12	50 A	Power steering

2010

Instrument panel

Assignment of the fuses in the Instrument panel (2010)

Fuse Data

Full access is available to registered users — log in or register.

№	Rating	Functions
1	10 A	Brake lights – ABS – “SensoDrive” gearbox
2	25 A	Central locking/unlocking
3	20 A	Rear screen demisting
4	7.5 A	Rear lights – Number plate lights – Instrument panel – Display
5	7.5 A	Diagnostic socket
6	7.5 A	Rear fog lamp – Instrument panel – “SensoDrive” gearbox
7	–	Not used
8	7.5 A	ABS – Power steering – Air conditioning – Fan assembly
9	10 A	Rear lights – Central locking/unlocking – Electric windows – Rear screen demisting -Speedometer – Air conditioning – Heating – Rev counter
10	20 A	Front and rear wipers
11	15 A	Audio equipment – Electronic engine immobiliser – 12 V socket (120 W max)
12	7.5 A	Rear screen demisting – ABS – Fan assembly – Front and rear wipers – Power steering -Central locking/unlocking – Air conditioning – Electric windows – Speedometer – Rev counter
13	15 A	Air bag – Engine control unit – Electronic engine immobiliser – “SensoDrive” gearbox -Instrument panel
14	7.5 A	Air conditioning
15*	40 A	Accessories – Demisting – ABS – Fan assembly relay – Front and rear wipers
16*	30 A	Electric windows
17*	40 A	Heating – Air conditioning
		* Fuses located behind the instrument panel. To change them, contact a CITROËN dealer.

Engine compartment

Under-hood fuse box diagram: Citroen C1 (2010)

Assignment of the fuses in the Engine compartment (2010)

Fuse Data

Full access is available to registered users — log in or register.

№	Rating (A)	Functions
1	50	“SensoDrive” gearbox
2	10	Headlamps
2	20	Headlamps with daytime running lamps
3	30	ABS/ESP control unit
4	30	Ignition switch supply
5	10	Hazard warning lamps – Instrument panel warning lamps – Direction indicators
6	10	Headlamps
7	15	Courtesy lamp – Speedometer – Audio equipment – Instrument panel – Rev counter
8	15/25	Petrol/Diesel engine control unit
9	10	Horn
10	30	Fan assembly (petrol)
11	50	ABS/ESP
12	50	Power steering

2012, 2013, 2014

Instrument panel

Assignment of the fuses in the Instrument panel (2012, 2013, 2014)

Fuse Data

Full access is available to registered users — log in or register.

№	Rating (A)	Functions
1	10	Brake lamps – ABS – Electronic gearbox
2	25	Central locking/unlocking – Remote control
3	20	Rear screen demisting
4	7.5	Rear lamps – Number plate lamps – Instrument panel – Screen – headlamp adjustment – LED daytime running lamps – Sidelamps
5	7.5	Diagnostic socket
6	7.5	Electronic gearbox – Rear foglamp – ESP – LED daytime running lamps – Instrument panel – Rev counter
7	–	Not used
8	7.5	ABS/ESP – Power steering – Fan assembly
9	10	Reversing lamps – Central locking/unlocking – Electric windows – Rear screen demisting – Speedometer -Air conditioning – Heating – Rev counter – Remote control
10	20	Front and rear wipers and screenwash
11	15	Audio equipment -12 V socket (120 W max)
12	7.5	Heated rear screen – ABS – Fan assembly – Front and rear wipers and screenwash – Power steering – Central locking/unlocking – Air conditioning – Heating – Electric windows – Speedometer – Rev counter – Remote control -Reversing lamp
13	15	Airbag – Fuel injection system – Electronic gearbox – Instrument panel – Rev counter – LED daytime running lamps
14	7.5	Air conditioning – Heating
15*	40	Audio system -12 V socket – Front and rear wipers – Power steering – ABS/ESP – Cooling fan assembly
16*	30	Electric windows
17*	40	Air conditioning – Heating
		* Fuses located behind the instrument panel. To change them, contact a CITROËN dealer or a qualified workshop.

Engine compartment

Under-hood fuse box diagram: Citroen C1 (2012)

Assignment of the fuses in the Engine compartment (2012, 2013, 2014)

Fuse Data

Full access is available to registered users — log in or register.

№	Rating (A)	Functions
1	5	LED daytime running lamps
2	20	Front foglamps
3	10	Left hand front lamp
4	10	Right hand front lamp
5	7.5	Electronic gearbox – Fuel injection system
6	7.5	Electronic gearbox – Fuel injection system
7	30	LED daytime running lamps – Front foglamps
8	25	ABS
8	30	ABS/ESP (with VSC)
9	30	Starter motor – Heated rear screen – ABS – Cooling fan assembly – Front and rear wipers and screenwash – Power steering – Central locking/unlocking – Air conditioning – Heating – Electric windows – Speedometer – Rev counter – Remote control – Reversing lamp – Airbag – Fuel injection system – Electronic gearbox – Instrument panel – LED daytime running lamps
10	10	Hazard warning lamps – Instrument panel – Rev counter – Direction indicators
11	20	Left hand front lamp – Right hand front lamp
12	15	Courtesy lamp – Speedometer – Audio system- Instrument panel – Rev counter
13	15	Fuel injection system – Cooling fan assembly
14	10	Horn
15	7.5	Replacement fuse
16	10	Replacement fuse
17	15	Replacement fuse
18	50	Electronic gearbox
19	30/40	Cooling fan assembly
20	40	ABS
20	50	ABS/ESP (with VSC)
21	50	Power steering

FAQ

Which fuses protect the cigar lighter (power outlet)?

The cigar lighter and associated 12 V power outlet are typically protected by:
Fuse №11 in the Instrument Panel Fuse Box
Since 2012, an additional fuse №15 located behind the instrument panel is also used

These fuses are found within your vehicle’s dashboard fuse block and the internal fuse assembly. Refer to your owner’s manual or fuse box cover for exact locations and arrangement.
