In this article, you will find fuse box diagrams for the Citroën C1, covering model years 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, and 2022. These diagrams help you quickly identify and understand the function of each fuse and relay in your vehicle.
What’s Included:

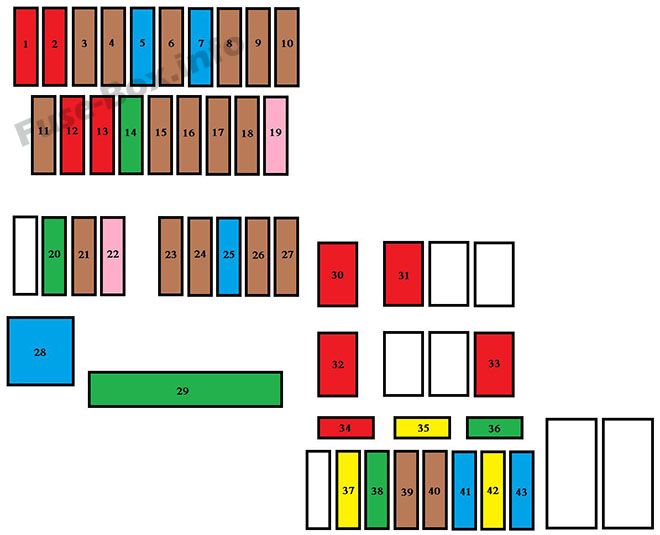

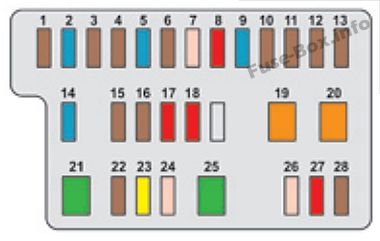

Fuse Box Diagrams – Clear visuals showing the layout of fuses and relays for accurate identification.

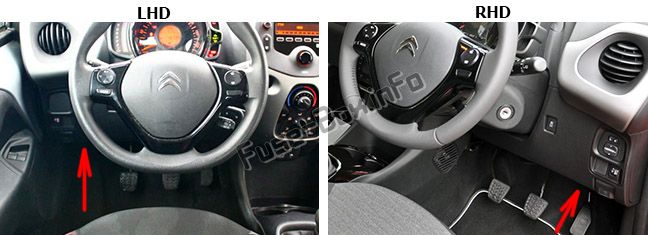

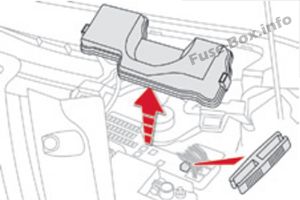

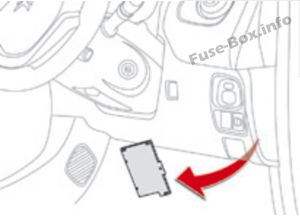

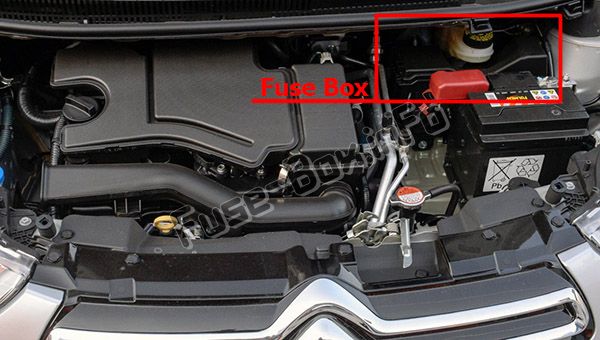

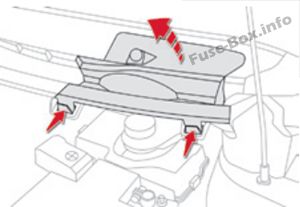

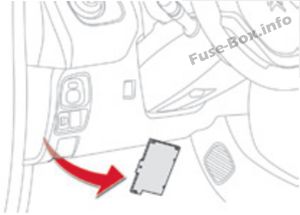

Fuse Panel Locations – Guidance on where to find the fuse panels within your Citroën C1.
Fuse Assignments – A detailed breakdown of each fuse’s purpose to aid in diagnostics and repairs.
Whether you’re troubleshooting electrical issues, replacing a blown fuse, or performing preventative maintenance, this comprehensive guide is an essential resource for keeping your Citroën C1 (2014–2022) running smoothly.
Main distribution unit – Instrument panel – Display screen – Air conditioning – Heated rear screen and door mirror heating -Heated seats – Electric fabric roof – Audio system
4
5
Electric power steering – Stop & Start
5
15
Rear wiper
6
5
Cooling fan – ABS system ESP – VSC system
7
25
Front wiper
8
10
Heated door mirrors
9
15
12 V socket (120 W max)
10
7.5
Door mirrors – Audio system – Stop & Start – Instrument panel -Display screen
11
5
Steering lock – Fuel injection system – Electronic gearbox
12
7.5
Airbags
13
5
Instrument panel – Display Screen – Stop & Start
14
15 (VTi 68 engine)
Steering – Fuel injection system – Brake lamps
14
7.5 (VTi 82 engine)
Steering – Fuel injection system – Brake lamps
15
7.5 (VTi 68 engine)
Fuel injection system – Stop & Start
15
10 (VTi 82 engine)
Fuel injection system – Stop & Start
16
7.5
Engine diagnosis
17
10
Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – Electronic gearbox – Keyless Entry and Starting system
18
10
Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps – Lighting dimmer
19
40
Air conditioning
20
40
Air conditioning – Engine self-diagnosis – Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps -Lighting dimmer – Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – Electronic gearbox – “Keyless Entry and Starting’ system – Electric windows
21
30
Fuel injection system – Stop & Start – Main distribution unit
22 (VTi 68 engine)
7,5
Fuel injection system
23 (VTi 68 engine)
20
Fuel injection system – Stop & Start
24
25
Main distribution unit
25
30
Electric windows
26
25
Electric windows
27
10
Air conditioning
28
5
Rear foglamp
Engine compartment
Assignment of the fuses in the Engine compartment (2014, 2015)
Fuse Data
Full access is available to registered users — log in or register.
Fuel injection system – Starter motor – Electronic gearbox – Stop & Start
25
15
Audio system – “Keyless Entry and Starting’ system
26
7.5
Instrument panel – Display screen
27
7.5
VSC system
28
60
Passenger compartment fusebox
29 (VTi 68 engine)
125
Heated rear screen and door mirror heating -Heated seats (except UK version) – Electric fabric roof – ABS system -VSC system – Cooling fan – Front foglamps – LED daytime running lamps (This fuse must be replaced only by a CITROËN dealer or a qualified workshop)
30
50
Electronic gearbox
30
40
Stop & Start
31
50
Power steering
32
50 (VTi 82 engine)
Cooling fan
32
30
Cooling fan
32
40
Cooling fan
33
50
ABS system – VSC system
34
10
Spare fuse
35
20
Spare fuse
36
30
Spare fuse
37
20
Heated rear screen and door mirror heating
38
30
ABS system – VSC system
39
7.5
Front foglamps – Instrument panel – Display screen
40
7.5
LED daytime running lamps
41
15
Right hand heated seat (except UK version)
42
20
Electric fabric roof
43
15
Left hand heated seat (except UK version)
2016, 2017, 2018, 2019, 2020, 2021, 2022
Dashboard
Assignment of the fuses in the Dashboard Fuse box (2016, 2017, 2018, 2019, 2020, 2021, 2022)
Fuse Data
Full access is available to registered users — log in or register.
Reversing lamp – Fuel injection system – Audio system -VSC system
2
15
Front and rear screenwash
3
5
Main distribution unit – Instrument panel – Display screen – Air conditioning – Heated rear screen and door mirror heating -Heated seats – Electric fabric roof – Audio system
4
5
Electric power steering – Stop & Start
5
15
Rear wiper
6
5
Cooling fan – ABS system – VSC system
7
25
Front wiper
8
10
Heated door mirrors
9
15
12 V socket (120 W max)
10
7.5
Door mirrors – Audio system – Stop & Start – Instrument panel -Display screen
11
5
Steering lock – Fuel injection system – Electronic gearbox
12
7.5
Airbags
13
5
Instrument panel – Display Screen – Stop & Start
14
15 (VTi 68 engine)
Steering – Fuel injection system – Brake lamps
14
7.5 (PureTech 82 engine)
Steering – Fuel injection system – Brake lamps
15
7.5 (VTi 68 engine)
Fuel injection system – Stop & Start
15
10 (PureTech 82 engine)
Fuel injection system – Stop & Start
16
7.5
Engine diagnosis
17
10
Brake lamps – Third brake lamp – Fuel injection system -ABS system – VSC system – Electronic gearbox – Keyless Entry and Starting system
Air conditioning – Engine self-diagnosis – Sidelamps – Number plate lamps – Rear foglamp – Rear lamps – Lighting dimmer -Brake lamps – Third brake lamp – Fuel injection system -ABS system – VSC system – Electronic gearbox – Keyless Entry and Starting system – Electric windows
21
30
Fuel injection system – Stop & Start – Main distribution unit
22 (VTi 68 engine)
7,5
Fuel injection system
23 (VTi 68 engine)
20
Fuel injection system – Stop & Start
24
25
Main distribution unit
25
30
Electric windows
26
25
Electric windows
27
10
Air conditioning
28
5
Rear foglamp
Engine compartment
Assignment of the fuses in the Engine compartment (2016, 2017, 2018, 2019, 2020, 2021, 2022)
Fuse Data
Full access is available to registered users — log in or register.
Fuel injection system – Starter motor – Electronic gearbox – Stop & Start
25
15
Audio system – “Keyless Entry and Starting’ system
26
7.5
Instrument panel – Display screen
27
7.5
VSC system
28
60
Passenger compartment fusebox
29 (VTi 68 engine)
125
Heated rear screen and door mirror heating – Heated seats (Except UK version) -Electric fabric roof – ABS system – VSC system – Cooling fan -LED daytime running lamps (This fuse must be replaced only by a CITROËN dealer or a qualified workshop)
30
50
Electronic gearbox
30
40
Stop & Start
31
50
Power steering
32
50 (VTi 82 engine)
Cooling fan
32
30
Cooling fan
32
40
Cooling fan
33
50
ABS system – VSC system
34
10
Spare fuse
35
20
Spare fuse
36
30
Spare fuse
37
20
Heated rear screen and door mirror heating
38
30
ABS system – VSC system
39
7.5
Instrument panel – Display screen
40
7.5
LED daytime running lamps
41
15
Right hand heated seat (Except UK version)
42
20
Electric fabric roof
43
15
Left hand heated seat (Except UK version)
FAQ
Which fuse controls the cigar lighter/power outlet in the Citroën C1?
In the Citroën C1, the cigar lighter (12 V power outlet) is protected by fuse №9, located in the Instrument Panel Fuse Box.
