In this article, you will find fuse box diagrams for the Citroën Jumpy / SpaceTourer / Dispatch, covering model years 2016 through 2023. These diagrams are a crucial resource for understanding the vehicle’s electrical layout, helping you diagnose and repair fuse-related issues efficiently.

What’s Included:

  • Fuse Box Diagrams – Detailed illustrations to help you identify the location and designation of each fuse and relay in your Jumpy or Dispatch.
  • Fuse Panel Locations – Step-by-step guidance to find the fuse panels inside the vehicle—typically under the dashboard and in the engine compartment.
  • Fuse Assignments – Accurate descriptions explaining the function of each fuse, from lighting and HVAC to infotainment and safety systems.

Whether you’re replacing a blown fuse, resolving an electrical problem, or performing preventive maintenance, this guide will help you navigate your vehicle’s fuse panel, fuse layout, and relay system with confidence.

Keep your Citroën Jumpy / SpaceTourer / Dispatch (2016–2023) running smoothly and safely with this essential electrical reference.

Dashboard fuse box

Fuse box location

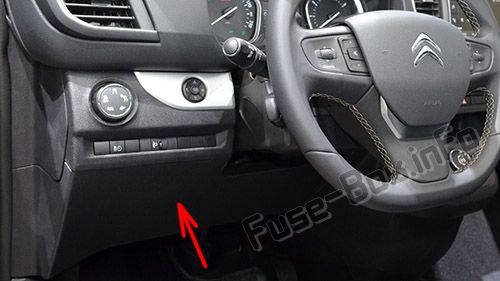

Left-hand drive vehicles: The fusebox is placed in the lower dashboard (left-hand side).

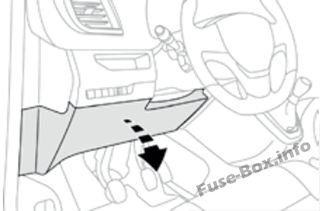

The location of the fuses in the passenger compartment (LHD): Citroen SpaceTourer / Dispatch / Jumpy (2016, 2017, 2018-...)

Unclip the cover by pulling at top left, then right.

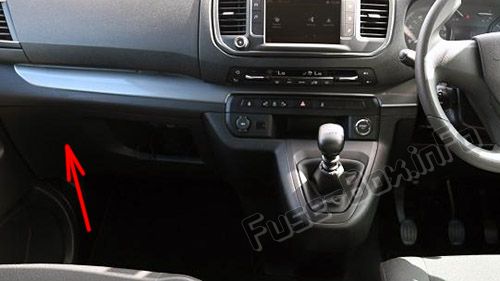

Right-hand drive vehicles: The fusebox is located in the left-hand part of the glove box.

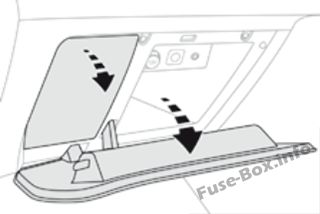

The location of the fuses in the passenger compartment (RHD): Citroen SpaceTourer / Dispatch / Jumpy (2016, 2017, 2018-...)

Unclip the cover by pulling at top left, then right.

Dashboard Fuse box Version 1 (Eco)

Instrument panel fuse box diagram (Eco): Citroen SpaceTourer / Dispatch / Jumpy (2016, 2017, 2018-...)

Assignment of the fuses in the Dashboard Fuse box (v1)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

N°Rating (A)Functions
F110Electric power steering, clutch switch
F415Horn.
F520Front/rear screenwash pump.
F620Front/rear screenwash pump.
F710Rear 12 V accessory socket.
F820Single or double rear wipers.
F10/F1130Front and rear, exterior, interior locks.
F1310Front air conditioning controls, radio controls, gear lever, head-up display.
F145Alarm, emergency and assistance calls.
F175Instrument panel.
F193Steering mounted controls.
F213“Keyless Entry and Starting” system or ignition switch.
F223Rain and sunshine sensor, multifunction detection camera.
F235Seat belt unfastened or not fastened display screen.
F245Touch screen, reversing camera and parking sensors.
F255Airbags.
F2920Audio system, touch screen, CD player, navigation.
F3115Audio system (battery +).
F3215Front 12 V accessory socket.
F345Blind spot monitoring system, door mirror electric controls.
F355Heated washer jets, headlamp beam height control.
F365Torch charger, rear courtesy lamp.

Dashboard Fuse box Version 2 (Full)

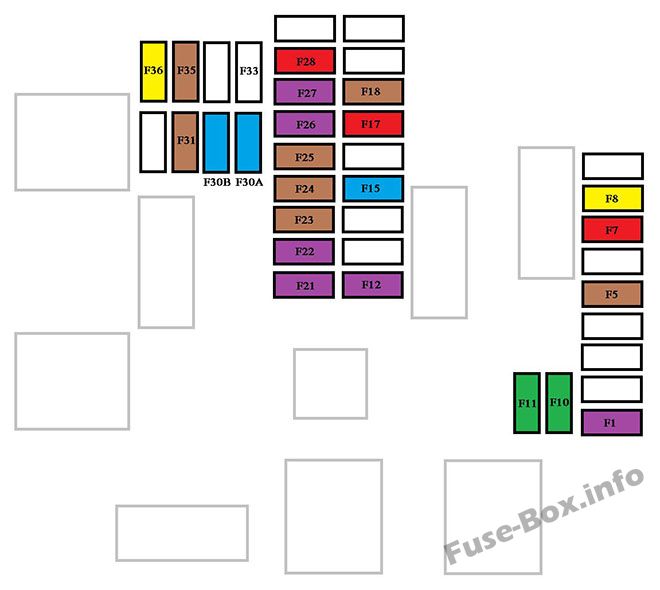

Instrument panel fuse box diagram (Full): Citroen SpaceTourer / Dispatch / Jumpy (2016, 2017, 2018-...)

Assignment of the fuses in the Dashboard Fuse box (v2)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

N°Rating (A)Functions
F13“Keyless Entry and Starting” system or ignition switch.
F55Touch screen, reversing camera and parking sensors.
F710Rear air conditioning controls, Hi-Fi amplifier.
F820Single or double rear wiper.
F10/F1130Front and rear, exterior, interior locks.
F123Alarm.
F1710Rear 12 V accessory socket.
F185Emergency and assistance calls.
F213Torch charger, rear courtesy lamp.
F223Glove box lamp, rear courtesy lamps.
F235Blind spot monitoring system, door mirror electric controls.
F245Steering mounted controls.
F255Headlamp beam height control.
F263Seat belt unfastened or not fastened display screen.
F273Rain and sunshine sensor, multifunction detection camera.
F2810Front air conditioning controls, radio controls, gear lever, head-up display.
F30A or B15Audio system (battery +).
F315Airbags.
F3315Front 12 V accessory socket.
F355Instrument panel.
F3620Audio system, touch screen, CD player, navigation.

Engine compartment fuse box

Fuse box location and assignments

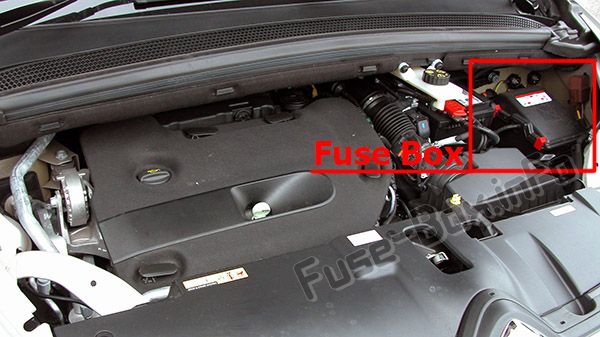

It is located in the engine compartment near the battery.

The location of the fuses in the engine compartment: Citroen SpaceTourer / Dispatch / Jumpy (2016, 2017, 2018-...)

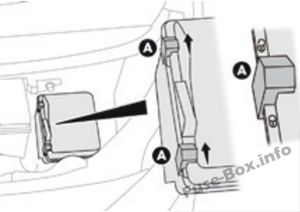

For access, release the two latches A, remove the cover.

Assignment of the fuses in the Engine compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

N°Rating (A)Functions
F125Heated washer jets.
F1425Front and rear screenwash pump.
F155Front radar and emergency braking, electric power steering.
F1710Built-in systems interface.
F1930Front wiper motor.
F2015Front and rear screenwash pump.
F2120Headlamp wash pump.
F2215Horn.
F2315Right hand main beam headlamp.
F2415Left hand main beam headlamp.
