Citroen Nemo | 2008-2017 | Fuse Box Diagrams and Locations

The Citroën Nemo, a compact and practical commercial vehicle, was produced from 2008 to 2017. Known in various markets as the Citroën Nemo, Citroën Nemo Multispace, or Citroën Nemo Enterprise (in the UK), this small van was designed for urban delivery and light-duty commercial use, offering maneuverability, efficient engines, and surprising cargo capacity for its size.

In this article, you will find fuse box diagrams for the Citroën Nemo, covering model years 2008 through 2017. These diagrams provide critical information to help owners, mechanics, and DIYers identify each fuse, relay, and electrical circuit for easier maintenance and troubleshooting.

What’s Included:

Fuse Box Diagrams – Clear illustrations showing the fuse and relay layout for different variants and model years.
Fuse Panel Locations – Details on where the fuse panels are located inside the vehicle, typically in the dashboard or engine bay.
Fuse Assignments – Accurate descriptions of what each fuse and relay controls, from headlights to power windows and engine systems.

Whether you’re replacing a blown fuse, solving an electrical fault, or simply familiarizing yourself with your vehicle’s electrical system, this guide is an essential reference for keeping your Citroën Nemo running reliably.

Ensure your 2008–2017 Citroën Nemo is always ready for work with this comprehensive fuse box, fuse panel, and relay diagram guide.

The cigar lighter (power outlet) fuses in the Citroën Nemo are:
- Instrument Panel Fuse Box:
  - Fuse F94: Cigar Lighter
  - Fuse F96: 12V Accessory Socket
- Engine Compartment Fuse Box:
  - Fuse F15: 12V Accessory Socket
  - Fuse F85: Cigar Lighter / 12V Accessory Socket

What’s Included

Fuse box locations

Dashboard

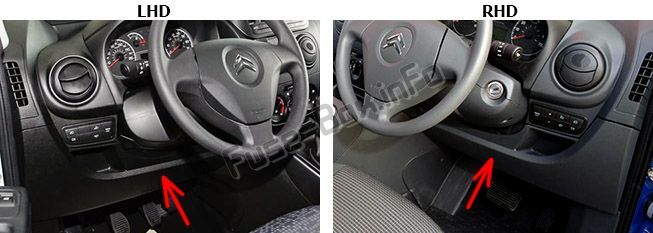

The location of the fuses in the passenger compartment: Citroen Nemo (2008-2015)

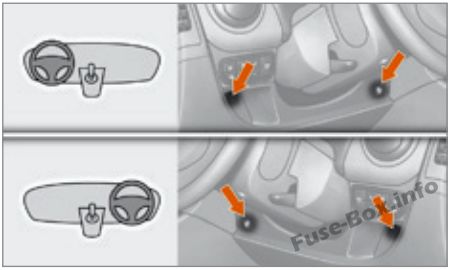

To gain access to the dashboard fuses, remove the 2 screws using the ignition key and tilt the housing.

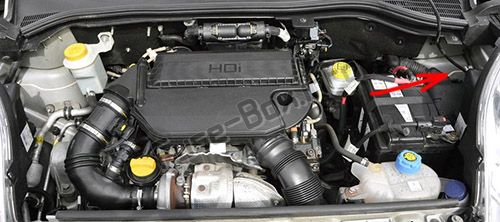

Engine compartment

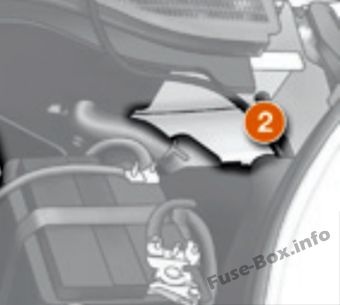

For access to the fuses in the engine compartment, remove the left hand front headlamp connector, then unclip the fusebox cover.

Fuse box diagrams

2008, 2009

Dashboard

Assignment of the fuses in the Dashboard Fuse box (2008, 2009)

Fuse Data

Full access is available to registered users — log in or register.

Identification mark	Amperage	Functions
F12	7.5 A	Right-hand dipped headlamp supply
F13	7.5 A	Left-hand dipped headlamp supply – headlamp height adjuster
F31	5 A	Engine control unit supply switch
F32	7.5 A	Front light – front courtesy light – rear courtesy light lamp
F36	10 A	Audio equipment – mobile telephone pre-equipment – air conditioning control panel – EODB diag socket
F37	5 A	Brake light – instrument panel
F38	20 A	Locking of the doors
F43	15 A	Wipers pump
F47	20 A	Driver’s electric window motor supply
F48	20 A	Passenger’s electric window motor supply
F49	5 A	Parking assistance control unit – rear lighting switch – electric exterior mirrors
F50	7.5 A	Air bags control unit
F51	5 A	Switch on brake pedal – switch on clutch pedal
F53	5 A	Instrument panel – rear fog lamps

Engine compartment

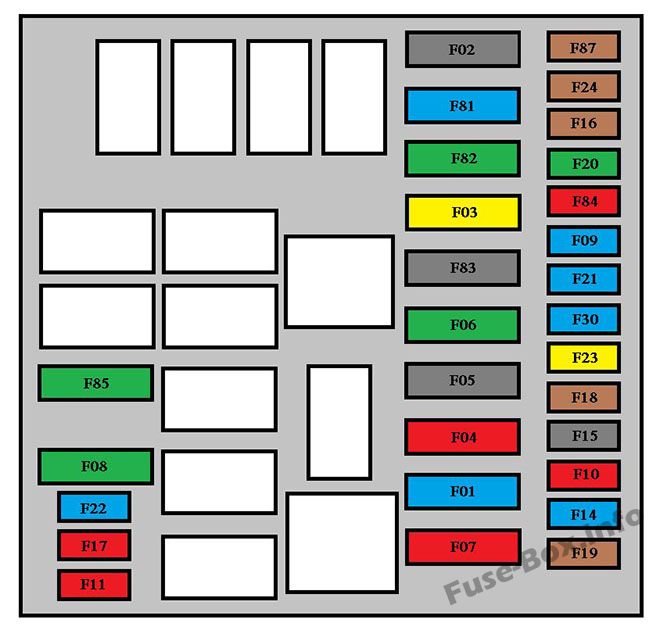

Under-hood fuse box diagram: Citroen Nemo (2008, 2009)

Assignment of the fuses in the Engine compartment (2008, 2009)

Fuse Data

Full access is available to registered users — log in or register.

Identification mark	Amperage	Functions
F01	60 A	Control unit
F03	20 A	Starter supply
F04	40 A	ABS hydraulic block pump supply
F06	30 A	Single speed fan assembly control
F07	40 A	High speed fan assembly control
F08	30 A	Air conditioning unit pump
F10	10 A	Horn
F11	10 A	Engine management secondary charge supply
F14	15 A	Main beam headlamps
F16	7.5 A	Engine management control unit – electronic gearbox system control unit
F17	15 A	Supply for ignition coil, injectors, engine management central unit
F18	7.5 A	Engine management control unit (1.4 HDi)
F19	7.5 A	Air conditioning compressor
F20	30 A	Supply for heated rear screen, electric exterior mirrors de-icing heaters
F21	15 A	Engine management 1.4 petrol, relay coil T09 (HDi)
F22	20 A	Engine management control unit (1.4 HDi), petrol pump
F23	20 A	ABS hydraulic block solenoid valves supply
F24	7.5 A	ABS
F30	15 A	Fog lamps
F81	60 A	Pre-heat unit
F82	30 A	Electronic gearbox system pump – electronic gearbox system supply
F84	10 A	Electronic gearbox system control unit and valves
F85	30 A	Lighter -12 V accessories socket
F87	7.5 A	Reversing lights – water in diesel sensor

2010, 2011, 2014, 2015, 2016, 2017

Dashboard

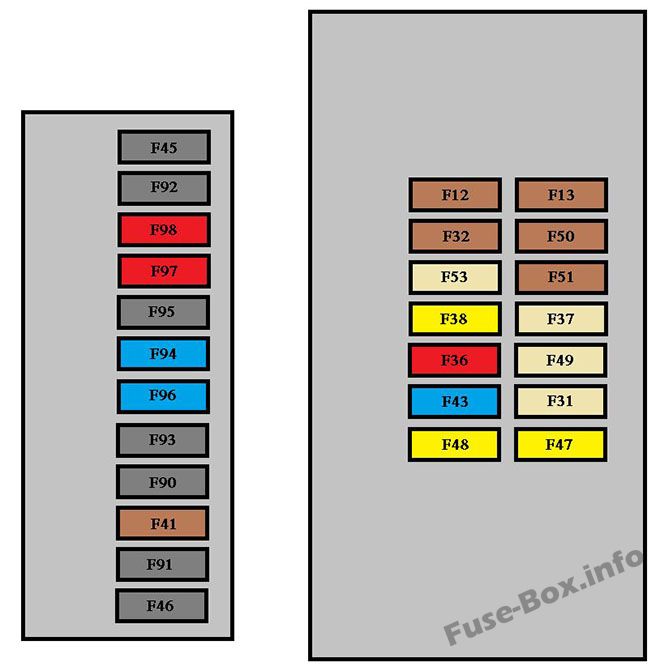

Instrument panel fuse box diagram: Citroen Nemo (2010, 2011, 2014, 2015)

Assignment of the fuses in the Dashboard Fuse box (2010, 2011, 2014, 2015, 2016, 2017)

Fuse Data

Full access is available to registered users — log in or register.

Marking	Rating	Functions
F12	7.5 A	Right-hand dipped beam headlamp supply
F13	7.5 A	Left-hand dipped beam headlamp supply – headlamp height adjuster
F31	5 A	Engine control unit supply switch
F32	7.5 A	Front lamp – front courtesy lamp – rear courtesy light lamp
F36	10 A	Audio system – mobile telephone pre-equipment – air conditioning control panel – EODB diagnostic socket
F37	5 A	Brake lamp – instrument panel
F38	20 A	Door locking
F43	15 A	Screenwash pump
F47	20 A	Driver’s electric window motor supply
F48	20 A	Passenger’s electric window motor supply
F49	5 A	Parking sensors control unit – rear lighting switch – electric door mirrors – volumetric alarm control unit
F50	7.5 A	Airbags control unit
F51	7.5 A	Switch on brake pedal – switch on clutch pedal – door mirror controls – central Bluetooth system
F53	5 A	Instrument panel – rear foglamps
F41	7.5 A	Door mirror demisting.
F94	15 A	Cigar lighter.
F96	15 A	12 V accessory socket.
F97	10 A	Heated seat, driver’s side.
F98	10 A	heated seat, passenger’s side.

Engine compartment

Under-hood fuse box diagram: Citroen Nemo (2010, 2011, 2014, 2015)

Assignment of the fuses in the Engine compartment (2010, 2011, 2014, 2015, 2016, 2017)

Fuse Data

Full access is available to registered users — log in or register.

Marking	Rating	Functions
F01	60 A	Control unit
F02	40 A	Passenger compartment fan.
F03	20 A	Starter motor supply
F04	40 A	ABS hydraulic block pump supply
F06	30 A	Single speed cooling fan control
F07	40 A	High speed cooling fan control
F08	30 A	Air conditioning compressor
F09	15 A	Towbar harness.
F10	10 A	Horn
F11	10 A	Engine management secondary load supply
F14	15 A	Main beam headlamps
F15	15 A	12 V accessory socket.
F16	7.5 A	Engine management control unit – electronic gearbox control unit and gear lever -T20 relay coil
F17	15 A	Supply for ignition coil – injectors – engine management control unit (1.3 HDi)
F18	7.5 A	Engine management control unit (1.3 HDi) – T09 relay coil
F19	7.5 A	Air conditioning compressor
F20	30 A	Supply for heated rear screen, electric door mirrors heater elements
F21	15 A	Fuel pump (1.4 petrol and 1.3 HDi)
F22	20 A	Engine management control unit (1.3 HDi)
F23	20 A	ABS hydraulic block electrovalves supply
F24	7.5 A	ABS
F30	15 A	Foglamps
F81	60 A	Pre-heat unit (1.3 HDi)
F82	30 A	Electronic gearbox pump – electronic gearbox supply
F84	10 A	Electronic gearbox control unit and electrovalves
F85	30 A	Cigar lighter – 12 V accessory socket
F87	7.5 A	Reversing lamps – water in Diesel sensor – airflow sensor – T02, T05, T14, T17 and T19 relay coils (except 1.3 HDi)
F87	5 A	Reversing lamps – water in Diesel sensor – airflow sensor – T02, To5, T14, T17 and T19 relay coils -battery state of charge sensor (except 1.3 HDi)
