Dodge Avenger | 2008-2014

Explore Dodge Avenger fuse box diagrams in this straightforward guide that helps you understand the electrical layout of this mid-sized sedan. Here we cover the Dodge Avenger (produced from 2007 to 2014) and provide fuse diagrams for 2008, 2009, 2010, 2011, 2012, 2013 and 2014, along with the location of the fuse panels and the assignment of each fuse, giving you a clear and convenient reference for electrical troubleshooting.

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Fuse box location

The Integrated Power Module (fuse box) is located in the engine compartment near the air cleaner assembly.
This center contains cartridge fuses and mini fuses. A label that identifies each component may be printed on the inside of the cover.

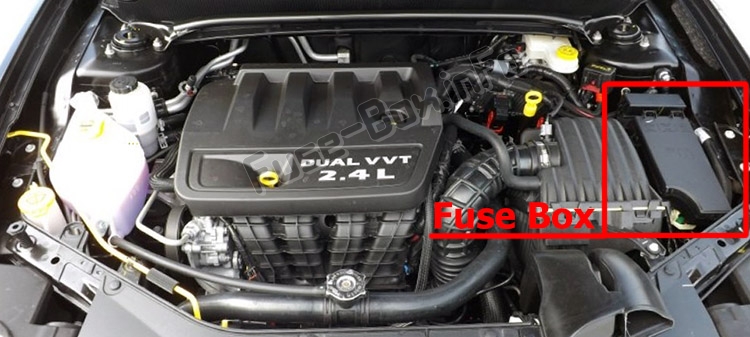

The location of the fuses in the engine compartment: Dodge Avenger (2008-2014)

Fuse box diagram

Under-hood fuse box diagram: Dodge Avenger (2008, 2009, 2010, 2011, 2014, 2014)

Assignment of fuses in the IPM

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Cartridge FuseMini FuseDescription
140A—2008–2010: Not used / 2011–2014: Power Top Module (if equipped)
2—20A2008–2010: Not used / 2011–2014: Brake Vacuum Pump
3—10ACenter High-Mounted Stop Lamp (CHMSL)
4—10AIgnition Switch Feed
5—20ATrailer Tow – (if equipped)
6—10AIOD: Power Mirror / HVAC Controls / Modules
7—30AIOD Sense 1
8—30AIOD Sense 2
940A—Power Seats / PZEV Air Pump (if equipped)
10—20AInterior Lights / CCN / Power Locks
11—15ASelectable Power Outlet (Console)
12—20A2008–2010: Not used / 2011–2014: Inverter (IGN RUN/ACC)
13—20A2008: Not used / 2009–2010: Power Outlet (RR) / 2011–2014: Power Outlet RR + Dome Lamp
14—10AIOD CCN / Interior Lighting / 2011–2014 wording includes Instrument Cluster
1540A—Radiator Fan Relay
16—15A2008: Cigar Lighter / Sunroof / ACC Circuit 2009–2010: Sunroof + ACC + Rear Wiper (if equipped) 2011–2014: Dome Lamp + Sunroof + Rear Wiper
17—10AWCM / Clock / SCM
1840A—ASD Relay Battery Feed
19—20AAudio Amplifier Feed (if equipped)
20—15ARadio
21—10A2008–2010: Not used / 2011–2014: Siren / Intrusion Module (if equipped)
22—10AClimate Controls / Heated Cupholder (if equipped)
23—15AASD Relay Feed 3
24—20A or 25APower Sunroof (amp rating depends on build)
25—10AHeated Mirrors (if equipped)
26—15AASD Relay Feed 2
27—10AIGN RUN – ORC / OCM Feed
28—10AIGN RUN – ORC / OCM Feed
29——Hot Car (no fuse used)
30—20AHeated Seats (if equipped)
31—10A2008–2010: Spare or Accessory Circuit / 2011–2014: Additional Accessory or Module Feed
3230A—ASD Relay Feed 1
33—10APCM / Diagnostic Link Connector / Switch Bank
3430A—ABS Valve / ESC Module Feed (if equipped)
3540A—ABS Pump / Stability Module Feed (if equipped)
3630A—Door Module Feed (DDM/PDM) (if equipped)
37—25A2008: Not used / 2009–2010: Accessory Feed / 2011–2014: Power Top or Additional Accessory (varies)
