Fuse box location

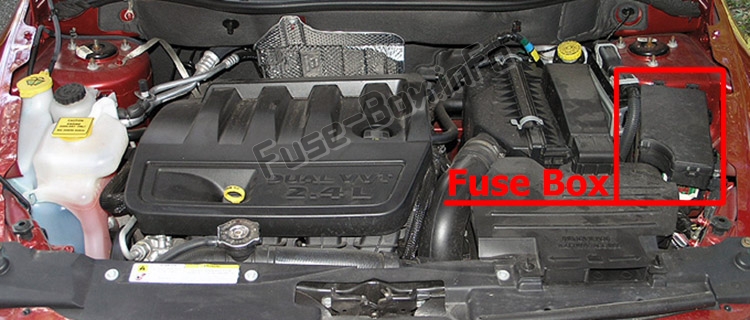

The Integrated Power Module (fuse box) is located in the engine compartment near the air cleaner assembly.
This center contains cartridge fuses and mini fuses. A label that identifies each component may be printed on the inside of the cover.

The location of the fuses in the engine compartment:Dodge Caliber (2006-2012)

Fuse box diagram

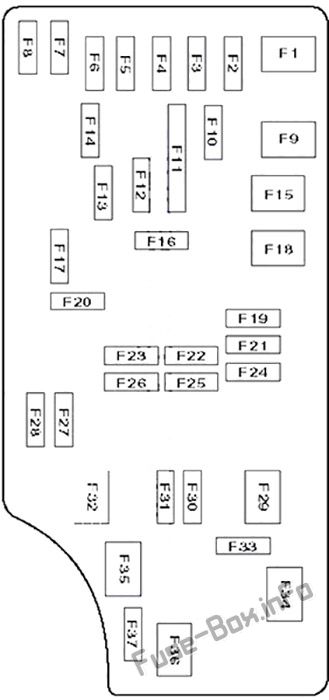

Under-hood fuse box diagram: Dodge Caliber (2006, 2007, 2008, 2009, 2010, 2011, 2012)

Assignment of fuses in the IPM

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Cartridge FuseMini FuseDescription
140A—2006: Power Top Feed / 2007–2012: Not used
220A (2006)15A (2007–2012)AWD / 4WD ECU Feed
3—10ACHMSL Brake Switch Feed
4—10A2006: Ignition Switch Feed / 2007–2012: Ignition Switch & OCM Feed
520A—Trailer Tow (if equipped)
6—10AIOD Switch / Power Mirror / OCM / Steering Control / SDAR / HFM (2006 wording slightly different but same function)
730A—IOD Sense 1
830A—IOD Sense 2
940A—Power Seats (if equipped)
1020A—Power Locks / CCN / Interior Lighting (slight wording difference but same circuit)
11—15APower Outlet
1220A—IGN Run/ACC Inverter (wording varies but same circuit)
1320A—2006: Power Outlet RR / 2007–2012: Power Outlet RR + Cigar Lighter / Dome Lamp
14—10AIOD CCN / Interior Lighting (2011+: Instrument Cluster wording)
1540A—Radiator Fan Relay Battery Feed
16—15A2006–2008: ACC Cigar Lighter / Sunroof / 2009–2012: Dome Lamp + Sunroof + Rear Wiper Motor
17—10AIOD Feed Module – WCM
1840A—ASD Relay Contact Power Feed
1920A—Power Amplifier Feed
20—15AIOD Feed Radio
21—10AIntrusion Module / Siren (if equipped)
22—10AIGN RUN HVAC / Compass Sensor
2315A—Engine ASD Relay Feed 3
2425A (2006) / 15A (2007–2012)—Power Sunroof
25—10AHeated Mirror (if equipped)
2615A—Engine ASD Relay Feed 2
27—10AIGN RUN Only ORC Feed
28—10AIGN RUN ORC / OCM Feed
29——Hot Car (No Fuse Required)
3020A—Heated Seats (if equipped)
31—10AHeadlamp Washer Relay Control (if equipped)
3230A—Engine ASD Control Feed 1
33—10AABS Module / J1962 Connector / PCM
3430A—ABS Valve Feed
3540A—ABS Pump Feed
3630A—Headlamp Washer Control / Smart Glass (if equipped)
3725A—2006–2008: 110V Inverter / 2009–2012: Diesel Fuel Heater (if equipped)
