Explore Dodge Challenger fuse box diagrams in this practical guide that lays out the electrical setup of the early third-generation models. Here we look at the pre-facelift Dodge Challenger (2008–2014) and provide fuse diagrams for 2008, 2009, 2010, 2011, 2012, 2013 and 2014, along with the location of the fuse panels and the assignment of each fuse, giving you a straightforward reference for maintenance and troubleshooting.

What’s Included

Fuse box locations

Engine compartment

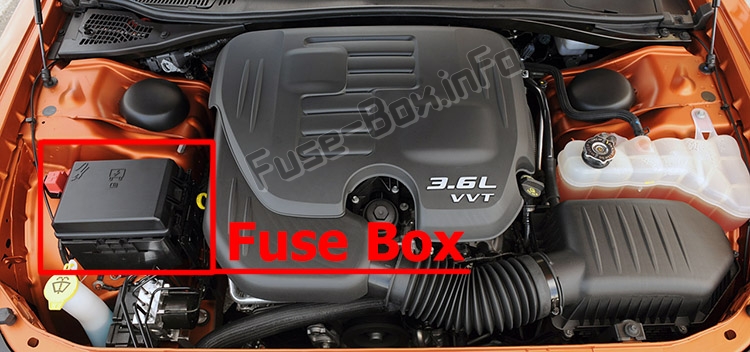

The Integrated Power Module (IPM) is located in the engine compartment, on the passenger side.

Luggage compartment

There is also a power distribution center located in the trunk under the spare tire access panel.

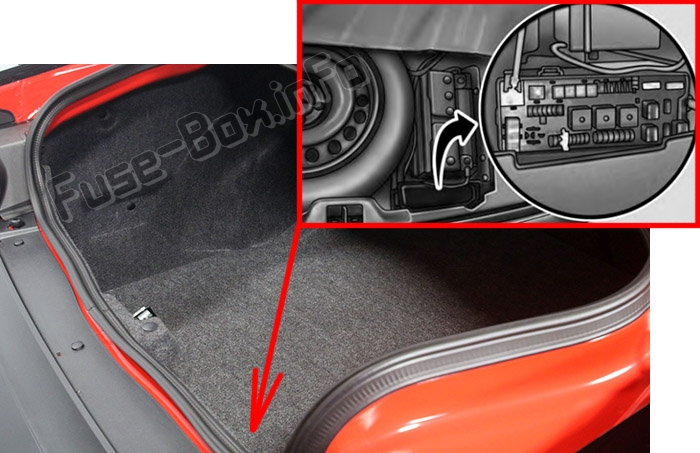

The location of the fuses in the trunk: Dodge Challenger (2009-2019)

Fuse box diagrams

Engine compartment

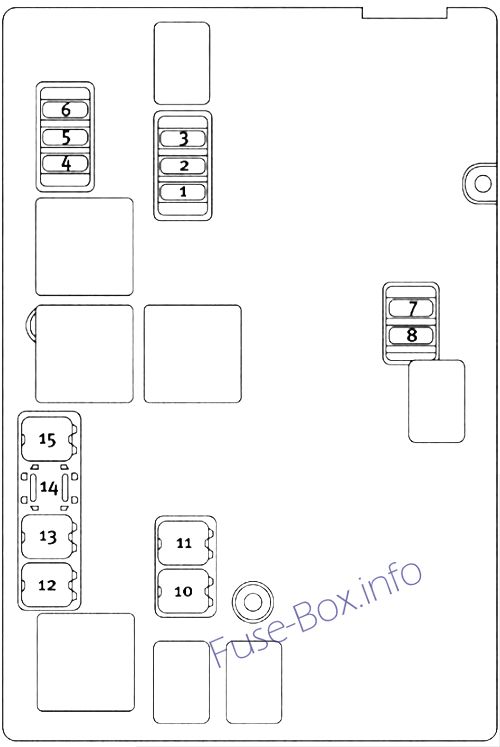

Under-hood fuse box diagram: Dodge Challenger (2011, 2012, 2013, 2014)

Assignment of fuses in the IPM

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Cartridge Fuse	Mini-Fuse	Description
1	—	15 Amp Blue	Washer Motor
2	—	25 Amp Natural	Powertrain Control Module (PCM)/NGS Module Feed (Batt)
3	—	25 Amp Natural	Ignition Run/Start
4	—	25 Amp Natural	EGR Solenoid/Alternator
5	—	15 Amp Blue	Powertrain Control Module
6	—	25 Amp Natural	Ignition Coils/Injectors
7	—	25 Amp Natural	Headlamp Washer Relay – If Equipped
8	—	30 Amp Green	Starter
9	—	—	—
10	30 Amp Pink	—	Windshield Wiper
11	30 Amp Pink	—	Anti-Lock Brake System (ABS) Valves
12	40 Amp Green	—	Radiator Fan Lo/High
13	50 Amp Red	—	Anti-Lock Brake System (ABS) Pump Motor
14	—	—	—
15	50 Amp Red	—	Radiator Fan
16	—	—	—
17	—	—	—
18	—	—	—
19	—	—	—
20	—	—	—
21	—	—	—
22	—	—	—

Luggage compartment

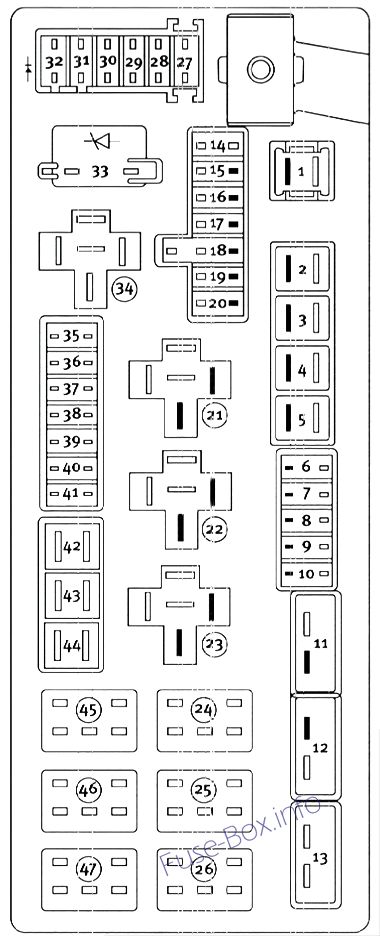

Trunk fuse box diagram: Dodge Challenger (2011, 2012, 2013, 2014)

Assignment of fuses in the Rear Power Distribution Center

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Cartridge Fuse	Mini-Fuse	Description
1	60 Amp Yellow		Ignition Off Draw (IOD) Cavity 1 of the Rear Power Distribution Center contains a black IOD fuse needed for vehicle processing during assembly. The service replacement part is a 60 Amp yellow cartridge fuse.
2	40 Amp Green	—	Integrated Power Module (IPM)
3	—	—	—
4	40 Amp Green	—	Integrated Power Module (IPM)
5	30 Amp Pink	—	Heated Seats – If Equipped
6	—	20 Amp Yellow	Fuel Pump
7	—	15 Amp Blue	Audio Amplifier – If Equipped
8		15 Amp Blue	Diagnostic Link Connector (DLC)/ Wireless Control Module (WCM)/Wireless Ignition Node (WIN)
9	—	20 Amp Yellow	Power Outlet
10	—	—	—
11	25 Amp circuit breaker	—	The cluster and the driver seat switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
12	25 Amp circuit breaker	—	The passenger seat switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
13	25 Amp circuit breaker	—	The door modules, the driver power window switch, and the passenger power window switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
14	—	10 Amp Red	AC Heater Control/Cluster/Security Module – If Equipped
15	—	—	—
16	—	—	—
17	—	20 Amp Yellow	Cluster
18	—	20 Amp Yellow	Selectable Power Outlet
19	—	10 Amp Red	Stop Lights
20	—	—	—
21	—	—	—
22	—	—	—
23	—	—	—
24	—	—	—
25	—	—	—
26	—	—	—
27	—	10 Amp Red	Occupant Restraint Controller (ORC)
28	—	10 Amp Red	Ignition Run
29		5 Amp Tan	Cluster/Electronic Stability Control (ESC)/ Powertrain Control Module (PCM)/STOP LIGHT Switch
30	—	10 Amp Red	Door Modules/Power Mirrors/Steering Control Module (SCM)
31	—	—	—
32	—	—	—
33	—	—	—
34	—	—	—
35	—	5 Amp Tan	Antenna Module – If Equipped/Power Mirrors
36	—	25 Amp Natural	Hands-Free Phone – If Equipped/Radio/ Amplifier Feed
37	—	15 Amp Blue	Transmission
38	—	10 Amp Red	Cargo Light/Vehicle Information Module – If Equipped
39	—	10 Amp Red	Heated Mirrors – If Equipped
40	—	5 Amp Orange	Auto Inside Rearview Mirror/Heated Seats – If Equipped/Switch Bank
41	—	—	—
42	30 Amp Pink	—	Front Blower Motor
43	30 Amp Pink	—	Rear Window Defroster
44	20 Amp Blue	—	Amplifier/Sunroof – If Equipped

FAQ

Which fuses control the cigar lighter and power outlets in the Dodge Challenger?

The cigar lighter and power outlets are protected by fuse №9 (Power Outlet) and fuse №18 (Instrument Panel Cigar Lighter / Selectable Power Outlet) in the Rear Power Distribution Center (trunk).
