Explore Dodge Challenger fuse box diagrams in this streamlined guide that helps you understand the electrical layout of the updated third-generation muscle car. Here we cover the facelifted Dodge Challenger (2015–2023) and provide fuse diagrams for 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 and 2023 , along with the location of the fuse panels and the assignment of each fuse , giving you a clear and convenient reference for electrical troubleshooting.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→
The Front Power Distribution Center is located in the engine compartment, on the passenger side.
There is also a power distribution center located in the trunk under the spare tire access panel.

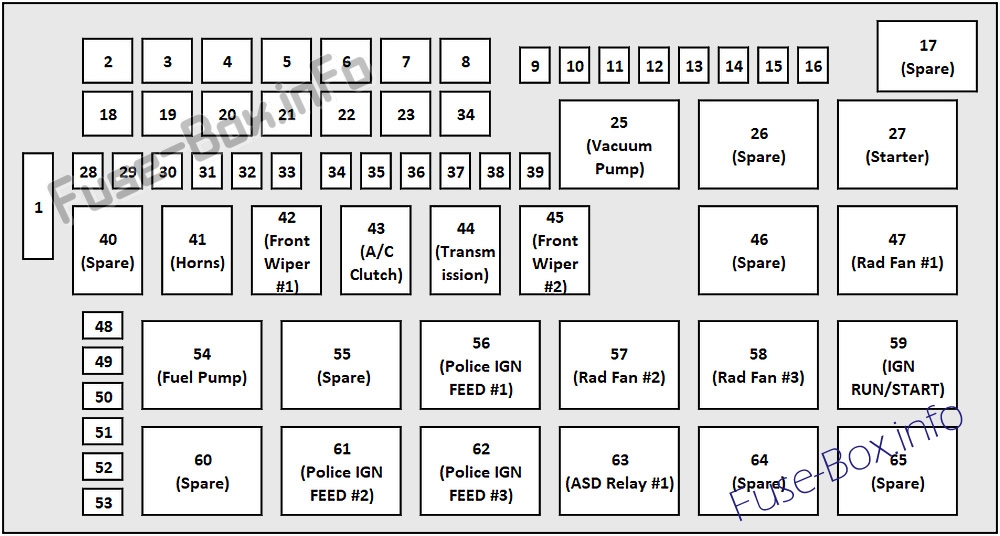

Assignment of fuses in the Front PDC
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 1 – – Fuse – Spare 2 40 Amp Green — Radiator Fan #1 – (Non 6.2L Supercharged) 3 50 Amp Red – Electric Power Steering #1 – If Equipped 4 30 Amp Pink – Starter 5 40 Amp Green – Anti Lock Brake 6 30 Amp Pink – Anti Lock Brake 7 20 Amp Blue – Police Ignition Run / ACC #1 8 50 Amp Red / 20 Amp Blue — Radiator Fan (6.2L Supercharged) / Police Ignition Run / ACC # 2 9 – 20 Amp Yellow All-Wheel Drive Module – If Equipped 10 — 10 Amp Red Under Hood Lamp – Police 11 – 20 Amp Yellow Horns 12 – 10 Amp Red Air Conditioning Clutch 13 – – Fuse – Spare 14 – – Fuse – Spare 15 – 20 Amp Yellow Left HID – If Equipped 16 – 20 Amp Yellow Right HID – If Equipped 18 50 Amp Red – Radiator Fan – (Non 6.2L Supercharged) 19 50 Amp Red – Electric Power Steering #2 – If Equipped 20 30 Amp Pink – Wiper Motor 21 30 Amp Pink 20 Amp Blue – Police Headlamp Washers – If Equipped Police Bat Feed #2 22 40 Amp Green / 20 Amp Blue – Police Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 23 20 Amp Blue – Police Bat Feed # 1 24 50 Amp Red / 20 Amp Blue — Radiator Fan (6.2L Supercharged) / Police Ignition Run/ACC Feed # 3 28 – – Fuse – Spare 29 15 Amp Blue Transmission Control Module / Electronic Shift Module 30 – – Fuse – Spare 31 – 25 Amp Clear Engine Module 32 – – Fuse – Spare 33 – – Fuse – Spare 34 – 25 Amp Clear Powertrain #1 35 – 20 Amp Yellow Powertrain #2 36 – 10 Amp Red Anti-Lock Brake Module 37 10 Amp Red Engine Controller / 5-Speed TCM 38 – 10 Amp Red Airbag Module 39 10 Amp Red EPS / EHPS (Police) / AC Clutch Relay / Vacuum Pump Relay / Rad Fan Relays 48 — 10 Amp Red AWD Module/Front Axle Disconnect – If Equipped 49 – – Fuse – Spare 50 – – Fuse – Spare 51 – 20 Amp Yellow Vacuum Pump 52 – 5 Amp Tan Adaptive Cruise – If Equipped 53 – – Fuse – Spare
This content requires JavaScript and a valid membership to view.

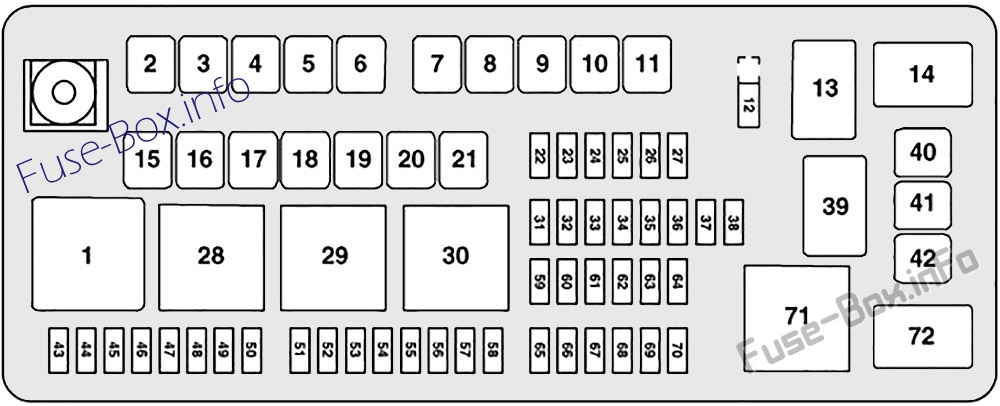

Assignment of fuses in the Rear PDC
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 2 60 Amp Yellow – Front PDC Feed #1 3 – – Fuse – Spare 4 60 Amp Yellow – Front PDC Feed #2 5 30 Amp Pink 20 Amp Blue – Police – Sunroof/Dome Lamp -Police 6 40 Amp Green – Exterior Lighting #1 7 40 Amp Green – Exterior Lighting #2 8 30 Amp Pink – Interior Lighting 9 40 Amp Green – Power Locks 10 30 Amp Pink – Driver Door Control Module 11 30 Amp Pink – Passenger Door Control Module 12 20 Amp Yellow Dual USB Center Console Rear/Cigar Lighter IP – If Equipped 15 40 Amp Green – HVAC Blower 16 20 Amp Blue – Left Spot Lamp – Police 17 20 Amp Blue – Right Spot Lamp – Police 18 30 Amp Pink – Mod Network Interface -Police 19 – – Fuse – Spare 20 – – Fuse – Spare 21 30 Amp Pink – Fuel Pump (Non 6.2L SRT Demon) 22 – 5 Amp Tan Cyber Gateway Mod 23 – 10 Amp Red Fuel Door/Diagnostic Port 24 – 10 Amp Red Integrated Center Stack 25 – 10 Amp Red Tire Pressure Monitor 26 – – Fuse – Spare 27 – 25 Amp Clear Amplifier – If Equipped 31 – 25 Amp Breaker Power Seats – If Equipped 32 – 15 Amp Blue HVAC Module/Cluster 33 – 15 Amp Blue Ignition Switch/RF Hub Module 34 – 10 Amp Red Steering Column Module 35 – 5 Amp Tan Battery Sensor 36 – 15 Amp Blue Electronic Exhaust Valve -If Equipped 37 – 20 Amp Yellow Radio 38 – 20 Amp Yellow Power Outlet Inside Arm Rest/Console Media Hub 40 30 Amp Pink — Fuel Pump (6.2L SRT Demon – If Equipped) 41 30 Amp Pink — Fuel Pump (6.2L SRT Demon – If Equipped) 42 30 Amp Pink – Rear Defrost 43 20 Amp Yellow Comfort Seat And Steering Wheel Module (Heated Steering Wheel/RR Heated Seats) 44 – 10 Amp Red Park Assist / Blind Spot / Rear View Camera 45 – 15 Amp Blue Cluster / Rearview Mirror / Humidity Sensor / Forward Facing Camera (Lane Departure) / Cyber Gateway 46 – – Fuse – Spare 47 10 Amp Red Adaptive Front Lighting / Day Time Running Lamps – If Equipped 48 — 20 Amp Yellow Active Suspension – (6.4L / 6.2L) 49 – – Fuse – Spare 50 – – Fuse – Spare 51 — 20 Amp Yellow Front Heated / Vented Seats – If Equipped 52 10 Amp Red Heated Cupholders/Rear Heated Seat Switches – If Equipped 53 — 10 Amp Red HVAC Module/In Vehicle Temperature Sensor 54 – – Fuse – Spare 55 – – Fuse – Spare 56 – – Fuse – Spare 57 – – Fuse – Spare 58 – 10 Amp Red Airbag Module 59 – 20 Amp Yellow Adjustable Pedals – Police 60 – – Fuse – Spare 61 – – Fuse – Spare 62 – – Fuse – Spare 63 – – Fuse – Spare 64 – – Fuse – Spare 65 – 10 Amp Red Airbag Module 66 – – Fuse – Spare 67 10 Amp Red Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay 68 10 Amp Red RR USB Timer 69 – – Fuse – Spare 70 – – Fuse – Spare
This content requires JavaScript and a valid membership to view.
