Explore Dodge Charger fuse box diagrams in this organized guide that helps you navigate the electrical layout of one of Dodge’s longest-running modern platforms. Here we look at the seventh-generation Dodge Charger (produced from 2010 to 2023) (Model Code: LD ) and provide fuse diagrams for 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 and 2023 , along with the location of the fuse panels and the assignment of each fuse , giving you a comprehensive reference for diagnostics and maintenance.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→
The Front Power Distribution Center is located in the engine compartment.

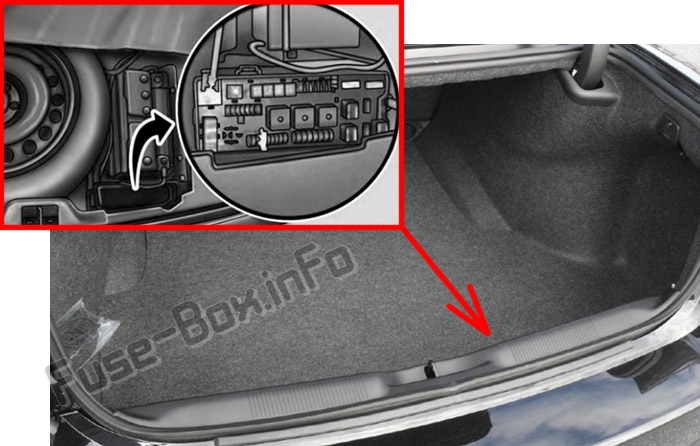

There is also a power distribution center located in the trunk under the spare tire access panel.
Assignment of fuses in the Front PDC (2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 1 — — Fuse – Spare 2 40 Amp Green — Radiator Fan #1 3 50 Amp Red — Power Steering #1 4 30 Amp Pink — Starter 5 40 Amp Green — Anti-Lock Brakes 6 — — Fuse – Spare 7 — — Fuse – Spare 8 — — Fuse – Spare 9 — 20 Amp Yellow All-Wheel Drive Module – If Equipped 10 — 10 Amp Red Security 11 — 20 Amp Yellow Horns 12 — 10 Amp Red Air Conditioning Clutch 13 — — Fuse – Spare 14 — 25 Amp Natural Anti-Lock Brakes 15 — 25 Amp Natural Transmission 16 — — Fuse – Spare 18 50 Amp Red — Radiator Fan #2 19 50 Amp Red — Power Steering #2 20 30 Amp Pink — Wiper Motor 21 30 Amp Pink — Headlamp Washers 22 — — Fuse – Spare 23 — — Fuse – Spare 24 — — Fuse – Spare 28 — 25 Amp Natural Fuel Pump 29 — 15 Amp Blue Transmission Shifter 30 — — Fuse – Spare 31 — 25 Amp Natural Engine Module 32 — — Fuse – Spare 33 — — Fuse – Spare 34 — 25 Amp Natural Powertrain #1 35 — 20 Amp Yellow Powertrain #2 36 — 10 Amp Red Anti-Lock Brake Module 37 — 10 Amp Red Engine Controller/ Rad Fan Relays 38 — 10 Amp Red Airbag Module 39 10 Amp Red Power Steering Module/AC Clutch Relay 48 — 10 Amp Red AWD Module/Front Axle Disconnect 49 — — Fuse – Spare 50 — — Fuse – Spare 51 — 20 Amp Yellow Vacuum Pump 52 — — Fuse – Spare 53 — — Fuse – Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Rear PDC (2011, 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 2 60 Amp Yellow — Front PDC Feed #1 3 — — Fuse – Spare 4 60 Amp Yellow — Front PDC Feed #2 5 30 Amp Pink — Sunroof 6 40 Amp Green — Exterior Lighting #1 7 40 Amp Green — Exterior Lighting #2 8 30 Amp Pink — Interior Lighting/ Washer Pump 9 30 Amp Pink — Power Locks 10 30 Amp Pink — Driver Door 11 30 Amp Pink — Passenger Door 12 20 Amp Yellow Cigar Lighters, Instrument Panel & Power Outlet Console Rear 15 40 Amp Green — HVAC Blower 16 — — Fuse — Spare 17 — — Fuse — Spare 18 — — Fuse — Spare 19 — — Fuse — Spare 20 — — Fuse — Spare 21 — — Fuse — Spare 22 — — Fuse — Spare 23 — 10 Amp Red Fuel Door/Diagnostic Port 24 — 15 Amp Blue Radio Screen 25 — 10 Amp Red Tire Pressure Monitor 26 — — Fuse — Spare 27 — 25 Amp Natural Amplifier 31 — 25 Amp Natural Power Seats 32 — 15 Amp Blue HVAC Module/ Cluster 33 — 15 Amp Blue Ignition Switch/ Wireless Module 34 — 10 Amp Red Steering Column Module/Clock 35 — 10 Amp Red Battery Sensor 36 — — Fuse — Spare 37 — 15 Amp Blue Radio 38 — 20 Amp Yellow Power Outlet Inside Arm Rest 40 — — Fuse — Spare 41 — — Fuse — Spare 42 30 Amp Pink — Rear Defrost 43 — 25 Amp Natural Rear Heated Seats/ Steering Wheel 44 — 10 Amp Red Park Assist/Blind Spot/Camera 45 — 15 Amp Blue Cluster/Rearview Mirror/Compass 46 — 10 Amp Red Adaptive Cruise Control 47 — 10 Amp Red Adaptive Front Lighting 48 — 20 Amp Yellow Active Suspension 49 — — Fuse — Spare 50 — — Fuse — Spare 51 — 20 Amp Yellow Front Heated Seats 52 — 10 Amp Red Heated Cupholders/ Rear Heated Seat Switches 53 10 Amp Red HVAC Module/In Car Temperature Sensor 54 — — Fuse — Spare 55 — — Fuse — Spare 56 — — Fuse — Spare 57 — — Fuse — Spare 58 — 10 Amp Red Airbag Module 59 — — Fuse — Spare 60 — — Fuse — Spare 61 — — Fuse — Spare 62 — — Fuse — Spare 63 — — Fuse — Spare 64 — 25 Amp Natural Rear Windows 65 — 10 Amp Red Airbag Module 66 — — Fuse — Spare 67 — 15 Amp Blue Run Sense 68 — 15 Amp Blue Illumination/Rear Sunshade 69 — — Fuse — Spare 70 — — Fuse — Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Front PDC (2013, 2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 1 – – Fuse – Spare 2 40 Amp Green – Radiator Fan #1 3 50 Amp Red – Power Steering #1 4 30 Amp Pink – Starter 5 40 Amp Green – Anti-Lock Brakes 6 25 Amp Natural – Anti-Lock Brakes 7 – – Fuse – Spare 8 – – Fuse – Spare 9 – 20 Amp Yellow All-Wheel Drive Module – If Equipped 10 – 10 Amp Red Security 11 – 20 Amp Yellow Horns 12 – 10 Amp Red Air Conditioning Clutch 13 – – Fuse – Spare 14 – – Fuse – Spare 15 – 25 Amp Natural Transmission 16 – – Fuse – Spare 18 50 Amp Red – Radiator Fan #2 19 50 Amp Red – Power Steering #2 20 30 Amp Pink – Wiper Motor 21 30 Amp Pink – Headlamp Washers 22 – – Fuse – Spare 23 – – Fuse – Spare 24 – – Fuse – Spare 28 – 25 Amp Natural Fuel Pump 29 – 15 Amp Blue Transmission Shifter 30 – – Fuse – Spare 31 – 25 Amp Natural Engine Module 32 – – Fuse – Spare 33 – – Fuse – Spare 34 – 25 Amp Natural Powertrain #1 35 – 20 Amp Yellow Powertrain #2 36 – 10 Amp Red Anti-Lock Brake Module 37 – 10 Amp Red Engine Controller/Rad Fan Relays 38 – 10 Amp Red Airbag Module 39 – 10 Amp Red Power Steering Module/ AC Clutch Relay 48 – 10 Amp Red AWD Module/Front Axle Disconnect 49 – – Fuse – Spare 50 – – Fuse – Spare 51 – 20 Amp Yellow Vacuum Pump 52 – – Fuse – Spare 53 – – Fuse – Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Rear PDC (2013, 2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 2 60 Amp Yellow — Front PDC Feed #1 3 — — Fuse – Spare 4 60 Amp Yellow — Front PDC Feed #2 5 30 Amp Pink — Sunroof 6 40 Amp Green — Exterior Lighting #1 7 40 Amp Green — Exterior Lighting #2 8 30 Amp Pink — Interior Lighting/Washer Pump 9 30 Amp Pink — Power Locks 10 30 Amp Pink — Driver Door 11 30 Amp Pink — Passenger Door 12 20 Amp Yellow Cigar Lighters, Instrument Panel & Power Outlet Console Rear 15 40 Amp Green — HVAC Blower 16 — — Fuse — Spare 17 — — Fuse — Spare 18 — — Fuse — Spare 19 — — Fuse — Spare 20 — — Fuse — Spare 21 — — Fuse — Spare 22 — — Fuse — Spare 23 — 10 Amp Red Fuel Door/Diagnostic Port 24 — 15 Amp Blue Radio Screen 25 — 10 Amp Red Tire Pressure Monitor 26 — — Fuse — Spare 27 — 25 Amp Natural Amplifier 31 — 25 Amp Natural Power Seats 32 — 15 Amp Blue HVAC Module/Cluster 33 15 Amp Blue Ignition Switch/Wireless Module 34 — 10 Amp Red Steering Column Module/Qock 35 — 10 Amp Red Battery Sensor 36 — — Fuse — Spare 37 — 15 Amp Blue Radio 38 — 20 Amp Yellow Power Outlet Inside Arm Rest 40 — — Fuse — Spare 41 — — Fuse — Spare 42 30 Amp Pink — Rear Defrost 43 — 25 Amp Natural Rear Heated Seats/ Steering Wheel 44 — 10 Amp Red Park Assist/Blind Spot/ Camera 45 — 15 Amp Blue Cluster/Rearview Mirror /Compass 46 — 10 Amp Red Adaptive Cruise Control 47 — 10 Amp Red Adaptive Front Lighting 48 — 20 Amp Yellow Active Suspension 49 — — Fuse — Spare 50 — — Fuse — Spare 51 — 20 Amp Yellow Front Heated Seats 52 — 10 Amp Red Heated Cupholders/Rear Heated Seat Switches 53 — 10 Amp Red HVAC Module/In Car Temperature Sensor 54 — — Fuse — Spare 55 — — Fuse — Spare 56 — — Fuse — Spare 57 — — Fuse — Spare 58 — 10 Amp Red Airbag Module 59 — — Fuse — Spare 60 — — Fuse — Spare 61 — — Fuse — Spare 62 — — Fuse — Spare 63 — — Fuse — Spare 64 — 25 Amp Natural Rear Windows 65 — 10 Amp Red Airbag Module 66 — — Fuse — Spare 67 — 15 Amp Blue Run Sense 68 — 15 Amp Blue Illumination/Rear Sunshade 69 — — Fuse — Spare 70 — — Fuse — Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Front PDC (2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 1 – – Fuse – Spare 2 40 Amp Green – Radiator Fan #1 – If Equipped 3 50 Amp Red — Power Steering #1 / Radiator Fan (6.2L Supercharged) – If Equipped 4 30 Amp Pink – Starter 5 40 Amp Green – Electronic Stability Control 6 30 Amp Pink – Electronic Stability Control 7 – – Fuse – Spare 8 20 Amp Blue – Police Ignition Run / ACC # 2 9 – 20 Amp Yellow All-Wheel Drive Module – If Equipped 10 — 10 Amp Red Security – If Equipped / Under hood Lamp – Police 11 – 20 Amp Yellow Horns 12 – 10 Amp Red Air Conditioning Clutch 13 – – Fuse – Spare 14 – – Fuse – Spare 15 – 20 Amp Yellow Left HID – If Equipped 16 – 20 Amp Yellow Right HID – If Equipped 18 40 Amp Green – Radiator Fan #2 – If Equipped 19 50 Amp Red — Power Steering #2 / Radiator Fan (6.2L Supercharged) 20 30 Amp Pink – Wiper Motor 21 20 Amp Blue — Headlamp Washers – If Equipped / Police Feed 22 40 Amp Green / 20 Amp Blue – Police – Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 – If Equipped 23 20 Amp Blue – Police Bat Feed # 1 – If Equipped 24 20 Amp Blue – Police Bat Feed # 3 – If Equipped 28 – – Fuse – Spare 29 – 15 Amp Blue Transmission Control Module (Police) 30 – – Fuse – Spare 31 – 25 Amp Clear Engine Module 32 – – Fuse – Spare 33 – – Fuse – Spare 34 – 25 Amp Clear Powertrain #1 35 – 20 Amp Yellow Powertrain #2 36 – 10 Amp Red Anti-Lock Brake Module 37 — 10 Amp Red Engine Controller/Rad Fan Relays – If Equipped 38 – 10 Amp Red Airbag Module 39 – 10 Amp Red Power Steering Module/AC Clutch Relay 48 – 10 Amp Red AWD Module/Front Axle Disconnect / Adaptive Cruise – If Equipped 49 – – Fuse – Spare 50 – – Fuse – Spare 51 – 20 Amp Yellow Vacuum Pump 52 – 10 Amp Red Adaptive Cruise – If Equipped 53 – – Fuse – Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Rear PDC (2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 2 60 Amp Yellow — Front PDC Feed #1 3 — — Fuse – Spare 4 60 Amp Yellow — Front PDC Feed #2 5 30 Amp Pink — Sunroof / Dome Lamp -Police 6 40 Amp Green — Exterior Lighting #1 7 40 Amp Green — Exterior Lighting #2 8 30 Amp Pink — Interior Lighting 9 40 Amp Green — Power Locks 10 30 Amp Pink — Driver Door Control Module 11 30 Amp Pink — Passenger Door Control Module 12 20 Amp Yellow Dual USB Center Console Rear/Cigar Lighter IP – If Equipped 15 40 Amp Green — HVAC Blower 16 20 Amp Blue — Left Spot Lamp – Police 17 — — Fuse – Spare 18 30 Amp Pink — Mod Network Interface -Police 19 — — Fuse — Spare 20 — — Fuse — Spare 21 30 Amp Pink (6.2L Supercharged) 25 Amp Clear (LD STD) Fuel Pump 22 20 Amp Yellow – Police 10 Amp Red – LA Right Spot Lamp – Police 23 — 10 Amp Red Fuel Door/Diagnostic Port 24 — 15 Amp Blue Integrated Center Stack 25 — 10 Amp Red Tire Pressure Monitor 26 15 Amp Blue – LD/LX 25 Amp Clear – LA 30 Amp Green – LA 6.2L Supercharged Transmission / Electronic Shift Module / Fuel Pump (LA 6.2L Supercharged) 27 — 25 Amp Clear Amplifier – If Equipped 31 — 25 Amp Breaker Power Seats 32 — 15 Amp Blue HVAC Module/Cluster 33 15 Amp Blue Ignition Switch/RF hub Module 34 10 Amp Red Steering Column Module/Clock /Spare -Police 35 — 5 Amp Tan Battery Sensor 36 — 15 Amp Blue Electronic Exhaust Valve – If Equipped 37 — 20 Amp Yellow Radio 38 15 Amp Blue – LD/LX 20 Amp Yellow – LA Console Power Outlet/ Console Media Hub / Power Outlet Inside Arm Rest 40 — — Fuse — Spare 41 — — Fuse — Spare 42 30 Amp Pink — Rear Defrost 43 — 20 Amp Yellow Rear Heated Seats/ Steering Wheel Module 44 10 Amp Red Park Assist / Blind Spot / Rear View Camera 45 15 Amp Blue Cluster / Rearview Mirror / Compass / Humidity Sensor 46 — — Fuse — Spare 47 10 Amp Red Adaptive Front Lighting / Auto High BEAM / Day Time Running Lamps- If Equipped 48 — 20 Amp Yellow Active Suspension – SRT 49 — — Fuse — Spare 50 — — Fuse — Spare 51 — 20 Amp Yellow Front Heated Seats – If Equipped 52 10 Amp Red Heated Cupholders/Rear Heated Seat Switches – If Equipped 53 — 10 Amp Red HVAC Module/In Car Temperature Sensor 54 — 10 Amp Red Airbag Module – If Equipped 55 — — Fuse — Spare 56 — — Fuse — Spare 57 — — Fuse — Spare 58 — 10 Amp Red Airbag Module 59 — 20 Amp Yellow Adjustable Pedals – Police 60 — 5 Amp Tan Heated Washer Nozzles 61 20 Amp Yellow Cigar Lighter – If Equipped 62 — — Fuse — Spare 63 — — Fuse — Spare 64 — 25 Amp Breaker Rear Windows 65 — 10 Amp Red Airbag Module 66 — — Fuse — Spare 67 — 10 Amp Red Rain and Light Sensor/ Sunroof 68 10 Amp Red Dual USB Power Outlet -R/A Sense / Rear Sunshade 69 — — Fuse — Spare 70 — — Fuse — Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Front PDC (2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 1 – – Fuse – Spare 2 40 Amp Green — Radiator Fan #1 -(Non 6.2L Supercharged) 3 50 Amp Red Electric Power Steering #1 -If Equipped / Radiator Fan (6.2L Supercharged) – If Equipped 4 30 Amp Pink – Starter 5 40 Amp Green – Electronic Stability Control 6 30 Amp Pink – Electronic Stability Control 7 20 Amp Blue – Police Ignition Run / ACC #1 8 20 Amp Blue – Police Ignition Run / ACC # 2 9 – 20 Amp Yellow All-Wheel Drive Module – If Equipped 10 10 Amp Red Security – If Equipped / Under hood Lamp – Police 11 – 20 Amp Yellow Horns 12 – 10 Amp Red Air Conditioning Clutch 13 – – Fuse – Spare 14 – – Fuse – Spare 15 – 20 Amp Yellow Left HID – If Equipped 16 – 20 Amp Yellow Right HID – If Equipped 18 50 Amp Red “ Radiator Fan #2 -(Non 6.2L Supercharged) 19 50 Amp Red Electric Power Steering #2 -If Equipped / Radiator Fan (6.2L Supercharged) 20 30 Amp Pink – Wiper Motor 21 30 Amp Pink 20 Amp Blue -Police Headlamp Washers – If Equipped Police Bat Feed #2 22 40 Amp Green / 20 Amp Blue -Police Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 23 20 Amp Blue – Police Bat Feed # 1 24 20 Amp Blue – Police Ignition Run/ACC Feed # 3 28 – – Fuse – Spare 29 15 Amp Blue Transmission Control Module (Police) 30 – – Fuse – Spare 31 – 25 Amp Clear Engine Module 32 – – Fuse – Spare 33 – – Fuse – Spare 34 – 25 Amp Clear Powertrain #1 35 – 20 Amp Yellow Powertrain #2 36 – 10 Amp Red Anti-Lock Brake Module 37 10 Amp Red Engine Controller / Rad Fan Relays / Electric Power Steering Module / Fuel Pump Relay / 5-Speed 38 – 10 Amp Red Airbag Module 39 10 Amp Red EHPS (Police)/AC Clutch Relay / Vacuum Pump Relay 48 10 Amp Red AWD Module / Front Axle Disconnect 49 – – Fuse – Spare 50 – – Fuse – Spare 51 – 20 Amp Yellow Vacuum Pump 52 — 5 Amp Tan Adaptive Cruise – If Equipped 53 – – Fuse – Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Rear PDC (2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 2 60 Amp Yellow – Front PDC Feed #1 3 – – Fuse – Spare 4 60 Amp Yellow – Front PDC Feed #2 5 30 Amp Fink 20 Amp Blue – Police Sunroof/Dome Lamp -Police 6 40 Amp Green – Exterior Lighting #1 7 40 Amp Green – Exterior Lighting #2 8 30 Amp Fink – Interior Lighting 9 40 Amp Green – Power Locks 10 30 Amp Fink — Driver Door Control Module 11 30 Amp Fink — Passenger Door Control Module 12 20 Amp Yellow Dual USB Center Console Rear/Cigar Lighter IP -If Equipped 15 40 Amp Green – HVAC Blower 16 20 Amp Blue – Left Spot Lamp – Police 17 – – Fuse – Spare 18 30 Amp Fink — Mod Network Interface -Police 19 – – Fuse – Spare 20 – – Fuse – Spare 21 30 Amp Fink – Fuel Pump 22 – 20 Amp Yellow – Police Right Spot Lamp – Police 23 — 10 Amp Red Fuel Door/Diagnostic Port 24 – 10 Amp Red Integrated Center Stack 25 – 10 Amp Red Tire Pressure Monitor 26 15 Amp Blue Cygnus Transmission Module / Electronic Shift Module 27 – 25 Amp Clear Amplifier – If Equipped 31 — 25 Amp Breaker Power Seats -If Equipped 32 – 15 Amp Blue HVAC Module/Cluster 33 15 Amp Blue Ignition Switch/RF Hub Module 34 — 10 Amp Red Steering Column Module 35 – 5 Amp Tan Batten- Sensor 36 — 15 Amp Blue Electronic Exhaust Valve – If Equipped 37 – 20 Amp Yellow Radio 38 — 20 Amp Yellow Power Outlet Inside Arm Rest/Console Media Hub 40 – – Fuse – Spare 41 – – Fuse – Spare 42 30 Amp Pink – Rear Defrost 43 — 20 Amp Yellow Comfort Seat And Steering Wheel Module (Heated Steering Wheel/RR Heated Seats) 44 — 10 Amp Red Park Assist / Blind Spot / Rear View Camera 45 — 15 Amp Blue Cluster / Rearview Mirror / Compass / Humidity Sensor 46 — — Fuse – Spare 47 — 10 Amp Red Adaptive Front Lighting / Auto High BEAM / Day Time Running Lamps – If Equipped 48 — 20 Amp Yellow Active Suspension -If Equipped 49 — — Fuse – Spare 50 — — Fuse – Spare 51 — 20 Amp Yellow Front Heated Seats -If Equipped 52 — 10 Amp Red Heated Cupholders/Rear Heated Seat Switches -If Equipped 53 — 10 Amp Red HVAC Module/ln Vehicle Temperature Sensor 54 — – Fuse – Spare 55 — – Fuse – Spare 56 — – Fuse – Spare 57 — – Fuse – Spare 58 — 10 Amp Red Airbag Module 59 — 20 Amp Yellow Adjustable Pedals – Police 60 — 5 Amp Tan Heated Washer Nozzles 61 — – Fuse – Spare 62 — – Fuse – Spare 63 — — Fuse – Spare 64 — 25 Amp Breaker Rear Windows 65 — 10 Amp Red Airbag Module 66 — – Fuse – Spare 67 — 10 Amp Red Rain and Light Sensor / Sunroof / Inside RR View Mirror / Power Outlet Illumination (Center Console) / Police Run Acc Relay 68 — 10 Amp Red Dual USB Power Outlet -R/A Sense / Rear Sunshade 69 — — Fuse – Spare 70 — — Fuse – Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Front PDC (2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 1 – – Fuse – Spare 2 40 Amp Green Radiator Fan #1 – (Non 6.2L Supercharged) 3 50 Amp Red Electric Power Steering #1 – If Equipped / Radiator Fan (6.2L Supercharged) – If Equipped 4 30 Amp Fink – Starter 5 40 Amp Green – Anti Lock Brake 6 30 Amp Pink – Anti Lock Brake 7 20 Amp Blue – Police Ignition Run / ACC #1 8 20 Amp Blue – Police Ignition Run / ACC # 2 9 – 20 Amp Yellow All-Wheel Drive Module – If Equipped 10 10 Amp Red Under Hood Lamp – Police 11 – 20 Amp Yellow Horns 12 – 10 Amp Red Air Conditioning Clutch 13 – – Fuse – Spare 14 – – Fuse – Spare 15 – 20 Amp Yellow Left HID – If Equipped 16 – 20 Amp Yellow Right HID – If Equipped 18 50 Amp Red – Radiator Fan – (Non 6.2L Supercharged) 19 50 Amp Red — Electric Power Steering #2 – If Equipped / Radiator Fan #2 (6.2L Supercharged) 20 30 Amp Pink – Wiper Motor 21 30 Amp Pink 20 Amp Blue – Police Headlamp Washers – If Equipped Police Bat Feed #2 22 40 Amp Green / 20 Amp Blue – Police Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 23 20 Amp Blue – Police Bat Feed # 1 24 20 Amp Blue – Police Ignition Run/ACC Feed # 3 28 – – Fuse – Spare 29 15 Amp Blue Transmission Control Module (Police) 30 – – Fuse – Spare 31 – 25 Amp Clear Engine Module 32 – – Fuse – Spare 33 – – Fuse – Spare 34 – 25 Amp Clear Powertrain #1 35 – 20 Amp Yellow Powertrain #2 36 – 10 Amp Red Anti-Lock Brake Module 37 10 Amp Red Engine Controller / Rad Fan Relays / Electric Power Steering Module / 5-Speed TCM 38 – 10 Amp Red Airbag Module 39 10 Amp Red EHPS (Police) / AC Clutch Relay / Vacuum Pump Relay 48 10 Amp Red AWD Module/Front Axle Disconnect – If Equipped 49 – – Fuse – Spare 50 – – Fuse – Spare 51 – 20 Amp Yellow Vacuum Pump 52 – 5 Amp Tan Adaptive Cruise – If Equipped 53 – – Fuse – Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Rear PDC (2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 2 60 Amp Yellow – Front PDC Feed #1 3 – – Fuse – Spare 4 60 Amp Yellow – Front PDC Feed #2 5 30 Amp Pink 20 Amp Blue – Police Sunroof/Dome Lamp -Police 6 40 Amp Green – Exterior Lighting #1 7 40 Amp Green – Exterior Lighting #2 8 30 Amp Pink – Interior Lighting 9 40 Amp Green – Power Locks 10 30 Amp Pink – Driver Door Control Module 11 30 Amp Pink — Passenger Door Control Module 12 20 Amp Yellow Dual USB Center Console Rear/Cigar Lighter IP – If Equipped 15 40 Amp Green – HVAC Blower 16 20 Amp Blue – Left Spot Lamp – Police 17 – – Fuse – Spare 18 30 Amp Pink — Mod Network Interface -Police 19 – – Fuse – Spare 20 – – Fuse – Spare 21 30 Amp Pink – Fuel Pump 22 – 20 Amp Yellow – Police Right Spot Lamp – Police 23 – 10 Amp Red Fuel Door/ Diagnostic Port 24 – 10 Amp Red Integrated Center Stack 25 – 10 Amp Red Tire Pressure Monitor 26 – 15 Amp Blue Cygnus Transmission Module / Electronic Shift Module 27 – 25 Amp Clear Amplifier – If Equipped 31 – 25 Amp Breaker Power Seats – If Equipped 32 – 15 Amp Blue HVAC Module/Cluster 33 – 15 Amp Blue Ignition Switch/RF Hub Module 34 – 10 Amp Red Steering Column Module 35 – 5 Amp Tan Batten- Sensor 36 – 15 Amp Blue Electronic Exhaust Valve -If Equipped 37 – 20 Amp Yellow Radio 38 – 20 Amp Yellow Power Outlet Inside Arm Rest/Console Media Hub 40 – – Fuse – Spare 41 – – Fuse – Spare 42 30 Amp Pink – Rear Defrost 43 – 20 Amp Yellow Comfort Seat And Steering Wheel Module (Heated Steering Wheel/RR Heated Seats) 44 – 10 Amp Red Park Assist / Blind Spot / Rear View Camera 45 – 15 Amp Blue Cluster / Rearview Mirror / Compass / Humidity Sensor / Forward Facing Camera (Lane Departure) 46 – – Fuse – Spare 47 – 10 Amp Red Adaptive Front Lighting / Day Time Running Lamps – If Equipped 48 – 20 Amp Yellow Active Suspension -(6.4L / 6.2L) 49 – – Fuse – Spare 50 – – Fuse – Spare 51 – 20 Amp Yellow Front Heated / Vented Seats – If Equipped 52 – 10 Amp Red Heated Cupholders/Rear Heated Seat Switches – If Equipped 53 – 10 Amp Red HVAC Module/ln Vehicle Temperature Sensor 54 – – Fuse – Spare 55 – – Fuse – Spare 56 – – Fuse – Spare 57 – – Fuse – Spare 58 – 10 Amp Red Airbag Module 59 – 20 Amp Yellow Adjustable Pedals – Police 60 – – Fuse – Spare 61 – – Fuse – Spare 62 – – Fuse – Spare 63 – – Fuse – Spare 64 – 25 Amp Breaker Rear Windows 65 – 10 Amp Red Airbag Module 66 – – Fuse – Spare 67 – 10 Amp Red Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay 68 – 10 Amp Red Dual USB Power Outlet -R/A Sense / Rear Sunshade / RR USB Timer 69 – – Fuse – Spare 70 – – Fuse – Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Front PDC (2018, 2019, 2020, 2021, 2022, 2023)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 1 – – Fuse – Spare 2 40 Amp Green – Radiator Fan #1 – (Non 6.2L Supercharged) 3 50 Amp Red – Electric Power Steering #1 – If Equipped 4 30 Amp Pink – Starter 5 40 Amp Green – Anti Lock Brake 6 30 Amp Pink – Anti Lock Brake 7 20 Amp Blue – Police Ignition Run / ACC #1 8 50 Amp Red / 20 Amp Blue – Radiator Fan (6.2L Supercharged) / Police Ignition Run / ACC # 2 9 – 20 Amp Yellow All-Wheel Drive Module – If Equipped 10 – 10 Amp Red Under Hood Lamp – Police 11 – 20 Amp Yellow Horns 12 – 10 Amp Red Air Conditioning Clutch 13 – – Fuse – Spare 14 – – Fuse – Spare 15 – 20 Amp Yellow Left HID – If Equipped 16 – 20 Amp Yellow Right HID – If Equipped 18 50 Amp Red – Radiator Fan – (Non 6.2L Supercharged) 19 50 Amp Red – Electric Power Steering #2 – If Equipped 20 30 Amp Pink – Wiper Motor 21 30 Amp Pink 20 Amp Blue – Police – Headlamp Washers – If Equipped Police Bat Feed #2 22 40 Amp Green / 20 Amp Blue – Police – Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 23 20 Amp Blue – Police Bat Feed # 1 24 50 Amp Red / 20 Amp Blue – Radiator Fan (6.2L Supercharged) / Police Ignition Run/ACC Feed # 3 28 – – Fuse – Spare 29 – 15 Amp Blue Transmission Control Module (Police) 30 – – Fuse – Spare 31 – 25 Amp Clear Engine Module 32 – – Fuse – Spare 33 – – Fuse – Spare 34 – 25 Amp Clear Powertrain #1 35 – 20 Amp Yellow Powertrain #2 36 – 10 Amp Red Anti-Lock Brake Module 37 – 10 Amp Red Engine Controller / Rad Fan Relays / Electric Power Steering Module / 5-Speed TCM 38 – 10 Amp Red Airbag Module 39 – 10 Amp Red EHPS (Police) / AC Clutch Relay / Vacuum Pump Relay 48 – 10 Amp Red AWD Module/Front Axle Disconnect – If Equipped 49 – – Fuse – Spare 50 – – Fuse – Spare 51 – 20 Amp Yellow Vacuum Pump 52 – 5 Amp Tan Adaptive Cruise – If Equipped 53 – – Fuse – Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the Rear PDC (2018, 2019, 2020, 2021, 2022, 2023)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini-Fuse Description 2 60 Amp Yellow – Front PDC Feed #1 3 – – Fuse – Spare 4 60 Amp Yellow – Front PDC Feed #2 5 30 Amp Pink 20 Amp Blue – Police – Sunroof/Dome Lamp – Police 6 40 Amp Green – Exterior Lighting #1 7 40 Amp Green – Exterior Lighting #2 8 30 Amp Pink – Interior Lighting 9 40 Amp Green – Power Locks 10 30 Amp Pink – Driver Door Control Module 11 30 Amp Pink – Passenger Door Control Module 12 – 20 Amp Yellow Dual USB Center Console Rear/Cigar Lighter IP -If Equipped 15 40 Amp Green – HVAC Blower 16 20 Amp Blue – Left Spot Lamp – Police 17 20 Amp Blue – Right Spot Lamp – Police 18 30 Amp Pink – Mod Network Interface – Police 19 – – Fuse – Spare 20 – – Fuse – Spare 21 30 Amp Pink – Fuel Pump (Non 6.2L SRT Demon) 22 – 5 Amp Tan Cyber Gateway Mod 23 – 10 Amp Red Fuel Door/ Diagnostic Port 24 – 10 Amp Red Integrated Center Stack 25 – 10 Amp Red Tire Pressure Monitor 26 – 15 Amp Blue Cygnus Transmission Module / Electronic Shift Module 27 – 25 Amp Clear Amplifier – If Equipped 31 – 25 Amp Breaker Power Seats – If Equipped 32 – 15 Amp Blue HVAC Module/Cluster 33 – 15 Amp Blue Ignition Switch/RF Hub Module – If Equipped 34 – 10 Amp Red Steering Column Module/Clock (300) 35 – 5 Amp Tan Battery Sensor 36 – 15 Amp Blue Electronic Exhaust Valve – If Equipped 37 – 20 Amp Yellow Radio 38 – 20 Amp Yellow Power Outlet Inside Arm Rest/Console Media Hub 40 30 Amp Pink – Fuel Pump (6.2L SRT Demon – If Equipped) 41 30 Amp Pink – Fuel Pump (6.2L SRT Demon – If Equipped) 42 30 Amp Pink – Rear Defrost 43 – 20 Amp Yellow Comfort Seat And Steering Wheel Module (Heated Steering Wheel/RR Heated Seats) 44 – 10 Amp Red Park Assist / Blind Spot / Rear View Camera 45 – 15 Amp Blue Cluster / Rearview Mirror / Compass / Humidity Sensor / Forward Facing Camera (Lane Departure) / Cyber Gateway 46 – – Fuse – Spare 47 – 10 Amp Red Adaptive Front Lighting / Day Time Running Lamps -If Equipped 48 – 20 Amp Yellow Active Suspension – (6.4L / 6.2L) 49 – – Fuse – Spare 50 – – Fuse – Spare 51 – 20 Amp Yellow Front Heated / Vented Seats – If Equipped 52 – 10 Amp Red Heated Cupholders/Rear Heated Seat Switches -If Equipped 53 – 10 Amp Red HVAC Module/In Vehicle Temperature Sensor 54 – – Fuse – Spare 55 – – Fuse – Spare 56 – – Fuse – Spare 57 – – Fuse – Spare 58 – 10 Amp Red Airbag Module 59 – 20 Amp Yellow Adjustable Pedals – Police 60 – – Fuse – Spare 61 – – Fuse – Spare 62 – – Fuse – Spare 63 – – Fuse – Spare 64 – 25 Amp Breaker Rear Windows 65 – 10 Amp Red Airbag Module 66 – – Fuse – Spare 67 – 10 Amp Red Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay 68 – 10 Amp Red Dual USB Power Outlet – R/A Sense, Rear Sunshade, RR USB Timer 69 – – Fuse – Spare 70 – – Fuse – Spare
This content requires JavaScript and a valid membership to view.
