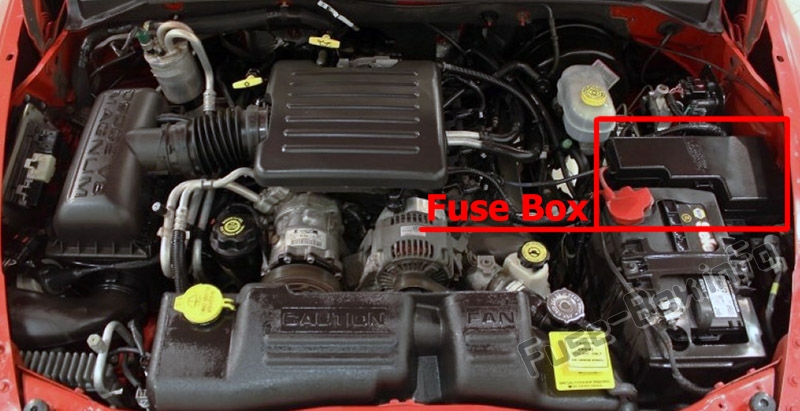

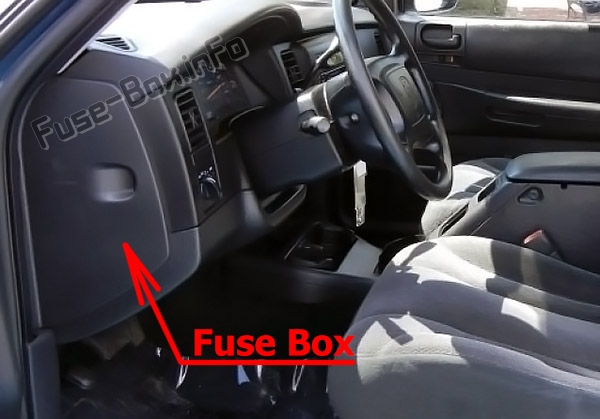

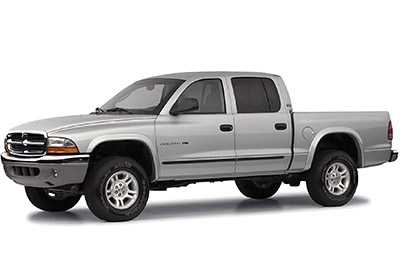

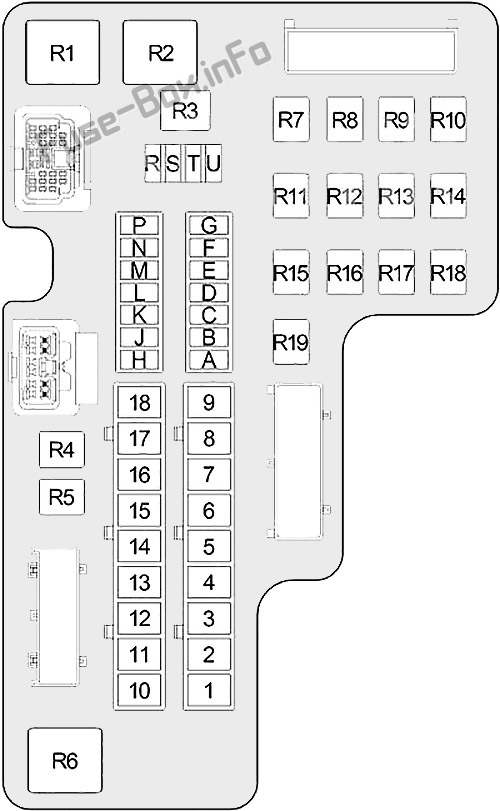

Explore Dodge Dakota fuse box diagrams in this clear guide focused on the updated version of the second-generation pickup. Here we cover the facelifted Dodge Dakota (2001–2004) and provide fuse diagrams for 2001, 2002, 2003 and 2004, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a straightforward reference for electrical repairs and troubleshooting.
Sentry Key Immobilizer Module, Instrument Cluster, Dome Lamp, Glove Box Lamp and Switch, Driver Door Module, Data Link Connector, Overhead Console, Cargo Lamp, Radio (2000-2001), Center Console Lamp (2000-2001)
2
20
Horn Relay
3
20
2002-2004: Radio
4
20
Park Lamp Relay (Front Park/Turn Signal Lamp, Front Side Marker Lamp, License Lamp, Rear Tail/Stop/Turn Signal Lamp, Central Timer Module, Engine Compartment Fuse: “T”)
5
20
Front Wiper Relay, Central Timer Module, Multi-Function Switch, Wiper Motor
6
–
Not Used
7
–
Not Used
8
10
Instrument Cluster, Powertrain Control Module, Transmission Control Module
9
5
Instrument Cluster, A/C Heater Control, Radio, Transfer Case Selector Switch, Overhead Console, Shift Bezel Lamp, Cigar Lighter
10
10
Powertrain Control Module, Fuel Pump Relay, Radiator Fan Relay, Sentry Key Immobilizer Module
11
10
Air Conditioner Compressor Clutch Relay, Automatic Day/Night Mirror, Overhead Console, Central Timer Module, Transfer Case Selector Switch, Duty Cycle EVAP/Purge Solenoid (2000-2001)
12
10
Starter Relay, Powertrain Control Module
13
15 or 20
Amplifier (2000-2001 – 15A; 2002-2004 – 20A)
14
10
Instrument Cluster
15
10
Power Mirror
16
–
Not Used
17
15
Cigar Lighter/Power Outlet
18
10
Radio
19
10
Combination Flasher
20
10
Airbag Control Module, Passenger Airbag On/Off Switch
21
10
Airbag Control Module
22
–
Not Used
23
–
Not Used
24
15
Rear Window Defogger Relay
25
10
Heating and Air Conditioning Control
26
15
Back-Up Lamp, Transmission Solenoid/TRS Assembly (4.7L + Automatic Transmission), Back-Up Lamp Switch (Manual Transmission), Passenger Door Power Lock Switch, Automatic Day/Night Mirror, Trailer Tow Connector
27
10
ABS
28
25
Driver Door Module (Power Window)
29
–
Not Used
Relays

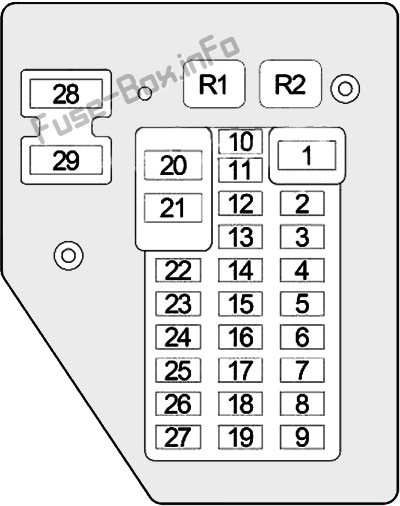

Assignment of relays in the passenger compartment
Fuse Data
