Dodge Dakota | 2005-2011

Explore Dodge Dakota fuse box diagrams in this practical guide that helps you understand the electrical layout of the later third-generation trucks. Here we cover the third-generation Dodge Dakota (2004–2011) and provide fuse diagrams for 2005, 2006, 2007, 2008, 2009, 2010 and 2011, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear reference for diagnosing electrical components and performing maintenance.

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Location

The Power Distribution Center (PDC) is located on the left side of the engine compartment (on the driver’s side).
A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.

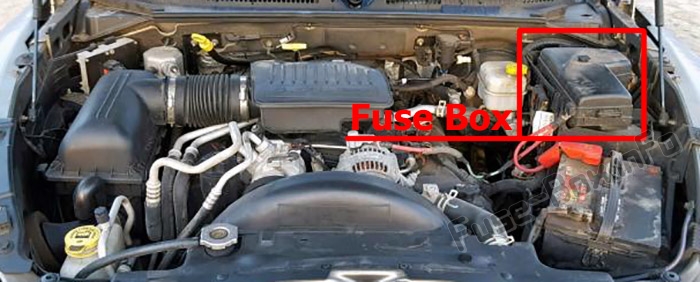

The location of the fuses in the engine compartment: Dodge Dakota (2005-2011)

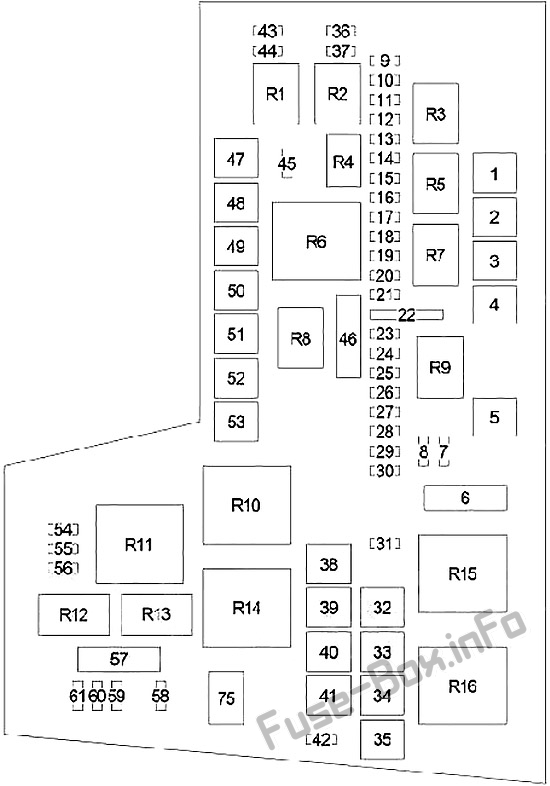

Diagram

Fuses

Assignment of fuses in the PDC

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.CartridgeMiniDescription
1Spare
240A2006–2008: Ignition Accessory (ACC) / 2009–2011: Spare
330AElectric Brake
450APower Seat
540A2006–2008: Ignition Run Only / 2009–2011: Spare
620A2006–2010: IOD – CCN, Radio / 2011: IOD – Instrument Cluster, Radio
710APCM / Fuel / RAD / AC Coils
810A2006–2010: CCN / Mirror / 4×4 / 2011: Instrument Cluster / Mirror / 4×4
910A2006–2008: Airbag System #3 / 2009–2011: Spare
102A2006–2008: Spare / 2009: Low Current Ignition Switch / 2010–2011: Run/Start Ignition Switch
1110AAC Clutch
1215ATrailer Tow Lt Stop/Turn
1315ATrailer Tow Rt Stop/Turn
1420AIgnition Off Draw (IOD) #2
1525APCM / Transmission
1620AHorn
1720AABS Feed (Valves)
1820AFuel Pump
1915A2006–2010: CHMSL / 2011: Rear Center Brake Lamp
2020A2006–2010: CCN Door Locks/BTSI / 2011: Instrument Cluster Door Locks/BTSI
2125AAudio Amp
2220APower Outlet (Switchable)
2320AFog Lamps
2420APCM B+
2515A2006–2010: CCN Illumination / 2011: Instrument Cluster Illumination
2620A2006–2008: Spare / 2009–2011: Ignition Run/Start Feed
2710APower Mirror
2820APower Outlet
2920A2006–2010: FCM 4 (Wipers) / 2011: BCM 4 (Wipers)
30Spare
3130A2006–2008: Spare / 2009: Ignition Accessory Feed / 2010–2011: Ignition Run/AC/Windows
3230A2006–2010: FCM 1 (Ext. Lights #1) / 2011: BCM 1 (Ext. Lights #1)
3330A2006–2010: Auto Shut Down / 2011: Automatic Shutdown
3430A2006–2010: FCM 2 (Ext. Lights #2) / 2011: BCM 2 (Ext. Lights #2)
3540A2006–2008: F1VAC Blower Motor / 2009–2010: HVAC Blower Motor / 2011: Climate Control Blower Motor
3610A2006–2008: Ignition UNLK/RN/ST / 2009–2011: Spare
3710A2006–2008: Crank / 2009–2011: Spare
3820A2006–2008: Run/Start / 2009–2011: Spare
3930AStarter Solenoid
4040A2006–2008: Spare / 2009–2011: Ignition Run Feeds
4130AWiper Motor
4225A2006–2010: FCM 5 (T-Case) / 2011: BCM 5 (T-Case)
4310ALt Park Lamps
4410ARt Park Lamps
4520ATrailer Tow Park Lamps
4610AAirbag System #2
4740A2006–2008: Ignition Run/Accessory / 2009–2011: Spare
4820ASunroof / Sound Box
4930ATrailer Tow B+
5040A2006–2010: ABS Module Pump / 2011: Antilock Brakes Pump
5140APark Lamps
52Spare
5340ARear Defogger
54Spare
5510A2006–2008: CCN Accessory Feed / 2009–2011: Spare
5610AHeated Seats
5720AAirbag System #2
5820AHeated Seats
5910A2006–2010: HVAC Module / 2011: Climate Control Module
6010A2006–2010: ABS Module / 2011: Antilock Brakes Module
6120A2006–2010: FCM 3 (Reverse Lamps) / 2011: BCM 3 (Reverse Lamps)

Relays

Assignment of relays in the PDC

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№Description
R1Right Trailer Tow
R2Left Trailer Tow
R3Air Conditioner Compressor Clutch
R4Horn
R5Transmission Control
R6Park Lamp
R7Fuel Pump
R8Fog Lamp
R9Not Used
R10Rear Window Defogger
R11Ignition – RUN
R12Wiper Motor High/Low
R13Wiper Motor On/Off
R14Starter
R15Automatic Shut Down
R16Blower Motor
75Ignition – ACC
