Explore Dodge Dart fuse box diagrams in this straightforward guide that helps you make sense of the PF generation’s electrical layout. Here we take a look at the Dodge Dart (2012–2016) (Model Code: PF ) and provide fuse diagrams for 2013, 2014, 2015 and 2016 , along with the location of the fuse panels and the assignment of each fuse , giving you a clear reference for handling electrical issues and maintenance.

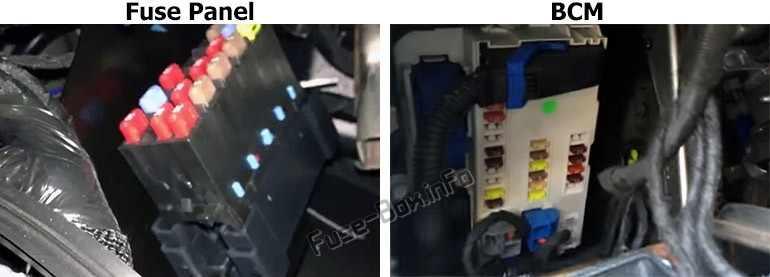

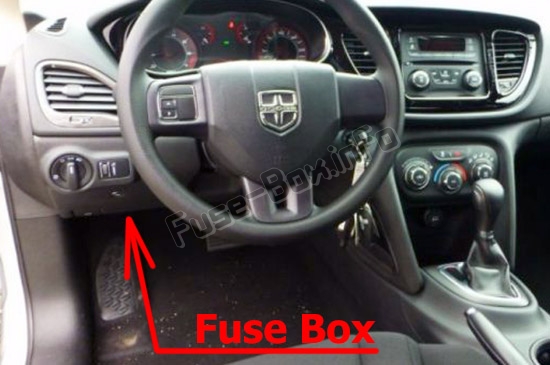

It is located on the driver’s side under the instrument panel.

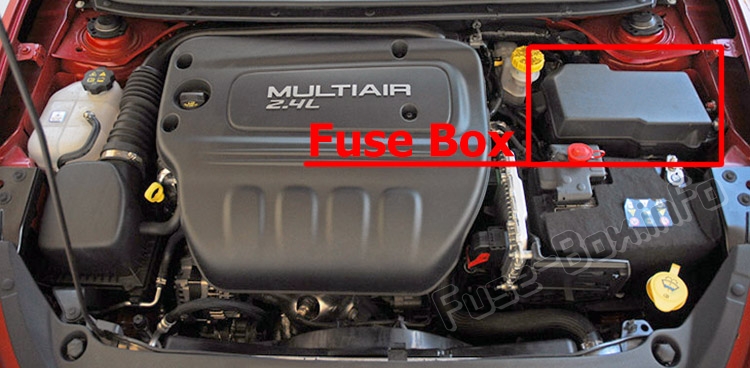

The Power Distribution Center (PDC) is located on the right side of the engine compartment, near the battery.

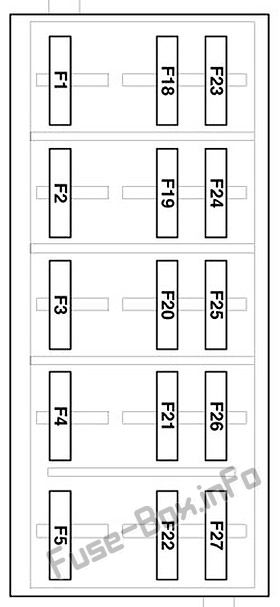

Assignment of fuses in the interior fuse box (2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Amp/Color Description F1 20 Amp Yellow Front Heated Seats F2 20 Amp Yellow Rear Heated Seats, Heated Steering Wheel F3 10 Amp Red PAM, Rear Camera, LBSS, RBSS, Compass F4 15 Amp Blue IPC F5 10 Amp Red HVAC, Humidity Sensor, In-Car Temperature Sensor, Inside Mirror Assembly F18 15 Amp Blue Radio F19 10 Amp Red Fuel Door F20 10 Amp Red SCCM, SAS, Switch Bank F21 10 Amp Red Diagnostic Port F22 10 Amp Red UGDO, EOM F23 20 Amp Yellow Sunroof F24 5 Amp Tan Direct Battery For Underhood PDC (RLY Coils) F25 5 Amp Tan DDCT Feed #4 F26 5 Amp Tan Stop Lamp Switch F27 10 Amp Red Pneumatic Lumbar Support (Solenoid), Pneumatic Lumbar Support (Pump Motor)
This content requires JavaScript and a valid membership to view.

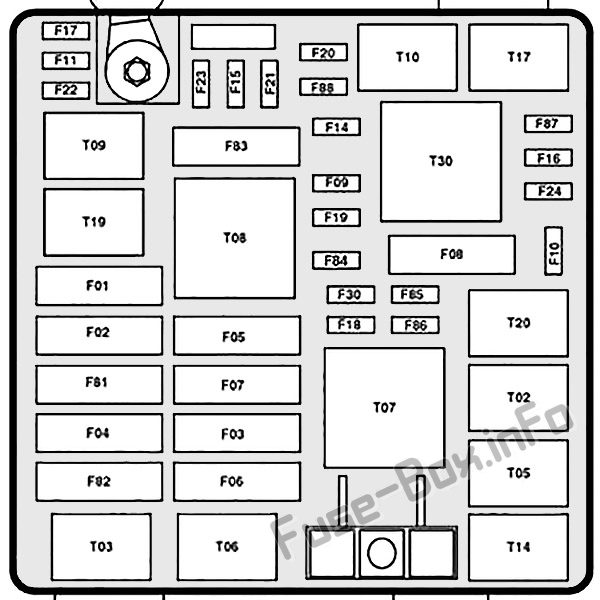

Assignment of fuses in the PDC (2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Maxi Fuse Mini Fuse Description F01 70 Amp Tan — Direct Battery Feed #1 To BCM F02 60 Amp Blue — Direct Batterv Feed #2 To BCM F03 30 Amp Green — Output For Starter Relay #1 F04 40 Amp Orange — ESP Pump Motor F05 40 Amp Orange — DDCT Feed #1 (SDU) F06 30 Amp Green — Direct Batterv Feed #3 To BCM F07 40 Amp Orange EBL RLY Coil, Blower Motor RLY Coil F09 5 Amp Tan Radiator Fan Enable RLY, Radiator Fan Enable RLY Coil F10 — 10 Amp Red ORC F11 — 20 Amp Yellow ECM, EPS, Backup Lamp Switch F14 — 15 Amp Blue DDCT Feed #2 F15 — 15 Amp Blue DDCT Feed #3 F16 — 15 Amp Blue Ignition Coils, Coil Capacitor F17 — 15 Amp Blue ESC, Brake Pedal Switch, OCM F18 — 20 Amp Yellow ECM F19 — 10 Amp Red A/C Compressor Clutch F20 — 30 Amp Green EBL F21 — 20 Amp Yellow Fuel Pump F22 — 10 Amp Red ORC F23 — 25 Amp Natural ESC F24 20 Amp Yellow ECM, Fuel Injectors, Active Grill Shutter (AGS) F30 — 20 Amp Yellow Power Outlet (Console) F81 60 Amp Blue Interior PDC Battery Feed, Power Seats F82 30 Amp Green — Amplifier F83 40 Amp Orange — HVAC Blower Motor F84 — 20 Amp Yellow Cigar Lighter F85 10 Amp Red Sunroof, LRSM, Power Outlet (Console), UCI/ AUX Port, Cigar Lighter F86 — 20 Amp Yellow — F87 10 Amp Red Wastegate, Purge Solenoid, OBD Vent Valve, Oxygen Sensor Heaters F88 — 10 Amp Red Heated Outside Mirrors
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register

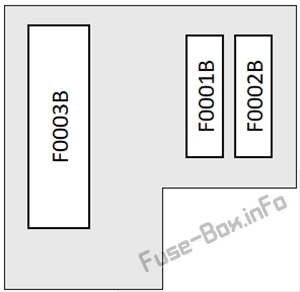

№ Amperage Description F0001B 70A Electric Power Steering (EPS) F0002B 60A Radiator Fan – PWM F0003B 200A Alternator
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the interior fuse box (2014, 2015, 2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Mini Fuse Description F1 – 20 Amp Yellow Front Heated Seats – If Equipped F2 – 20 Amp Yellow Rear Heated Seats, Heated Steering Wheel – If Equipped F3 – 10 Amp Red Park Assist Module, Rear Camera, Left and Right Blind Spot Sensor, Compass – If Equipped F4 – 15 Amp Blue Instrument Cluster F5 – 10 Amp Red HVAC, Humidity Sensor, In-Car Temperature Sensor, Inside Mirror Assembly F18 – 15 Amp Blue Radio F19 – 10 Amp Red Fuel Door (2014) F20 – 10 Amp Red Steering Column Control Module, Switch Bank F21 – 10 Amp Red Diagnostic Port F22 – 10 Amp Red Universal Garage Door Opener, EOM F23 – 20 Amp Yellow Sunroof F24 – 5 Amp Tan Run/Accessory Relay F25 – 5 Amp Tan Transmission Control Module #4 F26 – 5 Amp Tan Stop Lamp Switch F27 – 10 Amp Red Pneumatic Lumbar Support
This content requires JavaScript and a valid membership to view.

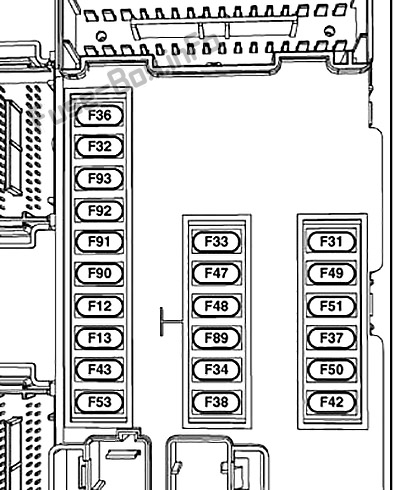

Assignment of fuses in the Body Control Module (2014, 2015, 2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Amp/Color Description F12 – Spare F13 15 Amp Blue Left Headlamp F31 – Spare F32 10 Amp Red Interior Lighting/Decklid/Liftgate Release F33 25 Amp Clear Window Motor – Driver F34 25 Amp Clear Window Motor – Passenger F36 15 Amp Blue Intrusion Module F37 10 Amp Red Instrument Panel Cluster F38 20 Amp Yellow Door Locks F42 – Spare F43 20 Amp Yellow Windshield Washer Pump F47 5 Amp Tan Transmission Control Module (Tcm) F48 20 Amp Yellow Spare F49 7.5 Amp Brown Stop Lamp Switch F50 7.5 Amp Brown Pneumatic Lumbar Support F51 7.5 Amp Brown Cd/Hands-Free Module – Bluetooth/Radio Display F53 7.5 Amp Brown Driver Window Switch/Power Mirrors F89 5 Amp Tan Trunk Lamp F90 7.5 Amp Brown Front Fog Lamps – Right F91 7.5 Amp Brown Front Fog Lamps – Left F92 7.5 Amp Brown High Beams (Shutters) F93 15 Amp Blue Right Headlamp
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the PDC (2014, 2015, 2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Maxi Fuse Mini Fuse Description F01 70 Amp Tan – Body Control Module #1 F02 60 Amp Blue – Body Control Module #2 F03 30 Amp Green – Output For Starter Relay #1 F04 40 Amp Orange – ESC Pump Motor F05 40 Amp Orange – Transmission Control Module #1 F06 30 Amp Green – Body Control Module #3 F07 40 Amp Orange – EBL RLY Coil, Blower Motor RLY Coil F09 – 5 Amp Tan Radiator Fan F10 – 10 Amp Red ORC F11 – 20 Amp Yellow Run/Start, Engine Control Module F14 – 15 Amp Blue Transmission Control Module #2 F15 – 15 Amp Blue Transmission Control Module #3 F16 – 15 Amp Blue Engine Control Module, Ignition Coils F17 – 15 Amp Blue Brake System Module F18 – 20 Amp Yellow Engine Control Module F19 – 10 Amp Red A/C Compressor Clutch F20 – 30 Amp Green Rear Defroster (EBL) F21 – 20 Amp Yellow Fuel Pump F22 – 10 Amp Red Occupant Restraint Controller F23 – 25 Amp Natural Brake System Module F24 – 20 Amp Yellow Engine Control Module, Fuel Injectors F30 – 20 Amp Yellow Power Outlet (Console) F81 60 Amp Blue – Interior PDC Battery Feed, Power Seats F82 30 Amp Green – Amplifier F83 40 Amp Orange – HVAC Blower Motor F84 – 20 Amp Yellow Cigar Lighter F85 – 10 Amp Red Sunroof, LRSM, Power Outlet (Console), UCI/AUX Port, Cigar Lighter F86 – 20 Amp Yellow – F87 – 10 Amp Red Wastegate, Purge Solenoid, OBD Vent Valve, Oxygen Sensor Heaters F88 – 10 Amp Red Heated Outside Mirrors
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F0001B 70A Electric Power Steering (EPS) F0002B 60A Radiator Fan – PWM F0003B 200A Alternator
This content requires JavaScript and a valid membership to view.
