Dodge Stratus (1995-2000)

Explore Dodge Stratus fuse box diagrams in this straightforward guide designed to help you sort out the wiring on the original generation with ease. Here we take a look at the first-generation Dodge Stratus (1995–2000) and include fuse diagrams for 1995, 1996, 1997, 1998, 1999 and 2000, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear overview of what powers each system in this early midsize sedan.

Passenger compartment

Fuse box location

The fuse block is located behind the cover on the driver’s side of the instrument panel. Pull the cover straight away from the instrument panel for access.

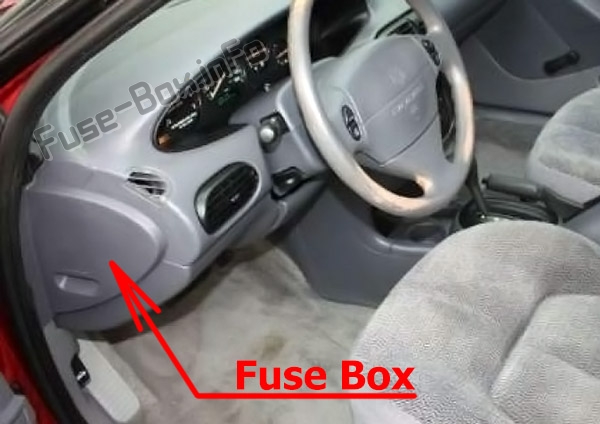

The location of the fuses in the passenger compartment: Dodge Stratus (1995-2000)

Fuse box diagram

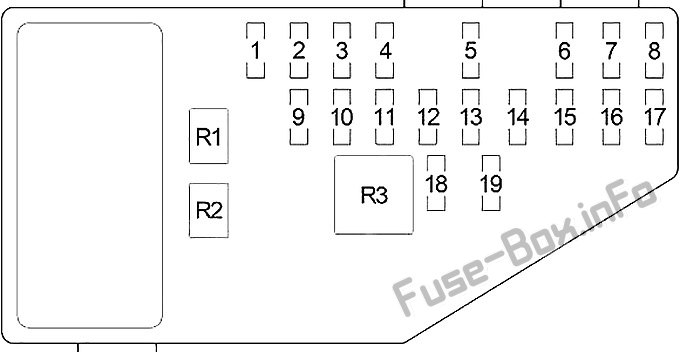

Instrument panel fuse box diagram: Dodge Stratus (1995, 1996, 1997, 1998, 1999, 2000)

Fuses

Assignment of fuses in the interior fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№Amp RatingDescription
130Blower Motor
210 or 20Right Headlamp (High Beam), Daytime Running Lamp Module (Convertible – 20A)
310 or 20Left Headlamp (High Beam) (Convertible – 20A)
415Back-Up Lamp (Back-Up Lamp Switch (M/T), Transmission Range Sensor (A/T)), Power Top Relay (Convertible), Daytime Running Lamp Module, Power Door Lock Switch, Power Mirror Switch, Automatic Day/Night Mirror, Steering Proportional Steering Module
510Dome Lamp, Data Link Connector, Power Antenna, Overhead Map Lamp, Trunk Lamp, Traveler, Body Control Module, Radio, Glove Box Lamp, Visor/Vanity Lamp, Universal Garage Door Opener, Automatic Day/Night Mirror, Illuminated Entry Relay, Courtesy Lamp, Power Door Lock Switch, Door Arm/Disarm Switch, Key-In Halo Lanp, Sunroof Control Module
610Heated Mirror, A/C Heater Control
715 or 201995-1997: Headlamp Switch (15A);
1998-2000:  Instrument Cluster, Headlamp Switch (20A)
820Cigar Lighter/Power Outlet, Horn Relay
915Body Control Module
1020Rear Fog Lamp Switch, Daytime Running Lamp Module
1110Body Control Module, Instrument Cluster, Autostick Switch, Transmission Control Module
1210Left Headlamp (Low Beam), Daytime Running Lamp Module
1320Right Headlamp (Low Beam), Front Fog Lamp Switch
1410Radio
1510Combination Flasher, Seat Belt Control Module (Convertible), Intermittent Wiper Relay, Wiper (High/Low) Relay, Rear Window Defogger Relay
1610Airbag Control Module
1710Airbag Control Module

Circuit Breakers

Assignment of circuit breakers in the interior fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Amp ratingDescription
1820Power Seat Switch, Decklid Release Relay
1920Power Window, Master Power Window Switch, Window Timer Module, Sunroof Control module

Relays

Assignment of relays in the interior fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Headlamp Delay
R2Horn
R3Rear Window Defogger

Engine compartment

Fuse box location

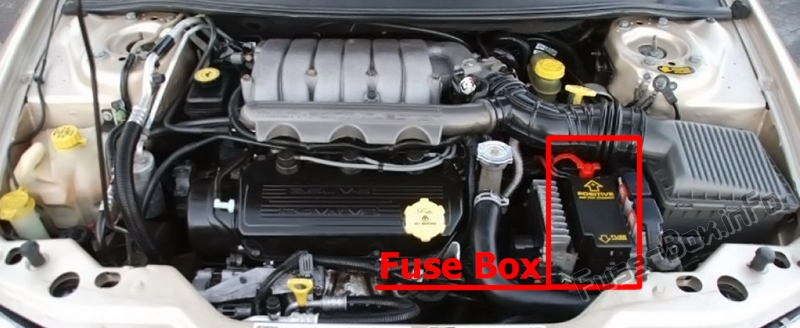

The location of the fuses in the engine compartment: Dodge Stratus (1995-2000)

Fuse box diagram

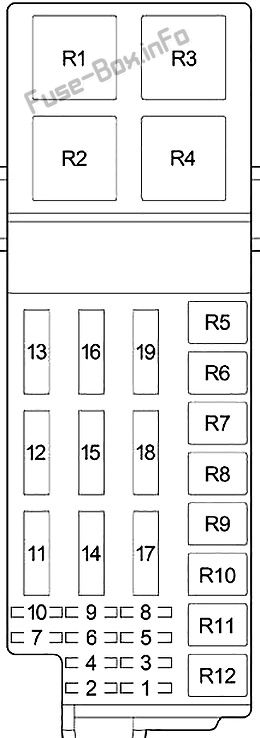

Under-hood fuse box diagram: Dodge Stratus (1995, 1996, 1997, 1998, 1999, 2000)

Fuses

Assignment of fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№Amp RatingDescription
110Oxygen Sensor Downstream
220Anti-lock braking system (ABS)
320Transmission Control Module, Transmission Control Relay
420Stop Lamp Switch, Instrument Panel Fuses: “5”
520Automatic Shut Down Relay (Fuel Injectors, Ignition Coil Pack (2.0L and 2.4L), Noise Suppressor (2.0L and 2.4L), Generator, Oxygen Sensor Upstream, Distributor (2.5L) EGR Solenoid, Fuse: “1”), Powertrain Control Module
620Combination Flasher, Sentry Key Immobilizer Module
710Ignition Switch (Instrument Panel Fuses: “11”)
820Starter Relay, Fuel Pump Relay, Ignition Switch (Body Control Module, Clutch Interlock Switch (M/T), Transmission Control Module (EATX), Instrument Panel Fuses: “14”, “15”, “17”, Engine Compartment Fuses: “9”, “10”)
910Air Conditioner Compressor Clutch Relay, Radiator Fan (High Speed) Relay, Radiator Fan (Low Speed) Relay, Fuel Pump Module, Instrument Cluster, Sentry Key Immobilizer Module, Brake Shift Interlock Solenoid
1010Fuel Pump Relay, Powertrain Control Module, ABS
1120Seat Belt Control Module (Convertible)
1240Rear Window Defogger Relay
1340Anti-lock braking system (ABS)
1440Instrument Panel Fuses: “7”, “8”
1540Headlamp Switch, Headlamp Delay Relay (Body Control Module, Headlamp Switch, Instrument Panel Fuses: “12”, “13”), Instrument Panel Fuses: “9”, “10””18″
1640Ignition Switch (Instrument Panel Fuses: “1”, “4”, “16”, “19”)
1740Power Top Up/Down Relays (Convertible)
1840Intermittent Wiper Relay (Wiper (High/Low) Relay)
1940Air Conditioner Compressor Clutch Relay, Radiator Fan (High Speed) Relay, Radiator Fan (Low Speed) Relay

Relays

Assignment of relays in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Radiator Fan (High Speed)
R2Automatic Shut Down
R3Radiator Fan (Low Speed)
R4Starter
R5Not Used
R6Air Conditioner Compressor Clutch
R7Power Tow (Convertible)
R8Intermittent Wiper
R9Wiper (High/Low)
R10Fuel Pump
R11Transmission Control
R12Not Used
