Ford Explorer (2025-2026)

Explore Ford Explorer fuse box diagrams in this up-to-date guide that outlines the electrical layout of the refreshed full-size SUV. In this article, we consider the facelifted sixth-generation Ford Explorer (Model Code: U625), available from 2025 to the present, and provide fuse box diagrams for Ford Explorer 2025 and 2026, along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

Fuse Box Locations

Engine Compartment

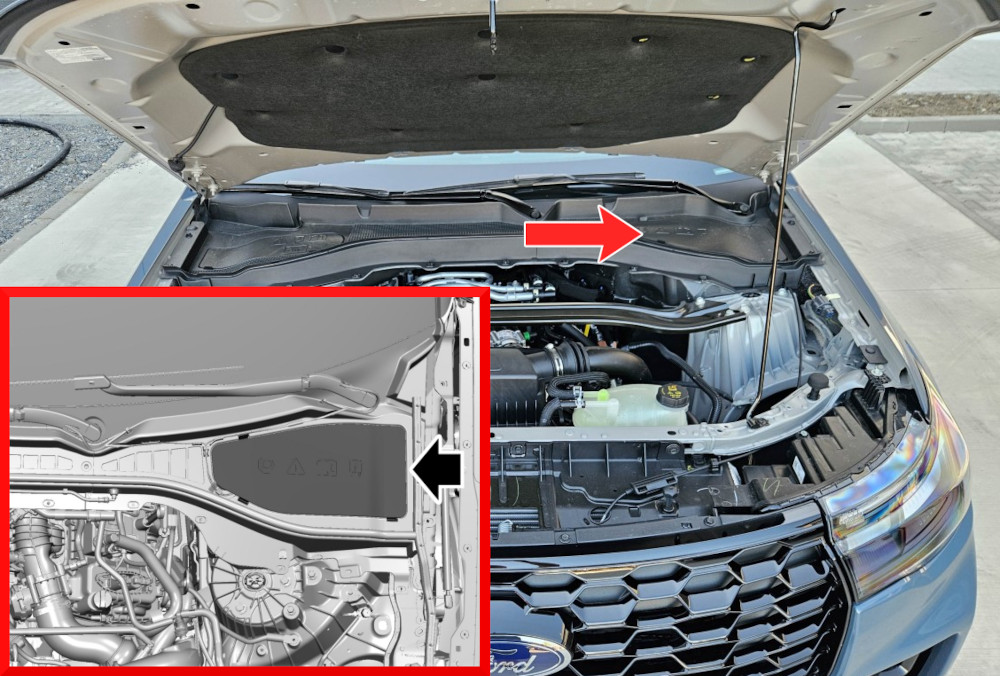

The under-hood fuse box is located on the driver’s side, near the windshield wiper.

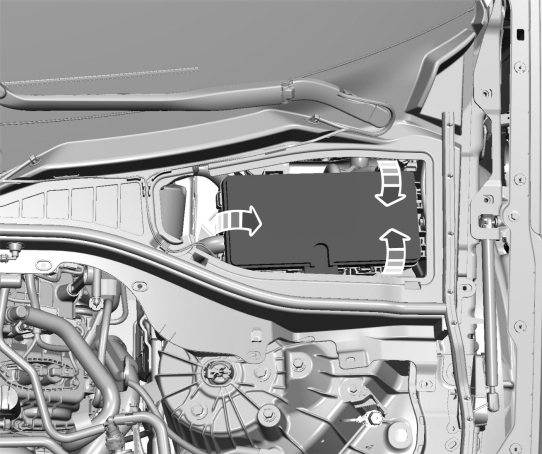

Remove the top cover to reach the fuse box, then remove the fuse box cover to access the fuses.

Passenger Compartment

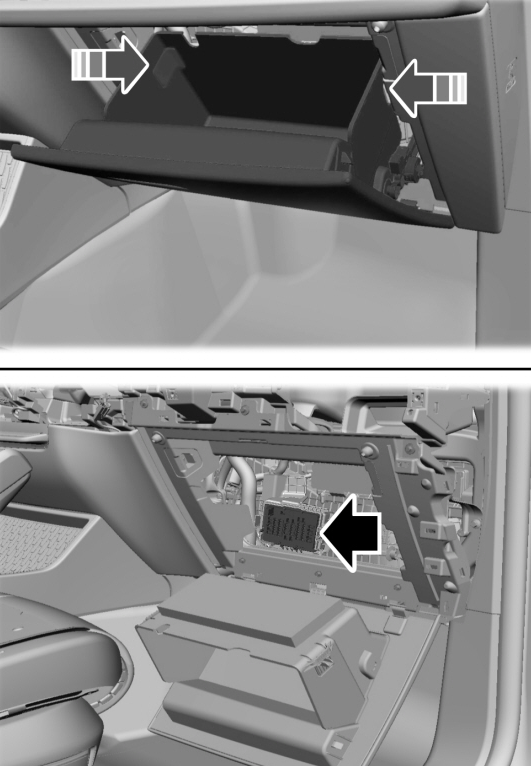

The passenger compartment fuse box is located under the glove box.

To access it, open the glove compartment, then push the tabs inward to release the detent and fully lower the glove compartment.

Fuse Box Diagrams

Engine Compartment

Assignment of the fuses in the engine compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1  30 ABody control module feed 1.
3  30 ABody control module feed 2.
4  30 AFuel pump feed.
5  5 ALive power.
6  20 APowertrain control module – vehicle power 1.
7  20 APowertrain control module – vehicle power 2.
8  20 APowertrain control module – vehicle power 3.
9  20 APowertrain control module – vehicle power 4.
13  40 ABlower motor.
14  15 APowertrain control module – auxiliary vehicle power 3.
16  15 ARear windshield washer.
18  30 AStarter motor solenoid.
21  10 ANot used (spare).
22  5 ARun-start signal – electronic power assist steering.
23  5 ARun-start signal – anti-lock brake system.
24  5 ARun-start signal – powertrain control module.
25  10 AAir quality sensor.   Not used (police).
26  15 ARun-start power – transmission oil pump.   Not used (police).
28  40 AAnti-lock brake system valves.
29  60 AAnti-lock brake system pump.
30  50 AUpfitter interface module power feed 1 (police).
31  50 AUpfitter interface module power feed 2 (police).
32  20 APower outlet 1 – front bin.
33  20 APower outlet 2 – cargo area.
34  20 APower outlet 3 – main bin (police).
35  20 APower outlet 4 – back of console.
36  40 A110 V inverter.   Not used (police).
38  30 AClimate controlled front seats.   Not used (police).
39  30 ANot used (spare).
40  60 ANot used (spare).
42  30 ATrailer tow brake control.
43  40 ABody control module feed 3.
45  15 ARun-start power – interior power distribution box.
48  5 APolice accessory independent timed-release output.
50  40 AHeated rear window.
54  20 ARun-start power – heated steering wheel.   Run-start power 1 – police tap-in (police).   Run-start power – visor control module (police).
55  20 ATrailer tow park lamps.
57  30 ATrailer tow battery charge.
58  10 ATrailer tow back up lamps.
64  40 ADriveline control module.
69  30 AFront wiper motor.
70  10 AOnboard diagnostics connector.
71  15 ARear wiper motor.
72  20 ANot used (spare).
79  5 AHeadlamp control module.
88  20 ARear blower motor.
91  20 ATrailer tow lighting module.
95  15 AHybrid powertrain control module (FHEV only).
103  50 ACargo area power feed 2 (police).
104  50 ACargo area power feed 1 (police).
106  40 APolice 6-way inline power feed 2.
107  40 APolice 6-way inline power feed 1.
108  20 APolice spot lamps.
111  30 ABody control module feed 4.
114  50 ANot used (spare).
115  20 AAudio amplifier power feed 1.   Police tap-in power feed 2.
116  5 AStart signal – police tap-in.
118  30 ARear heated seats.
20 ARun-start power 2 – police tap-in.
120  15 AFuel injectors.
124  5 ARain sensors.   Not used (police).
125  5 ANot used (spare).
127  20 AAudio amplifier power feed 2.   Police tap-in power feed 1.
128  5 ANot used (spare).
131  40 APower folding seats.   Not used (police).
133  15 ANot used (spare).
139  5 AUSB power outlet – back of console.   Not used (police).
140  5 AUSB power outlet – main bin.   Not used (police).
141  5 AUSB power outlet – third row.   USB power outlet – cargo area (police).
144  15 ANot used (spare).
146  5 AHybrid battery energy control module (FHEV only).
148  30 ALeft LED headlamp.
149  30 ARight LED headlamp.
150  40 APolice 6-way inline power feed 3.
155  25 ATransmission oil pump (FHEV only).
159  15 ADC/DC converter (police).
160  10 APolice tap-in power feed 3.
169  10 AMotor electric cooling pump (FHEV only).
170  10 ATraction battery cooling pump (FHEV only).
177  10 ANot used (spare).

Passenger Compartment

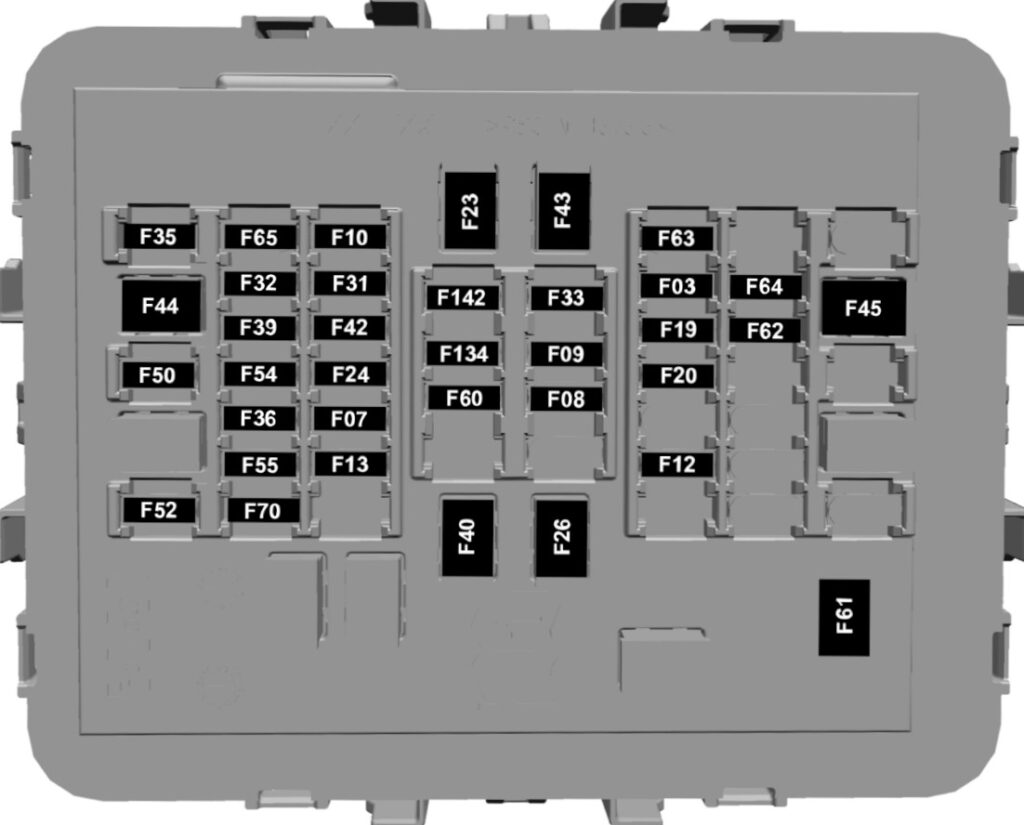

Assignment of the fuses in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
3  7.5 AWireless accessory charging module / Driver seat switch / Lumbar motor
7  7.5 AGear shift module / Not used (police)
8  7.5 AEmbedded modem
9  5 ADriver keypad / Rear climate control module
10  15 ADriver multi-contour seat module / Passenger multi-contour seat module / Not used (police)
12  5 AClimate control module
13  7.5 ASteering column control module
19  7.5 ANot used (spare)
20  5 AHeadlamp switch / Ignition switch (police) / Key inhibit solenoid (police)
23  60 ADriver door module
24  30 AGlass roof / Not used (police)
26  60 APassenger door module
31  10 ATerrain management switch / Enhanced central gateway / Radio transceiver module
32  20 ARadio
33  7.5 AInstrument cluster
35  15 ACenter display / Integrated computer screen (police)
36  5 ANot used (spare)
39  5 APower liftgate module / Driver status monitor camera / Not used (police)
40  60 ANot used (spare)
42  15 APhoenix module / Not used (spare) / Integrated control panel
43  30 APower liftgate module / Not used (police)
44  30 ADriver seat motors
45  30 APassenger seat motors
50  10 ARear wig-wag module (police)
52  5 AAll wheel drive module
54  5 ALow gear select (police)
55  5 AAuto dimming rear view mirror / Not used (police)
60  10 AGlass roof / Power inverter / Police tap-in (delayed accessory)
61  30 ARear power windows.
62  20 ANot used (spare)
63  20 ANot used (spare)
64  20 ANot used (spare)
65  20 ANot used (spare)
70  20 AAdvanced driver assistance system
134  10 ANot used (spare)
142  5 ANot used (spare)
