The third-generation Ford F-Series Super Duty , designed for heavy-duty performance, towing, and commercial applications , was produced from 2011 to 2016 . Featuring powerful engine options, an upgraded chassis, and advanced towing capabilities , the F-250, F-350, F-450, and F-550 models remain a preferred choice for businesses, fleet operators, and off-road enthusiasts.
In this article, you will find fuse box diagrams for Ford F-250, F-350, F-450, and F-550 models produced between 2011 and 2016 , covering years 2011, 2012, 2013, 2014, 2015, and 2016 . These diagrams provide essential details about the fuse layout , helping truck owners, mechanics, and fleet managers locate and understand the function of each fuse and relay .
What’s Included:
Fuse Box Diagrams – Clear and detailed visuals to help identify fuses, relays, and circuit breakers .Fuse Panel Locations – Step-by-step guidance on where to find the fuse panels inside the Ford Super Duty trucks.Fuse Assignments – Comprehensive descriptions of each fuse and relay function for accurate diagnostics and troubleshooting.
Whether you’re searching for the fuse panel layout , replacing a blown fuse , or diagnosing an electrical issue , this guide is an essential resource. It ensures that your Ford F-Series Super Duty electrical system remains functional and reliable for work, towing, and heavy-duty applications .
Keep your Ford F-250, F-350, F-450, and F-550 (2011–2016) operating at peak performance with this detailed fuse box, fuse panel, and relay guide!

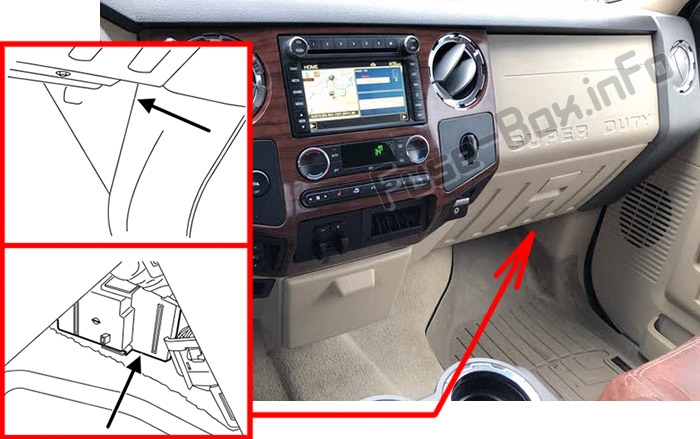

The fuse panel is located in the passenger’s footwell behind the cover.
The power distribution box is located in the engine compartment.
The upfitter option package includes four switches located in the center of the instrument panel. These switches will function only when the ignition is turned on, regardless of whether the engine is running. However, it is advisable to keep the engine running to ensure battery charge is maintained during prolonged use or when drawing higher current. This recommendation is particularly crucial for vehicles equipped with diesel engines, as glow plugs also consume battery power while the ignition key remains in the on position.
When activated, they deliver 8 amps, 12 amps, or 20 amps of electrical power from the battery for various personal or commercial applications.
A relay box will be positioned at the driver’s side end of the instrument panel. Please consult your authorized dealer for assistance. Additionally, there will be a power lead for each switch, presented as a blunt-cut and sealed wire situated beneath the instrument panel, to the left of the steering column.
Assignment of the fuses in the Passenger compartment (2011-2013)
№ Amp rating Protected circuits 1 30A Not used (spare) 2 15A Upfitter relay #4 3 30A Smart window motor 4 10A Interior lights, Hood lamp 5 20A Moonroof 6 5A Driver seat module 7 7.5A Driver seat switch, Driver lumbar motor 8 10A Power mirror switch 9 10A Upfitter relay #3 10 10A Run/accessory relay, Customer access feed 11 10A Instrument cluster 12 15A Interior lighting, Lighted running board lamps 13 15A Right turn signals and brake lamps, Right trailer tow stop turn relay 14 15A Left turn signals and brake lamps, Left trailer tow stop turn relay 15 15A High-mounted stop lamps, Backup lamps, Trailer tow backup relay, Reverse signal interior mirror 16 10A Right low beam headlamp 17 10A Left low beam headlamp 18 10A Keypad illumination, Passive anti-theft indicator, Powertrain control module, Brake shift interlock 19 20A Subwoofer, Amplifier 20 20A Power door locks 21 10A Brake on/off switch 22 20A Horn 23 15A Not used (spare) 24 15A Steering wheel control module, Diagnostic connector, Power fold mirror relay, Remote keyless entry, Electronic finish panel 25 15A Not used (spare) 26 5A Steering wheel control module 27 20A Not used (spare) 28 15A Ignition switch 29 20A SYNC, GPS module, Radio faceplate 30 15A Parking lamp relay, Trailer tow parking lamp relay 31 5A Trailer brake controller (brake signal), Customer access 32 15A Moonroof motor, Telescoping mirror switch, Auto dimming mirrors, Power inverter, Driver and passenger door lock switch illumination, Rear heated seat switch illumination 33 10A Restraint control module 34 10A Heated steering wiieel module, Rear heated seats module 35 5A Select shift switch, Reverse park aid module, Trailer brake control module 36 10A Fuel tank select switch 37 10A PTC heater 38 10A AM/FM radio faceplate 39 15A High beam headlamps 40 10A Parking lamps (in mirrors), Roof marker lamps 41 7.5A Passenger airbag deactivation indicator 42 5A Not used (spare) 43 10A Wiper relay 44 10A Upfitter swatches 45 5A Not used (spare) 46 10A Climate control 47 15A Fog lamps, Fog lamp indicator (in switch) 48 30A Circuit Breaker Power windows switch, Power rear sliding window swatch 49 Relay Delayed accessory
Login or Register to view this content
Assignment of the fuses in the Power distribution box (2011-2013)
№ Amp rating Protected circuits 1 Relay Blower motor 2 — Not used 3 Relay Urea heaters (diesel engine) 4 — Not used 5 Relay Rear window defroster, Heated mirrors 6 — Not used 7 50A* Rear window defroster, Heated mirrors 8 30A* Passenger seat 9 30A* Driver seat 10 — Not used 11 — Not used 12 30A* Smart window motor 13 — Not used 14 — Not used 15 Diode Fuel pump (diesel engine) 16 — Not used 17 15A** Heated mirror 18 — Not used 19 — Not used 20 — Not used 21 — Not used 22 30A* Trailer tow electric brake 23 40A* Blower motor 24 — Not used 25 30A* Wipers 26 30A* Trailer tow park lamps 27 25A* Urea heaters (diesel engine) 28 — Buss bar 29 Relay Trailer tow park lamps 30 Relay A/C clutch 31 Relay Wipers 32 — Not used 33 15 A** Vehicle power 1 34 15 A** Vehicle power 2 (diesel engine) 34 20A** Vehicle power 2 (gas engine) 35 10A** Vehicle power 3 36 15A** Vehicle power 4 (diesel engine) 36 20A** Vehicle power 4 (gas engine) 37 10 A** Vehicle power 5 (diesel engine) 38 Relay Powertrain control module (diesel engine), Electronic control module (gas engine) 39 10 A** 4×4 hub lock 40 15A** 4×4 electronic lock 41 — Not used 42 20A** Rear heated seats 43 — Not used 44 — Not used 45 10 A** Run/start relay coil 46 10 A** Transmission control module keep-alive power (diesel engine) 47 10 A** A/C clutch feed 48 Relay Run/start 49 10 A** Rearview camera system 50 10 A** Blower motor relay coil 51 — Not used 52 10 A** Powertrain control module / Electronic control module / Transmission control module run/start 53 10 A** 4×4 module 54 10 A** Anti-lock brake system run/start 55 10 A** Rear window defroster coil, Battery charge coil 56 20A** Passenger compartment fuse panel run/start feed 57 Relay Fuel pump 58 — Not used 59 — Not used 60 — Not used 61 — Not used 62 — Not used 63 — Not used 64 — Not used 65 — Not used 66 20A** Fuel pump 67 — Not used 68 10A** Fuel pump relay coil 69 — Not used 70 10A** Trailer tow backup lamp 71 10A** Canister vent (gas engine) 72 10A** Powertrain control module / Electronic control module relay coil feed keep-alive power 73 — Not used 74 Relay Trailer tow left-hand stop/turn 75 Relay Trailer tow right-hand stop/turn 76 Relay Backup lamp 77 — Not used 78 — Not used 79 — Not used 80 — Not used 81 — Not used 82 20 A* Auxiliary power point #2 83 20 A* Auxiliary power point #1 84 30A* 4×4 shift motor 85 30A* Heated/cooled seats 86 25A* Anti-lock brake system coil feed 87 20 A* Auxiliary power point #5 88 20 A* Auxiliary power point #6 89 40 A* Starter motor 90 25 A* Trailer tow battery charge 91 — Not used 92 20 A* Auxiliary power point #4 93 20 A* Auxiliary power point #3 94 25 A* Upfitter #1 95 25 A* Upfitter #2 96 50A* Anti-lock brake system pump 97 40 A* Inverter 98 — Not used 99 40 A* Instrument panel power inverter 100 25 A* Trailer tow turn signals 101 Relay Starter 102 Relay Trailer tow battery charge 103 — Not used 104 — Not used 105 — Not used 106 — Not used 107 — Not used * Cartridge fuses
Login or Register to view this content
Switch Circuit Number Wire Color Amp Rating AUX 1 CAC05 Yellow 25A AUX 2 CAC06 Green with Brown Trace 25A AUX 3 CAC07 Violet with Green Trace 10A AUX 4 CAC08 Brown 15A
Login or Register to view this content
Assignment of the fuses in the Passenger compartment (2014)
№ Amp rating Protected components 1 30A Not used (spare) 2 15A Auxiliary switch relay #4 3 30A Passenger smart window motor 4 10A Interior lights, Hood lamp 5 20A Moonroof 6 5A Driver seat module 7 7.5 A Driver seat switch, Driver lumbar motor 8 10A Power mirror switch 9 10A Auxiliary switch relay #3 10 10A Run/accessory relay, Customer access feed 11 10A Instrument cluster 12 15A Interior lighting, Lighted running board lamps 13 15A Right turn signals and brake lamps, Right trailer tow stop turn relay 14 15A Left turn signals and brake lamps, Left trailer tow stop turn relay 15 15A High-mounted stop lamps, Backup lamps, Trailer tow backup relay, Reverse signal interior mirror 16 10A Right low beam headlamp 17 10A Left low beam headlamp 18 10A Keypad illumination, Passive anti-theft transceiver, Powertrain control module, Brake shift interlock 19 20A Subwoofer, Amplifier 20 20A Power door locks 21 10A Brake on/off switch 22 20A Horn 23 15A Not used (spare) 24 15A Steering wheel control module, Diagnostic connector, Power fold mirror relay, Remote keyless entry, Electronic finish panel 25 15A Not used (spare) 26 5A Steering wheel control module 27 20A Not used (spare) 28 15A Ignition switch 29 20A SYNC, GPS module, Radio faceplate 30 15A Parking lamp relay, Trailer tow parking lamp relay 31 5A Trailer brake controller (brake signal), Customer access 32 15A Moonroof motor, Telescoping mirror switch, Auto dimming mirrors, Power inverter, Driver and passenger door lock switch illumination, Rear heated seat switch illumination, Driver and passenger smart window motor, Passenger window switch 33 10A Restraint control module 34 10A Heated steering wheel module, Rear heated seats module 35 5A Select shift switch, Reverse park aid module, Trailer brake control module 36 10A Fuel tank select switch 37 10A Positive temperature coefficient heater 38 10A AM/FM radio faceplate 39 15A High beam headlamps 40 10A Parking lamps (in mirrors), Roof marker lamps 41 7.5 A Passenger airbag deactivation indicator 42 5A Not used (spare) 43 10A Wiper relay 44 10A Auxiliary switches 45 5A Not used (spare) 46 10A Climate control 47 15A Fog lamps, Fog lamp indicator (in switch) 48 30A Circuit breaker Power windows switch, Power rear sliding window switch, Moonroof switch 49 Relay Delayed accessory
Login or Register to view this content
Assignment of the fuses in the Power distribution box (2014)
№ Amp rating Protected components 1 Relay Blower motor 2 — Not used 3 Relay Urea heaters (diesel engine) 4 — Not used 5 Relay Rear window defroster, Heated mirrors 6 — Not used 7 50A* Rear window defroster, Heated mirrors 8 30 A* Passenger seat 9 30 A* Driver seat 10 — Not used 11 — Not used 12 30 A* Driver smart window motor 13 — Not used 14 — Not used 15 Diode Fuel pump (diesel engine) 16 — Not used 17 15A** Heated mirror 18 — Not used 19 — Not used 20 — Not used 21 — Not used 22 30 A* Trailer tow electric brake 23 40A* Blower motor 24 — Not used 25 30 A* Wipers 26 30 A* Trailer tow park lamps 27 25 A* Urea heaters (diesel engine) 28 — Buss bar 29 Relay Trailer tow park lamps 30 Relay A/C clutch 31 Relay Wipers 32 — Not used 33 15A** Vehicle power 1 34 15A** Vehicle power 2 (diesel engine) 34 20A** Vehicle power 2 (gas engine) 35 10 A** Vehicle power 3 36 15A** Vehicle power 4 (diesel engine) 36 20A** Vehicle power 4 (gas engine) 37 10A** Vehicle power 5 (diesel engine) 38 Relay Powertrain control module (diesel engine), Electronic control module (gas engine) 39 10A** 4×4 hub lock 40 15A** 4×4 electronic lock 41 — Not used 42 20A** Rear heated seats 43 — Not used 44 — Not used 45 10A** Run/start relay coil 46 10A** Transmission control module keep-alive power (diesel engine) 47 10A** A/C clutch feed 48 Relay Run/start 49 10A** Rearview camera system 50 10A** Blower motor relay coil 51 — Not used 52 10A** Powertrain control module, Electronic control module, Transmission control module run/start 53 10A** 4×4 module 54 10A** Anti-lock brake system run/start 55 10A** Rear window defroster coil, Battery charge coil 56 20A** Passenger compartment fuse panel run/ start feed 57 Relay Fuel pump 58 — Not used 59 — Not used 60 — Not used 61 — Not used 62 — Not used 63 — Not used 64 — Not used 65 — Not used 66 20A** Fuel pump 67 — Not used 68 10 A** Fuel pump relay coil 69 — Not used 70 10 A** Trailer tow backup lamp 71 10 A** Canister vent (gas engine) 72 10 A** Powertrain control module, Electronic control module relay coil feed keep-alive power 73 — Not used 74 Relay Trailer tow left-hand stop/turn 75 Relay Trailer tow right-hand stop/turn 76 Relay Trailer tow backup lamp 77 — Not used 78 — Not used 79 — Not used 80 — Not used 81 — Not used 82 20A* Auxiliary power point #2 83 20A* Auxiliary power point #1 84 30 A* 4×4 shift motor 85 30 A* Heated/cooled seats 86 25 A* Anti-lock brake system coil feed 87 20A* Auxiliary power point #5 88 20A* Auxiliary power point #6 89 40A* Starter motor 90 25 A* Trailer tow battery charge 91 — Not used 92 20A* Auxiliary power point #4 93 20A* Auxiliary power point #3 94 25 A* Auxiliary switch #1 95 25 A* Auxiliary switch #2 96 50A* Anti-lock brake system pump 97 40A* Inverter 98 — Not used 99 40A* Instrument panel power inverter 100 25 A* Trailer tow turn signals 101 Relay Starter 102 Relay Trailer tow battery charge 103 — Not used 104 — Not used 105 — Not used 106 — Not used 107 — Not used * Cartridge fuses
Login or Register to view this content
Assignment of the fuses in the Passenger compartment (2015-2016)
№ Amp rating Protected components 1 30A Not used (spare) 2 15A Auxiliary switch relay #4 3 30A Passenger smart window motor 4 10A Hood lamp Interior lights 5 20A Moonroof 6 5A Driver seat module 7 7.5 A Driver lumbar motor Driver seat switch 8 10A Power mirror switch 9 10A Auxiliary switch relay #3 10 10A Customer access feed Run/accessory relay 11 10A Instrument cluster 12 15A Interior lighting Lighted running board lamps 13 15A Right turn signals and brake lamps 14 15A Left turn signals and brake lamps 15 15A Backup lamps, Trailer tow backup relay High-mounted stop lamps Reverse signal interior mirror 16 10A Right low beam headlamp 17 10A Left low beam headlamp 18 10A Brake shift interlock Keypad illumination Passive anti-theft transceiver Powertrain control module 19 20A Amplifier Subwoofer 20 20A Power door locks 21 10A Brake on/off switch 22 20A Horn 23 15A Not used (spare) 24 15A Diagnostic connector Electronic finish panel Power fold mirror relay Remote keyless entry Steering wheel control module 25 15A Not used (spare) 26 5A Steering wheel control module 27 20A Not used (spare) 28 15A Ignition switch 29 20A GPS module Radio SYNC 30 15A Parking lamp relay Trailer tow parking lamp relay 31 5A Customer access Trailer brake controller (brake signal) 32 15A Auto dimming mirror Driver and passenger door lock switch illumination Driver and passenger smart window motor Moonroof motor Passenger window switch Power inverter Rear heated seat switch illumination Telescoping mirror switch 33 10A Restraint control module 34 10A Heated steering wheel module Rear heated seats module 35 5A Reverse park aid module Select shift switch Trailer brake control module 36 10A Fuel tank select switch 37 10A Positive temperature coefficient heater 38 10A AM/FM base radio 39 15A High beam headlamps 40 10A Parking lamps (in mirrors) Roof marker lamps 41 7.5 A Passenger airbag deactivation indicator 42 5A Not used (spare) 43 10A Wiper relay 44 10A Auxiliary switches 45 5A Not used (spare) 46 10A Climate control 47 15A Fog lamps Fog lamp indicator (in switch) 48 30A Circuit breaker Power rear sliding window switch Power windows switch Moonroof switch 49 Relay Delayed accessory
Login or Register to view this content
Assignment of the fuses in the Power distribution box (2015-2016)
№ Amp rating Protected components 1 Relay Blower motor 2 — Not used 3 Relay Urea heaters (diesel engine) 4 — Not used 5 Relay Heated mirrors Rear window defroster 6 — Not used 7 50A* Heated mirrors Rear window defroster 8 30 A* Passenger seat 9 30 A* Driver seat 10 40A* Trailer tow 11 — Not used 12 30 A* Driver smart window motor 13 — Not used 14 — Not used 15 Diode Fuel pump (diesel engine) 16 — Not used 17 15A** Heated mirror 18 — Not used 19 — Not used 20 — Not used 21 — Not used 22 30 A* Trailer tow electric brake 23 40A* Blower motor 24 — Not used 25 30 A* Wipers 26 30 A* Trailer tow park lamps 27 25 A* Urea heaters (diesel engine) 28 — Buss bar 29 Relay Trailer tow park lamps 30 Relay A/C clutch 31 Relay Wipers 32 — Not used 33 15A** Vehicle power 1 34 15A** Vehicle power 2 (diesel engine) 34 20A** Vehicle power 2 (gas engine) 35 10A** Vehicle power 3 36 15A** Vehicle power 4 (diesel engine) 36 20A** Vehicle power 4 (gas engine) 37 10 A** Vehicle power 5 (diesel engine) 38 Relay Electronic control module (diesel engine) Powertrain control module (gas engine) 39 10 A** 4×4 hub lock 40 15A** 4×4 electronic lock 41 — Not used 42 20A** Rear heated seats 43 — Not used 44 — Not used 45 10 A** Run/start relay coil 46 10 A** Transmission control module keep-alive power (diesel engine) 47 10 A** A/C clutch feed 48 Relay Run/start 49 10 A** Rearview camera system 50 10 A** Blower motor relay coil 51 — Not used 52 10 A** Electronic control module Powertrain control module, Transmission control module run/start 53 10 A** 4×4 module 54 10 A** Anti-lock brake system run/start 55 10 A** Rear window defroster coil 56 20A** Passenger compartment fuse panel run/ start feed 57 Relay Fuel pump 58 — Not used 59 — Not used 60 — Not used 61 — Not used 62 — Not used 63 — Not used 64 — Not used 65 — Not used 66 20A** Fuel pump 67 — Not used 68 10A** Fuel pump relay coil 69 — Not used 70 10A** Trailer tow backup lamp 71 10A** Canister vent (gas engine) 72 10A** Electronic control module relay coil feed keep-alive power Powertrain control module 73 — Not used 74 — Not used 75 — Not used 76 Relay Trailer tow backup lamp 77 — Not used 78 — Not used 79 — Not used 80 — Not used 81 — Not used 82 20A* Auxiliary power point #2 83 20A* Auxiliary power point #1 84 30 A* 4×4 shift motor 85 30 A* Heated/cooled seats 86 25 A* Anti-lock brake system coil feed 87 20A* Auxiliary power point #5 88 20A* Auxiliary power point #6 89 40A* Starter motor 90 25 A* Trailer tow battery charge 91 — Not used 92 20A* Auxiliary power point #4 93 20A* Auxiliary power point #3 94 25 A* Auxiliary switch #1 95 25 A* Auxiliary switch #2 96 50A* Anti-lock brake system pump 97 40A* Inverter 98 — Not used 99 40A* Instrument panel power inverter 100 — Not used 101 Relay Starter 102 — Not used 103 — Not used 104 — Not used 105 — Not used 106 — Not used 107 — Not used * Cartridge fuses
