The Ford Mustang Mach-E , a compact electric crossover SUV, has been available from 2020 to 2025 . Combining iconic Mustang styling with cutting-edge electric technology, the Mach-E offers impressive performance, sustainability, and innovation for drivers seeking a modern driving experience.
In this article, you will find fuse box diagrams for Ford Mustang Mach-E models produced between 2020 and 2025 , including years 2020, 2021, 2022, 2023, 2024, and 2025 . These diagrams provide essential information about the fuse layout , helping owners and technicians troubleshoot and maintain the vehicle’s electrical systems effectively.
What’s Included:
Fuse Box Diagrams : Clear, detailed visuals for quick identification of fuses and relays.Fuse Panel Locations : Step-by-step guidance on where to locate the fuse panels inside your Ford Mustang Mach-E.Fuse Assignments : Comprehensive descriptions of the purpose of each fuse and relay for accurate diagnostics and repairs.
Whether you are addressing an electrical issue, replacing a blown fuse, or performing routine maintenance, this guide is an invaluable resource for Ford Mustang Mach-E owners and technicians. It ensures your vehicle’s systems remain functional and reliable.
Keep your Ford Mustang Mach-E (2020–2025) performing at its best with this detailed fuse box guide!
Remove the luggage compartment cover.
Pull the latch toward you and remove the top cover.
Pull the connector lever upward.
Pull the connector upward to remove it.
Pull both latches toward you and remove the fuse box.
Turn the fuse box over and open the lid.

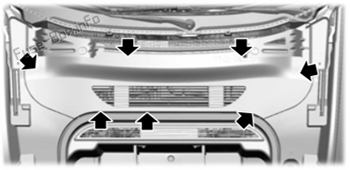

Installing and removing the luggage compartment cover
Rear Luggage Compartment Cover
Start at the rear edge of the left-hand side.
Pull upward at the clip locations shown to release the clips.
Remove the cover.
To install, reverse the removal procedure.

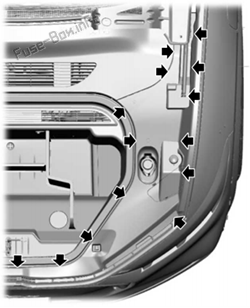

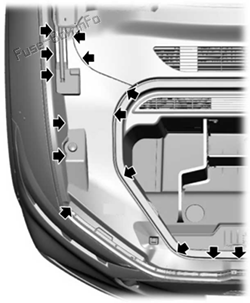

Left-Hand / Right-Hand Luggage Compartment Covers
Start at the rear edge of the right-hand side (or the left-hand side) and work toward the front of the cover.
Pull upward at the clip locations shown to release the clips.
Remove the cover.
To install, reverse the removal procedure.

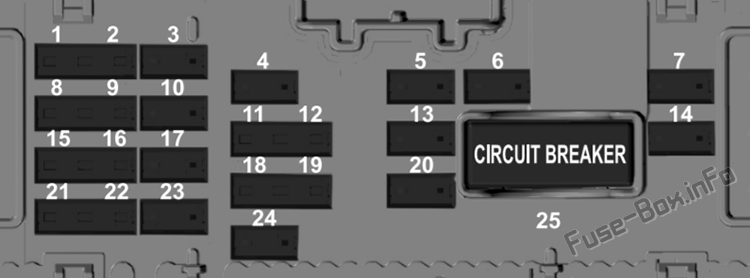

Assignment of the fuses in the BCM Fuse Box
№ Rating Protected Component 1 5 A Not used. 2 5 A Not used. 3 10 A Extended power module. 4 10 A Multi-function display. 5 20 A Not used. 6 10 A Not used. 7 30 A Passenger door module. 8 5 A Not used. 9 5 A Auto-dimming exterior mirror. 10 10 A Extended power module. 11 5 A Power liftgate. 12 5 A Anti-theft alarm. 13 15 A Not used. 14 30 A Driver door module. 15 15 A Not used. 16 15 A Active suspension (GT). 17 15 A SYNC. 18 7.5 A Wireless accessory charging module. 19 7.5 A Headlamp switch pack. 20 10 A Anti-theft alarm horn. 21 7.5 A Gateway module. 22 7.5 A Instrument cluster. 23 20 A Audio unit. 24 20 A Not used. 25 30 A CB Not used.
Login or Register to view this content

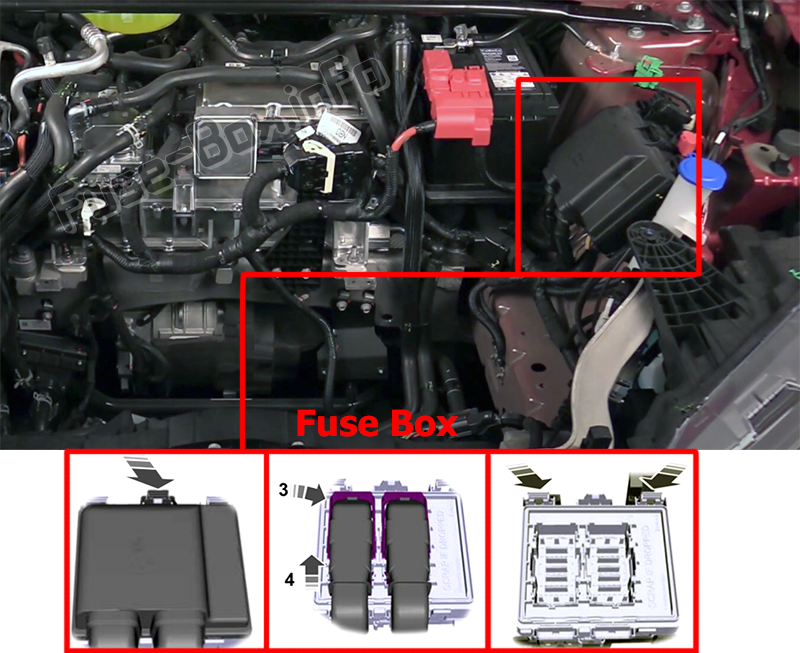

Assignment of the fuses in the Under Hood Fuse Box

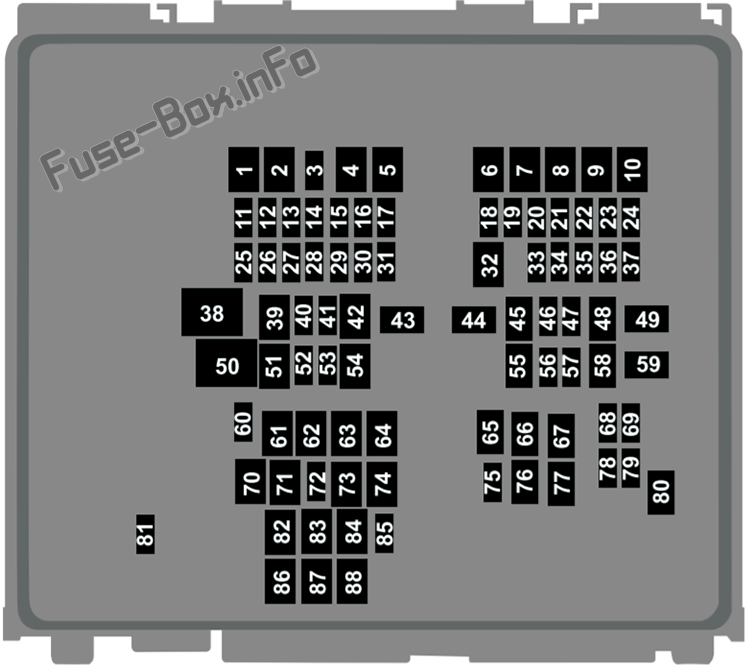

№ Rating Protected Component 1 – Not used. 2 40 A Not used (spare). 3 15 A Windshield wiper heater. 4 40 A Not used (spare). 5 – Not used. 6 – Not used. 7 – Not used. 8 – Not used. 9 – Not used. 10 – Not used. 11 15 A Powertrain control module. 12 – Not used. 13 15 A AC electric compressor. 14 15 A Secondary drive unit transmission oil pump (GT). 15 – Not used. 16 10 A Battery charge control module. 17 – Not used. 18 10 A Powertrain control module. 19 10 A Brake system control module. 20 5 A Charge port status indicator. 21 5 A Front luggage compartment actuator relay coil. 22 20 A Amplifier. 23 20 A Rear driver side electronic door. 24 – Not used. 25 25 A Left-hand enhanced headlamps. 26 25 A Right-hand enhanced headlamps. 27 5 A Keep alive power. 28 5 A Front luggage compartment actuator relay coil. 29 5 A DC/DC converter. 30 – Not used. 31 5 A Electronic power assist steering. 32 30 A Body control module. 33 20 A Advanced driver assistance system. 34 10 A Headlamp control module. 35 15 A Heated steering wheel. 36 10 A Primary hybrid powertrain control module. 37 20 A Horn. 38 40 A Blower motor. 39 – Not used. 40 – Not used. 41 20 A Amplifier. 42 30 A Driver power seat. 43 40 A Anti-lock brake system valves. 44 60 A Auxiliary power distribution box. 45 30 A Passenger power seat. 46 – Not used. 47 – Not used. 48 – Not used. 49 60 A Anti-lock brake system pump. 50 60 A Cooling fan. 51 – Not used. 52 5 A USB port. 53 – Not used. 54 – Not used. 55 30 A Heated seats. 56 20 A Front luggage compartment module. 57 10 A Data link connector. 58 – Not used. 59 40 A Body control module. 60 – Not used. 61 20 A Auxiliary power point. 62 – Not used. 63 – Not used. 64 30 A Power liftgate. 65 30 A Vehicle dynamics module. 66 – Not used. 67 – Not used. 68 5 A Battery electronic control module. 69 20 A Rear passenger side electronic door. 70 – Not used. 71 20 A Auxiliary power point. 72 20 A Rear window wiper. 73 – Not used. 74 30 A Windshield wiper motor. 75 – Not used. 76 30 A Heated rear window. 77 – Not used. 78 20 A Front driver side electronic door. 79 20 A Front passenger side electronic door. 80 – Not used. 81 10 A Rear window washer pump. 82 – Not used. 83 – Not used. 84 40 A Not used (spare). 85 5 A Rain sensor. 86 – Not used. 87 – Not used. 88 – Not used.
Login or Register to view this content

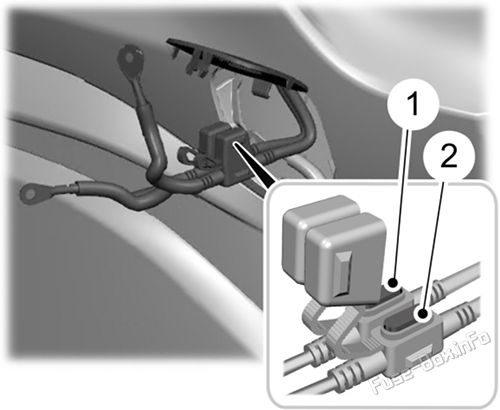

Fuses in the battery fuse box
№ Rating Protected Component 1 20 A Frunk (Front luggage compartment) 2 20 A Frunk (Front luggage compartment)
