GMC Yukon (1995-1999) Fuse Box Diagrams and Locations

Explore GMC Yukon fuse box diagrams in this clear guide that outlines the electrical layout of the original full-size SUV. In this article, we consider the first-generation GMC Yukon, produced from 1995 to 1999, and provide fuse box diagrams for GMC Yukon 1995, 1996, 1997, 1998 and 1999, along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

What’s Included

Passenger Compartment

Fuse Box Location

It is located on the driver’s side of the instrument panel, behind the cover.

The location of the fuses in the passenger compartment: Chevrolet Tahoe (1995, 1996, 1997, 1998, 1999)

Fuse Box Diagram

Fuses

Assignment of the fuses in the Instrument Panel

Fuse Data

Full access is available to registered users — log in or register.

No.	Short-Code	Description
1	STOP/HAZ	Stop/TCC Switch, Buzzer, CHMSL, Hazard Lamps, Stop Lamps
2	T CASE	Transfer Case
3	CTSY	Courtesy Lamps, Cargo Lamp, Glove Box Lamp, Dome/Reading Lamps, Vanity Mirrors, Power Mirrors
4	GAGES	1995: IP Cluster, DRL Relay, HDLP Switch, Keyless Entry, Low Coolant Module 1996-1999: Instrument Cluster, DRL Relay, Lamp Switch, Keyless Entry, Low Coolant Module, Illuminated Entry Module, DRAC (Diesel Engine)
5	RR WAC	RR HVAC Controls
6	CRUISE	Cruise Control
7	AUX PWR	Aux Power Outlet
8	CRANK	1995: Diesel Fuel Pump, DERM, ECM 1996-1997: AirBag System 1999: Crank
9	PARK LPS	1995: Lic Lamp, Park Lamp, Tail Lamp, Roof Marker Lamp, Tdi1 Gate Lamps, Front Side Markers, Door Switch Illum, Fender Lamp 1996-1999: License Lamp, Parking Lamps, Taillamps, Roof Marker Lamps, Tailgate Lamps, Front Sidemarkers, Fog Lamp Relay, Door Switch Illumination, Fender Lamps, Headlamp Switch Illumination
10	AIR BAG	1995: DERM 1996-1999: Air Bag System
11	WIPER	Wiper Motor, Washer Pump
12	HTR-A/C	A/C, A/C Blower, High Blower Relay
13	CIG LTR	Power Amp, Rear Liftglass, Cigarette Lighter, Door Lock Relay, Power Lumbar Seat
14	ILLUM	1995: 4WD, Indicator, LP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination 1996-1999: 4WD Indicator, Cluster, Front and Rear Comfort Controls, Instrument Switches, Radio Illumination, Chime Module
15	DRL-FOG	DRL Relay, Fog Lamp Relay
16	TURN-B/U	Front and Rear Turn Signals, Back-up Lamps, BTSI Solenoid
17	RADIO	Radio (Ignition)
18	BRAKE	1995: DRAC, 4WAL PCM. ABS, Cruise 1996-1999: 4WAL/VCM, ABS, Cruise Control
19	RADIO BATT	Radio (Battery)
20	TRANS	1995: PRNDL, Auto Transmission, Speedo, Check Gages Tell Tale 1996-1999: PRNDL, Automatic Transmission, Speedometer, Check Gages, Warning Lights
21		1995-1996: Not Used 1997-1999: Variable Effort Steering / Security/Steering
22		Not Used
23	RR Wiper	Rear Wiper, Rear Wash Pump
24	4WD	1995: Frt Axle, 4WD Indicator Lamp 1996-1999: Front Axle, 4WD Indicator Lamp, TP2 Relay (Gasoline Engine)

Circuit Breakers

Assignment of the circuit breakers in the Instrument Panel

Fuse Data

Full access is available to registered users — log in or register.

ID.	Short-Code	Description
A	PWR ACCY	Pwr Door Lock, 6-Way Pwr Seat, Keyless Entry Module
B	PWR WDOS	Power Windows

Engine Compartment

Fuse Box Location

It is located in the engine compartment on the driver’s side.

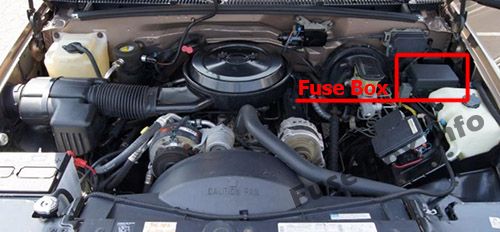

The location of the fuses in the engine compartment: Chevrolet Tahoe (1995, 1996, 1997, 1998, 1999)

Fuse Box Diagram

Fuse Data

Full access is available to registered users — log in or register.

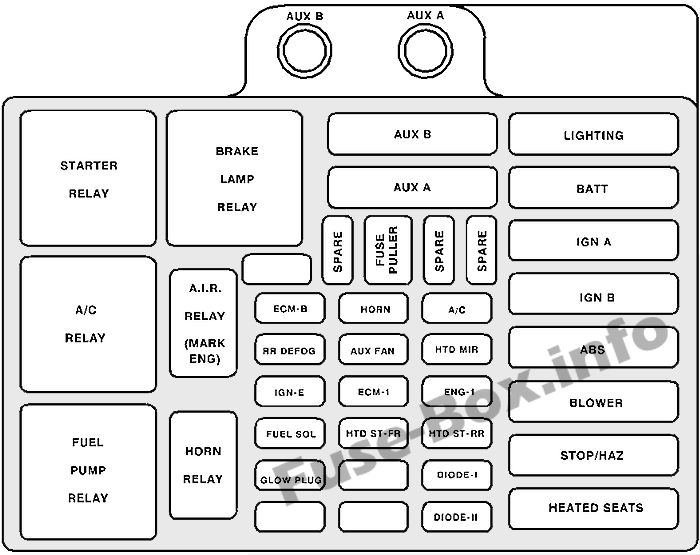

Under-hood fuse box diagram: Chevrolet Tahoe (1995, 1996, 1997, 1998, 1999)

Fuses and Relays

Assignment of the fuses and relay in the Engine Compartment (1997-1999)

Fuse Data

Full access is available to registered users — log in or register.

Short-Code	Description
ECM-B	Fuel Pump, PCM/VCM
RR DEFOG	Rear Window Defogger (If Equipped)
IGN-E	Auxiliary Fan Relay Coil, A/C Compressor Relay, Hot Fuel Module
FUEL SOL	Fuel Solenoid (Diesel Engine)
GLOW PLUG	Glow plugs (Diesel Engine)
HORN	Horn, Underhood Lamps
AUX FAN	Auxiliary Fan
ECM-1	Injectors, PCM/VCM
HTD ST-FR	Heated Front Seats
A/C	Air Conditioning
HTD MIR	Heated Outside Mirrors (If Equipped)
ENG-1	Ignition Switch, EGR, Canister Purge, EVRV Idle Coast Solenoid, Heated O2, Fuel Heater (Diesel Engine), Water Sensor (Diesel Engine)
HTD ST-RR	Not Used
LIGHTING	Headlamp and Panel Dimmer Switch, Fog and Courtesy Fuses
BATT	Battery, Fuse Block Busbar
IGN-A	Ignition Switch
IGN-B	Ignition Switch
ABS	Anti-Lock Brake Module
BLOWER	Hi Blower and Rear Blower Relays
STOP/HAZ	Stoplamps
HEATED SEATS	Heated Seats (If Equipped)

FAQ

Which fuses control the cigar lighter and power outlet in a GMC Yukon?

They are in the passenger compartment fuse box:
Fuse №7 – “AUX PWR” (Auxiliary power outlet)
Fuse №13 – “CIG LTR” (Cigarette lighter)
